Garvee 1 Ton Electric Hoist Beam Trolley, 2200 lb Adjustable I Beam Trolley, Fits PA200 to PA500 Hoists, Blue
Garvee 1 Ton Electric Hoist Beam Trolley, 2200 lb Adjustable I Beam Trolley, Fits PA200 to PA500 Hoists, Blue

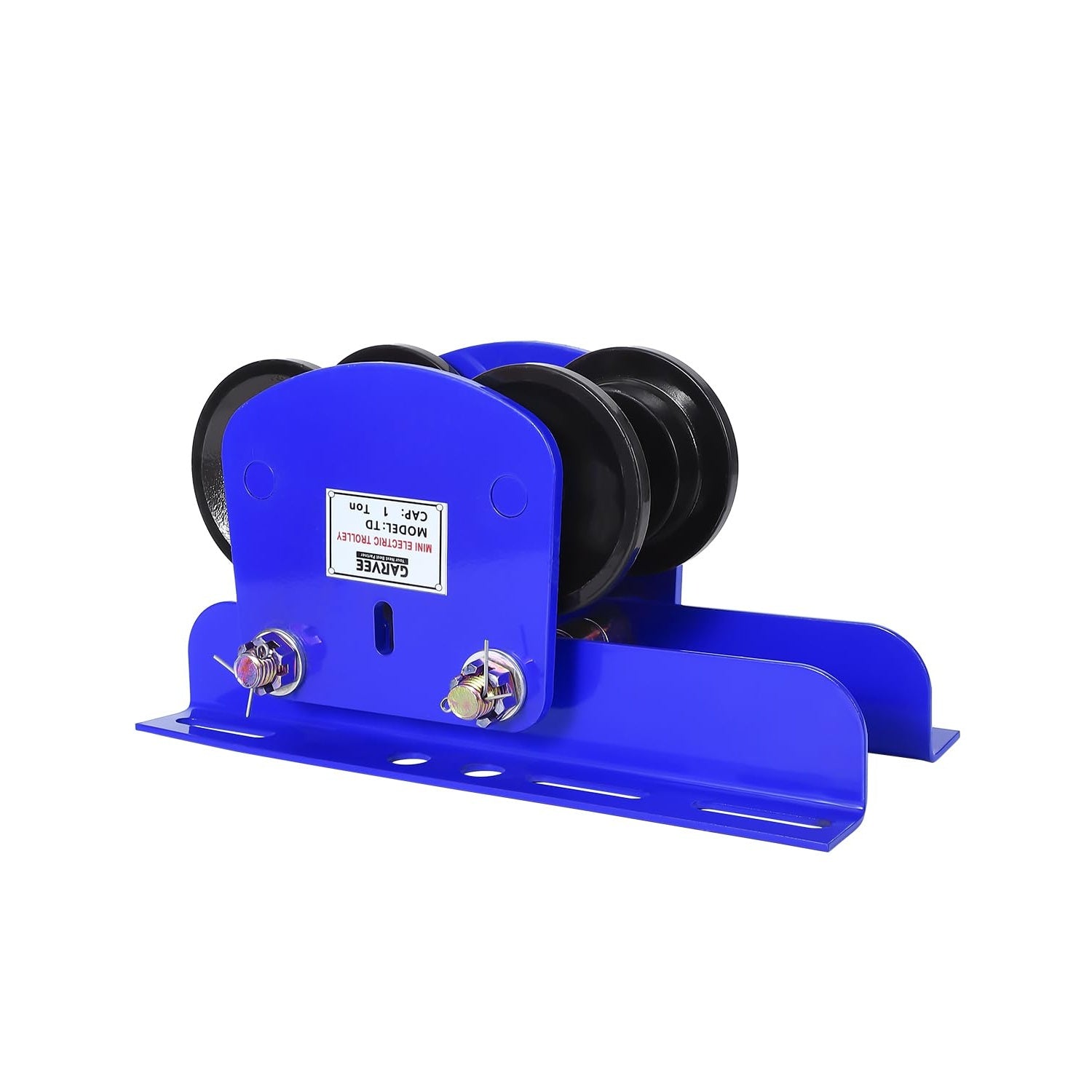

1 Ton Electric Hoist Beam Trolley for Controlled Load Positioning
Add horizontal travel to a compatible PA-Series electric hoist with an adjustable alloy steel trolley made for I-beam and H-beam systems. The double-wheel structure supports smoother positioning across compatible straight and curved beam paths.
Position Loads Along the Beam
Mount a compatible electric hoist beneath the trolley to create a movable lifting point for horizontal positioning along a suitable overhead beam.

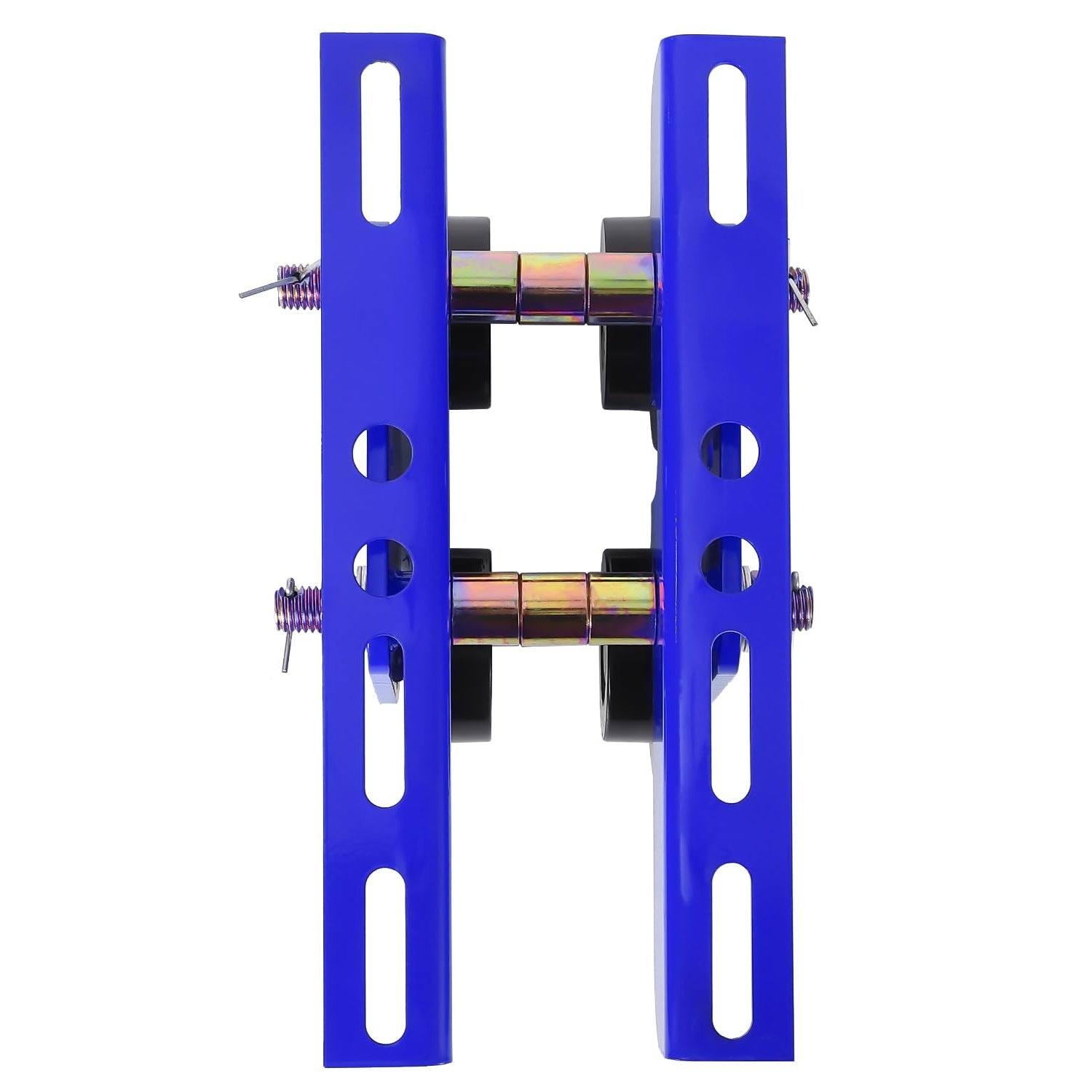

Adjust the Width to Match the Beam

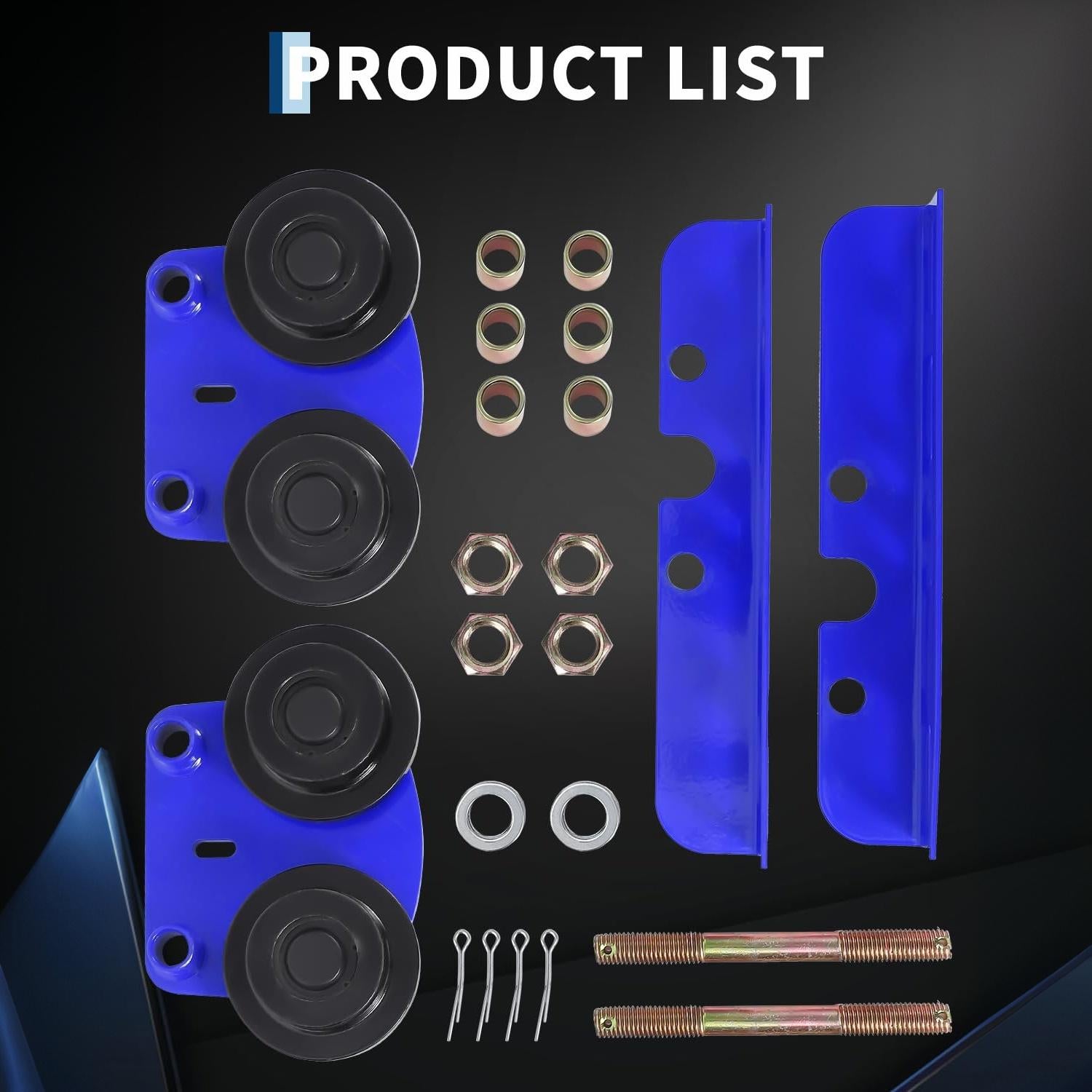

The trolley adjusts for beam flange widths from 2.68 to 4.33 inches. Included adjustment washers and spacing hardware help fine-tune the fit before installation.

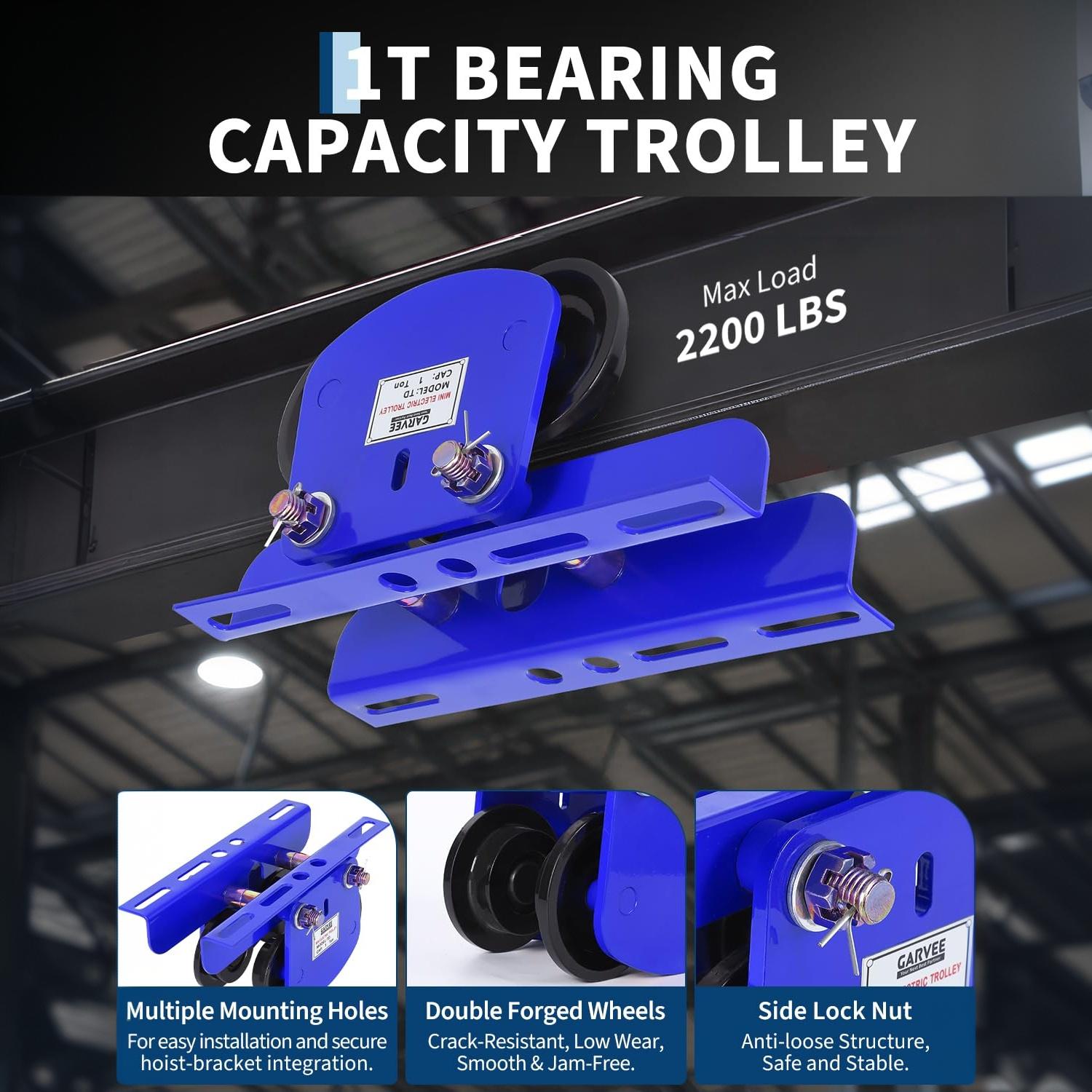

Travel with a Double-Wheel Structure
Dual wheels support stable movement across compatible straight or curved beam tracks, making it easier to position the hoist within the work area.

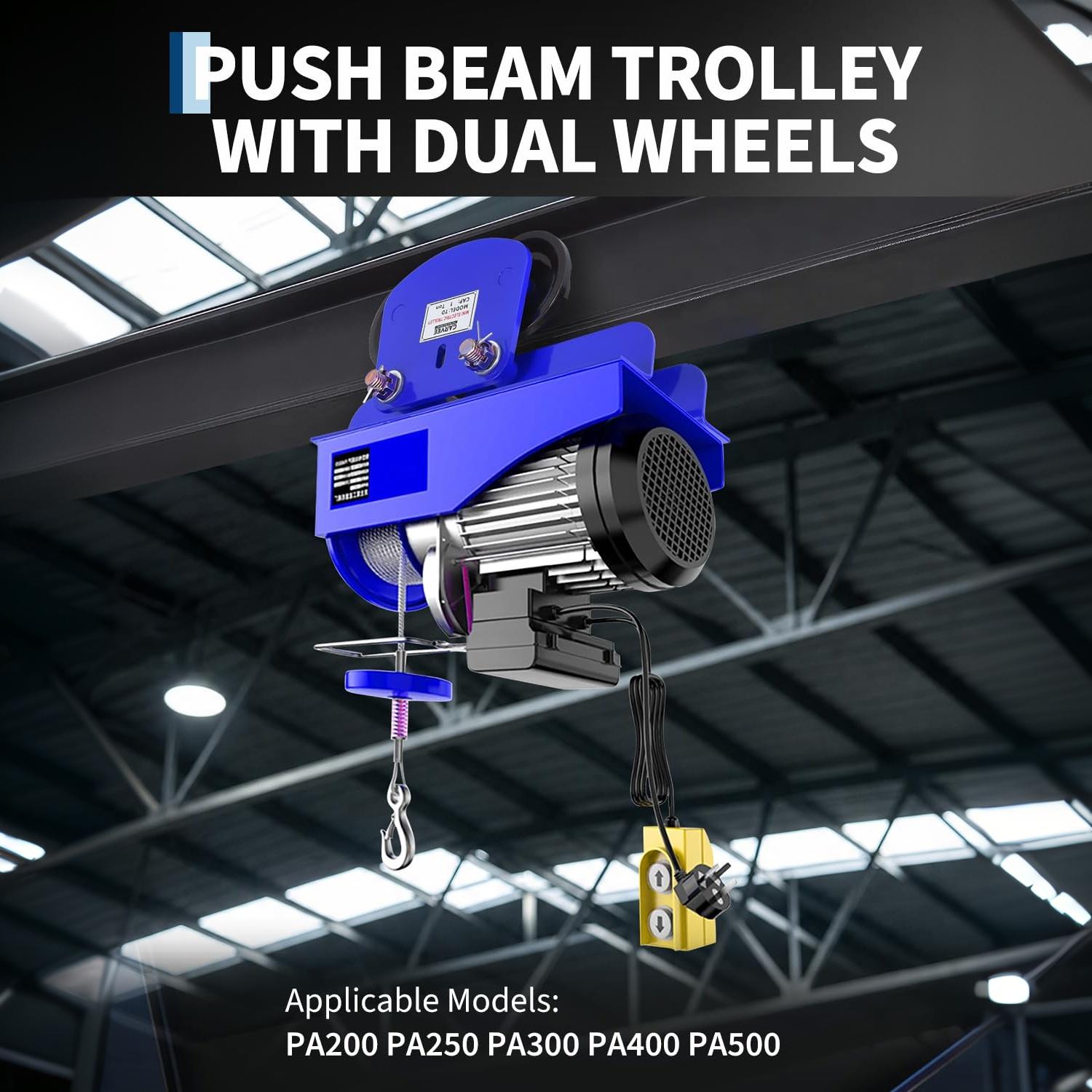

Connect Compatible PA-Series Hoists
The mounting configuration is designed for PA200, PA250, PA300, PA400, and PA500 electric hoists without requiring additional adapters or product modifications.
Designed for Overhead Material Handling
Use this adjustable beam trolley with a compatible electric hoist where lifting and horizontal load positioning are needed along an I-beam or H-beam track.

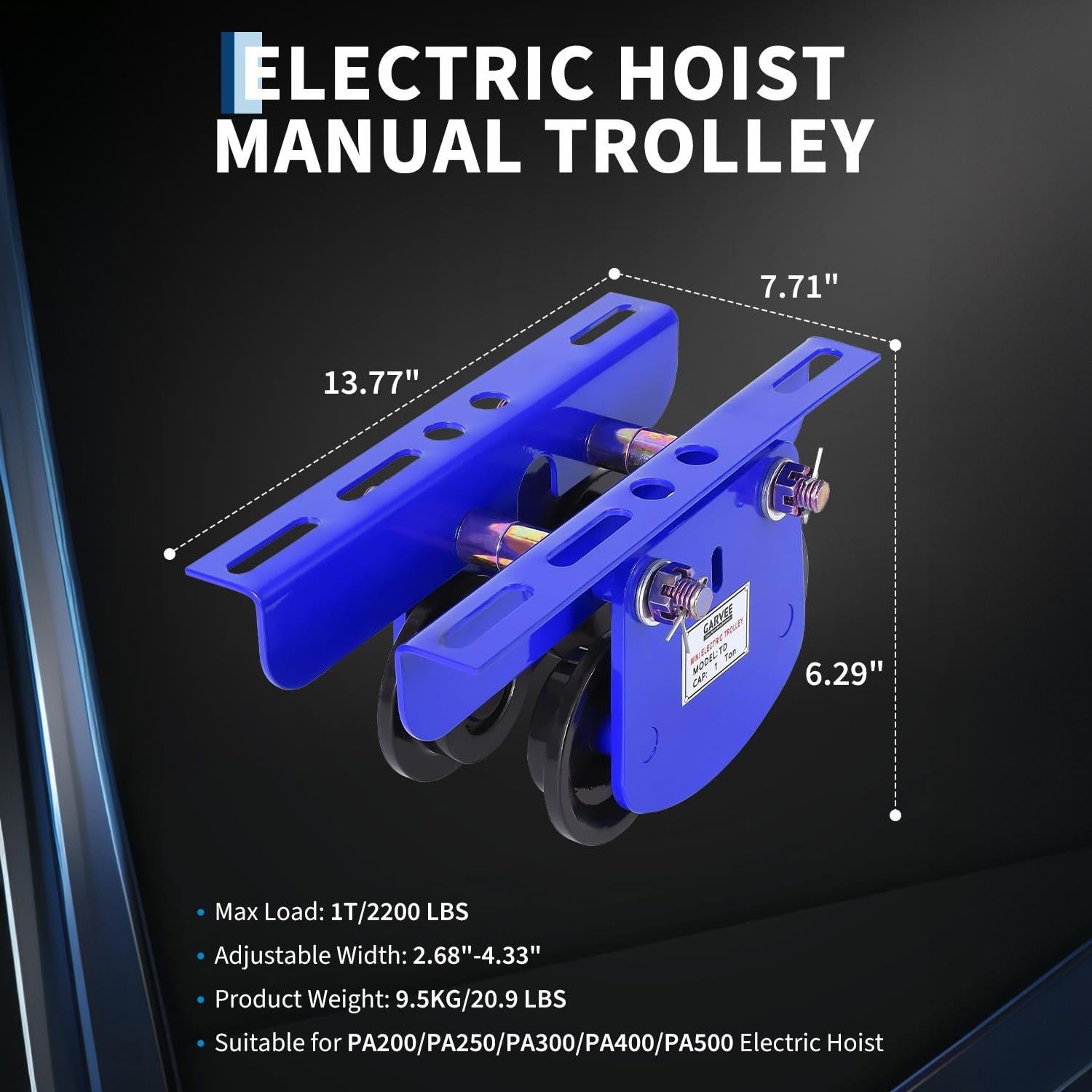

Product Specifications
| Product Type | Electric Hoist Beam Trolley |
| Rated Capacity | 1 Ton / 2200 lb |
| Adjustable Flange Width | 2.68–4.33 in |
| Compatible Beam Types | I Beams and H Beams, Straight or Curved Paths |
| Compatible Electric Hoists | PA200, PA250, PA300, PA400, PA500 |
| Material and Wheel Design | High-Strength Alloy Steel, Double-Wheel Design |
- Measure the beam flange width before purchase and confirm it is within the 2.68–4.33 in adjustment range.

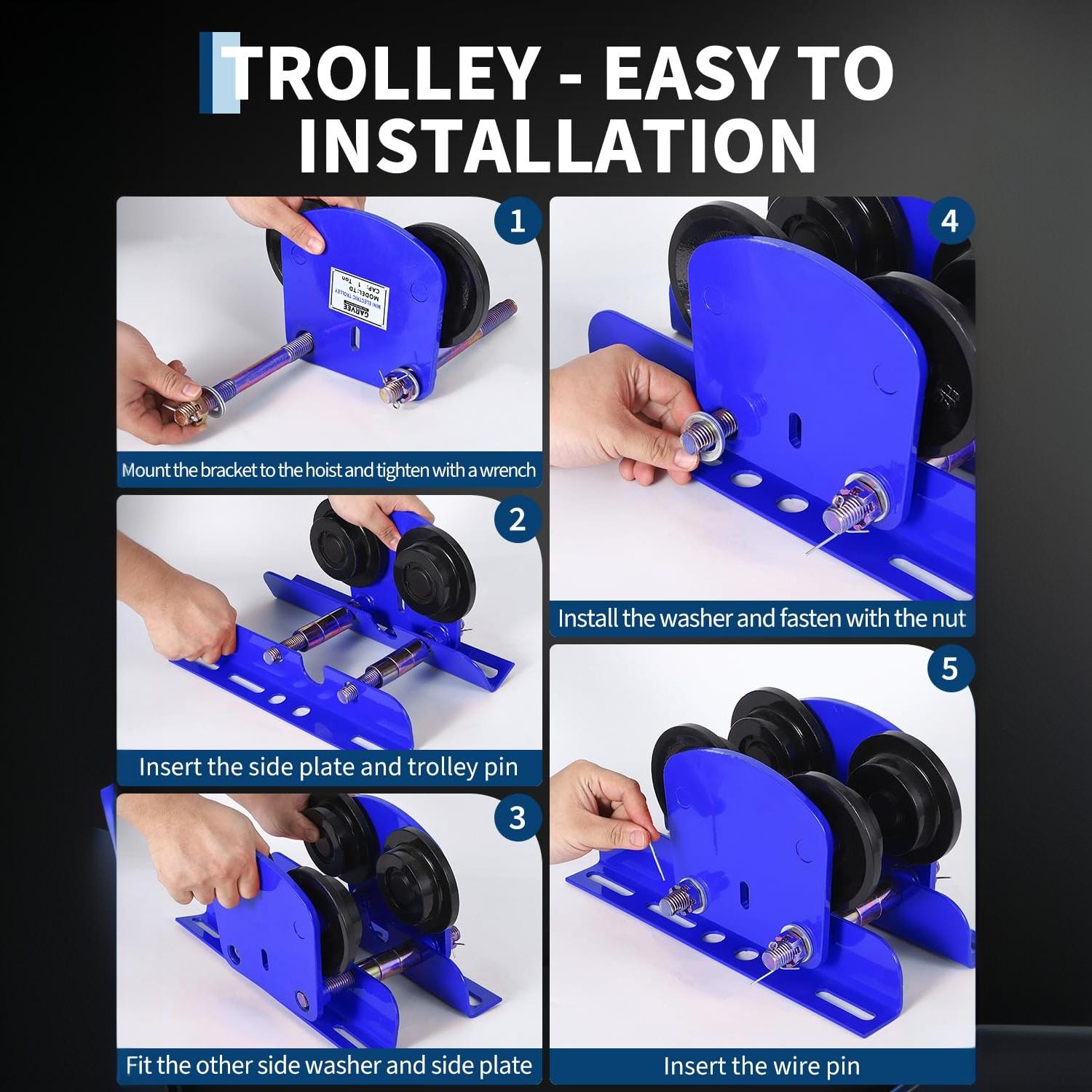

- Set the adjustment washers and spacing hardware before tightening the included pins and nuts.
- Confirm the beam, trolley, electric hoist, and complete lifting system are suitable for the intended load.
- Do not exceed the stated 1 Ton / 2200 lb rated capacity.
- The compatible electric hoist is not included.
