Garvee 1000 LBS Heavy Duty Hydraulic Truck Crane - Hitch Mounted Hoist with 360° Full Swivel, 3-Stage Adjustable Telescoping Boom, and Stabilizer Legs for Pickup Truck Beds, Trailers & Worksites, Red
| Technical Parameter | Official Specification |
|---|---|
| Brand Name | Garvee |
| Product Classification | Hydraulic Truck Crane / Hitch-Mounted Jib Hoist |
| Maximum Rated Payload Limit | 1000 LBS (Heavy Duty Mode) |
| 3-Stage Boom Capacity Options | 500 LBS / 750 LBS / 1000 LBS Settings |

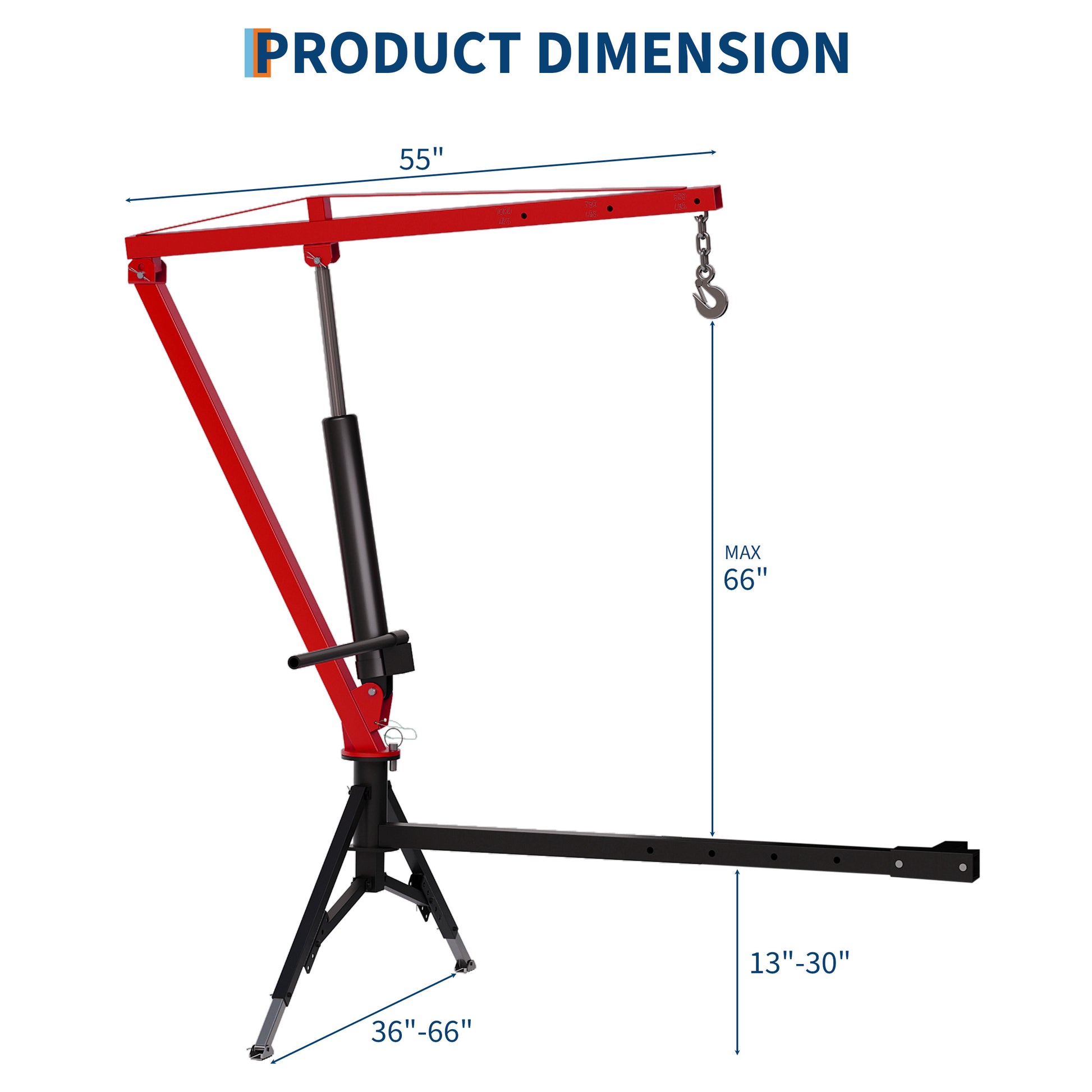

| Maximum Vertical Lifting Height | 66 inches Max Reach (Hook to Base Bracket Frame) |
| Vehicle Receiver Fitment Type | Universal Fit - Standard 2-inch Hitch Receivers |
| Hitch Mounting Sleeve Height Range | 13 inches to 30 inches Adjustable Range |
| Top Boom Telescoping Length | 55 inches Total Structural Width |
| Stabilizer Leg Footprint Range | 36 inches to 66 inches Adjustable Width |
| Rotation Capability | 360° Continuous Smooth Swivel Operation |
| Drive Power System | Manual Hydraulic Pump Winch Cylinder with Lowering Valve Knob |
| Structural Framework Material | Reinforced Structural Carbon Steel Tubing |
| Chassis Protective Treatment | Rust-Resistant, Corrosionproof Industrial Powder Coating |
| Color Finish Profile | High-Visibility Safety Red & Black |
| Included Components | 1x Complete Hydraulic Truck Crane Assembly with Heavy Duty Hook & Chain |
| Manufacturer Warranty | 30 Days Manufacturer Protection Guarantee |
| Product Net Weight | 105.82 LBS (48.0 kg) |
Garvee 1000 LBS Heavy Duty Hydraulic Truck Crane - Hitch Mounted Hoist with 360° Full Swivel, 3-Stage Adjustable Telescoping Boom, and Stabilizer Legs for Pickup Truck Beds, Trailers & Worksites, Red

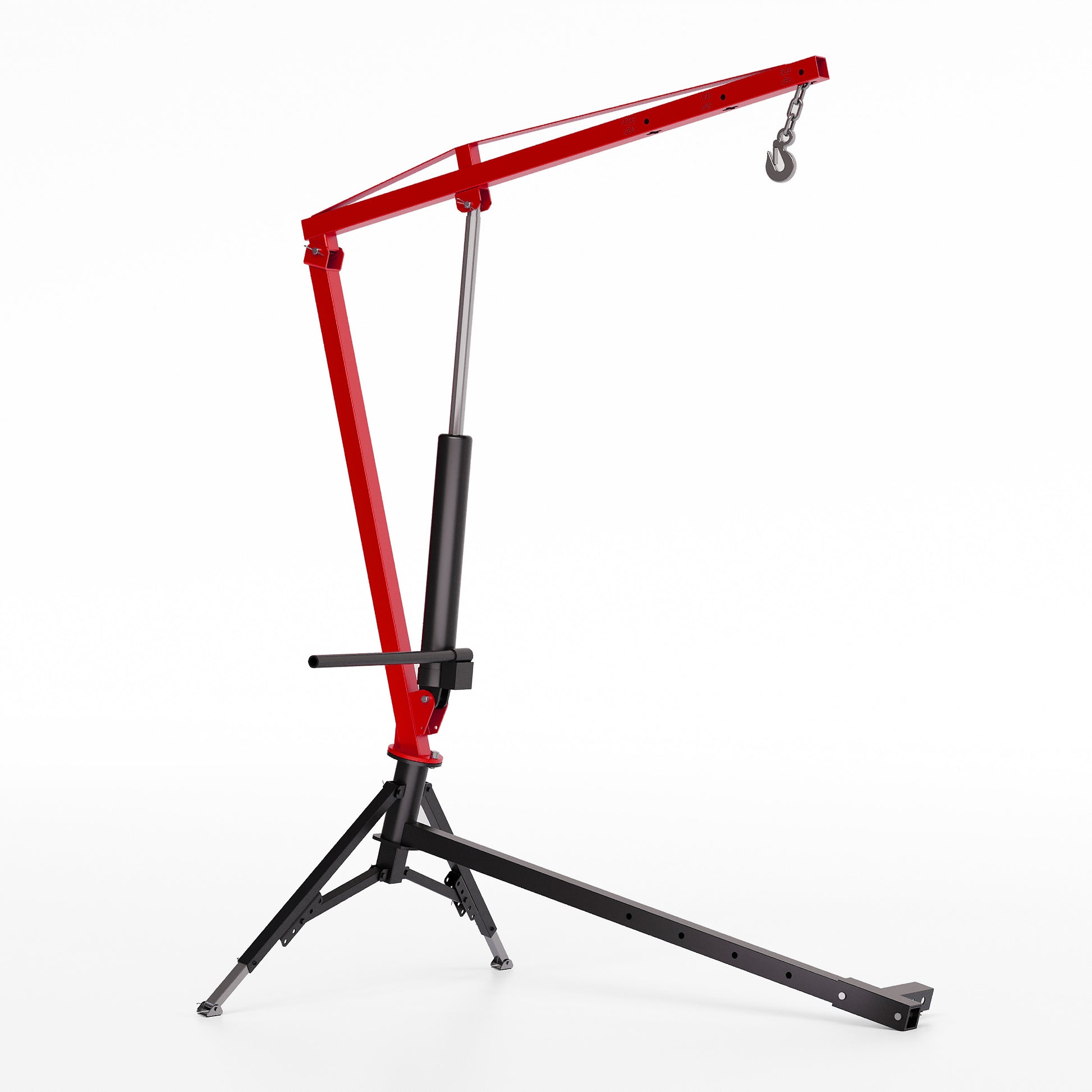

Garvee Professional 1000 LBS Hitch-Mounted Hydraulic Truck Crane
Turn any standard pickup truck or utility trailer into a self-loading powerhouse. The Garvee 1000 LBS Heavy-Duty Hydraulic Truck Crane combines an adaptable 3-stage telescoping boom with a fluid 360-degree swivel swivel mechanism. Built to mount directly into standard 2-inch hitch receivers, this mobile hoist features an integrated manual hydraulic hand pump and outrigger stabilizer legs. It allows a single operator to lift, rotate, and drop heavy generators, engines, lumber, and machinery into truck beds safely and efficiently without any extra back strain.
Stop Damaging Tailgates, Straining Your Back, and Waiting on Extra Help

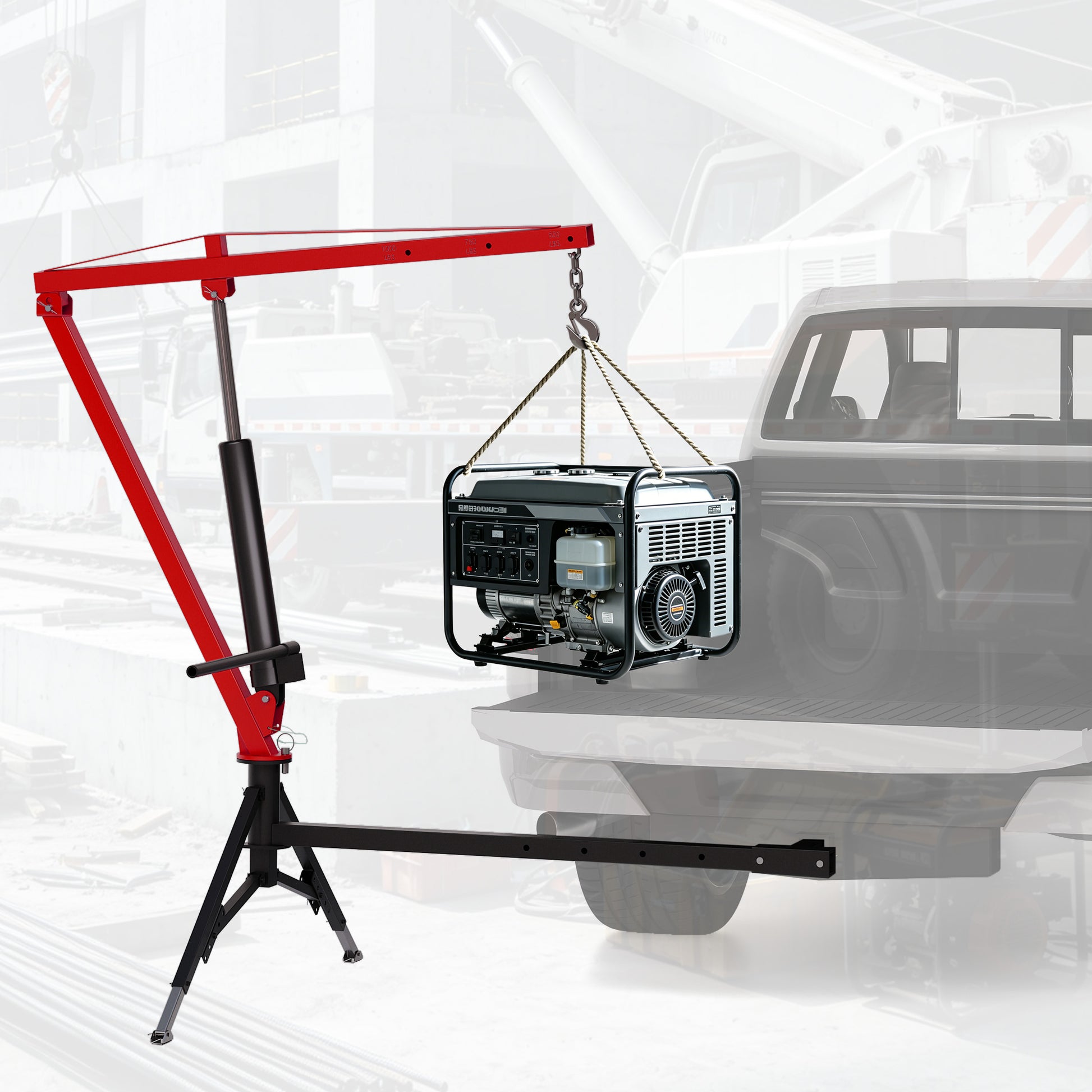

Manually wrestling massive 500+ lb items like industrial pumps, heavy wood logs, or engine blocks into a truck bed is a major safety hazard. It usually requires at least two or three workers, runs the risk of damaging your vehicle’s bodywork, and leads to costly workplace injuries. The Garvee Hitch-Mounted Truck Crane eliminates these operational bottlenecks completely. Acting as a heavy-duty mechanical helper, it mounts externally to your vehicle's receiver. This lets you hoist heavy cargo straight from the ground, pivot it over the tailgate, and lower it down smoothly. It saves you money on extra labor costs and lets you complete remote loading tasks completely solo.
Premium Engineering Features
🏋️ 3-Stage Adjustable Telescoping Boom Capacity

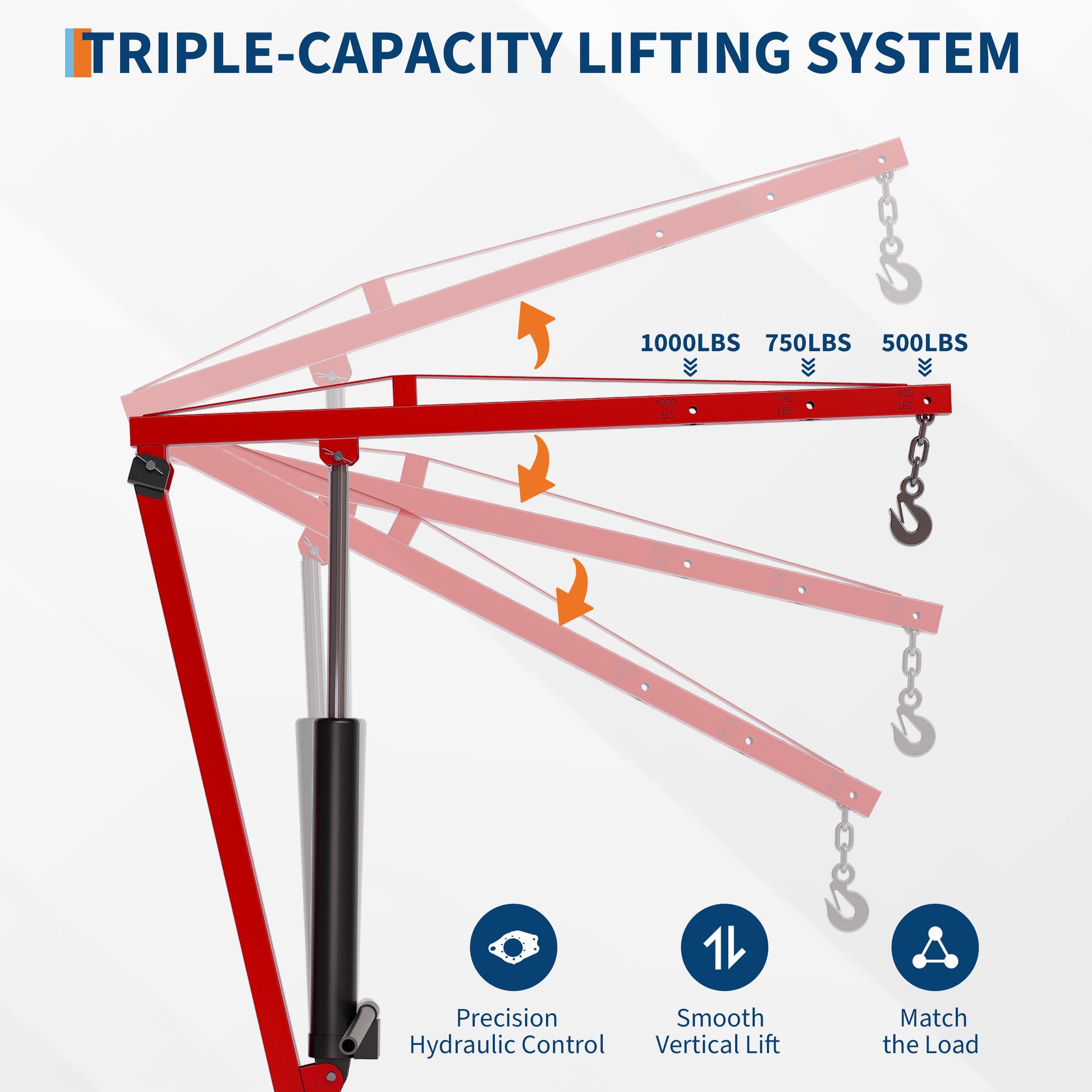

Versatile lifting power tailored to your cargo. The heavy-duty telescoping boom features three convenient pin-locked length settings, adjusting your mechanical advantage on the fly. Easily switch between a highly extended 500 lbs capacity, a mid-range 750 lbs setting, or a compact, maximum 1000 lbs lifting profile to handle whatever the job site throws at you.
🔄 Smooth 360° Fluid Rotation & Pivot tracking

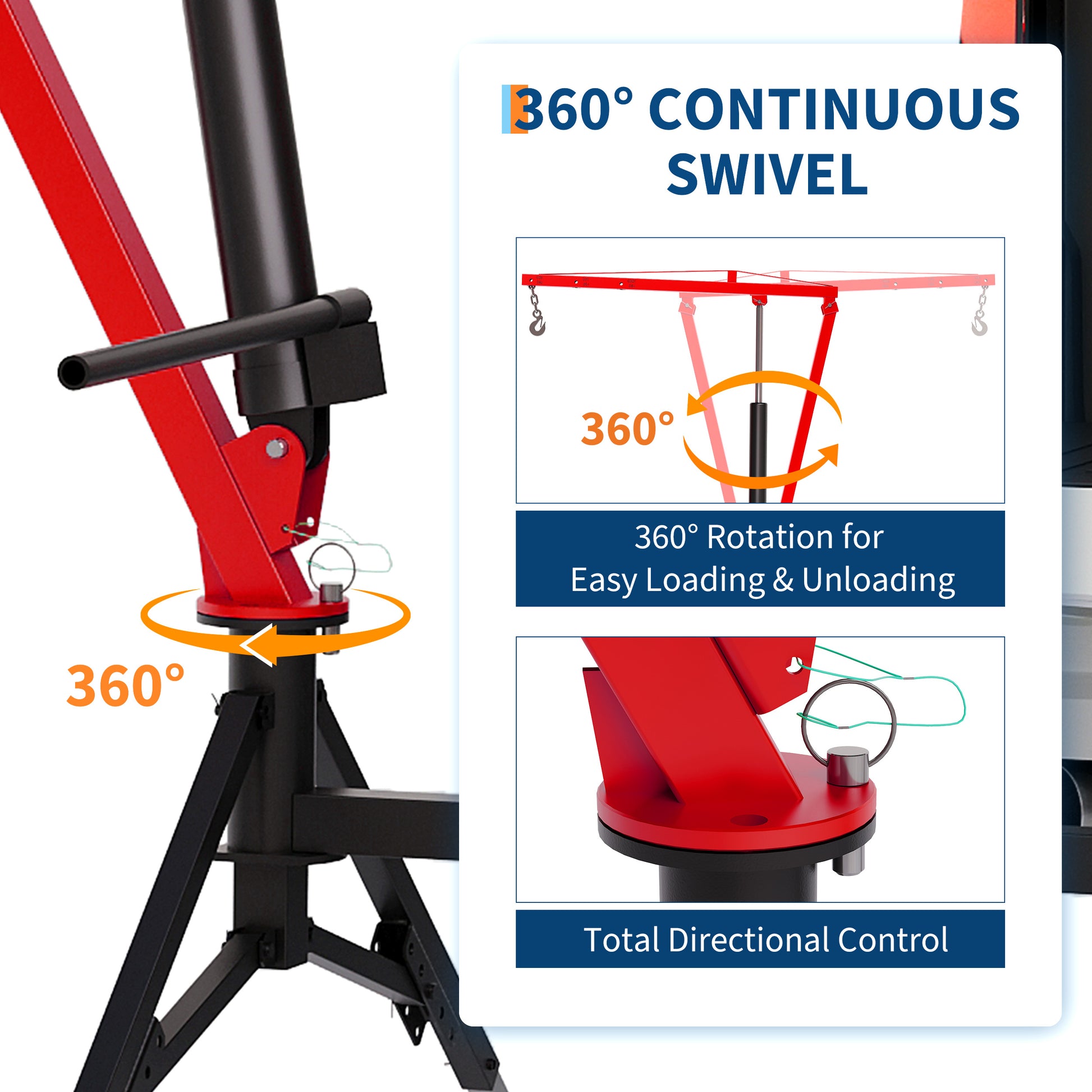

Effortless maneuvering from any angle. Outfitted with a heavy-duty, zero-friction swivel mast assembly, this crane provides continuous 360-degree rotation. This allows you to pick up cargo from the side or rear of your vehicle and swing it over the truck bed smoothly without binding or catching.
🛠️ Controlled Manual Hydraulic Hand Pump Operation
Precise, reliable vertical lifting control. The integrated hydraulic ram cylinder features a low-resistance hand pump lever that handles heavy lifting with ease. It also includes an accurate bleed valve knob for smooth, gradual lowering to protect both your truck bed and your valuable cargo from rough landings.

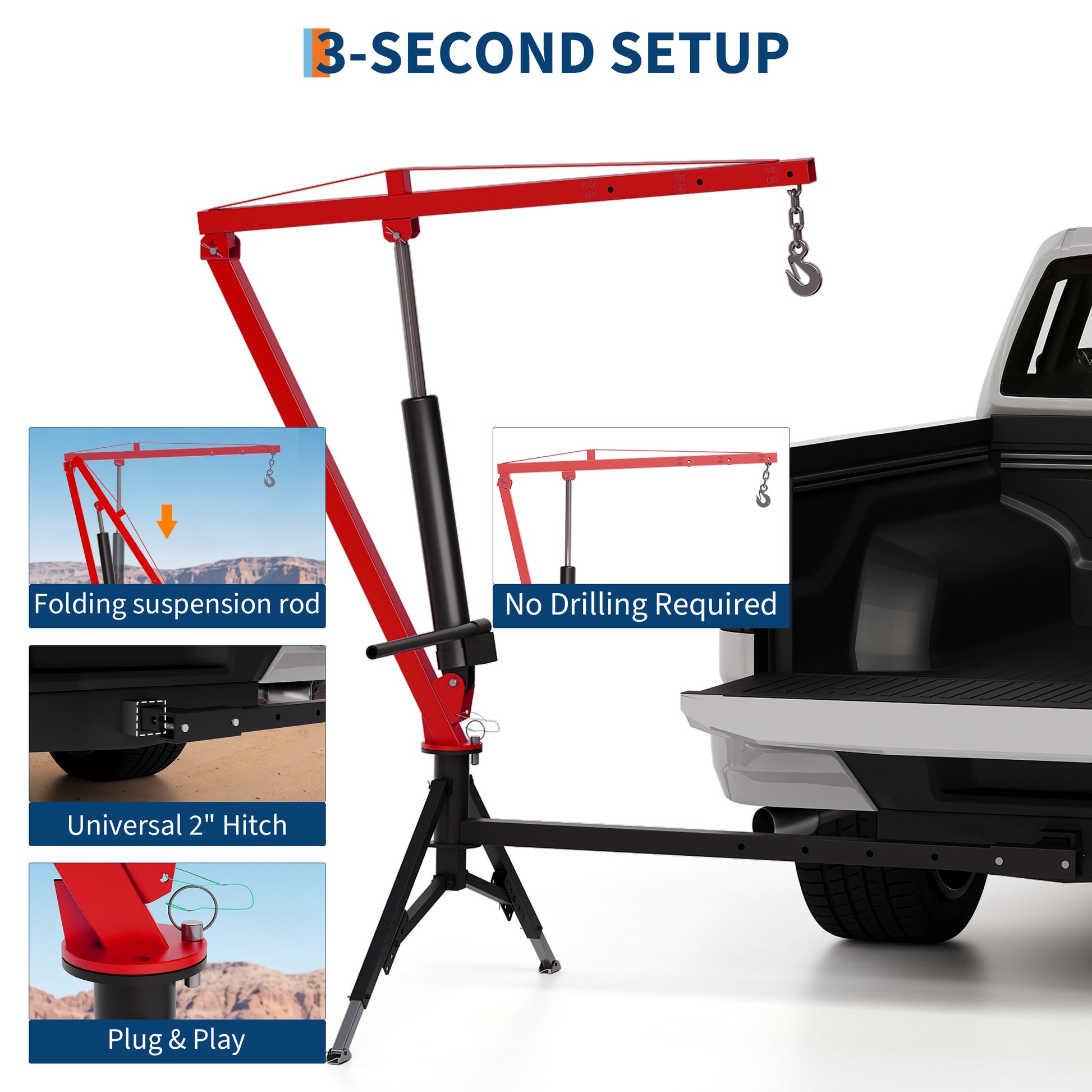

🔒 Universal 2" Hitch Mount with Telescoping Stabilizer Legs
Rock-solid stability on uneven ground. Designed for a universal fit, the crane bar slides directly into standard 2-inch class III or IV vehicle hitch receivers. It comes complete with integrated, height-adjustable outrigger stabilizer legs that extend to ground level, taking the strain off your truck's suspension and ensuring a safe, level lift every time.

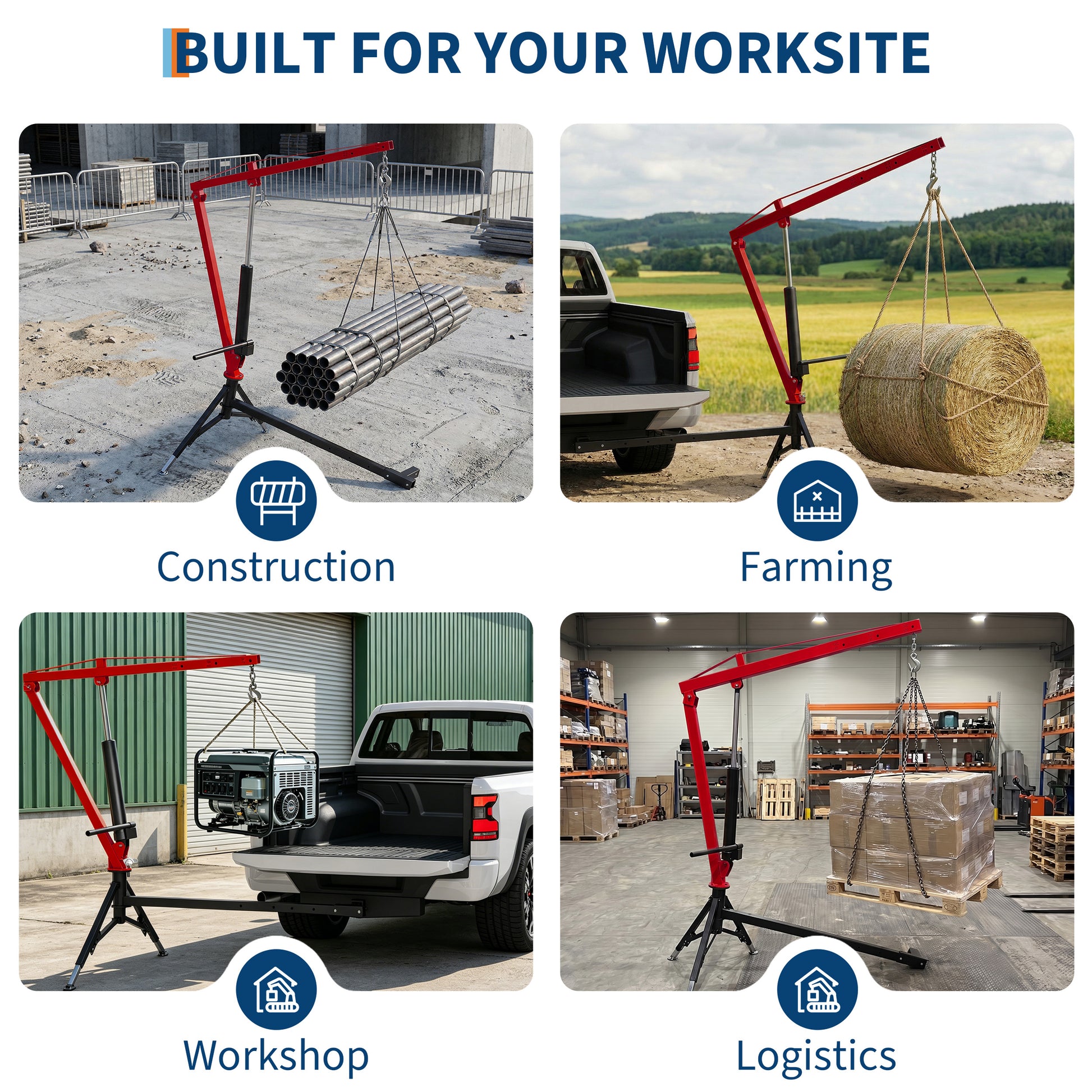

Multi-Scene Workplace Applications
Engineered for premium mobility and rapid setup on the go, this hitch-mounted hydraulic crane is ideal for:
- Industrial Construction Sites: Easily loads and unloads bulky machinery, heavy concrete mixers, full tool chests, and backup generators from truck beds.
- Farms & Agricultural Maintenance: Perfect for lifting heavy fencing wire rolls, chemical drums, vehicle wheels, feed bags, and small tractor attachments.
- Automotive Restoration & Field Repairs: Provides a reliable mobile engine hoist for retrieving blocks, gearboxes, lumber, and structural metal components safely on site.
