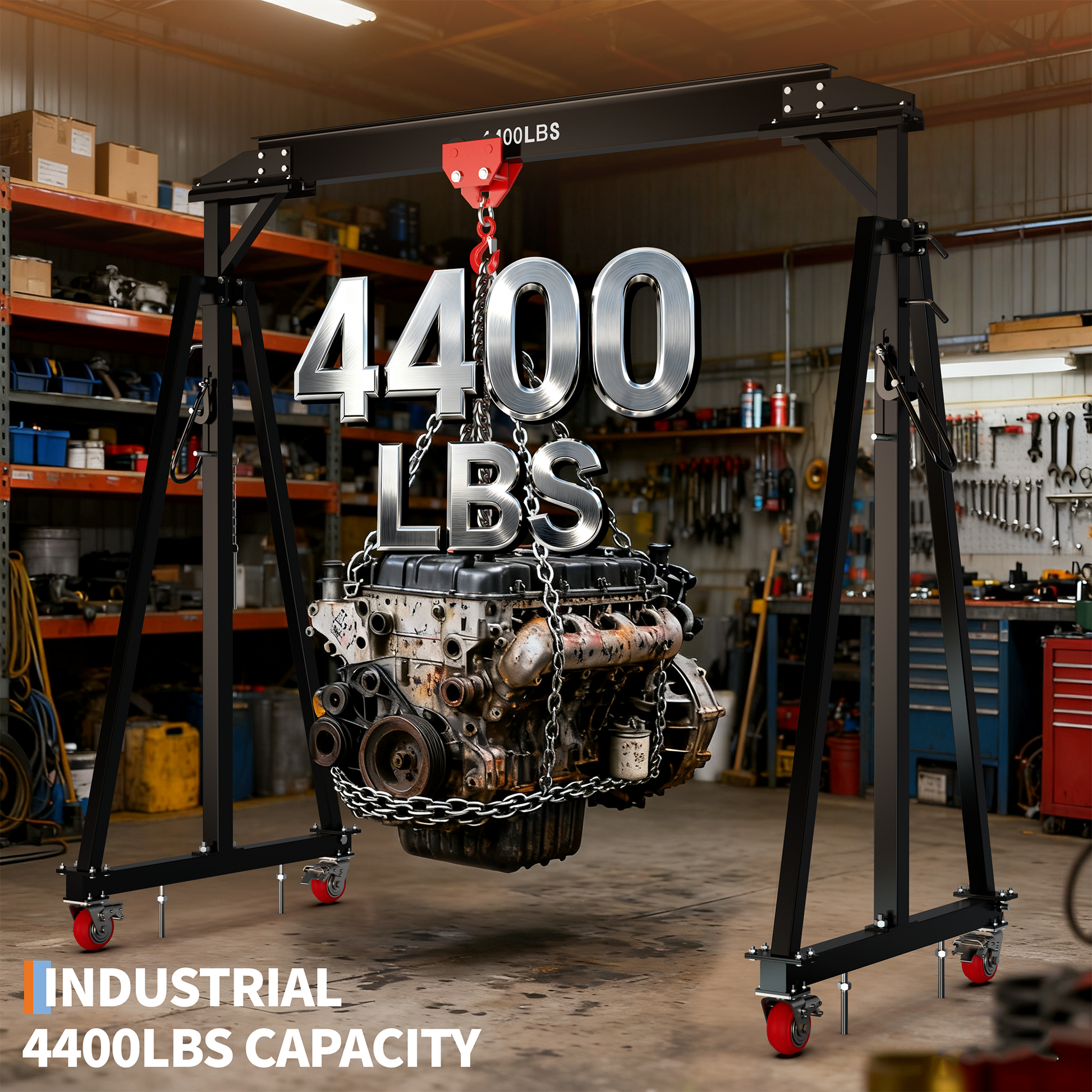

- 4400 lb Lifting Capacity: 2-ton gantry crane supports engines, machinery, shop equipment, construction materials, and warehouse loads.
- 97"–141" Adjustable Height: 12 height positions help match different lifting jobs, vehicle heights, workshop layouts, and ceiling clearances.
- Manual Trolley Included: Comes with manual trolley, hooks, and sling straps for more practical lifting, positioning, and load handling tasks.
- Steel I-Beam Construction: Heavy-duty steel I-beam frame and reinforced joints help support stable lifting in garages, factories, and warehouses.
- Portable with Locking Casters: Four heavy-duty casters, including two locking wheels, make relocation easier while helping hold position during use.
Description
GARVEE · Adjustable Gantry Crane
Heavy Lifting.
Flexible Setup.
A steel gantry crane with a listed 4,400 lb capacity, 12 height positions, and an included manual trolley. Plan your lifting setup around the load, the workspace, and the clearance your job requires.
Workshop · Garage · Warehouse
Build Your Setup Around the Job.
For engine work, equipment maintenance, and material handling, start with a frame that fits both the load requirements and the available workspace.
Steel Lifting Frame

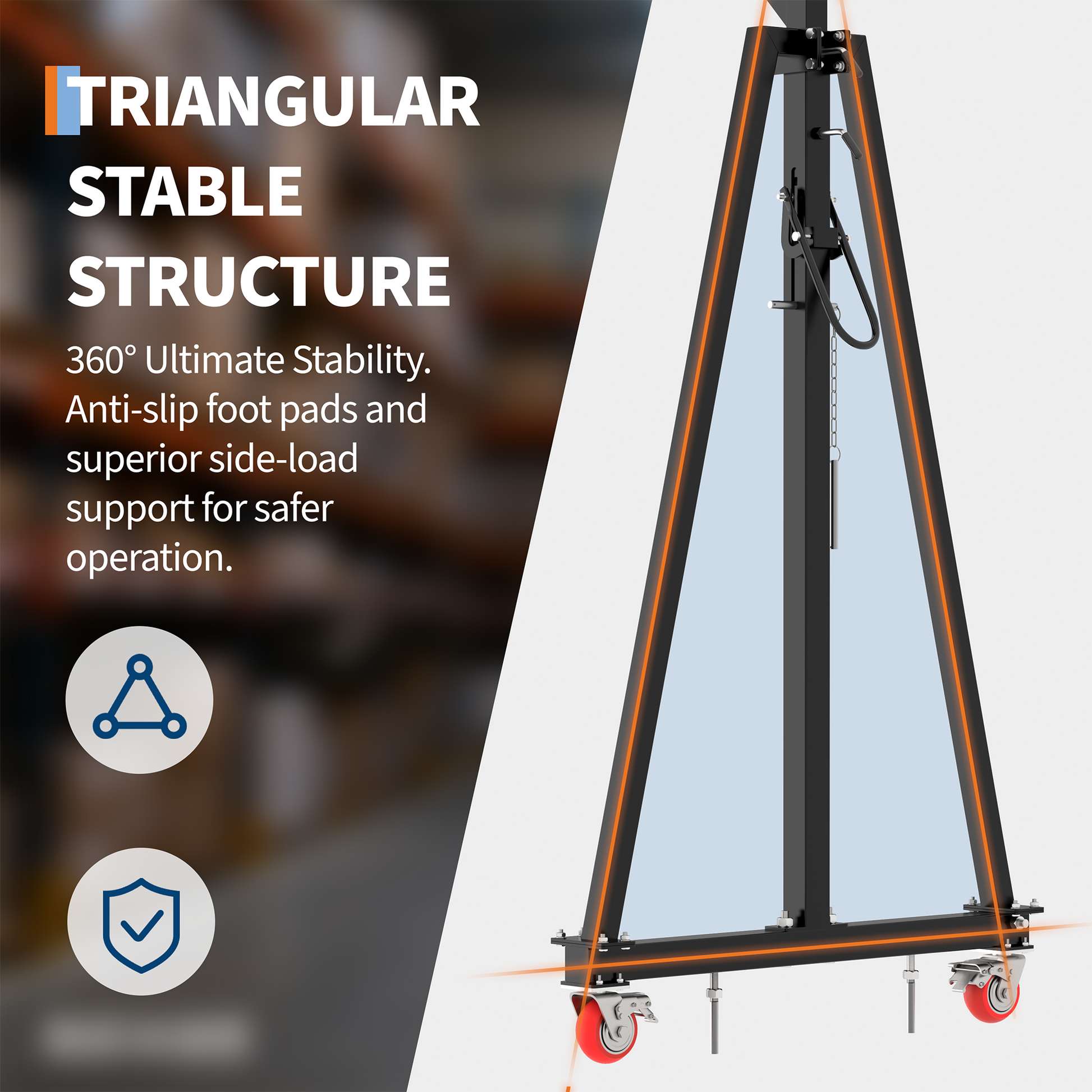

Steel I-beam construction and braced supports form the foundation of this adjustable gantry system.

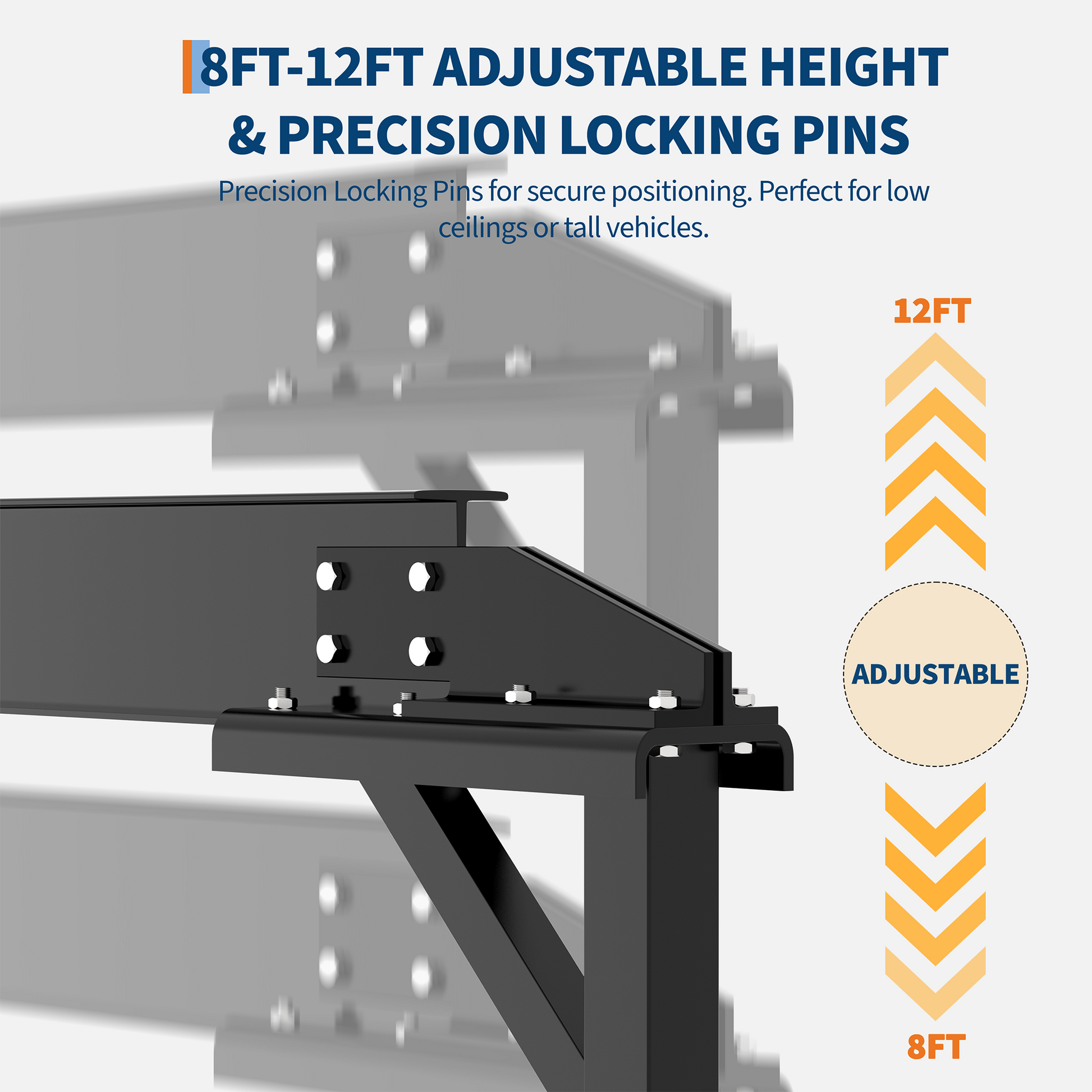

Choose the Working Height
Select from 12 height positions to plan around your equipment and overhead clearance before attaching a load.
Manual Trolley Included
The included trolley provides a traveling suspension point along the beam for a compatible lifting setup.

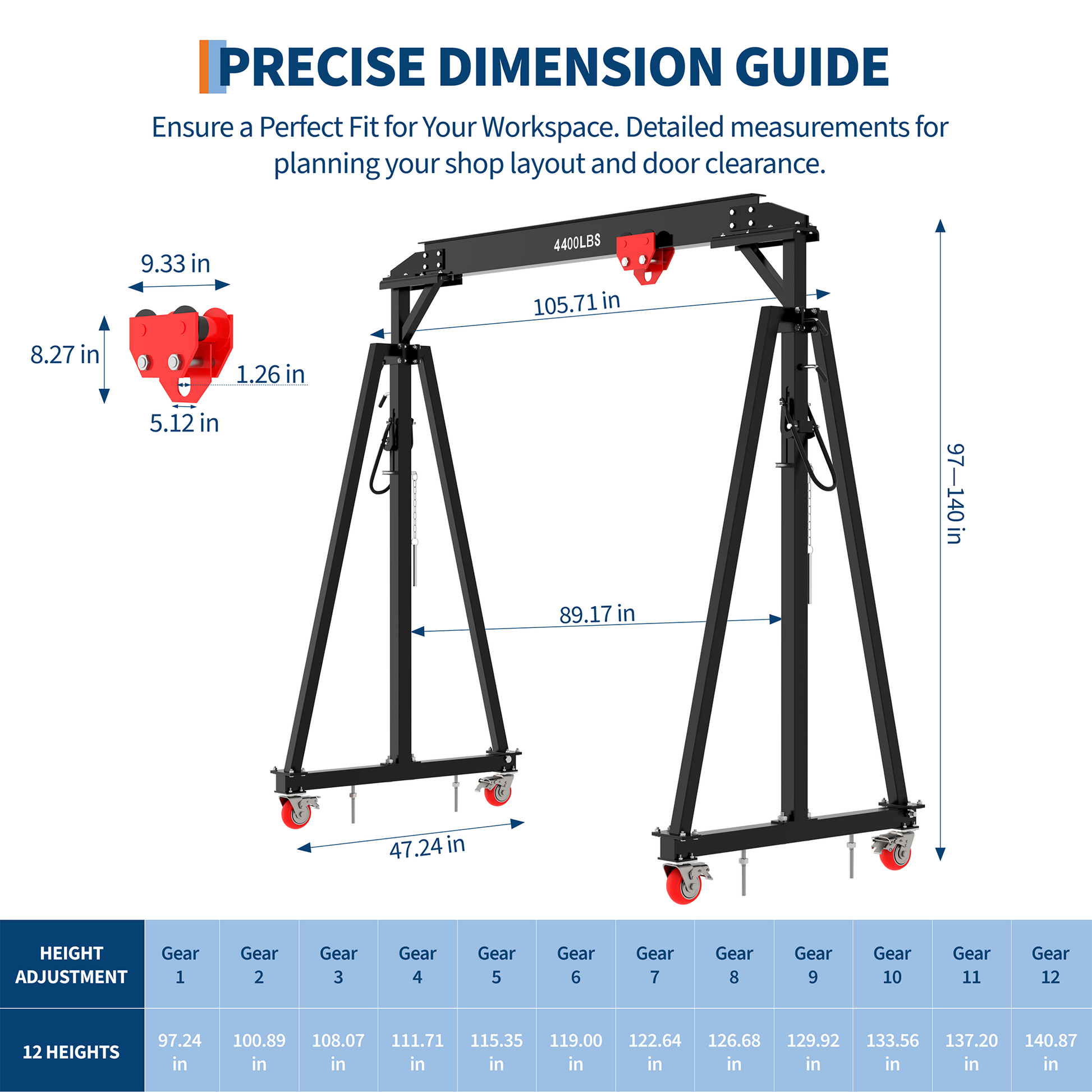

Measure Before You Order
Check More Than Ceiling Height.
Confirm the frame dimensions, floor footprint, load clearance, and hoist headroom together. Frame height alone does not tell you how high your load can be lifted.
Plan the Complete Lifting Space
- Overhead clearance Check the selected frame height against ceilings, lights, overhead doors, and other obstructions.
- Usable lifting height Allow space for the trolley, hoist, rigging, and load. Ask for the under-beam clearance and your hoist's headroom requirements.
- Clear span and base footprint Confirm that the load fits between the supports and that the bases fit within your work area.
- Relocation route Check doorways, floor conditions, and obstructions along the unloaded crane's intended route.

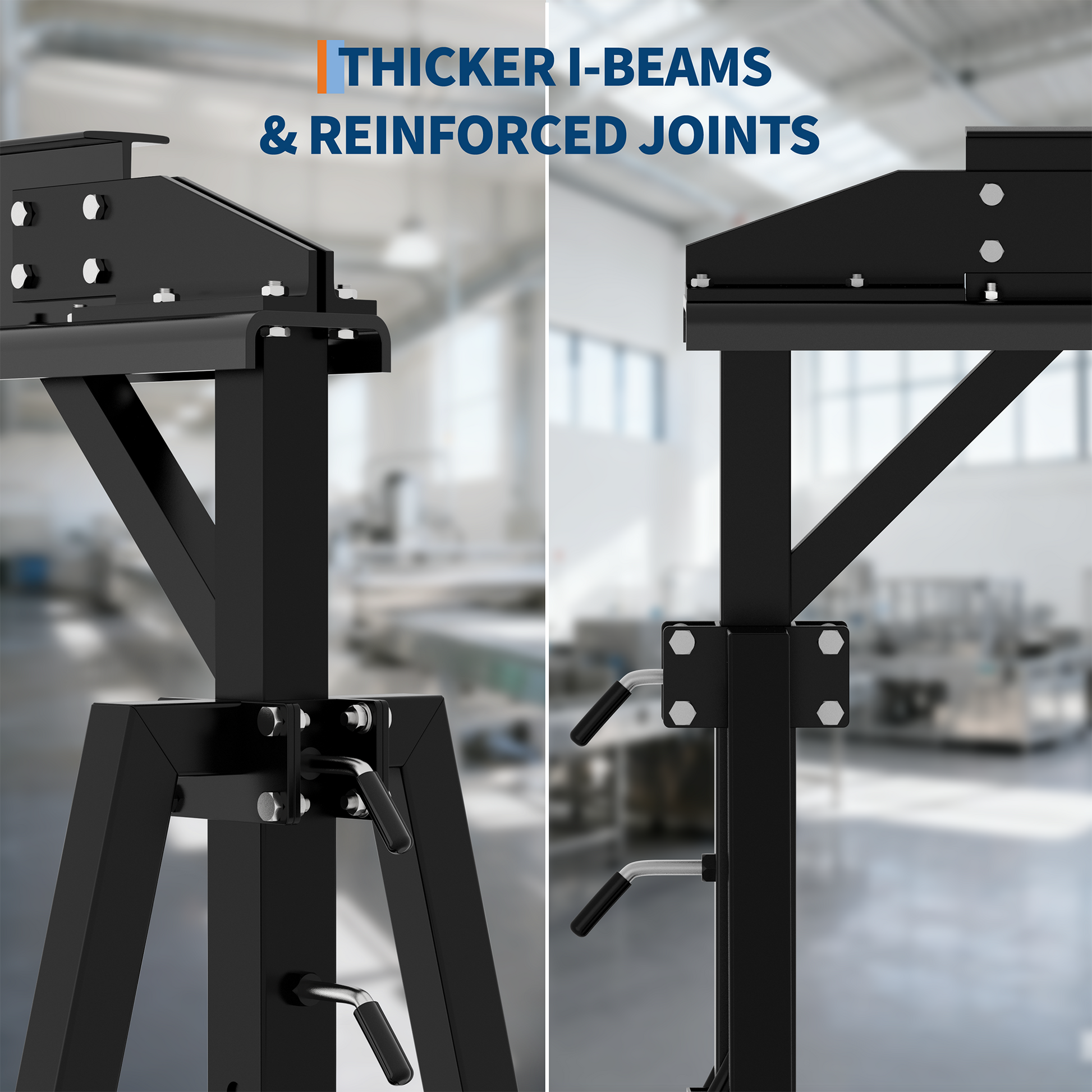

Frame Construction
Steel Support.
Adjustable Configuration.
A steel I-beam, braced uprights, and pin-secured height settings form the crane's adjustable structure. Set the frame for the task before beginning the lift.
- Steel I-beam Supports the trolley as part of a properly selected and assembled lifting system.
- Braced frame connections Structural details are shown for reference. Follow the manual for assembly and inspection.
- 12 selectable positions Confirm the required setup and secure the height adjustment components as directed by the manufacturer.
Positioning and Relocation
Two Different Functions. Clearly Defined.
Trolley travel along the beam and relocation of the entire crane are different operations. Plan each according to the equipment instructions.
Trolley: Along-Beam Positioning
The manual trolley provides an attachment point for a compatible hoist and supports positioning along the beam. A trolley is not itself the mechanism that raises and lowers the load.

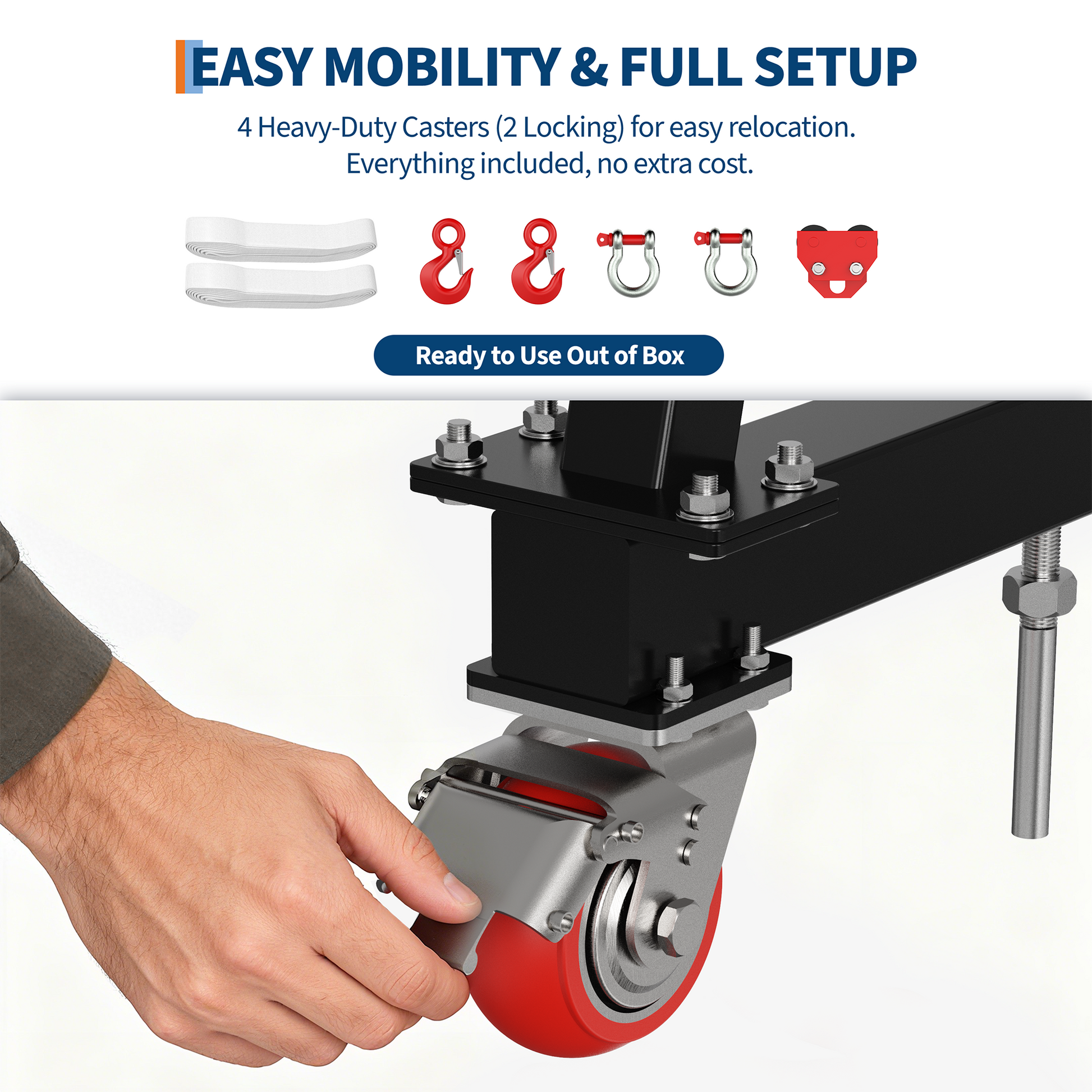

Casters: Unloaded Relocation
Four casters, including two locking wheels, support repositioning between work areas. Plan relocation with the crane unloaded and follow the manual for floor and setup requirements.
Know What You Are Ordering
Included Equipment & Setup Checks.
Review the listed package contents, then confirm the remaining equipment needed for your application.

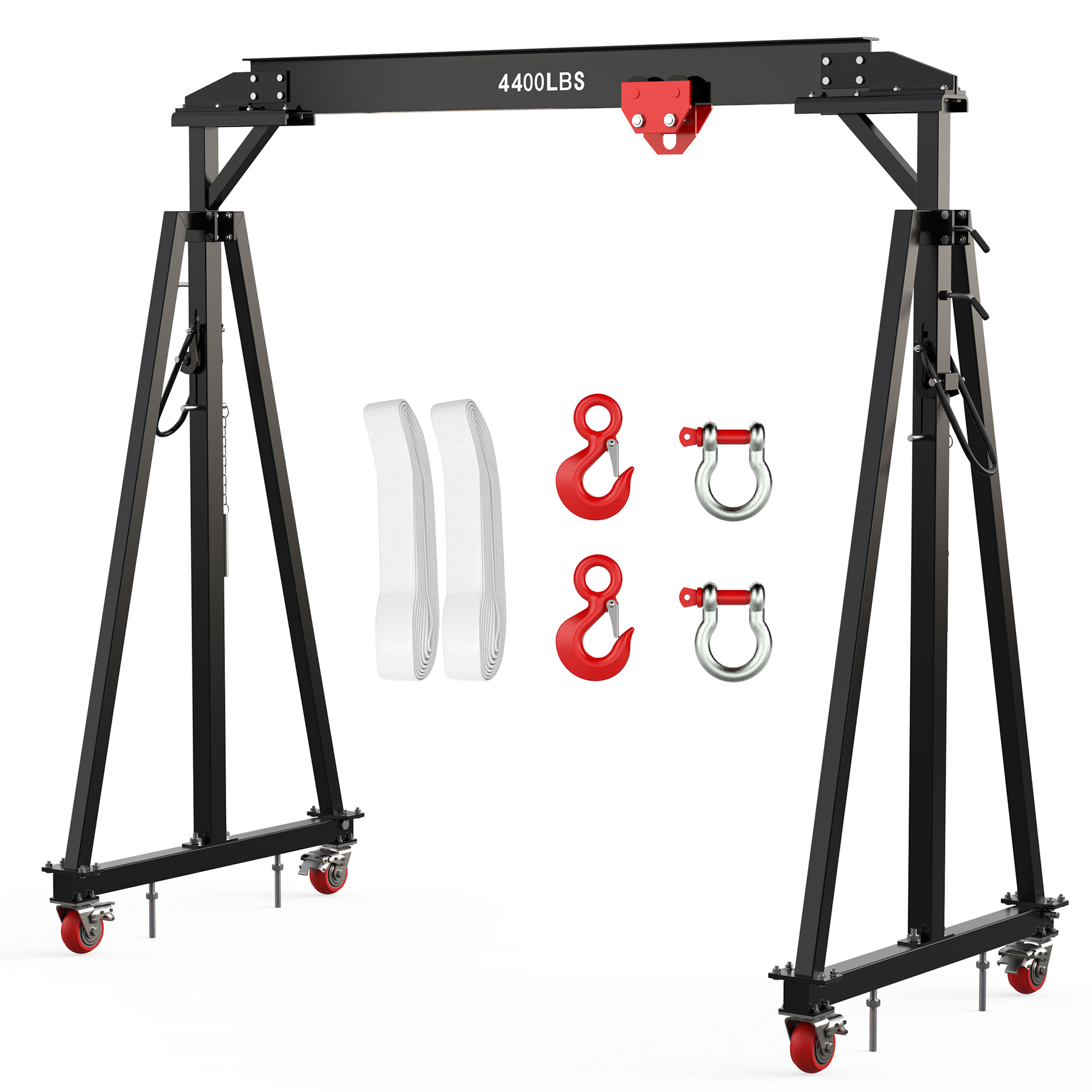

Listed Package Contents
- Adjustable steel gantry crane
- Manual trolley
- Hooks
- Sling straps
- Assembly hardware
Confirm Before Your First Lift
- Hoist availability A lifting hoist is not explicitly identified in the listed package contents. Confirm whether one must be purchased separately.
- Accessory details Verify quantities, working load limits, and whether the pictured shackles are included.
- Equipment compatibility Confirm trolley fit, hoist attachment, rigging suitability, and the permitted capacity of the complete setup.
Before You Buy
Common Questions
Does the package include a lifting hoist?
The listed contents include the crane, manual trolley, hooks, sling straps, and hardware. A chain or electric hoist is not explicitly listed. Confirm the exact package contents before ordering.
Is 141 inches the maximum hook height?
Do not treat the listed frame height as usable hook height. Available lifting clearance depends on the beam, trolley, hoist, rigging, and load. Confirm under-beam clearance and hoist headroom when planning the job.
Can I roll the crane while it is carrying a load?
Do not assume the casters permit loaded travel. Plan relocation with the crane unloaded unless the model-specific manufacturer instructions expressly authorize otherwise.
Can I adjust the height with a load attached?
No. Set the frame height before attaching the load and follow the manufacturer's adjustment and locking procedure.
Will it fit in my garage or workshop?
Check overall height, base footprint, clear span, doorway clearance, and the space required for the hoist and load. Request confirmed dimensions if the available clearance is tight.
Does the crane rating apply to every included accessory?
Do not assume all accessories have the same working load limit as the frame. Verify each component's rating and compatibility, and follow the permitted limits for the complete lifting setup.
