Garvee 5/16-Inch 4-Leg Lifting Chain Sling – 11,000 lbs Capacity G80 Heavy-Duty Engine Hoist Chain with Adjusters & Grab Hooks
| Rigging Specification | Official Manufacturing Details |
|---|---|
| Brand Name | Garvee |
| Sling Configuration | 4-Leg Lifting Chain with Grab Hooks & Adjusters |
| Chain Diameter | 5/16 Inch (8 mm nominal) |
| Maximum Capacity | 11,000 lbs (Working Load Limit) |

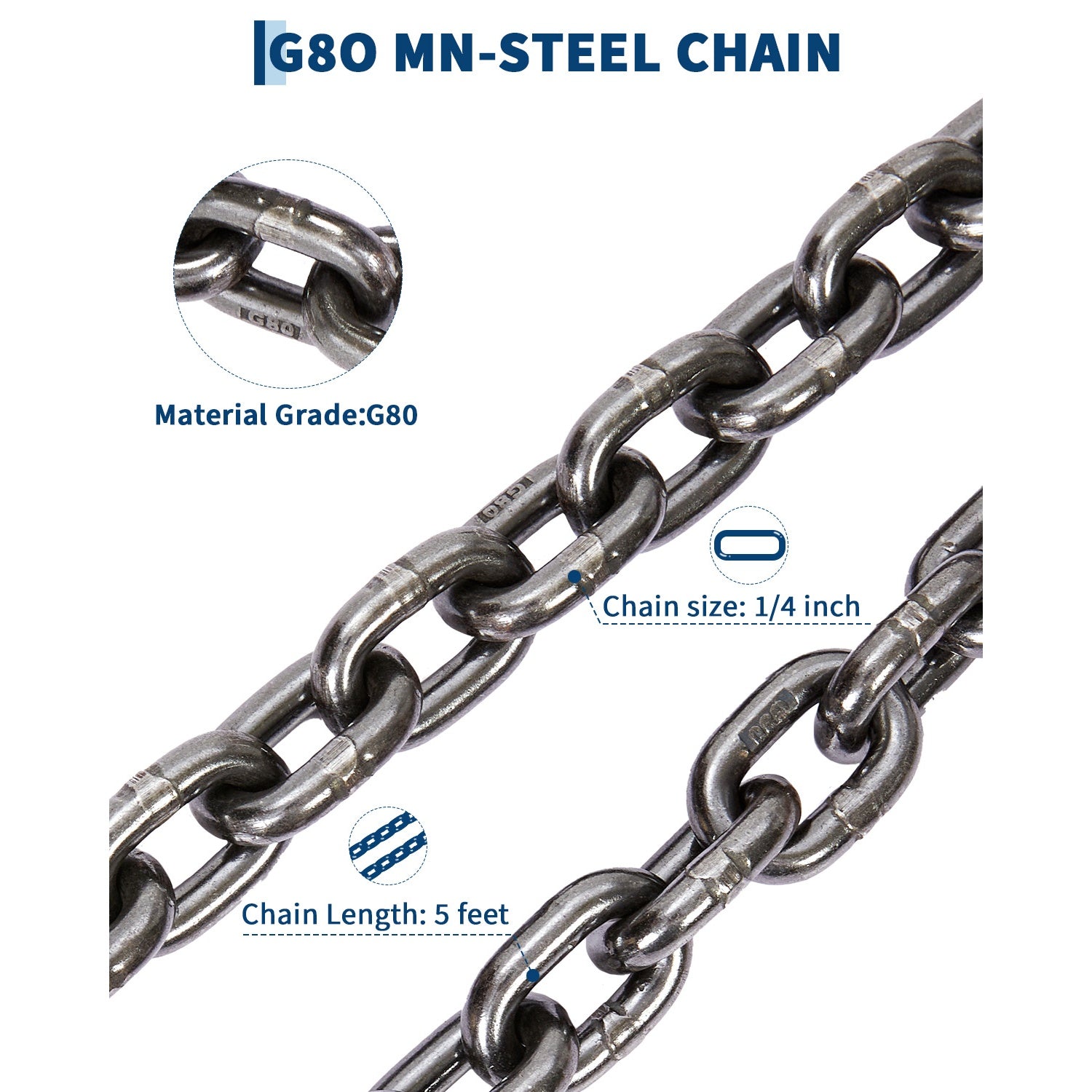

| Chain Material Grade | G80 Manganese Steel (Mn-Steel) |
| Hook Material | Heavy-Duty Drop-Forged Alloy Steel |
| Master Link Size | 7-7/128" Height x 3-35/64" Width x 0-29/32" Thickness |
| Sling Hook Dimensions | 4-14/32" Height x 1-15/32" Throat Opening |
| Welding Technology | Full-Automatic Robotic Induction Welding |
| Total Item Weight | 29.8 pounds |

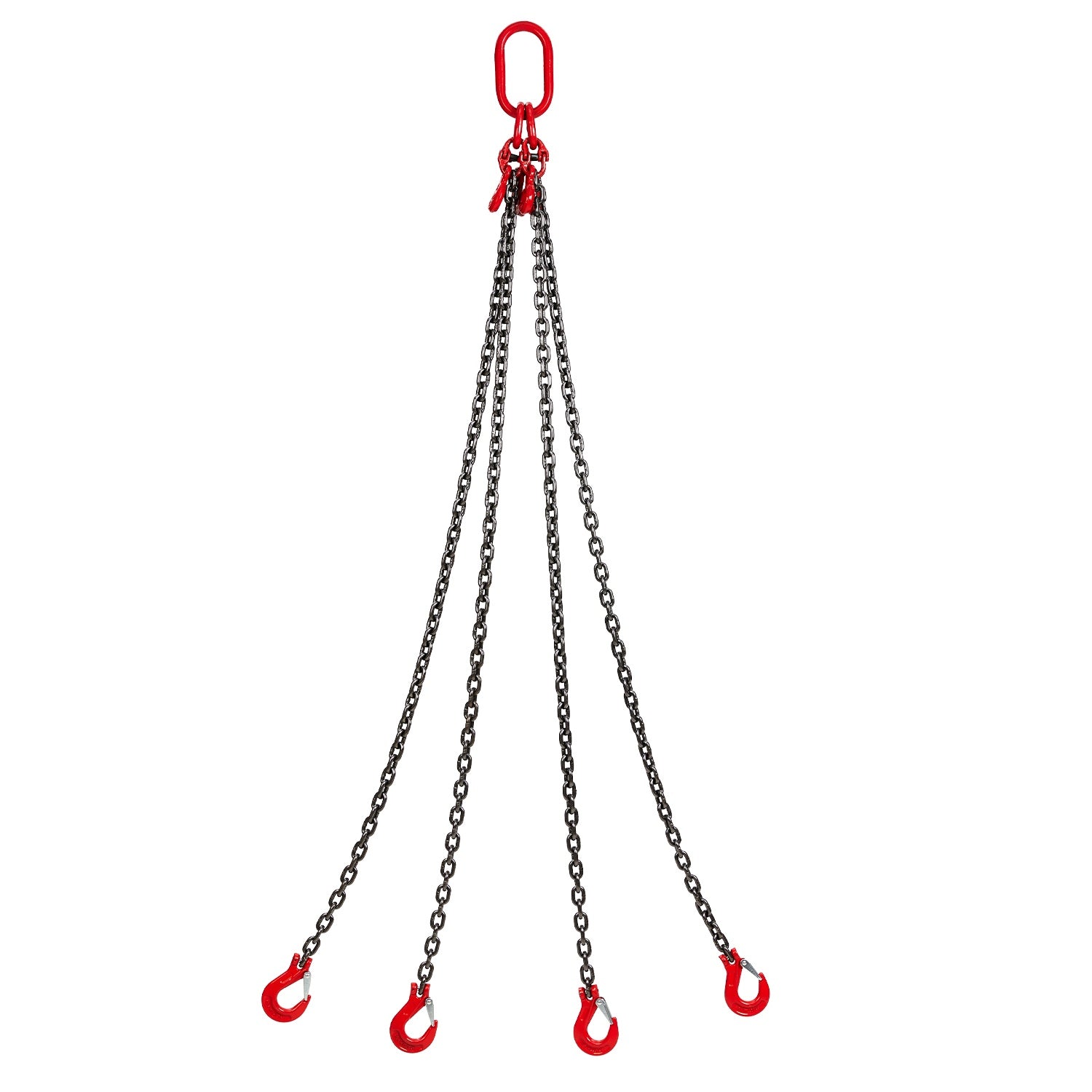

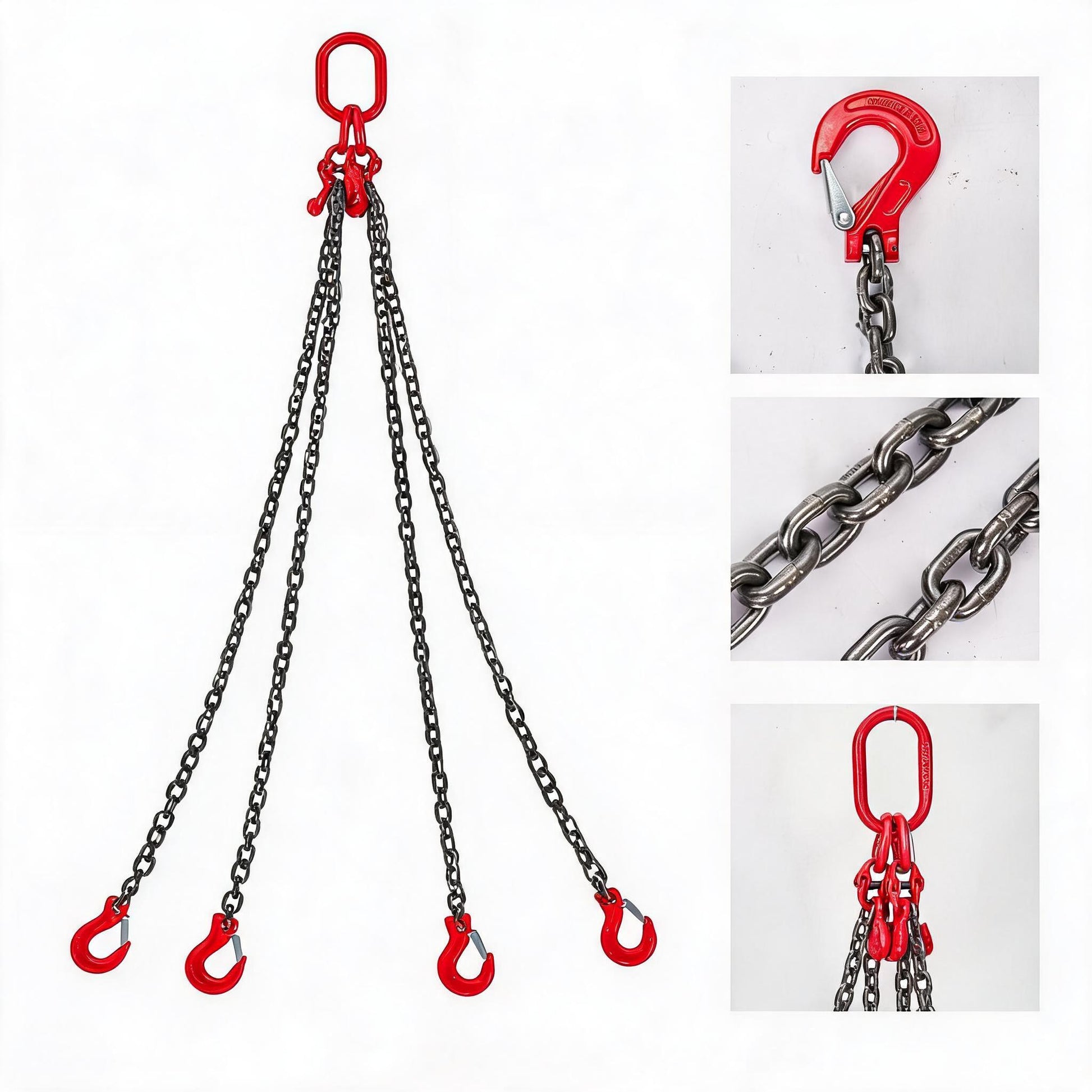

Garvee 5/16-Inch 4-Leg Lifting Chain Sling – 11,000 lbs Capacity G80 Heavy-Duty Engine Hoist Chain with Adjusters & Grab Hooks
Garvee Heavy-Duty 11,000 lbs G80 4-Leg Lifting Chain Sling
Bring professional industrial-grade strength to your garage, shop, or farm. The Garvee Heavy-Duty 4-Leg G80 Chain Sling is a commercial-tier rigging solution engineered to safely manage demanding mobile activities and extreme overhead hoisting. Forged from high-tensile Manganese steel and featuring an adjustable multi-leg architecture, this 29.8-pound workhorse delivers reliable stability and security when handling massive or irregular loads.
Engineered Structural Rigging Performance
Built to lift with maximum confidence. Featuring 5/16" thick links, this premium lifting chain sling is safety-rated to hold up to 11,000 lbs. Utilizing full-automatic industrial welding technologies across each loop, it significantly minimizes stress points and structural anomalies for a higher security coefficient during critical hoist maneuvers.

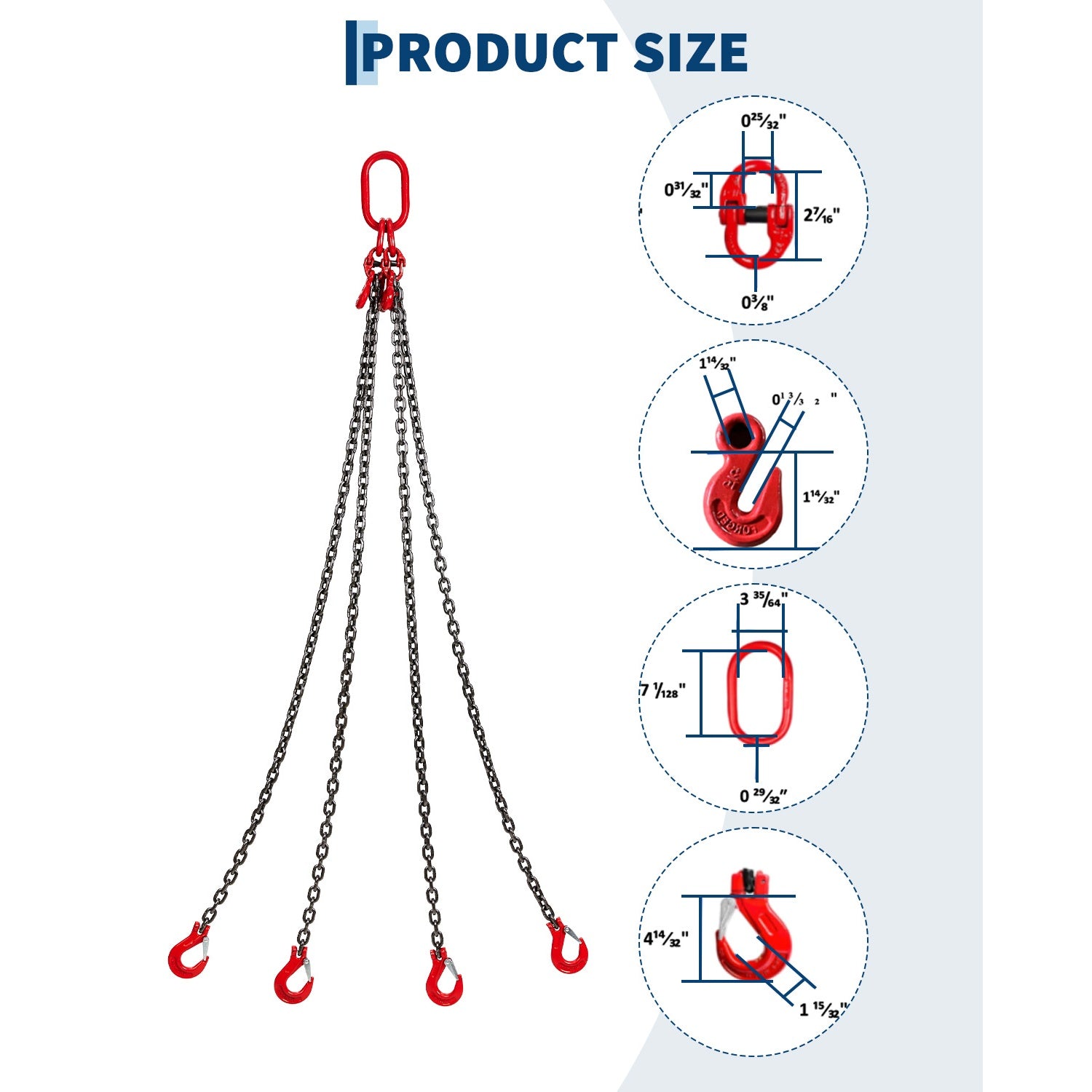

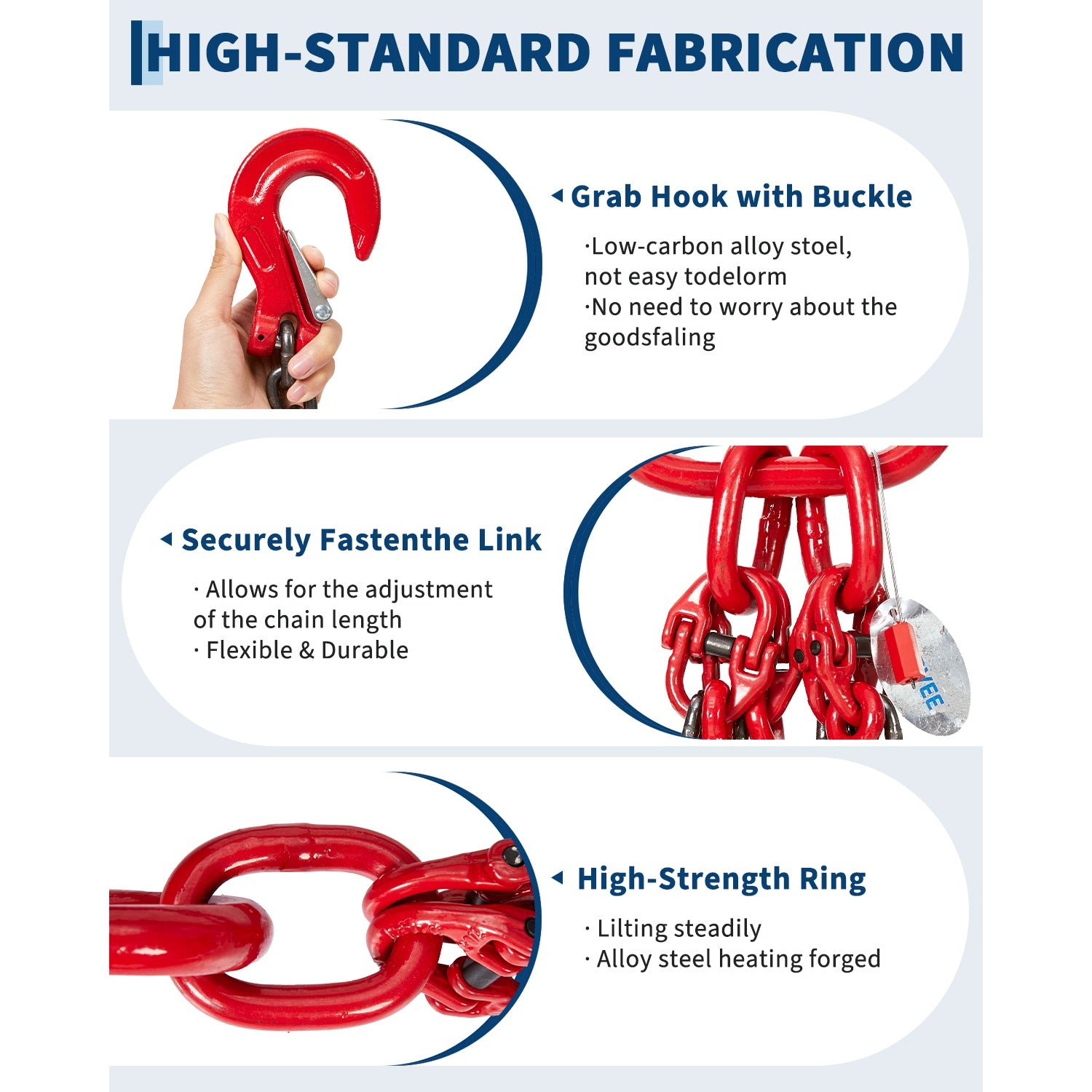

This system relies on heavy-duty, precisely-machined connections. The oversized oblong master link provides a roomy internal space measuring 7-7/128" high by 3-35/64" wide with a 0-29/32" material thickness. It pairs seamlessly with 2-7/16" connecting joints and heavy-duty 4-14/32" drop-forged sling hooks for consistent, reliable load transfer.

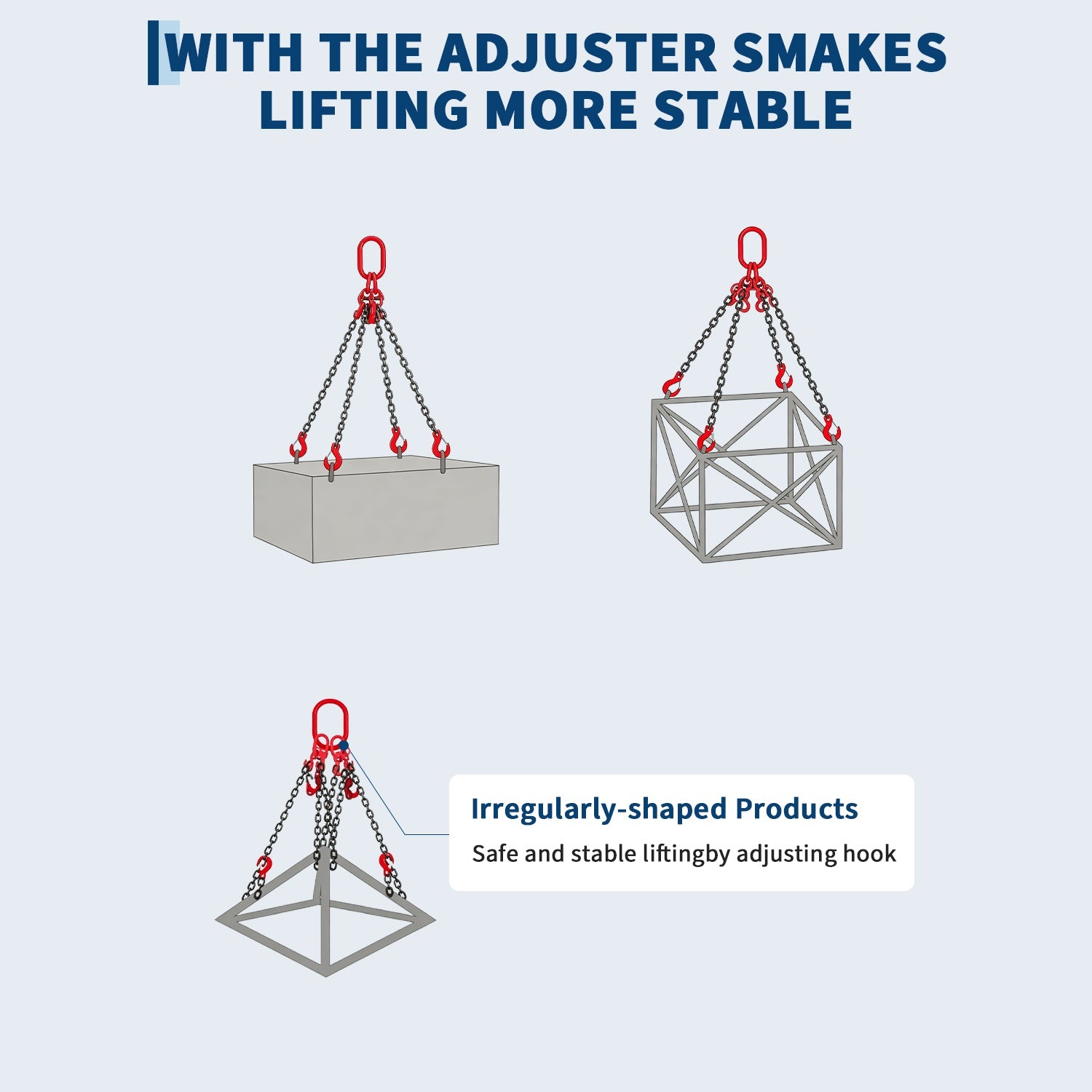

Lifting uneven objects like asymmetric engine blocks or off-center machinery can easily lead to hazardous slipping. This advanced chain assembly is equipped with four independent grab hook length adjusters at the top connection. This layout allows you to shorten or lengthen each individual leg to find the perfect center of gravity, keeping your load perfectly balanced and wobble-free.
Engineered to ensure zero failure points when following correct industrial rigging procedures. For optimal safety, always ensure your payload is hung completely in the structural center of the alloy hooks—never hook onto the outer tip or edge. Maintain clean line configurations by verifying that the lifting sling chain is not twisted, inverted, or twined before executing a lift.
Heavy Duty Fleet & Yard Utility
Providing long-term reliability and extreme weather resistance, this multi-leg rigging chain pack is fully optimized to support:
- Automotive & Diesel Shops: Perfect as a heavy-duty engine hoist chain for pulling complex motors, transmissions, or commercial truck blocks.

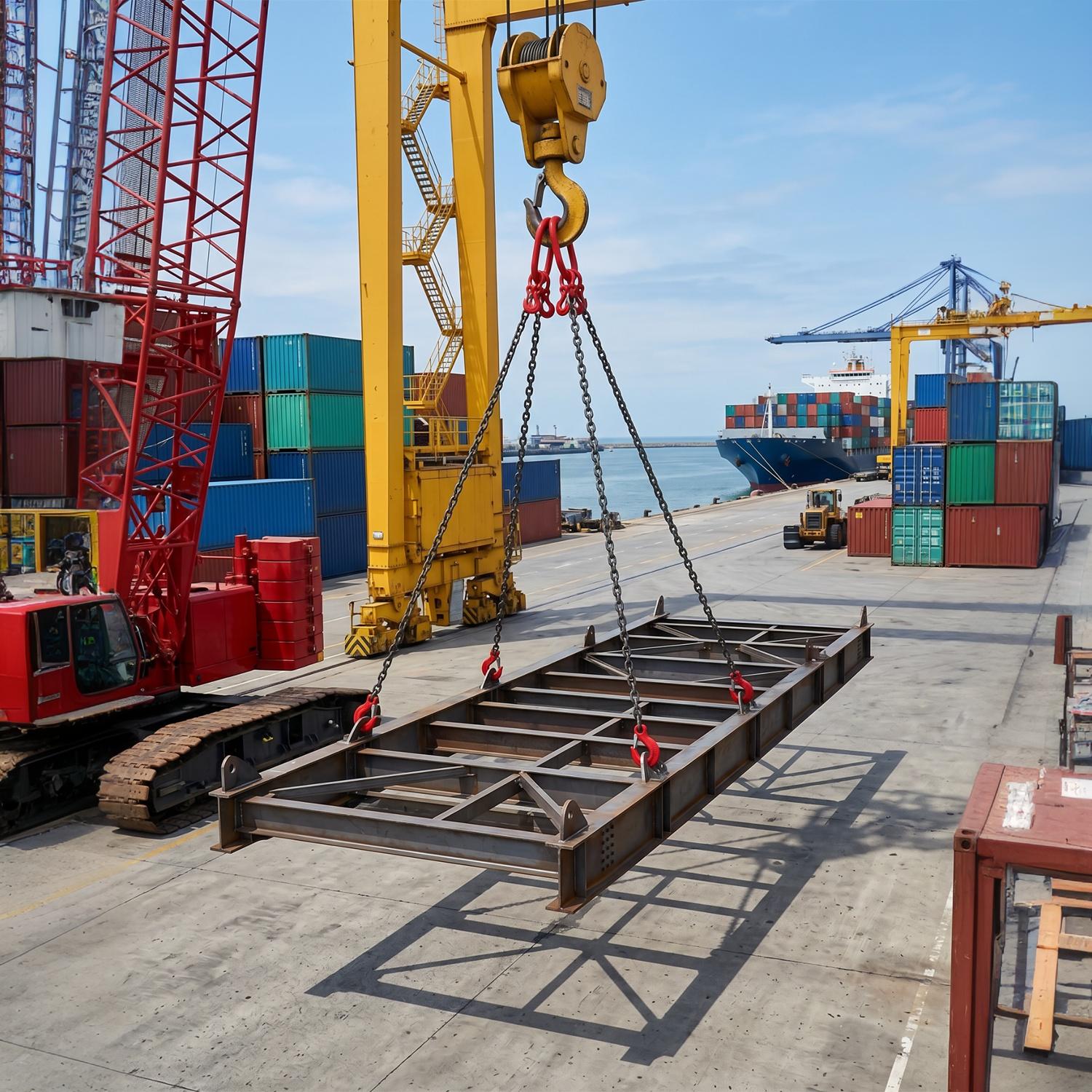

- Industrial & Construction Sites: Safely secures and transports structural steel beams, dock sections, building materials, and heavy rigging plates.
- Agricultural & Forestry Work: Easily handles drag extraction for raw logs, large tractor tires, and unyielding farm implements.
