- 6000 lb Lifting Capacity: Heavy-duty forklift jib boom crane supports large machinery, industrial materials, heavy equipment, and bulky warehouse loads within the rated capacity.
- Adjustable Boom Length & Lift Angle: Multiple adjustment points let you change the boom reach and lifting angle for different load sizes, jobsite layouts, and placement needs.
- Fork-Mounted Slide-On Setup: Slide the attachment over compatible pallet forks through the fork pockets, tighten the thumbscrews, and attach the hook to the load.
- Heavy-Duty Steel Construction: Durable steel frame is built for professional construction, warehouse, factory, garage, machinery installation, and industrial lifting tasks.
- 2 Hooks Included for Flexible Lifting: Comes with two hooks to support different lifting positions and reach requirements when moving heavy or awkward loads.
Description
GARVEE · Fork-Mounted Lifting
Reach Beyond
Standard Forks.

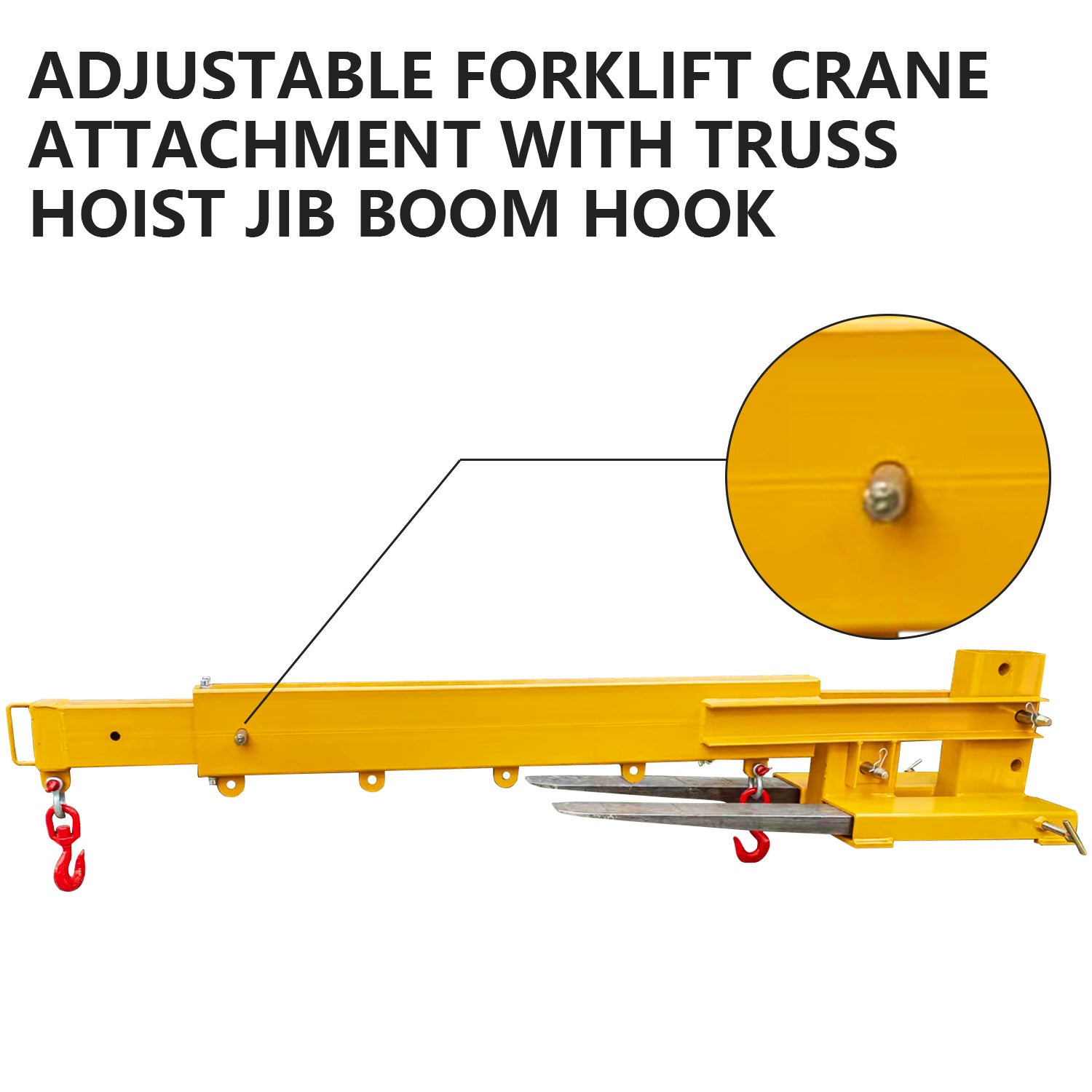

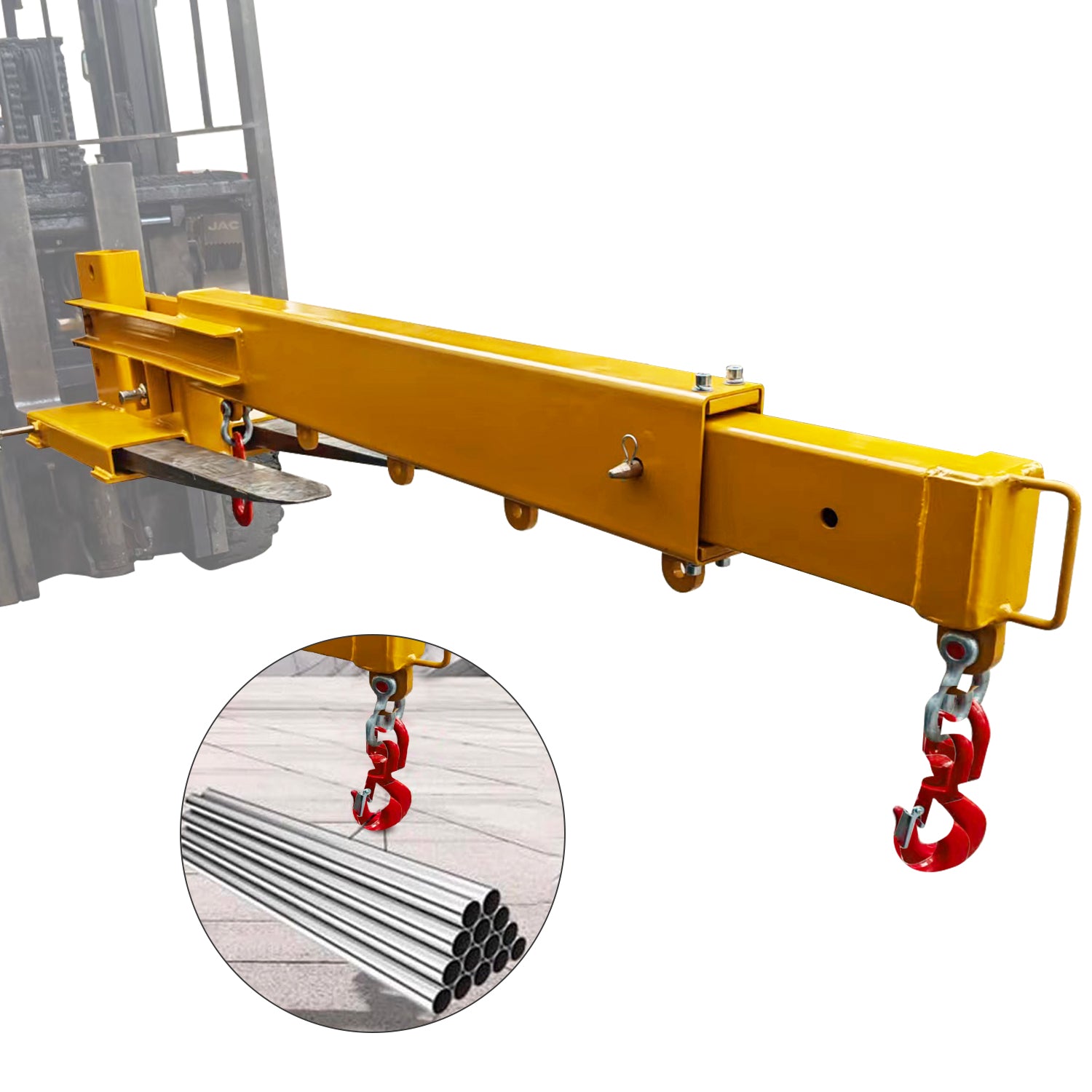

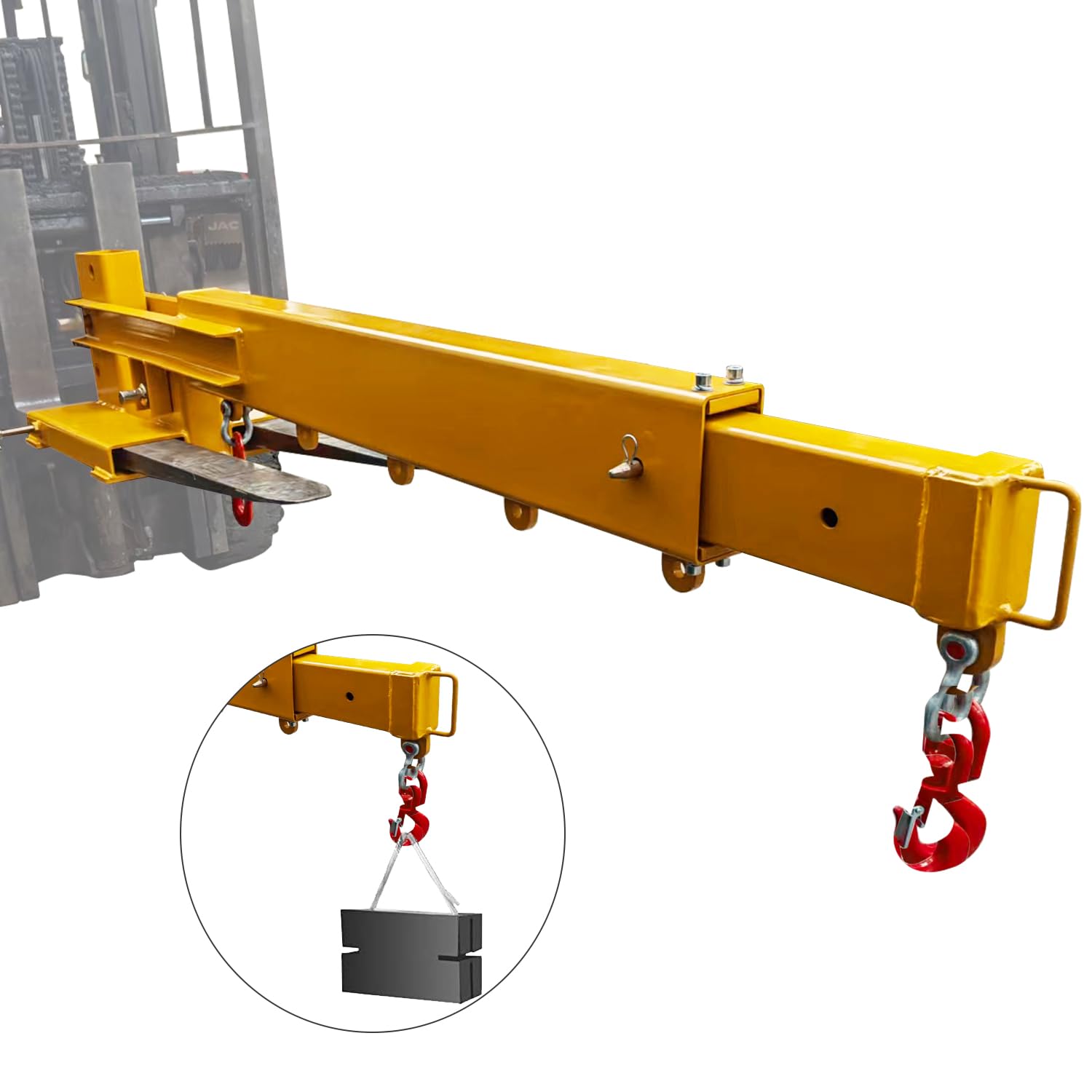

GARVEE Adjustable Forklift Jib Boom — a steel, fork-mounted attachment for lifting and positioning properly rigged loads with a compatible, approved forklift.
Up to 6,000 lb attachment capacity at the designated chart position. Not rated for 6,000 lb at every reach. Forklift-and-attachment capacity may be lower.
More Options for Material Handling
Position the Hook Where the Job Requires.
When a load calls for a rigged lifting point rather than direct fork support, an adjustable jib gives your team another handling option.
Adjust Reach to the Task
Adjustable boom length and hook positions let you select a setup for your placement needs, within the approved load limits.
Use a Fork-Mounted Design
Fork pockets and thumbscrew clamps provide the attachment interface. Confirm fit and all required retention measures in the product manual.

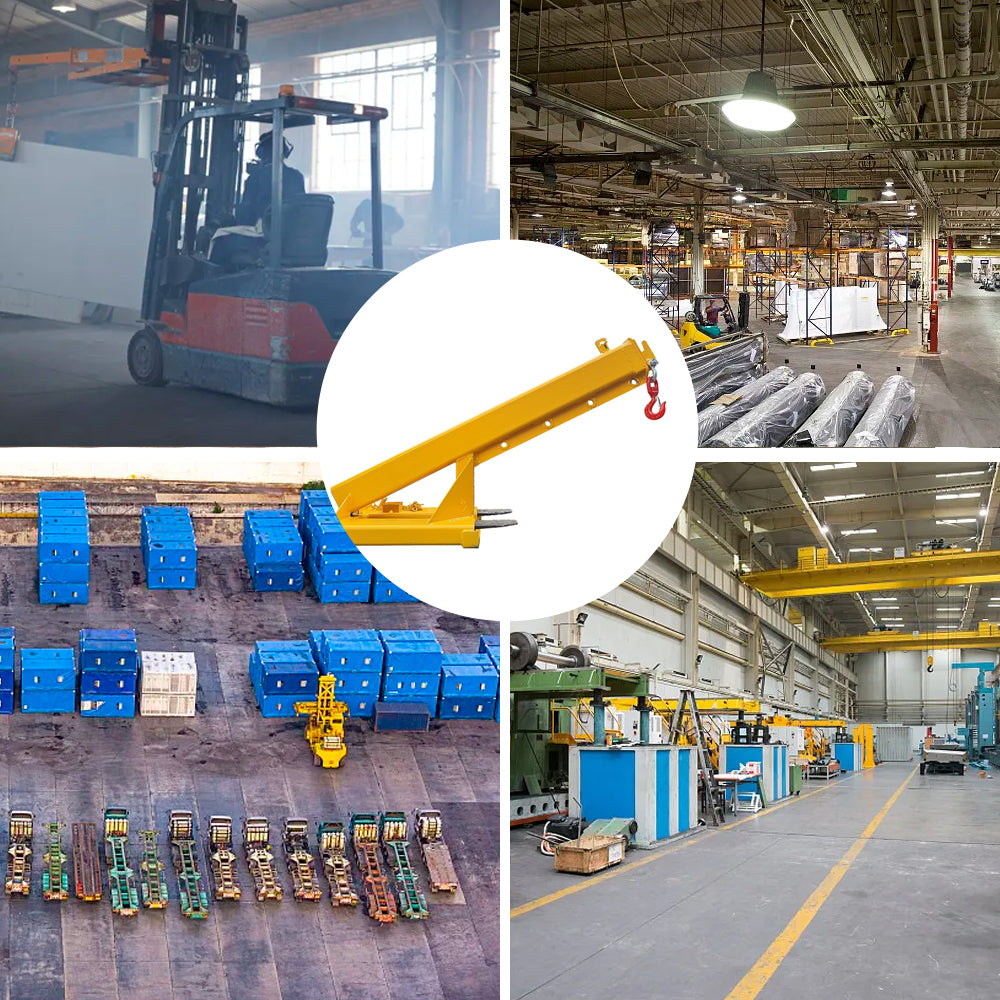

Plan for Industrial Handling
Steel construction for machinery placement, shop maintenance, and warehouse material handling with properly planned lifts.

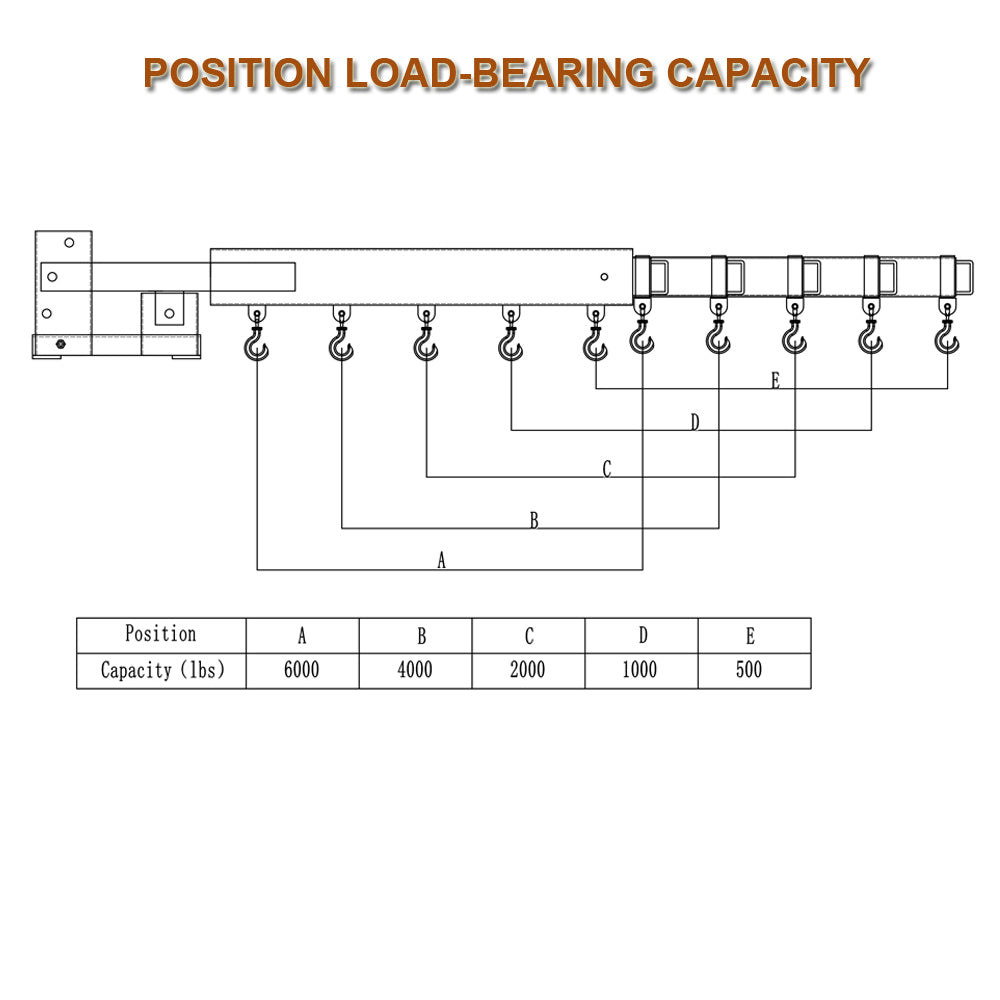

Know Your Working Capacity
Different Positions. Different Load Limits.
Select by the capacity at your required hook position, not by the maximum rating alone. Match the position labels below to the product diagram.
| Position A | Position B | Position C | Position D | Position E |
|---|---|---|---|---|
| 6,000 lb | 4,000 lb | 2,000 lb | 1,000 lb | 500 lb |
Before You Order
Check Fit. Confirm the Configuration.
Start with your forklift specifications and the load you need to handle.
- Fork dimensions and spacing Confirm fork width, thickness, usable length, and spacing against the attachment's internal pocket dimensions. Request those measurements if they are not available.
- Required reach and load weight Identify your intended lifting position and check its rating before choosing this attachment.
- Forklift approval and rated capacityConfirm the configuration with the forklift manufacturer and obtain required approval and updated capacity markings before use.

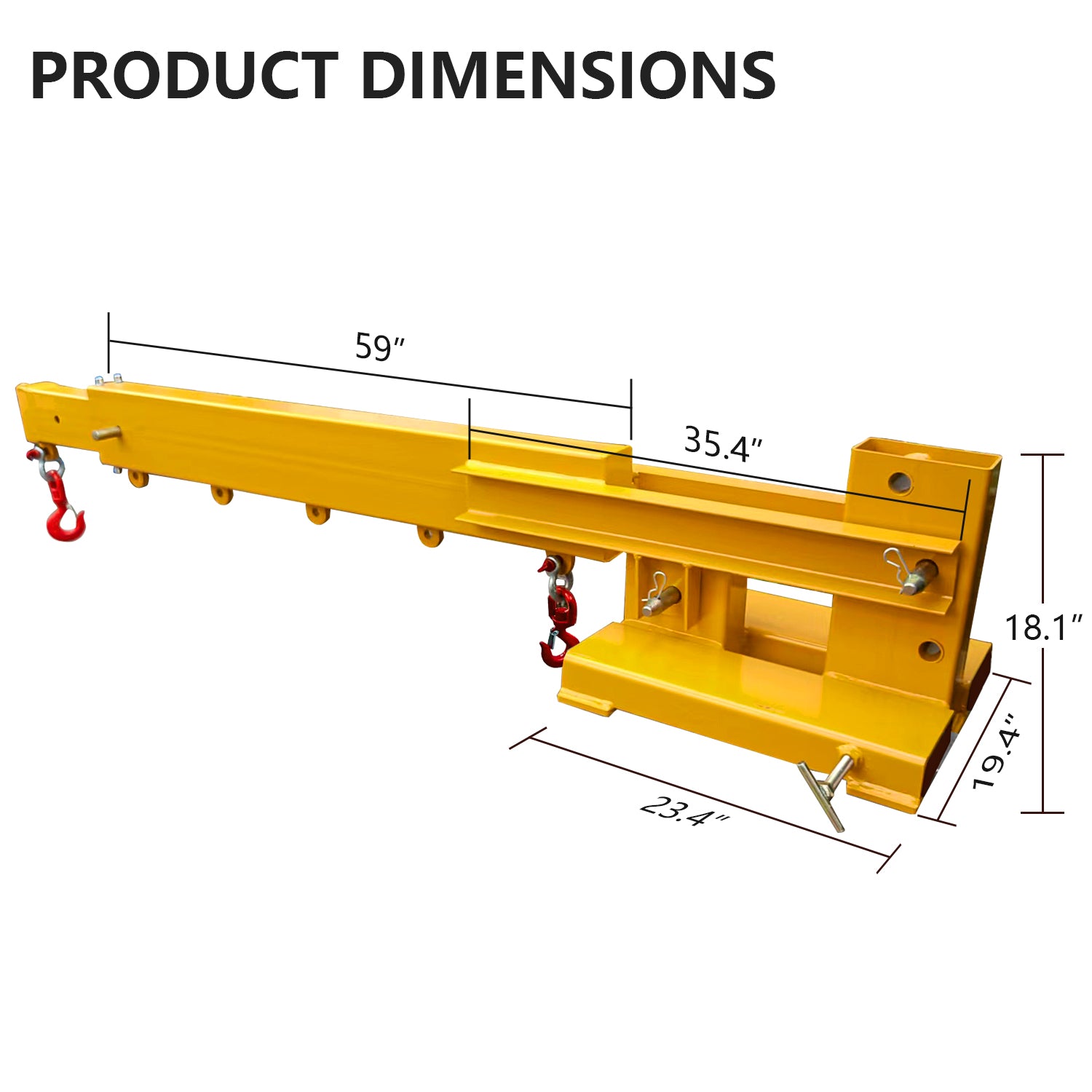

Product Details
Specifications at a Glance
| Brand | GARVEE |
|---|---|
| Product Type | Fork-Mounted Forklift Jib Boom Attachment |
| Maximum Attachment Capacity | Up to 6,000 lb at the designated chart position; position-dependent |
| Adjustment | Boom Length and Lifting Angle |
| Construction | Steel |
| Color | Yellow |
| Mounting Interface | Fork Pockets with Thumbscrew Clamps; follow all manual-specified retention requirements |
| Hooks Included | 2 |
| Listed Item Weight | 371.50 lb |
| Packaging | 3 Packages |
| Compatibility | Requires verified fork fit and an approved forklift-and-attachment configuration |
Questions Before Ordering
Get the Details That Matter.
Can it lift 6,000 lb at every boom position?
No. The product diagram lists 6,000 lb at position A, with lower ratings at the other labeled positions. Your forklift-and-attachment configuration may have a lower approved capacity. Check both the attachment rating and the forklift's updated capacity information.
Will it fit my forklift?
Do not assume universal fit. Compare your fork dimensions and spacing with the attachment's internal pocket measurements, then confirm the configuration and capacity with your forklift manufacturer. Contact us if you need additional product measurements.
Do the two hooks increase the rated capacity?
Do not add hook capacities together or assume that using both hooks increases the attachment rating. Follow only the hook arrangements and lifting configurations authorized in the product manual.
Does the attachment require assembly?

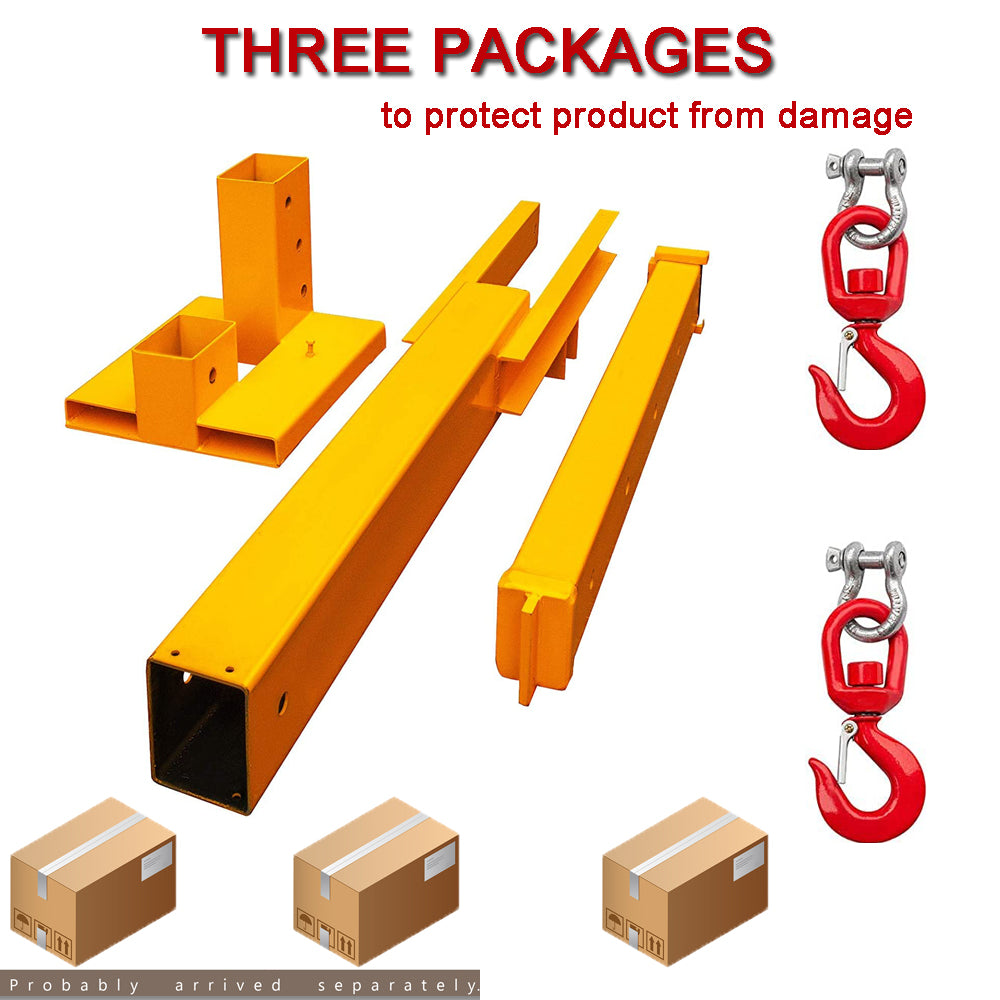

The attachment is supplied in separate components across three packages. Plan for assembly and suitable handling assistance, and follow the manual before installation or use.
What if only part of my order arrives?
This item ships in three packages, which may arrive separately. Check the available shipment tracking and contact support with your order number if you need help locating a package.
What should I confirm before placing my order?
Confirm fork-pocket fit, the required reach and load rating, forklift approval, and the full assembly requirements. Also review the shipping, return, and warranty terms that apply to your order.
Need a Measurement Before You Order?
Send your product question along with your forklift model, fork dimensions, intended load weight, and required reach. Confirm final operating approval with your forklift manufacturer.
