Garvee 4-Leg Heavy Duty Chain Sling (5/16" x 10 Ft) - G80 Manganese Alloy Steel Lifting Bridle with 4 Shortening Grab Hooks & Latched Clevis Hooks, 11,000 lbs Working Load Limit for Industrial Rigging & Engine Hoists
| Rigging Specification | Official Engineering Details |
|---|---|
| Brand Name | Garvee |
| Product Classification | 4-Leg Industrial Bridle Chain Lifting Sling |
| Working Load Limit (WLL) | 11,000 lbs (5 Tons Rated Capacity Class) |
| Chain Length Per Leg | 10 Feet (120 inches active reach) |
| Chain Structural Diameter | 5/16 inch (0.3125 inch / 8 mm structural size) |
| Chain Material Grade | G80 Manganese Alloy Steel |

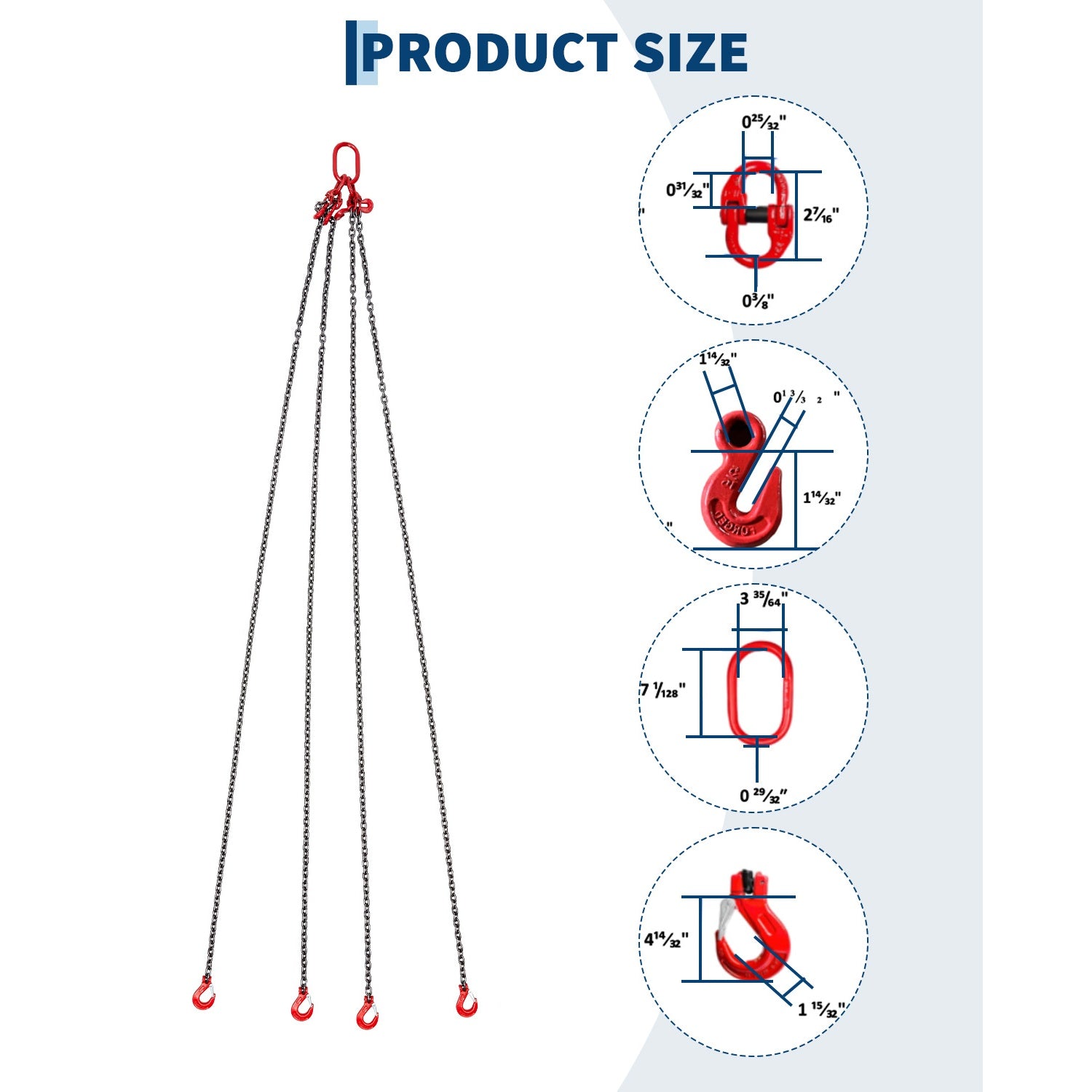

| Master Oblong Link Dimensions | 7-7/128" Int. Length x 3-35/64" Int. Width x 0-29/32" Thickness |
| Connecting Link Dimensions | 2-7/16" Length x 0-25/32" Top Width x 0-31/32" Base Width |
| Shortening Grab Hook Dimensions | 1-19/32" Height x 1-14/32" Eye Width x 0-11/32" Chain Slot Throat |
| Clevis Sling Hook Dimensions | 4-14/32" Total Height x 1-15/32" Latched Throat Clearance |
| Hardware Material Treatment | Drop-Forged Alloy Steel with High-Visibility Corrosion Armor |
| Welding Engineering Profile | Advanced Full-Automatic Anti-Fatigue Fusion Welding |
| Hook Safety Latches | Heavy-Duty Spring-Loaded Lock Latches Installed |
| Tool Assembly Net Weight | 47.6 pounds |
Garvee 4-Leg Heavy Duty Chain Sling (5/16" x 10 Ft) - G80 Manganese Alloy Steel Lifting Bridle with 4 Shortening Grab Hooks & Latched Clevis Hooks, 11,000 lbs Working Load Limit for Industrial Rigging & Engine Hoists

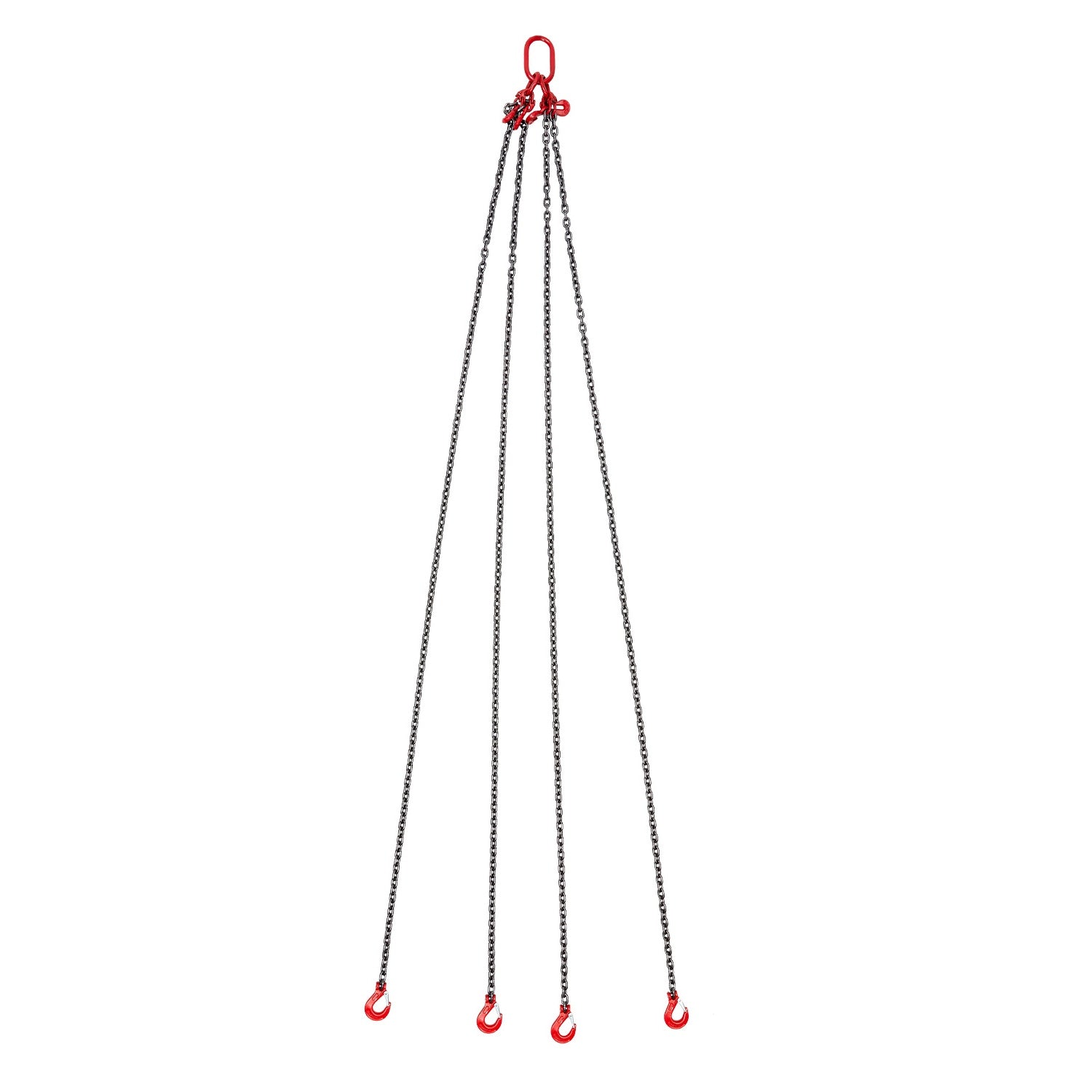

Garvee 5/16" x 10 Ft Heavy-Duty G80 4-Leg Lifting Chain Sling
Take complete control of your heaviest warehouse, farm, and job site lifts. The Garvee 4-Leg Heavy-Duty Chain Sling is a certified commercial lifting bridle engineered to handle up to 11,000 lbs working load limits safely. Forged from high-grade G80 manganese steel and spanning 10 feet in length per leg, this 47.6 lb rigging assembly uses full-automatic welding technology to handle punishing tension. Equipped with four independent shortening grab hooks to level out uneven loads and safety-latched clevis sling hooks, it connects seamlessly to large hoist hooks via an oversized structural oblong master link.

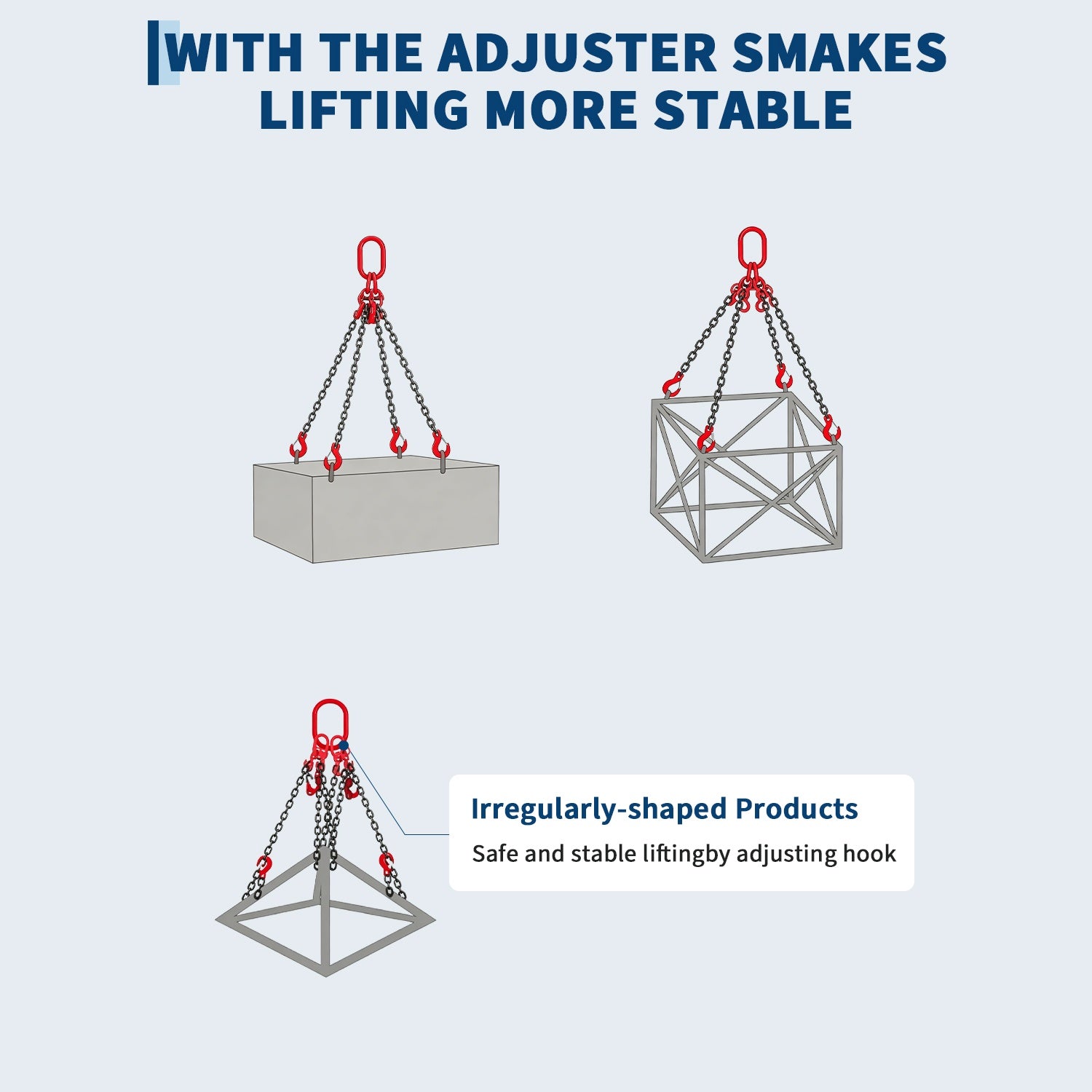

Eliminate Dangerous Tilting and Slipping with Off-Center Industrial Loads
Lifting off-center, asymmetrical machinery like tractor blocks, engines, logs, or structural steel with standard fixed straps is highly dangerous. If the center of gravity shifts, the entire load can tilt sharply, causing straps to snap or slip entirely. The Garvee 4-Leg Rigging Sling eliminates this hazard using integrated chain shorten adjusters on every leg. Featuring a precise 0.34-inch ($0\ \frac{11}{32}$") throat slot, each grab hook lets you adjust the leg lengths individually. This allows you to balance irregular loads perfectly before lifting, keeping your team safe and your cargo steady during heavy overhead crane moves.
Premium Tool Engineering Features

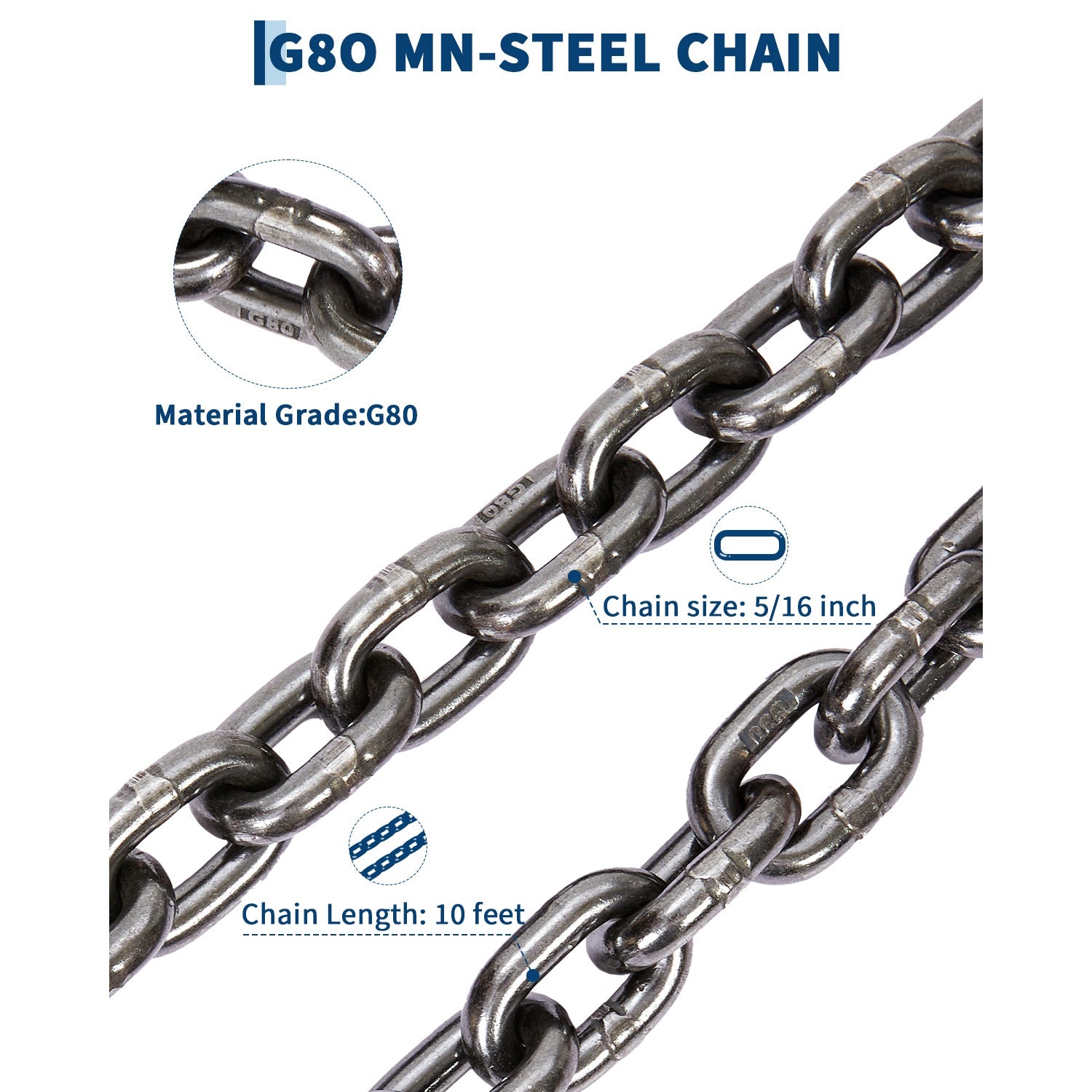

🏗️ High-Strength G80 Manganese Steel Chains
Engineered for heavy-duty lifting. The 5/16-inch ($0.3125\text{ inch}$) links are joined using full-automatic welding processes that deliver excellent fatigue and impact resistance. This structural composition limits chain stretching under full loads, making it ideal for engine removal and structural rigging.
📐 Oversized Multi-Hoist Oblong Master Link
Worry-free attachment to a variety of crane hooks. Measuring over 7 inches ($7\ \frac{7}{128}$") in length and 3.5 inches ($3\ \frac{35}{64}$") in width with a robust 0.90-inch ($0\ \frac{29}{32}$") thickness, this master link provides plenty of room for heavy rigging gear without binding or crowding hooks.

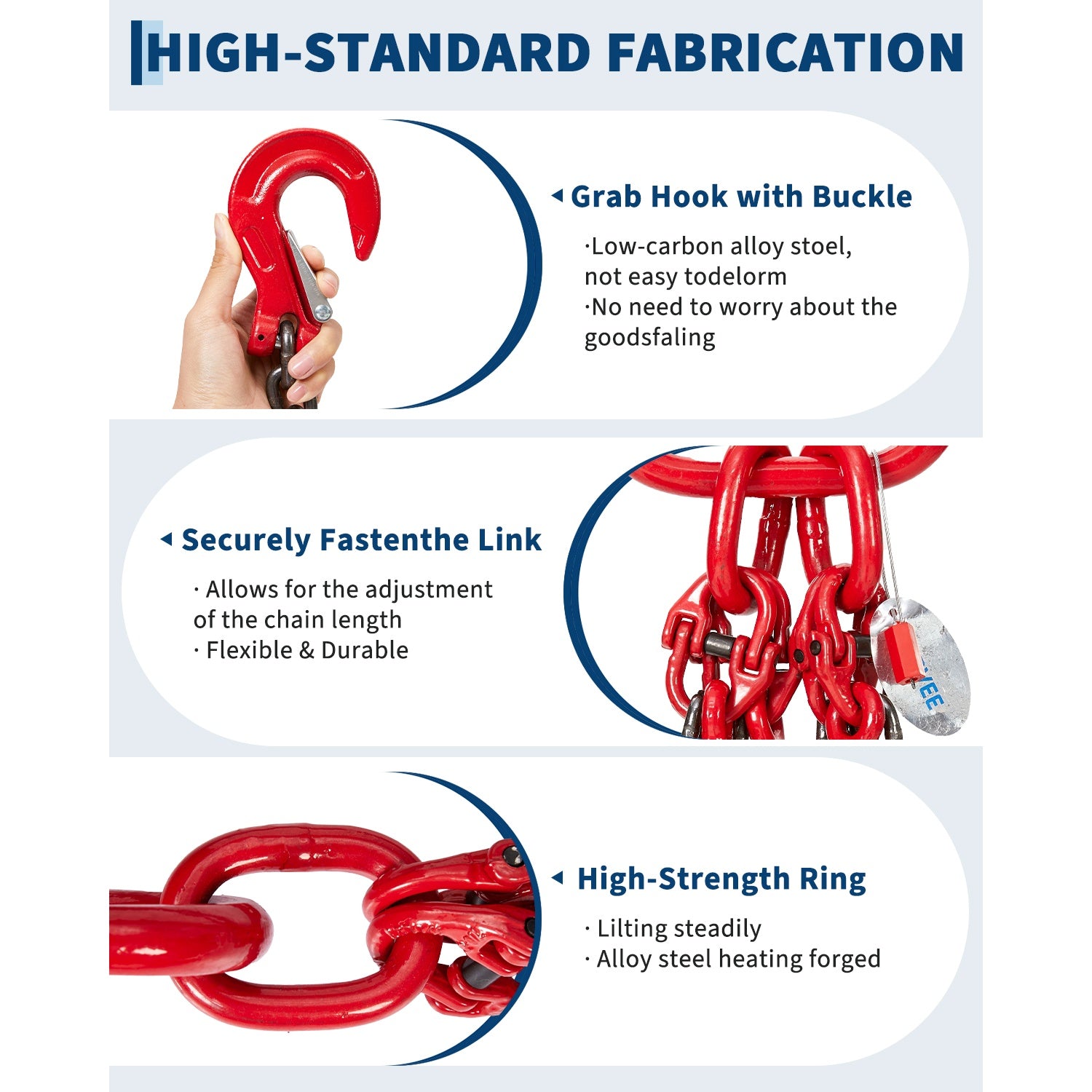

🔒 Latched Clevis Sling Hooks for Secure Connection
Prevents accidental detachments while handling material. Standing $4\ \frac{14}{32}$ inches tall with a wide $1\ \frac{15}{32}$ inch opening throat clearance, each lower hook is fitted with a spring-loaded steel safety latch that locks onto lifting eyes, structural frames, or anchoring plates instantly.
🛠️ Heavy-Gauge Forged Alloy Couplers and Adjusters
Rugged load-bearing parts that deliver long-lasting durability. The $2\ \frac{7}{16}$" dual-eye connecting links use a solid 3/8" ($0\ \frac{3}{8}$") locking center pin to connect the legs cleanly, keeping the entire 10-foot assembly moving smoothly without catching or binding under pressure.
Multi-Purpose Industrial Application Matrix
Designed with high fatigue resistance for demanding indoor and outdoor jobs, this 11,000 lbs capacity lifting sling is ideal for:
- Automotive & Diesel Workshops: Safely pulls and balances large commercial diesel truck engines, transmissions, and heavy equipment blocks.

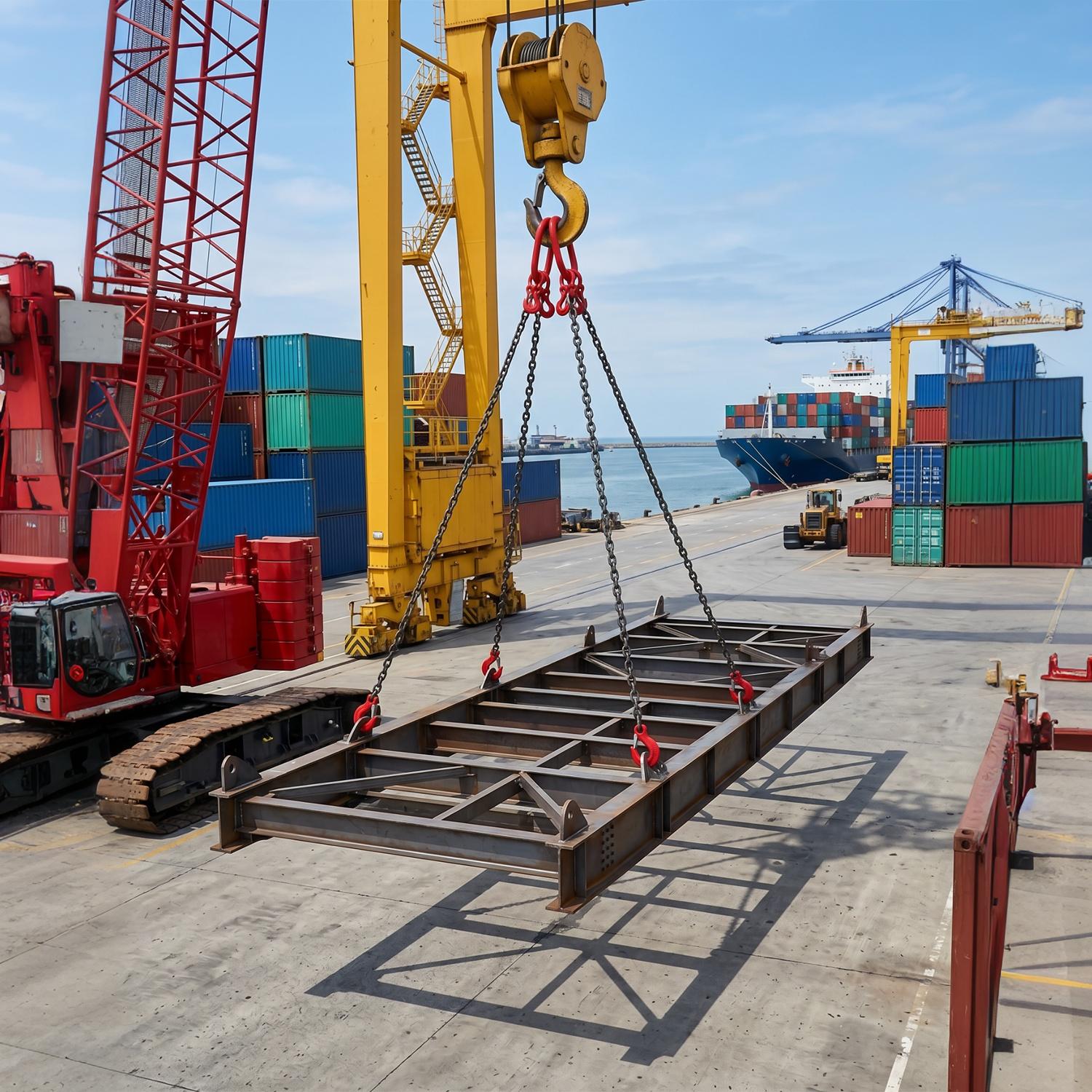

- Construction Sites & Rigging: Lifts steel I-beams, concrete pipes, structural metal frames, and heavy timber logs with balanced precision.
- Agricultural Maintenance: Lifts heavy tractor tires, farm implements, iron gates, dock frames, and thick components for machinery repair.
