NEW
Garvee 4000 lbs Heavy Duty Skid Steer Pallet Fork Attachment - 48" Adjustable Blades, 2" Receiver Hitch & Hay Spear Sleeves - 45.5" Quick Attach Frame Compatible with Kubota & Tractor Loaders

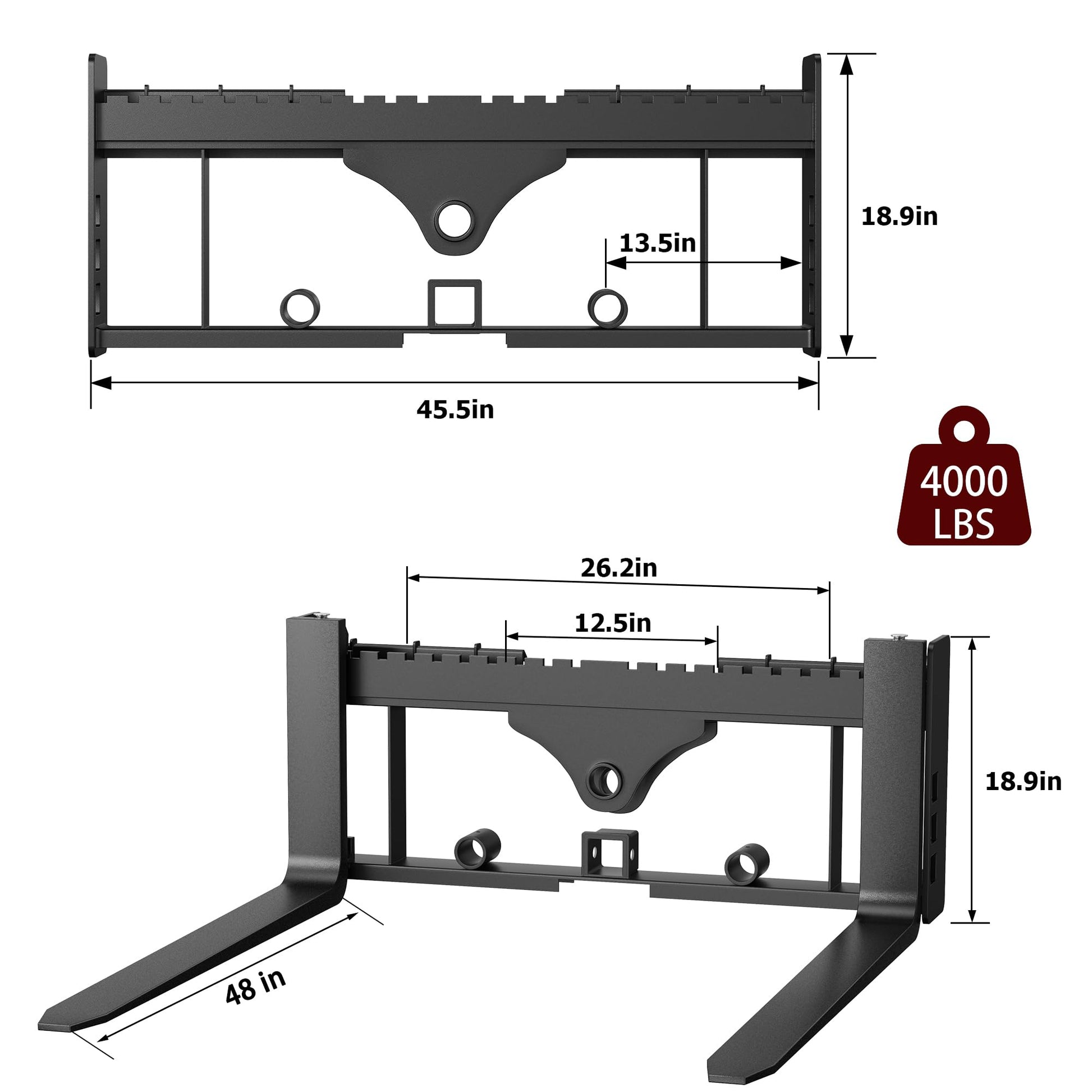

| Attachment Specification | Official Engineering Details |
|---|---|
| Brand Name | Garvee |
| Item Type Name | Heavy-Duty Skid Steer Pallet Fork Attachment |
| Max Load Capacity | 4000 lbs (Safe Working Load Limit) |
| Overall Frame Width | 45.5 inches (Quick-Attach Backplate Dimension) |
| Overall Frame Height | 18.9 inches |
| Fork Blade Length | 48.0 inches (High-Strength Lift Blades) |
| Fork Adjustment Range | Adjustable slider span from 2.0" up to 44.8" |
| Upper Notch Adjust Span | 26.2 inches |
| Central Restrict Zone | 12.5 inches |
| Spear Sleeve Clearance | 13.5 inches (Distance from vertical outer frame edge) |
| Integrated Hitch Profile | Built-In 2-Inch Standard Receiver Hitch Tube |
| Core Construction Material | Heavy-Duty Structural High-Tensile Carbon Steel |
| Protective Coating Profile | Anti-Rust, Corrosion-Resistant Powder Coat Layer |
| Included Components | 1.0 Count Complete Skid Steer Pallet Frame Assembly |
| Equipment Net Weight | 298.51 Pounds |
Garvee 4000 lbs Heavy Duty Skid Steer Pallet Fork Attachment - 48" Adjustable Blades, 2" Receiver Hitch & Hay Spear Sleeves - 45.5" Quick Attach Frame Compatible with Kubota & Tractor Loaders

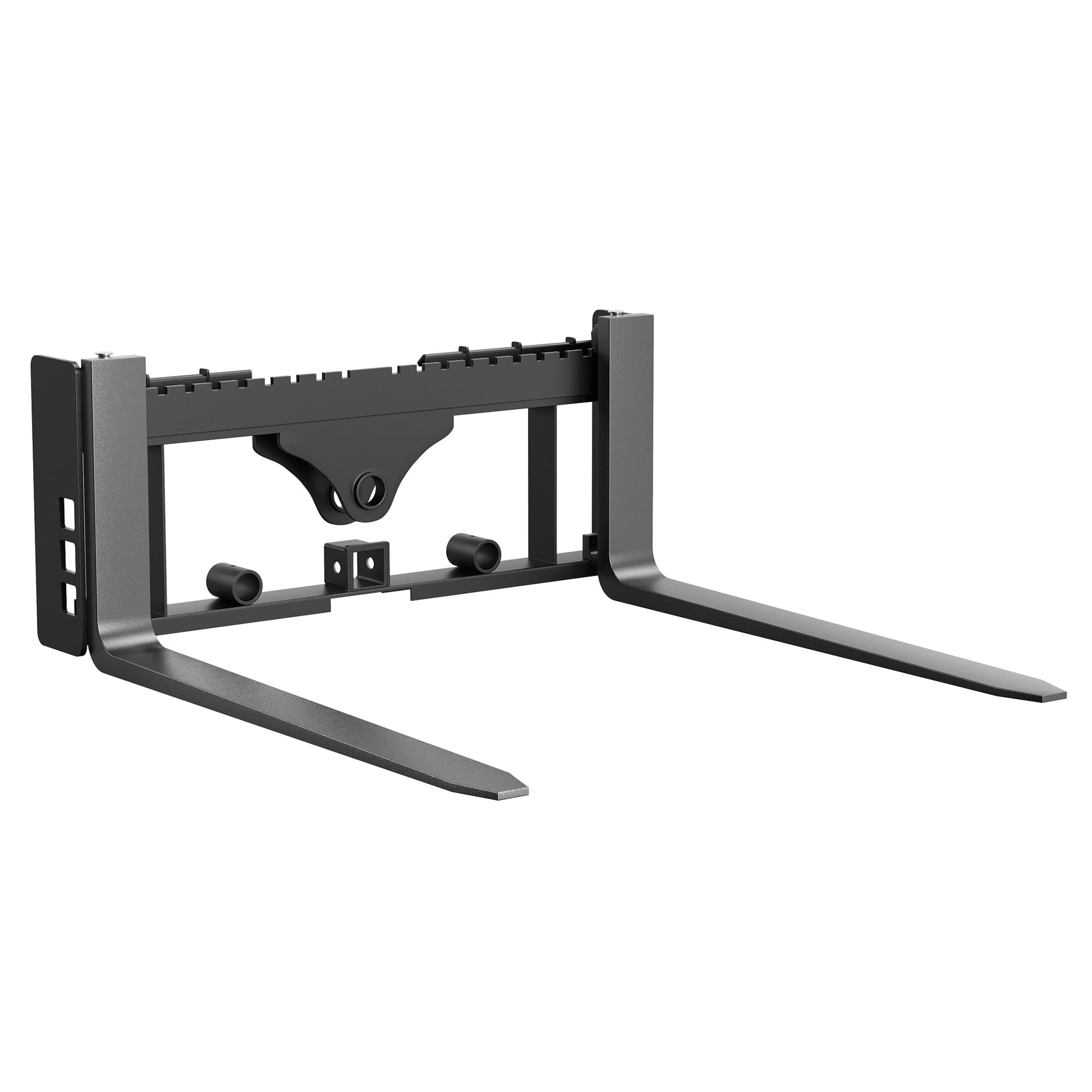

Garvee 4000 lbs Heavy-Duty Quick-Attach Pallet Fork Attachment
Transform your compact tractor or skid steer loader into a highly versatile material handling workhorse. The Garvee 4000 lbs Heavy-Duty Pallet Fork Attachment is engineered from solid carbon steel to tackle the most demanding agricultural, construction, and warehouse challenges. Featuring a standard 45.5-inch wide quick-attach frame, this multi-functional unit incorporates 48-inch adjustable fork blades, built-in hay spear sleeves, and an integrated 2-inch receiver hitch. Whether you are transporting stacked pallets, lifting heavy logs, clearing debris, moving large hay bales, or towing trailers around the farm, this heavy-duty 298.51 lb attachment provides the rigid strength, reliable safety, and universal compatibility your fleet requires.

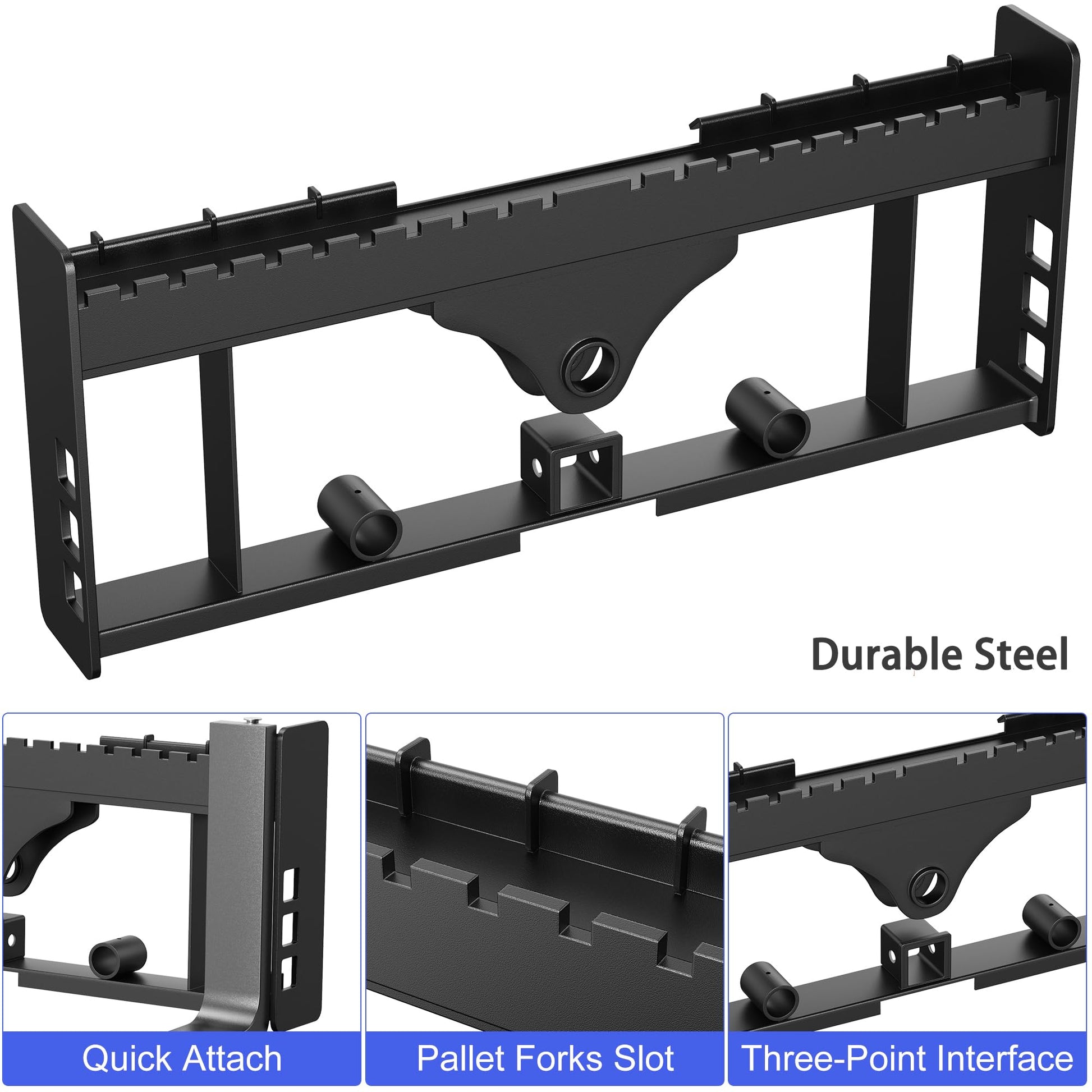

Eliminate Equipment Swaps with a True 3-in-1 Multi-Tasking Frame
Constantly changing out attachments on your loader to handle different tasks on the farm or job site wastes valuable operational hours and drains operator energy. The Garvee Multi-Functional Skid Steer Frame eliminates this bottleneck by merging three critical tools into a single heavy-duty platform. Keep the 48-inch adjustable fork blades attached to slide underneath standard material pallets, warehouse crates, or raw timber. When it is time for livestock feeding or field cleanup, utilize the pre-welded spear sleeves to insert round bale spikes. Need to reposition a utility trailer or farm implement? The integrated 2-inch center receiver hitch lets you hook up and tow directly from the front of your loader without switching to a dedicated hitch drawbar.

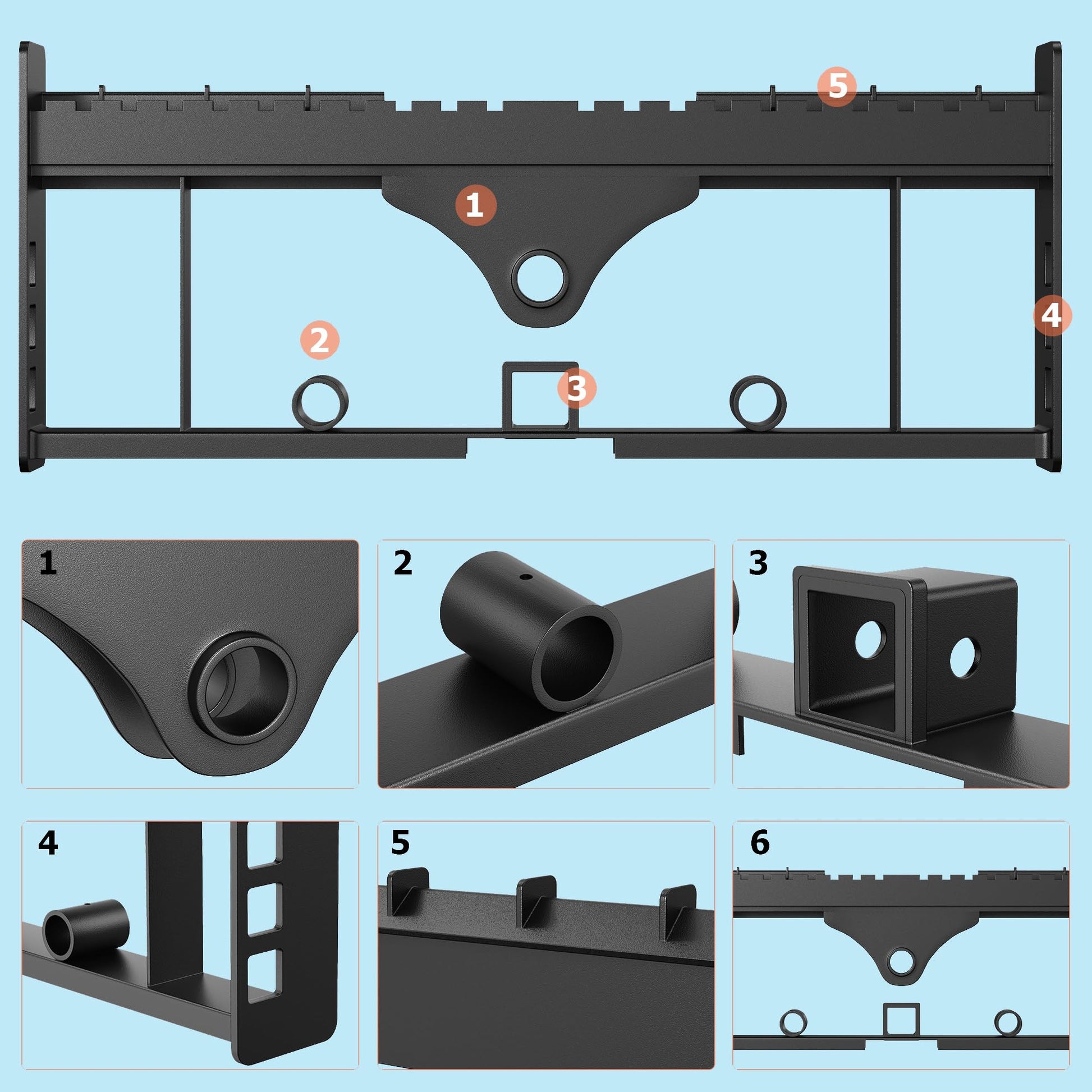

Premium Structural Engineering Features
🏗️ 4000 lbs Rated Lifting Capacity
Built for raw power and rigorous safety. The main frame and fork brackets are formed from elite high-strength carbon steel, designed to manage high stress loads during intensive material handling across rugged terrain without flexing or structural fatigue.
📐 48" Removable Rail-Adjustable Fork Blades
Complete layout customization. The high-capacity 48-inch long fork blades slide easily across a 26.2-inch wide notched top rail adjustment span, adapting quickly from narrow 2-inch profiles up to a wide 44.8-inch span to match custom pallets or irregular logs.
🚜 Universal Quick-Attach Compatibility
Seamless integration with your existing tractor fleet. The standard 45.5-inch wide backplate configuration fits securely onto major skid steer systems and compact loader models, ensuring a tight, tool-free lockup that lets you get straight to work.
🛡️ All-Weather Corrosion-Resistant Armor
Engineered to endure the harshest outdoor yard conditions. The entire steel assembly is treated with a specialized industrial-grade protective finish that guards against rust, rain moisture, mud scratches, and chemical fertilizer exposure.
Multi-Industry Material Handling Applications
With its high-tonnage 4000 lbs rating and multi-functional layout, this quick-attach frame excels in:
- Agricultural & Farm Stewardship: Moving seed bags, lifting stacked hay bales via integrated sleeves, cleaning livestock enclosures, and towing small utility trailers.
- Construction & Masonry Sites: Transporting industrial cement pallets, handling heavy timber, moving roofing supplies, and organizing raw masonry blocks safely.
- Lumber & Warehouse Supply Yards: Loading and unloading delivery flatbeds, maneuvering oversized log bunks, and stacking bulk palletized items inside compact storage bays.
