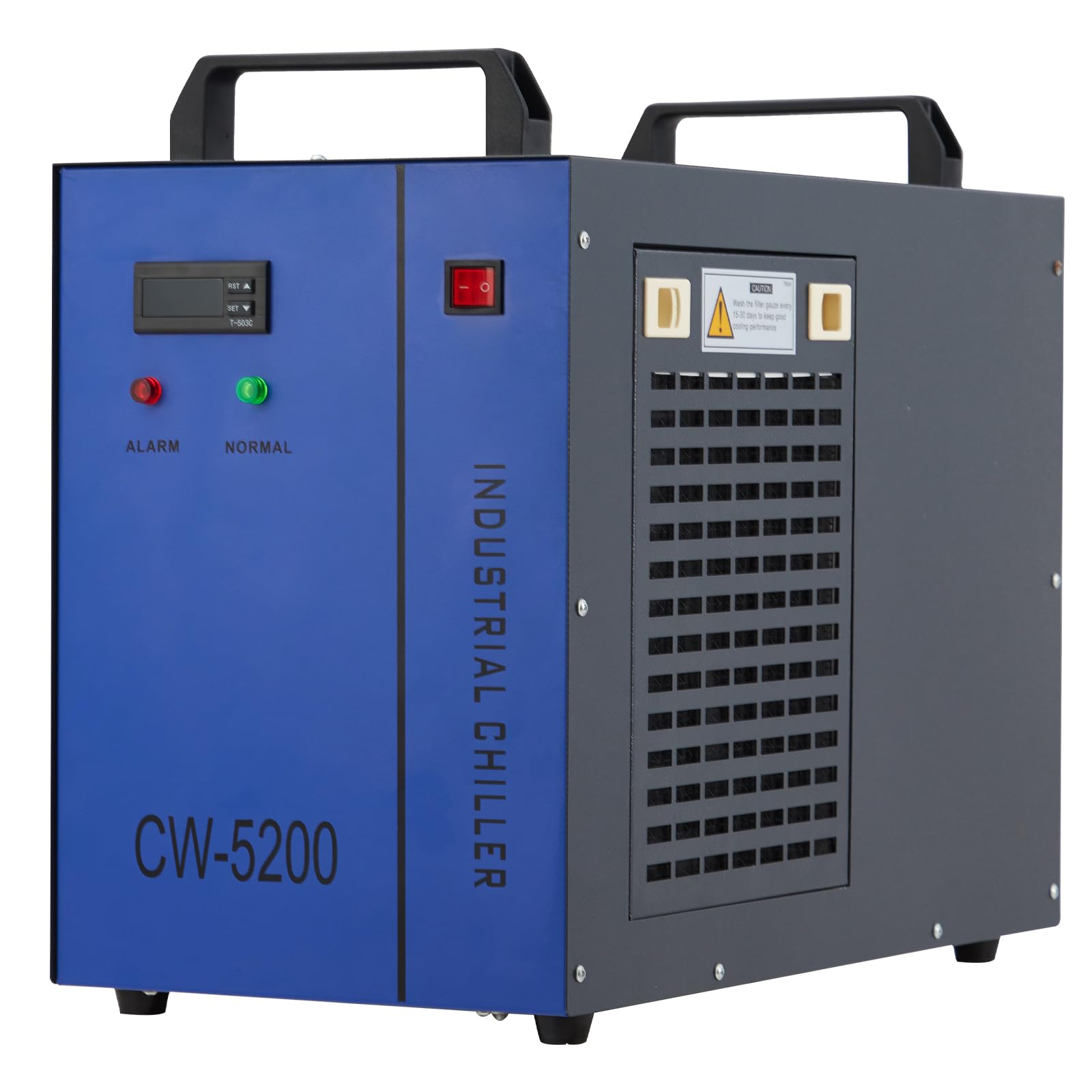

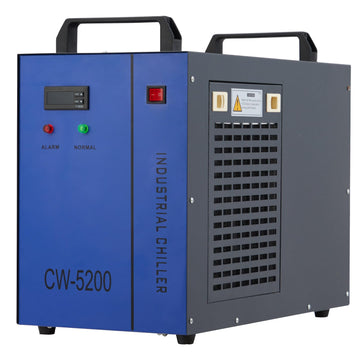

Garvee Industrial Water Chiller CW-5200 7L 0.9HP 3.4gpm Water Cooling System for 60W 70W 80W 90W 100W 120W 130W 150W CO2 Laser Engraving & Cutting Machines,Cools 5796 Btu/h

Regular price

$511.99

Sale price $511.99 Regular price $692.99
Unit price
- 26%
Get Now
Get 10% Off
My Coupons
1 coupons available
10% Off
Get 10% Off
Code: XMAS10
Copy to Use
In Stock. Shipping From United States
Est. Delivery Time:
Free US Shipping
30 Day No- Hassle Returns
12-Month Warranty
Total Price
$511.99
0

Garvee Industrial Water Chiller CW-5200 7L 0.9HP 3.4gpm Water Cooling System for 60W 70W 80W 90W 100W 120W 130W 150W CO2 Laser Engraving & Cutting Machines,Cools 5796 Btu/h

Regular price

$511.99

Sale price $511.99 Regular price $692.99
Unit price
Description
Specification
Reviews

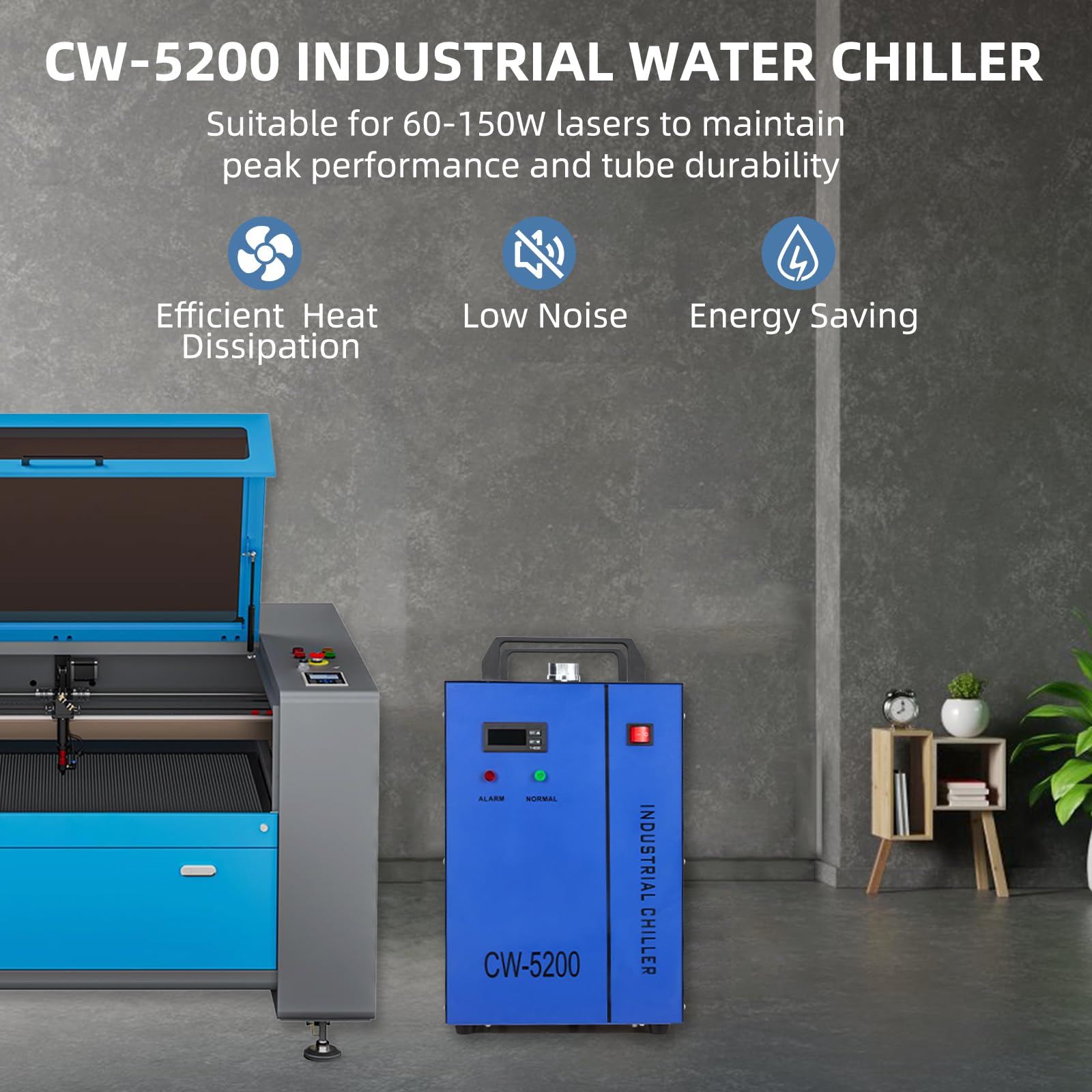

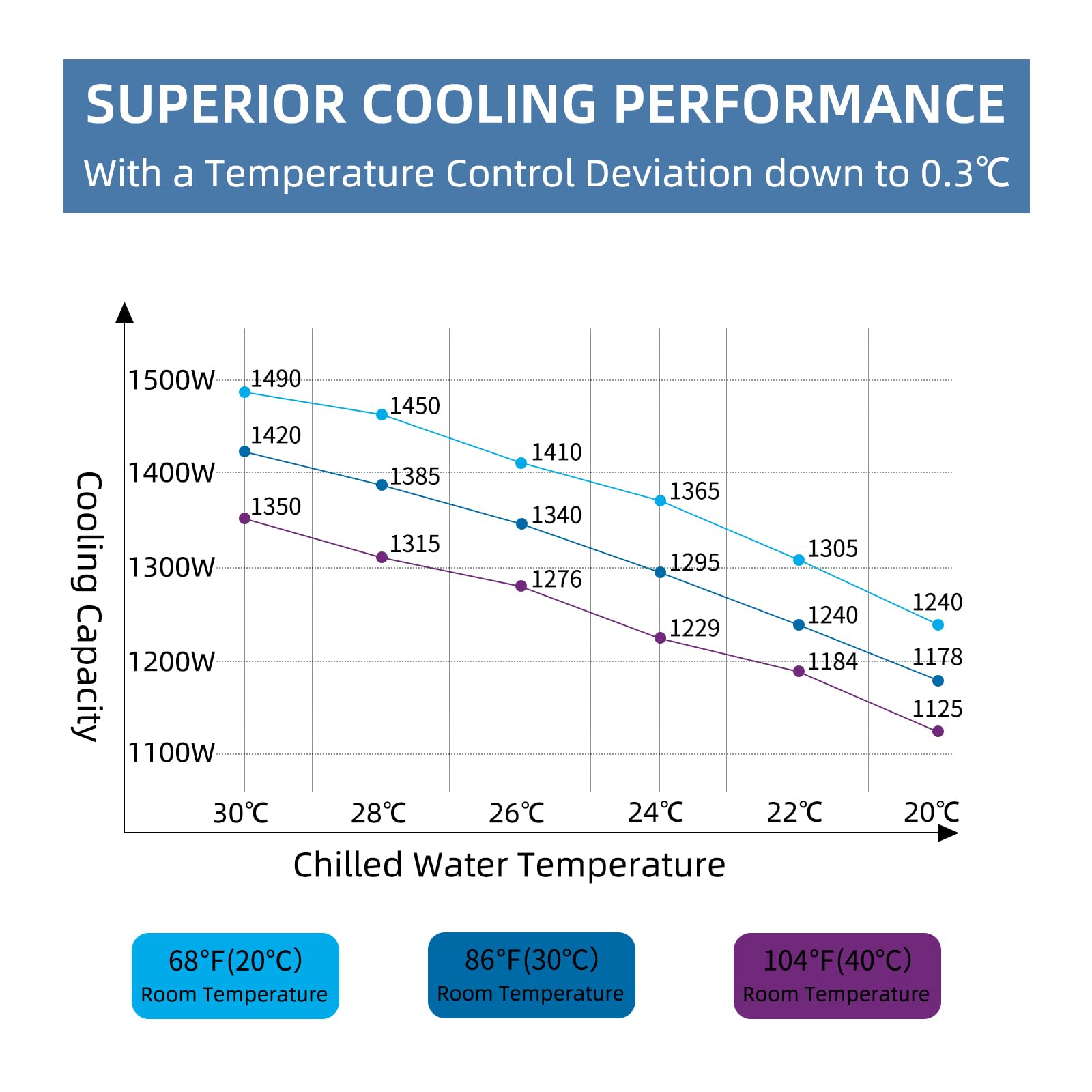

  • POWERFUL COOLING: Our CW-5200 water chiller is specifically designed to keep laser cutting and engraving machines up to 150W nice and cool during use. It effectively protects your equipment, ensuring a long lifespan. Compatible with 60W-150W CO2 laser tubes, it provides reliable cooling. Its 3.4 gpm flow rate and 0.9hp compressor cools up to 5796 Btu per hour

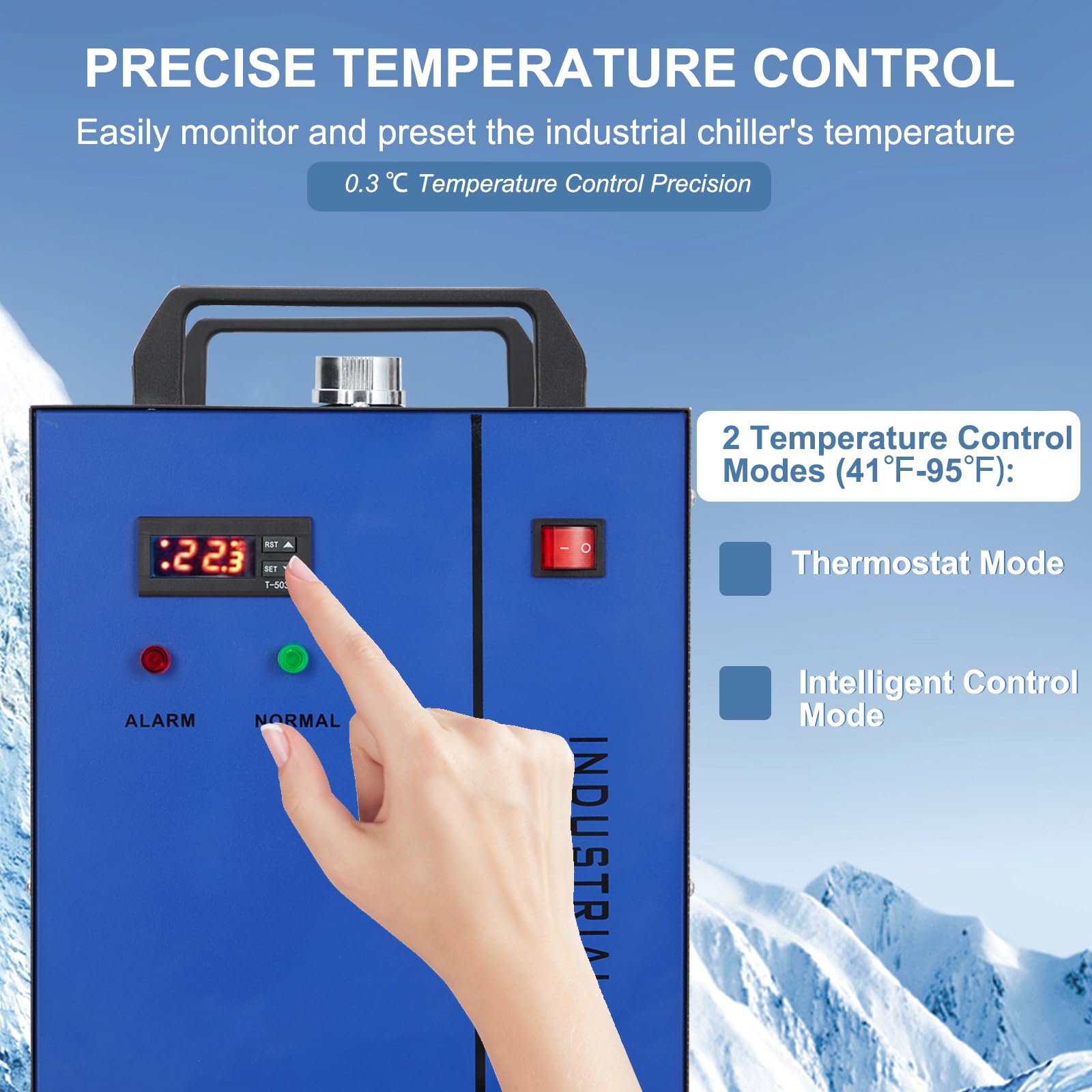

  • MULTI-MODE PRECISE TEMPERATURE CONTROL: The machine adopts two modes of constant temperature and intelligent control, which can be changed in the controller, and the precision of temperature control is 0.3°C. The constant temperature mode will be adjusted automatically according to the change of room temperature. Manual temperature setting between 5-40 degrees

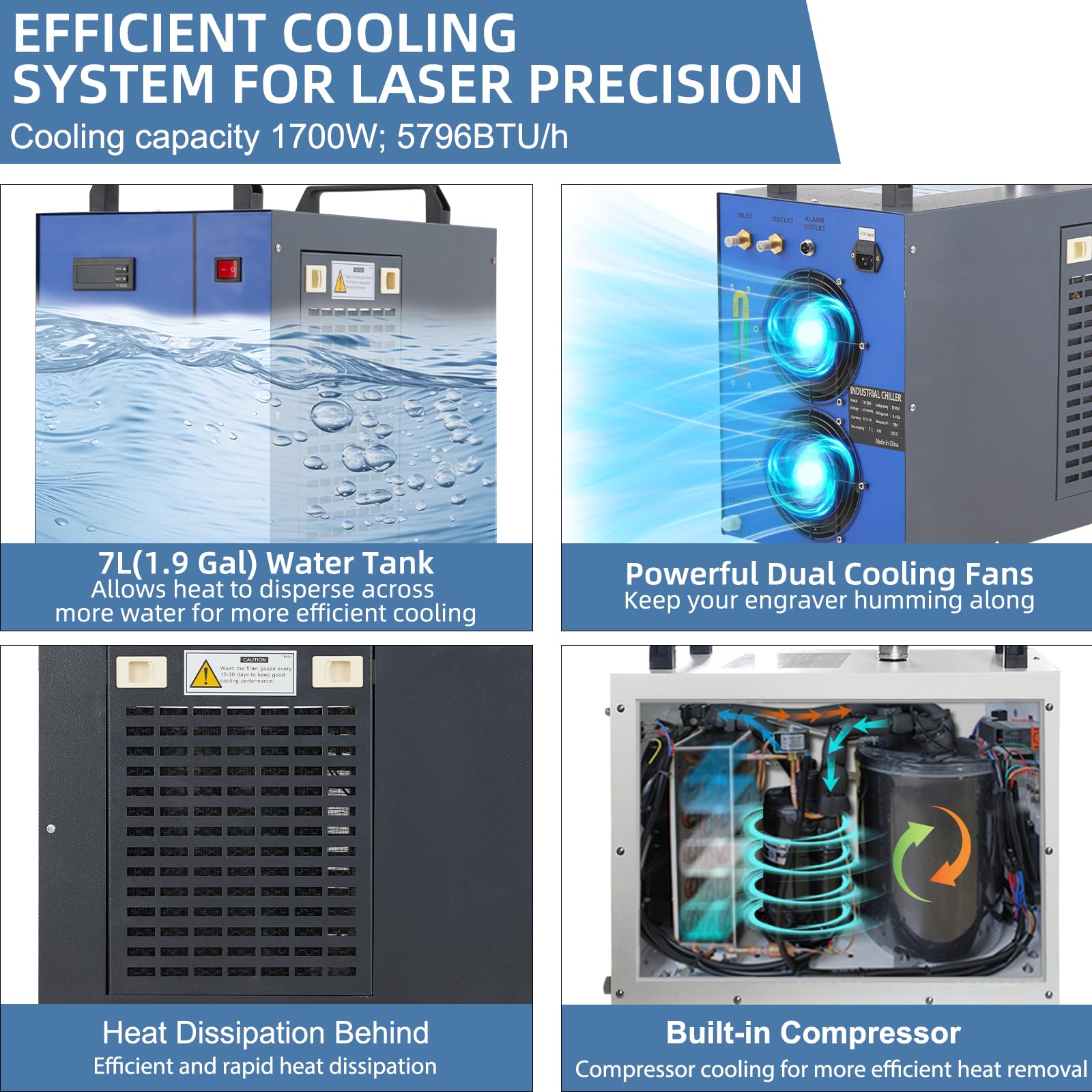

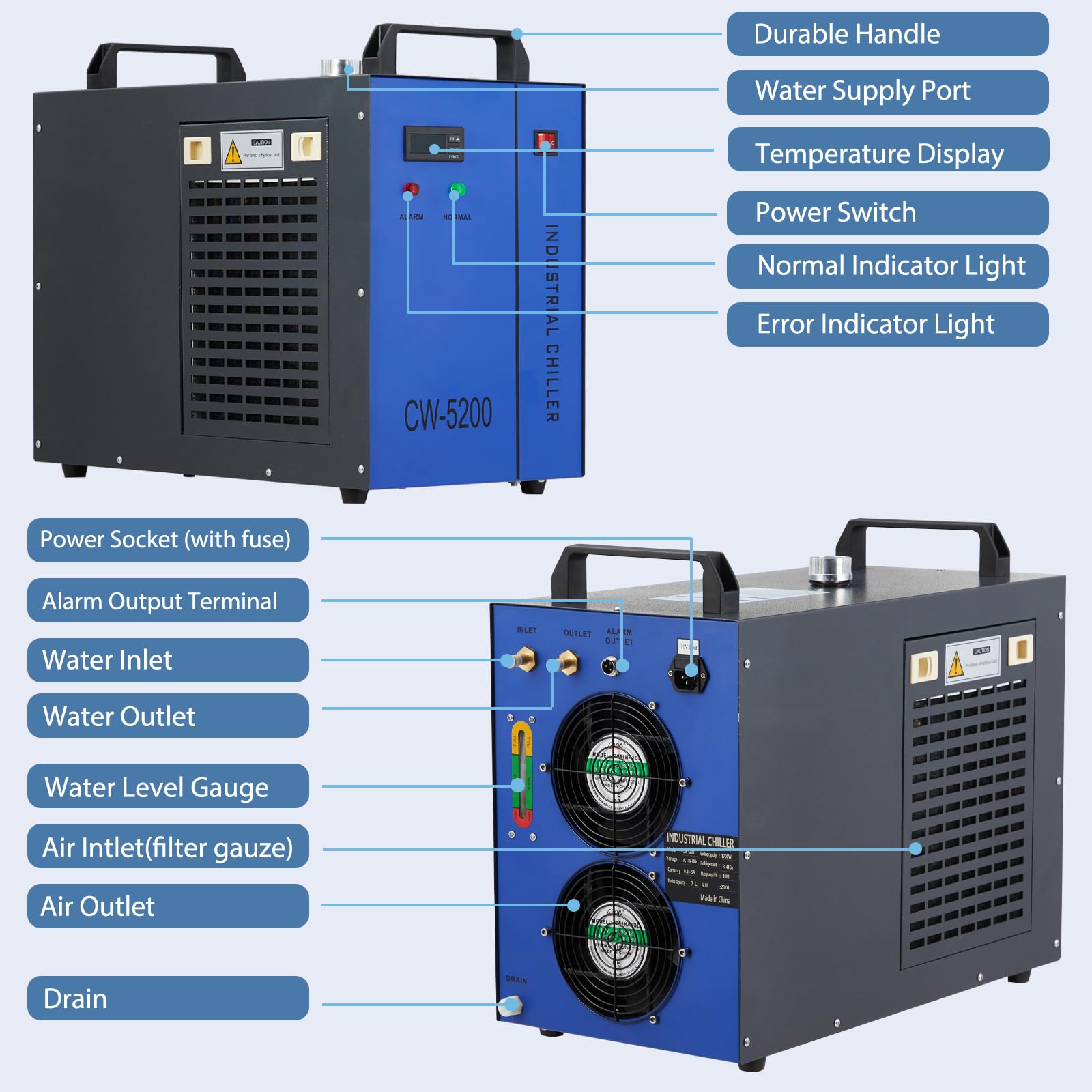

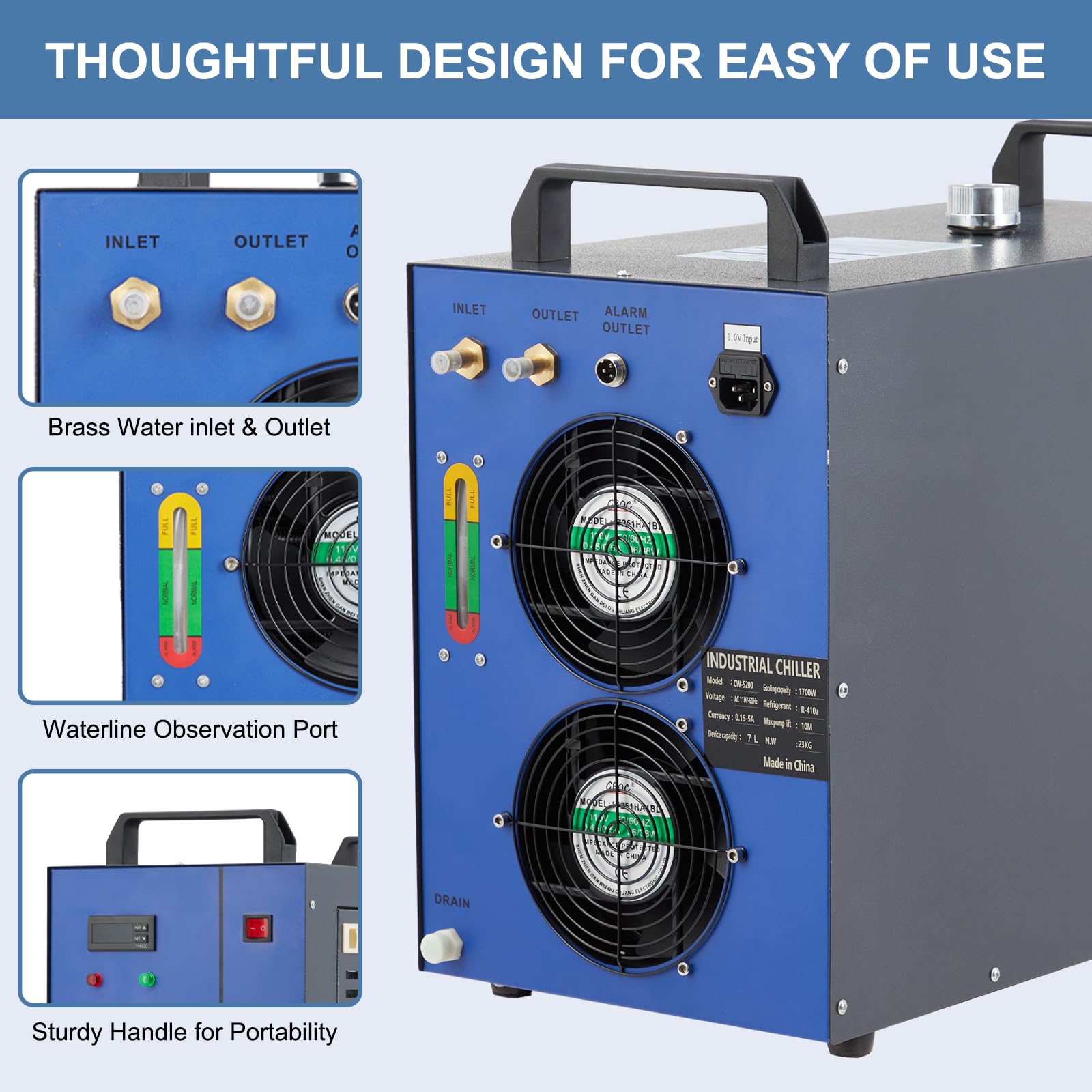

  • HIGH-QUALITY WATER COOLER: Water inlet and outlet ports made from precision-engineered brass, it has long-term corrosion resistance; Friendly handle and customized dust-proof net; Dual cooling fans, high heat dissipating capacity
  • LARGE CAPACITY WATER TANK: The 1.85-gallon (7L) water tank features an enclosed design that reduces water evaporation and provides long service times between fill-ups; an accurate scale displays the water level, so it's easy to know when it needs to be refilled

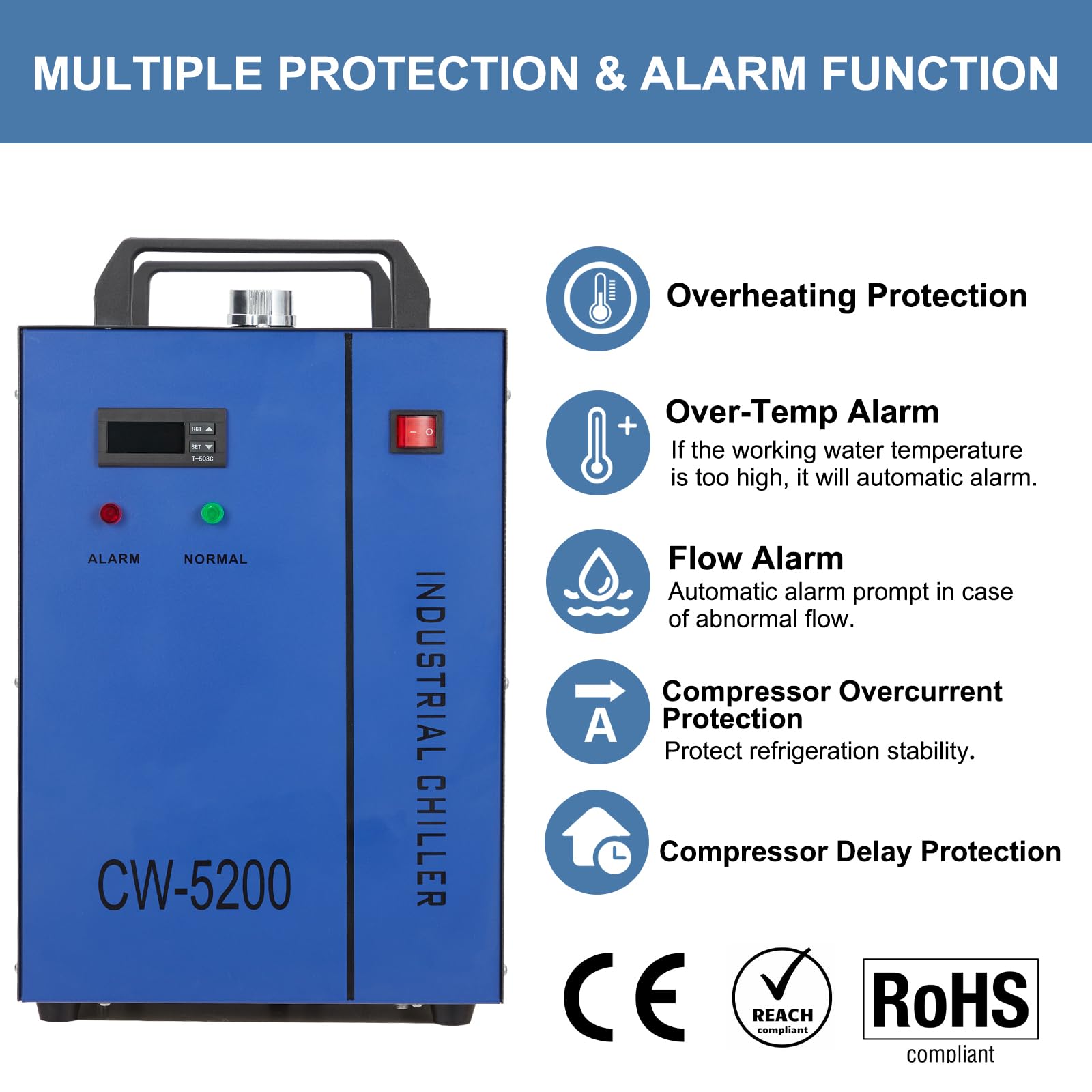

  • SAFE TO USE: Our laser cooler has a variety of protection and alarm functions, such as automatic alarm prompts when the flow rate is abnormal, automatic alarm when the working water temperature is too high, compressor delay protection and compressor overcurrent protection. Meanwhile, our strong warranty and friendly 24/7 customer service allow you to order with confidence that this product will meet all your cooling needs for small and medium-sized engraving tools!

Specifications

UPC 198723714561
Brand GARVEE
Model Number INDWC_2024B

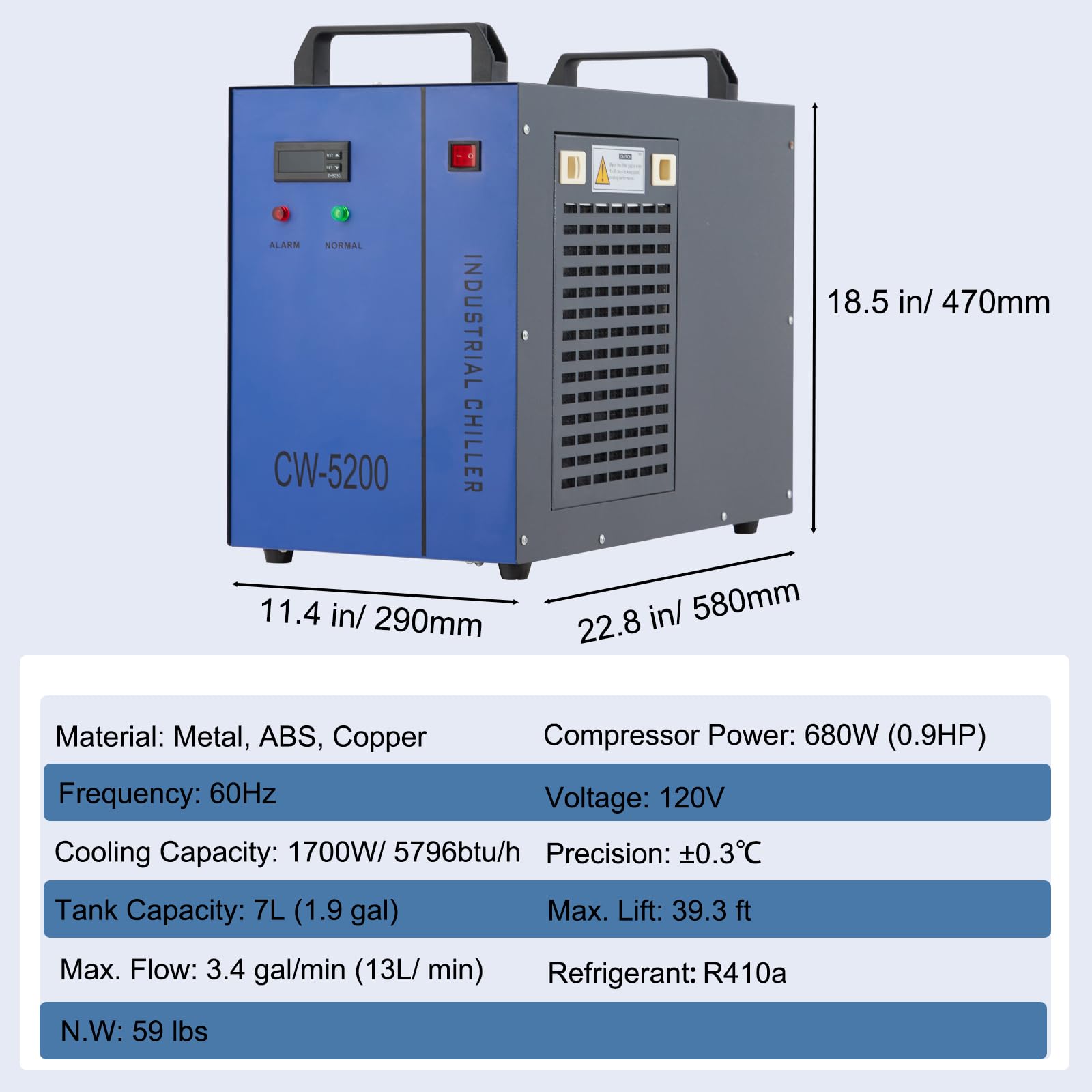

Item Dimensions D x W x H 22.8"D x 11.4"W x 18.5"H
Capacity 7 Liters
Material Type Steel, Copper, Acrylonitrile Butadiene Styrene (ABS)
Style Name Industrial
Color Blue
Upper Temperature Range 40 Degrees Celsius
LowerTemperature Range 5 Degrees Celsius
Power Source Corded Electric
Installation Method Floor Mounted
Wattage 150 watts

Reviews

Customer Reviews

Based on 7 reviews
86%
(6)
14%
(1)
0%
(0)
0%
(0)
0%
(0)
M
Mountain Baer
Good chiller at a great price, at the time of this writing.

The box this came in was smashed but the chiller was fine- it only came with one hose clamp and a terminal for the data cable that's supposed to connect to the laser but it's not necessary for the function of the chiller.All of these work basically the same- the manual is basically useless but if you get it filled up with water and plugged in the automatic function /default State is keep the coolant (water) 2° C cooler than than ambient temperature. Your favorite streaming video service has plenty of tutorials.The fill gauge is on the back, which is pretty inconvenient for how my room is set up. Just try to keep it barely in the yellow.Because they did not include two hose clamps, I ended up using a zip tie on one of the inlets and it's working fine. That's how I had my previous cooler set up and it worked for years.As for operation, it's painless. It's so much quieter than the radiant cooler I used to use that I wasn't sure it was running at first. It maintains the temperature to within 1 and 1/2° of where it's set, and it has allowed me to run my laser longer with less concern about heat soak damage.Definitely get yourself a relative humidity sensor- you'll need to be able to calculate the dew point in your room. Basically if there's too great a difference between the ambient temperature and the coolant temperature you run the risk of condensation forming where you really don't want it. There are plenty of websites with live, free calculators to double-check everything.All in all this is a solid chiller at a really good price. At least when I bought it. The state of the box was distressing and the missing parts probably fell out of one of the holes in the box, but nothing so irreplaceable that I felt the need to return it. Going strong for a week now. If something happens I'll definitely come back and adjust my review.

J
J V BROWN
Better than expected

This chiller keeps the spindle on my CNC cool. St its price it was an excellent investment to extend the life of an expensive part. Experts say that by running a chiller, I may never wear out the spindle.

K
Kent
Great value

This unit is paired with a Monport Reno 45 pro co2 laser in my shop. I am able to run long production runs of 6+ hours continuous operations. The water temp stays steady at 25 degrees c

m
myeongeun lee
Water chiller!

Bought this for my 70 watt boss laser. Keeps its steady at 17C for hours great machine. Works as advertised. Keeps my laser operating at a constant safe temp.

Y
Yi-Hsiu Weng
Great refrigerated chiller

This unit is regarded as one of the best. It is pretty much essential for CO2 laser systems as it increases laser tube life. A water bucket just doesn't work. It cools the water via refrigeration.

A
Angely h.
Works great

I live in Texas and run my laser machine in my garage, this water chiller can keep my machine cool enough to work a full day with no issues.Maintains my 2.2 kW (3 HP) spindle between 19.5-20.5C …did not need to fiddle with programming the temperature setpoint (though you can if you want)…just works

r
ruben salamanca
Keeps my laser at 18°C.

Very easy setup. You need to hook the hoses up in the proper configuration for it to work properly. Hook it up to the laser run it for a few minutes to remove air bubbles in the tube. You are ready to start engraving/cutting. I was cutting at 85% on a 100 watt CO2 lasernever went above 18°C. I'm very happy with my purchase.
