Currently out of stock
Accident and warranty protection by Xcotton (partner with AIG)

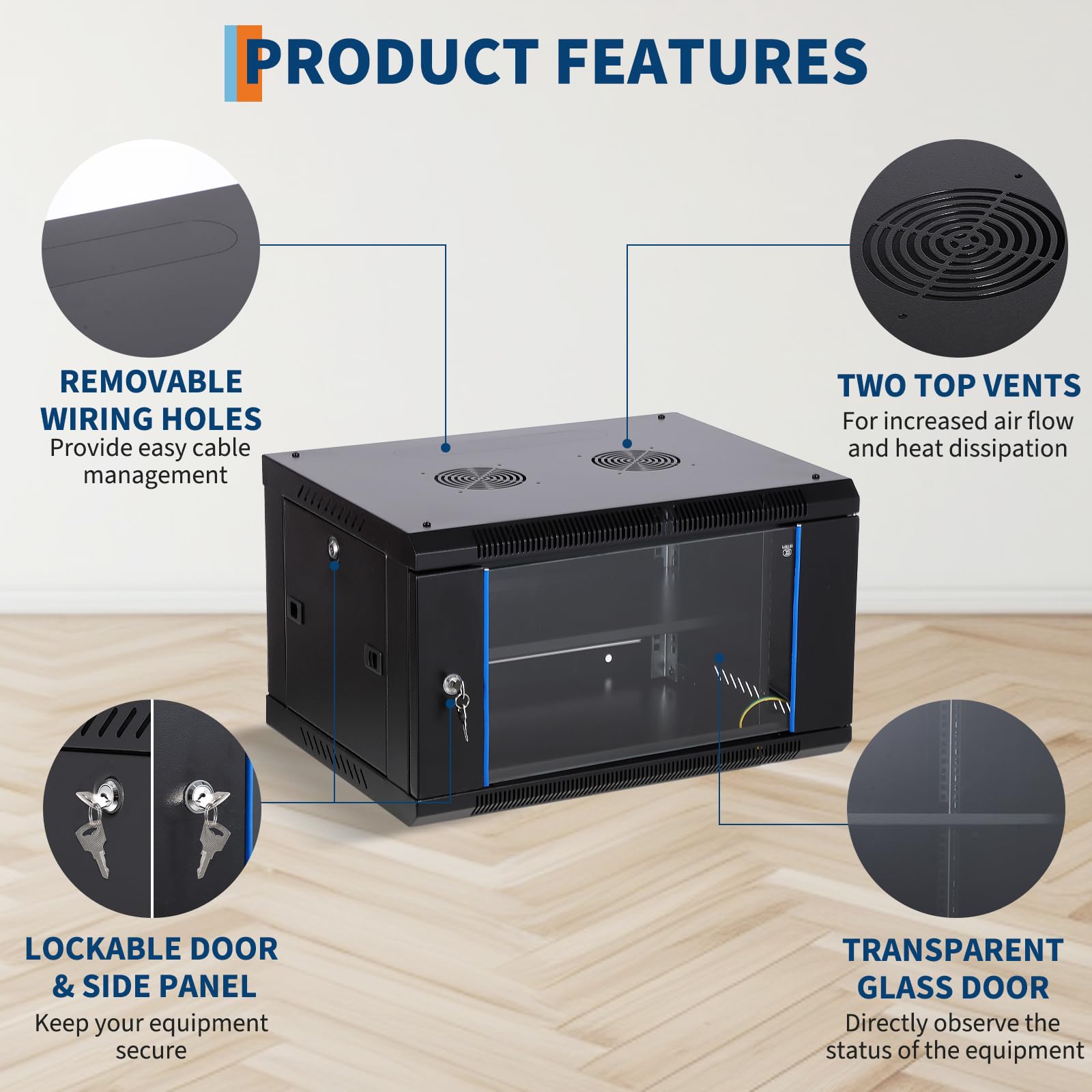

- Durable & Reliable Construction: Built with a robust welded frame, GarveeTech 6U Network Cabinet offers exceptional durability and a long service life. It supports up to 500 LBS when ground-mounted and 200 LBS when wall-mounted, making it ideal for housing multiple devices securely.
- Advanced Security Features: Equipped with a lockable glass door and two lockable side panels, this network cabinet provides enhanced security for your valuable data and equipment. It’s an excellent choice for public spaces like offices, ensuring your devices are protected from unauthorized access.

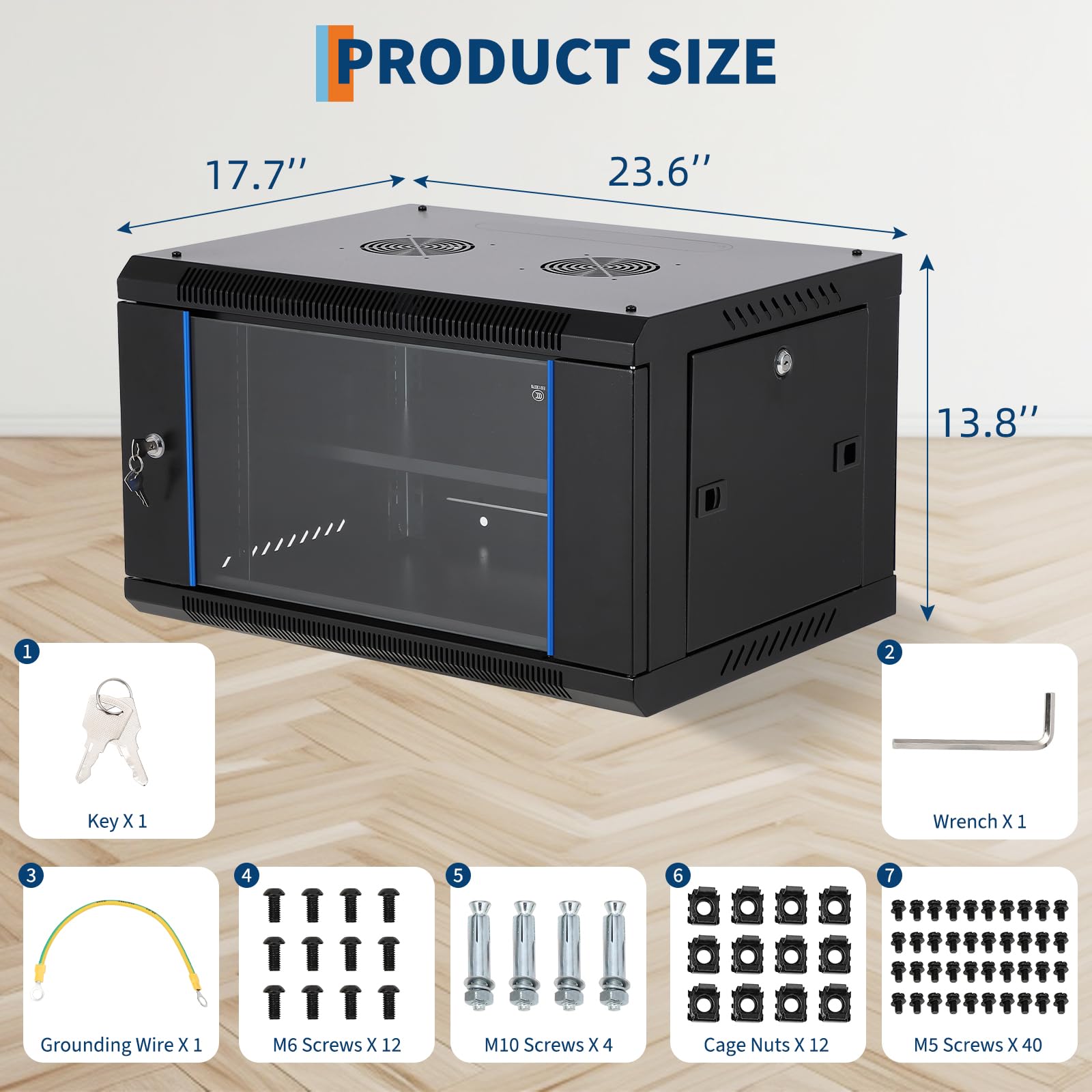

- Space-Saving Design: With a compact depth of 17.7 in, GarveeTech 6U Network Cabinet is perfect for optimizing space in retail locations, classrooms, back offices, and other areas where space is at a premium. Its sleek design ensures efficient use of available space without compromising on functionality.
- Easy Installation & Cable Management: Featuring fully adjustable square-hole mounting rails and convenient wiring holes on the top, bottom and rear panels, GarveeTech 6U Network Cabinet simplifies device installation and cable routing. Enjoy a hassle-free setup with this user-friendly design.
- Enhanced Airflow & Cooling: Engineered with strategically placed vents and heat dissipation holes on the top, bottom, and rear panels, this network cabinet ensures optimal airflow to prevent overheating of critical IT equipment. Keep your devices running smoothly with superior cooling performance.
Description
Industrial-Grade 6U Server Sanctuary
Dual Mounting Versatility | 500lbs Floor Capacity. Engineered with SPCC cold-rolled steel to safeguard your critical networking hardware with superior airflow and 360° security.
DUAL-MOUNT FLEXIBILITY

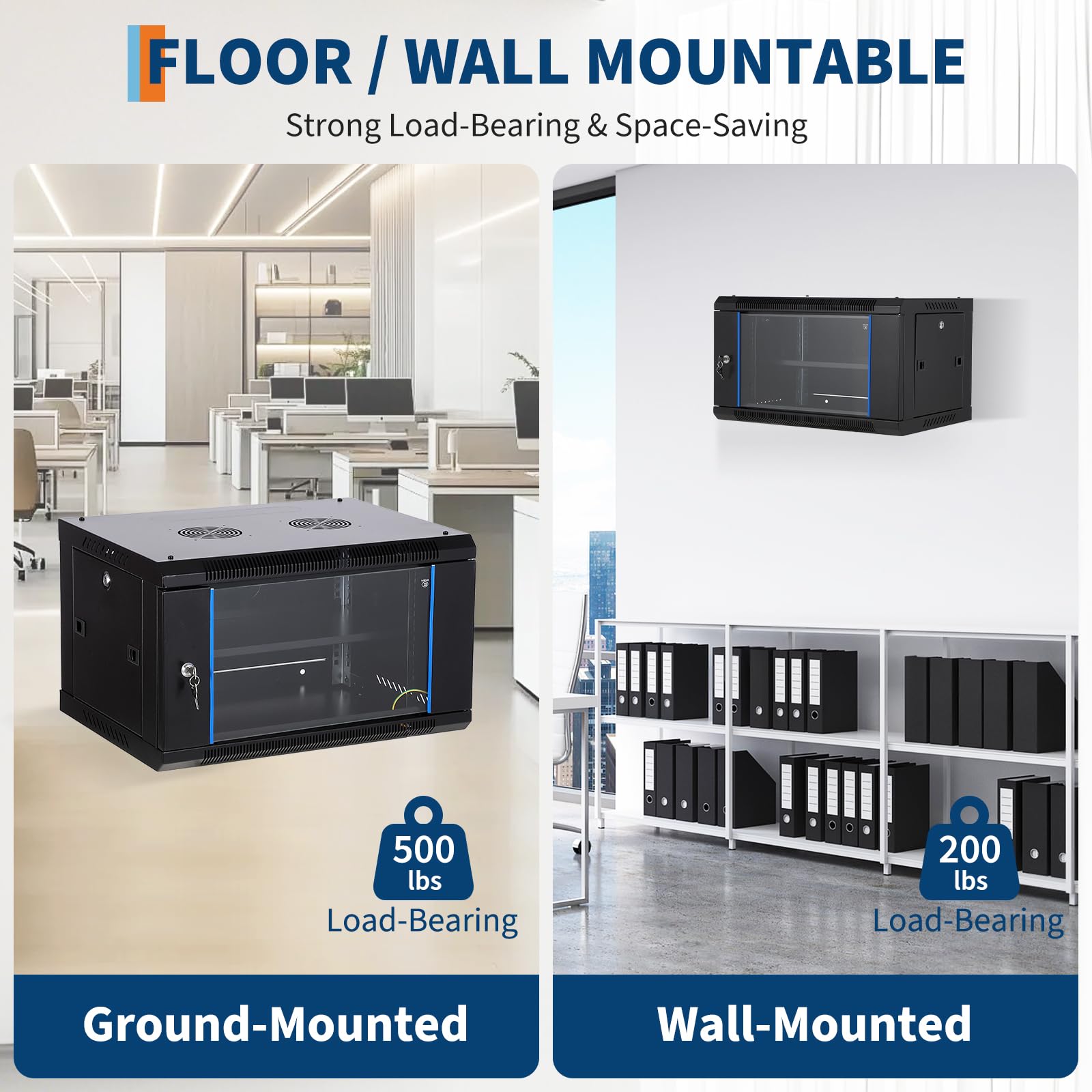

Support up to 500 lbs in floor-standing mode or 200 lbs when wall-mounted for maximum space efficiency.
THERMAL COMMAND
Equipped with dual top-mounted cooling fans and precision-ventilated slots to prevent hardware overheating.
TOTAL SECURITY
Lockable tempered glass door and removable independent-lock side panels provide restricted, clear-view access.
Crystal-Clear Protection

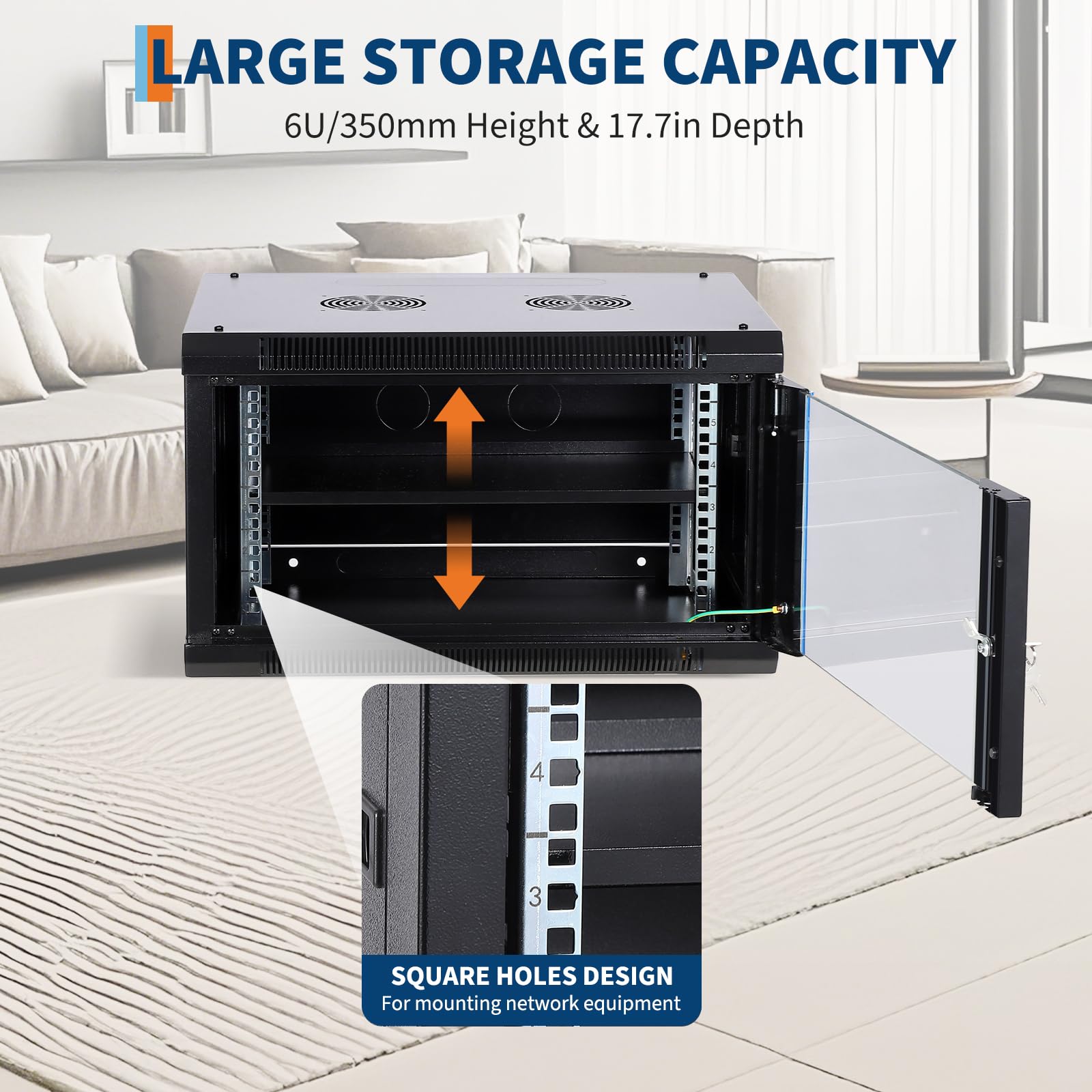

Monitor your equipment status at a glance through the high-strength tempered glass door. The cabinet features a standard square-hole design with laser-etched U-marks, allowing for precise and effortless mounting of all 19-inch standard rack-mount equipment.
Simplified Gear Management
Get your network up and running immediately. With removable top and bottom wiring holes for clean cable routing and a comprehensive hardware kit (including M6 cage nuts and expansion bolts), GARVEE ensures a hassle-free installation for servers, switches, and AV systems.
Technical Specifications
| Brand Name | GARVEE |
| Rack Capacity | 6U Standard 19-Inch Enclosure |
| Max Load (Floor) | Up to 500 lbs (227 kg) |
| Max Load (Wall) | Up to 200 lbs (91 kg) |
| Cooling System | Dual Top-Mounted High-Velocity Fans |
| Material | Heavy-Duty SPCC Cold-Rolled Steel |
| Door Type | Lockable Tempered Glass Front Door |
| Included Kit | M6 Screws, Cage Nuts, M10 Expansion Bolts |
Owner's Performance Guide
Wall Mounting: Ensure use of the included M10 expansion bolts on solid concrete or brick walls for maximum security. Thermal Care: Keep at least 3 inches of clearance around ventilation slots to maximize airflow efficiency. Grounding: Always connect the included grounding wire to prevent static buildup and protect sensitive electronics.
