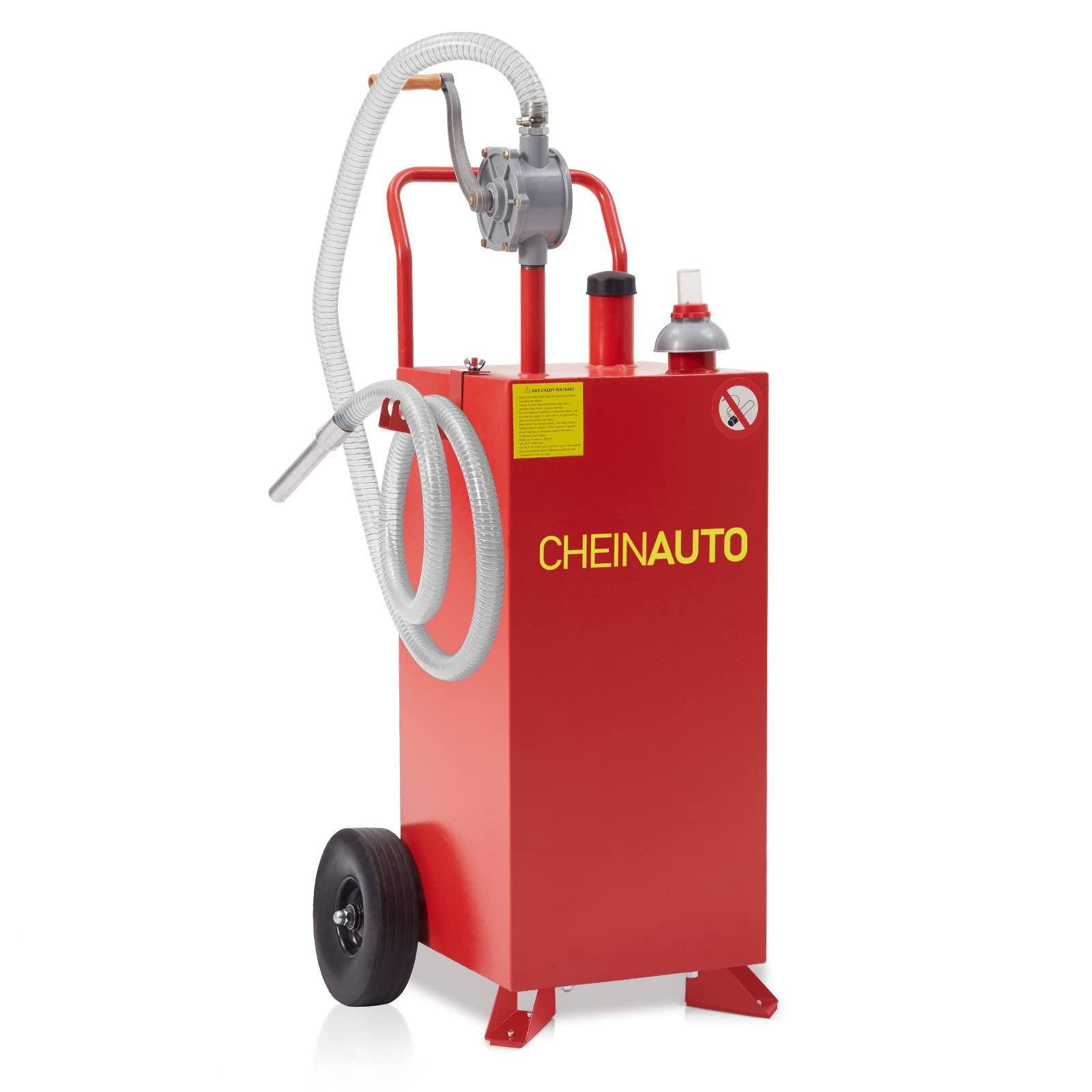

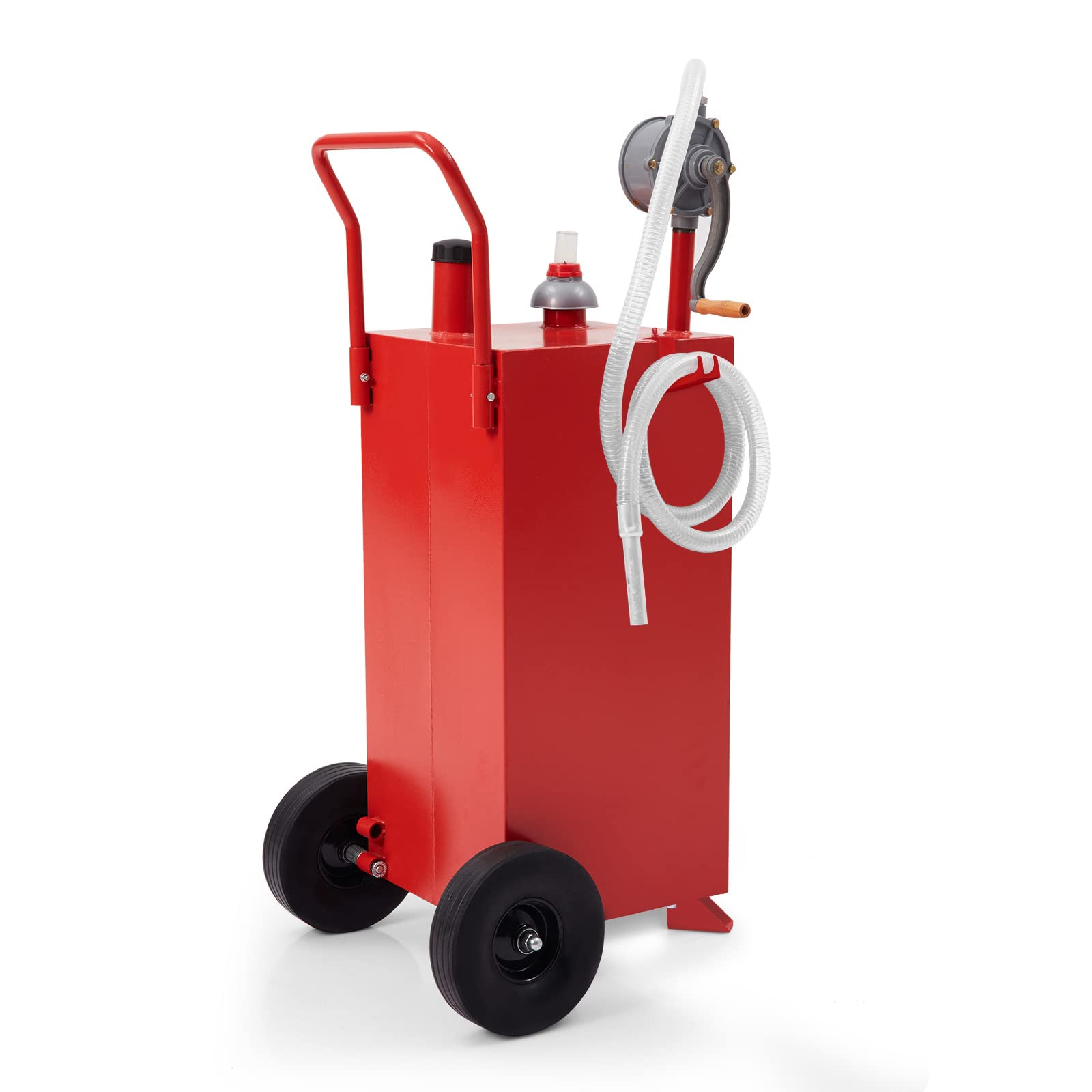

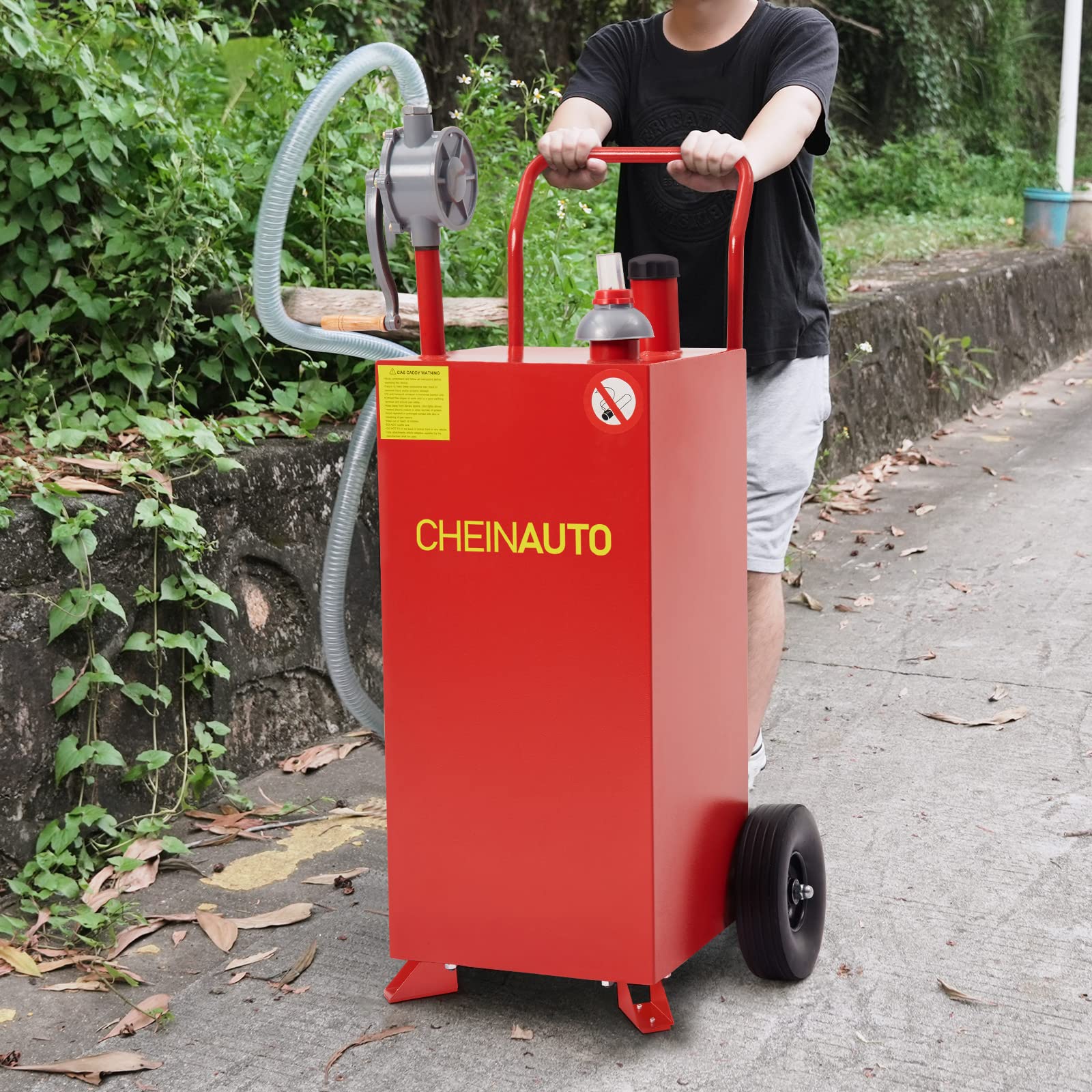

30 Gallon Gas Portable Caddy Tank

Specifications:

Color: Red

Maximum Capacity: 30 Gallons

Rotary Pump: Hand Crank/Manual

Fuel Level: Gauge Type

Assembly Required: Yes

Vented: Yes

Weight: 35kg / 77.16lbs

Tank Dimensions: 31.5" x 14.76" x 14.76"(L x W x H)



Packaging Includes:

• 1 x 30 Gallon Gas Caddy
• 1 x Reversible Rotary Hand Pump
• 1 x Instructions Manual
• 1 x 8 FT Kink Proof Siphon/Discharge Hose with Nozzle

Two-Way Rotary Pump

Dispensing or pumping fuel by turning the handle allows you to eliminate overfilling of the tank by pulling excess gasoline or diesel back into the tank.

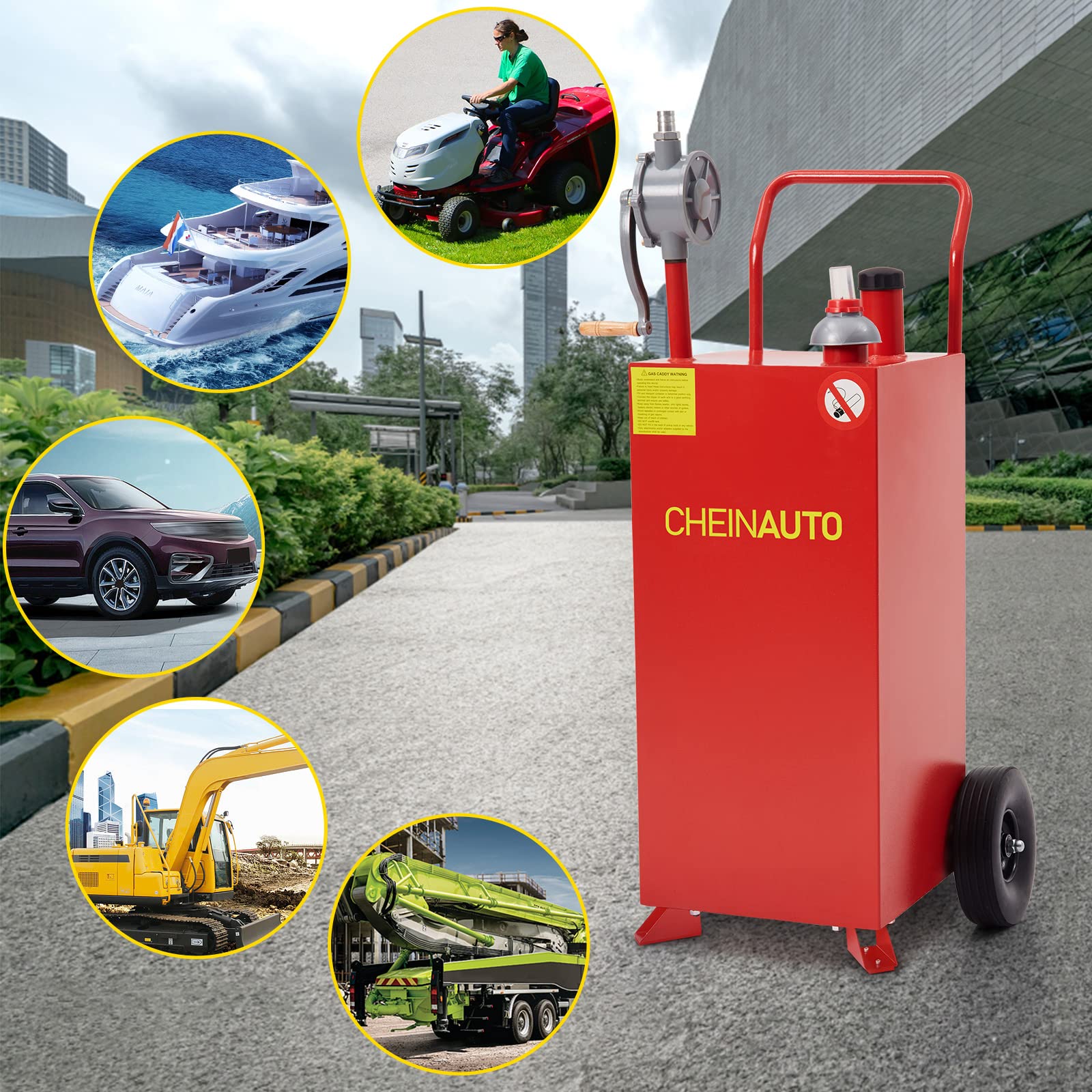

Wide Application

It is suitable for use in tankers, ships, outdoor industry, construction industry,farms, lawns and gardens etc.

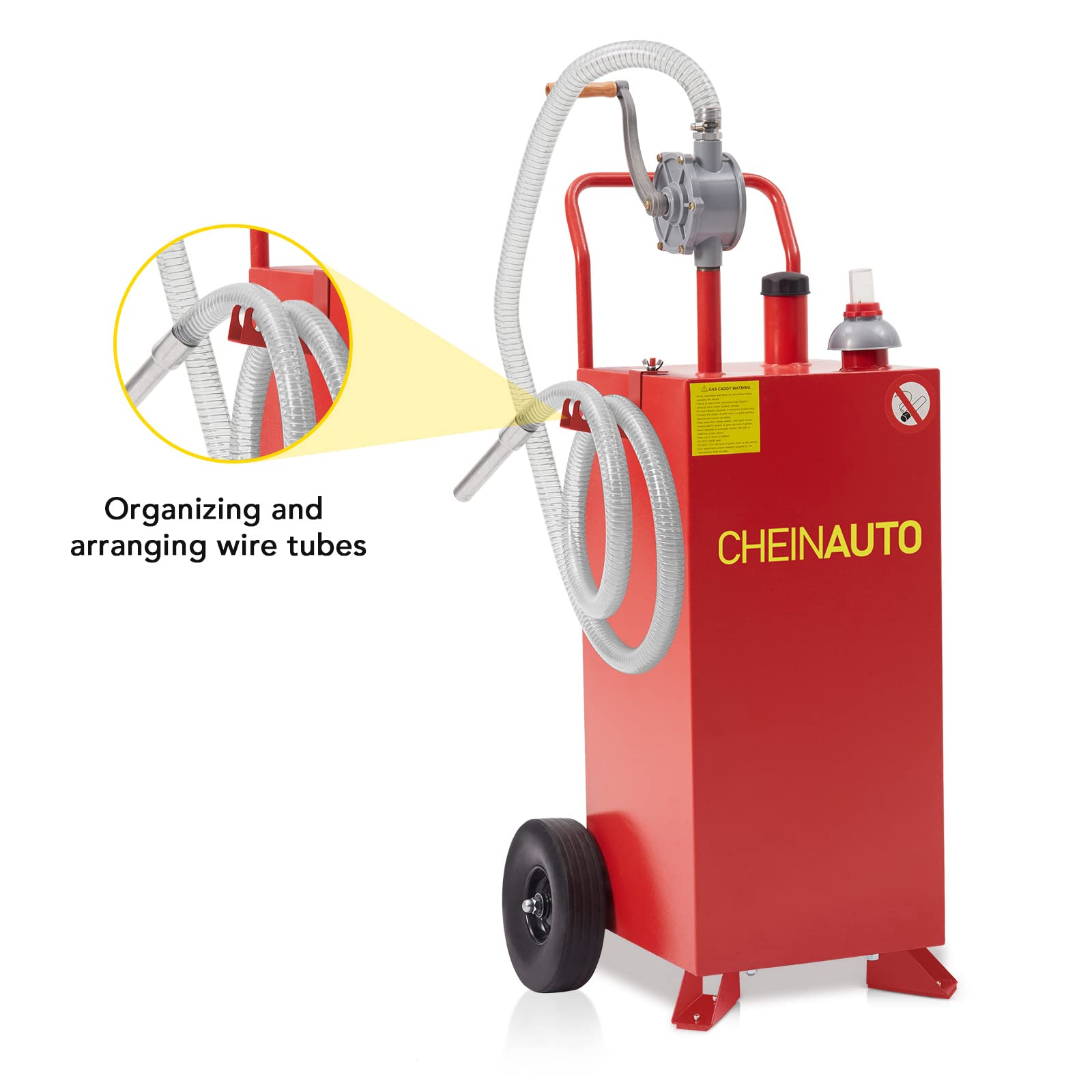

Side Hook

Easy to organize and place the Hose after use.

STEP ONE:
Insert the wheel axle in the bottom then place either wheel onto the axle and secure it in place with a washer and nut, repeat with the other wheel.

STEP TWO:
Tilt the caddy on it side. Attach the support feet/caster wheel.

STEP THREE:
Take the Teflon tape and wrap it around the pump pipe 5-8 times around.Screw on the oil pump and attach the pump handle to the oil pump. Use the wedge lock washer to position the pump and tighten it

STEP FOUR:
Screw the pagoda joint onto the oil pump,attach the hose to the pagoda joint, securing it in place withe hose clamp. Attach the wire tube to the pump connector

STEP FIVE:
Screw the fuel gauge into place nearby

STEP SIX:
Insert the filter into the fuel inlet and then screw on the oil cap

STEP SEVEN:
Insert the handle into place on the caddy's frame. sceuring it in place with bolts.washers and nuts

STEP EIGHT:
Put on the hook and tighten it with screws
