NEW

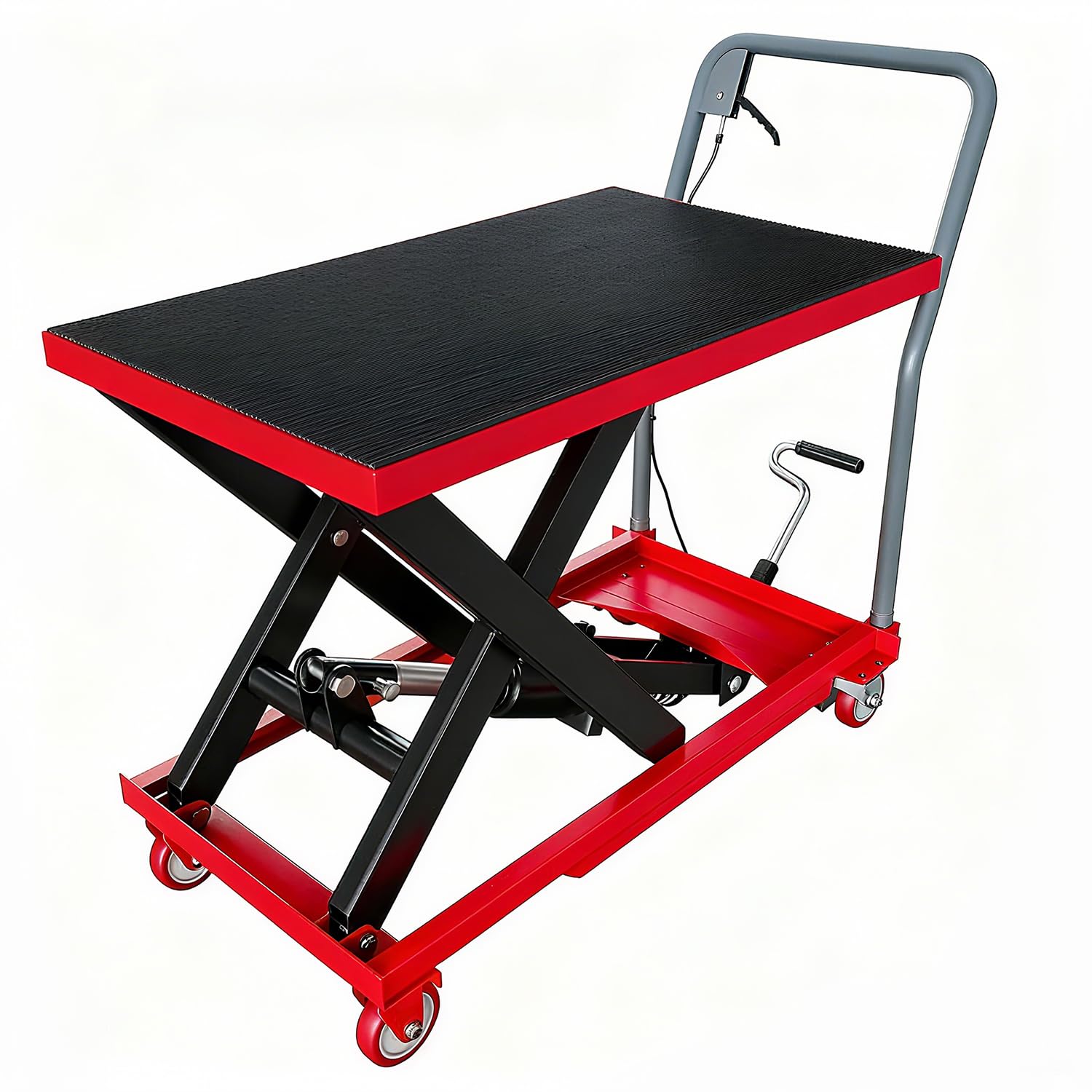

Garvee Heavy Duty 1100 LBS Hydraulic Lift Table Cart - Manual Single Scissor Lift Jack Platform Trolley with 34.6" Max Height, 32" x 18" Non-Slip Platform, Locking Swivel Wheels, Red & Black

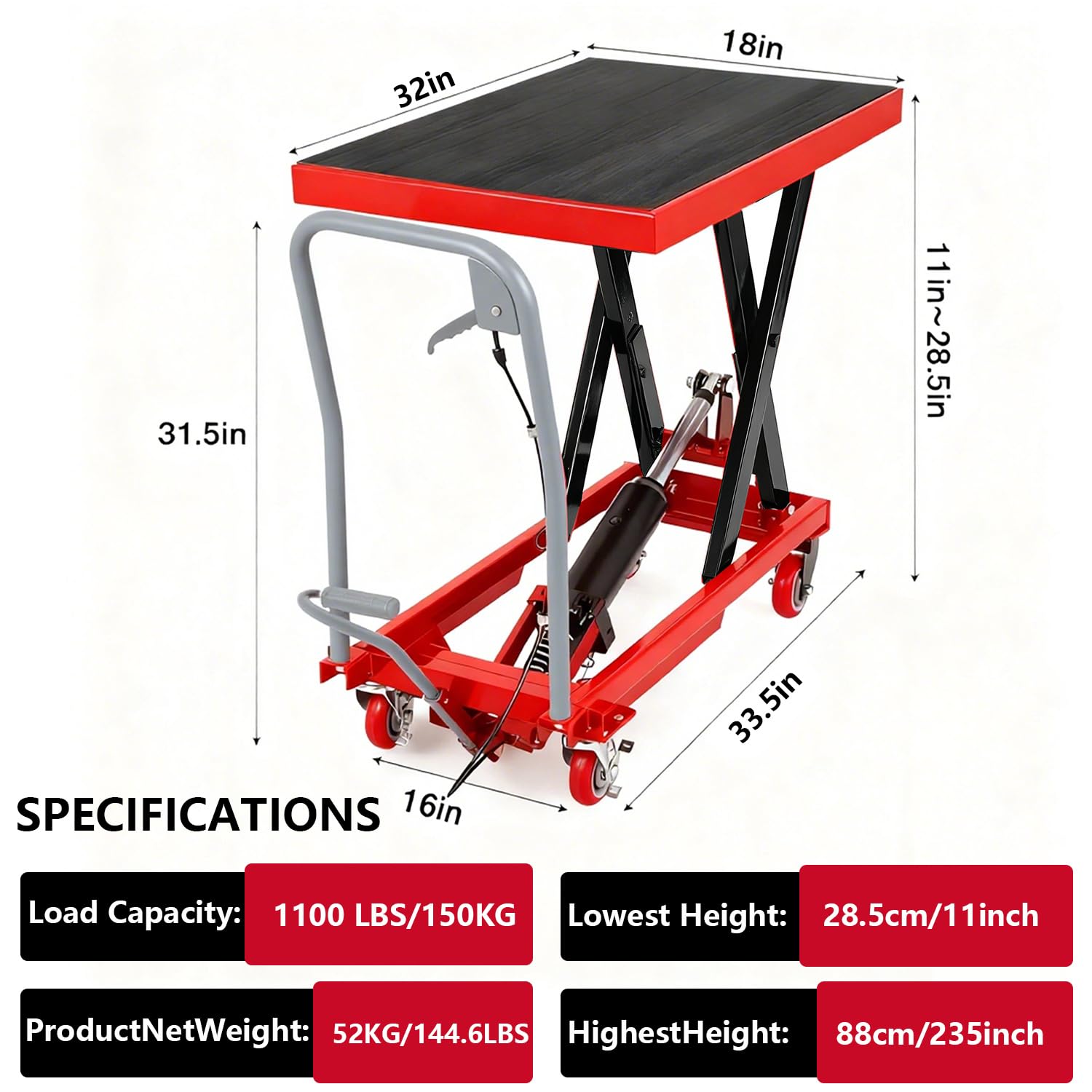

| Technical Parameter | Official Specification |
|---|---|
| Brand Name | Garvee |
| Product Classification | Hydraulic Scissor Lift Table Cart |
| Maximum Rated Load Capacity | 1100 LBS (500 kg) |
| Maximum Height Reach | 34.6 inches (88 cm / 880 mm) |
| Minimum Clearance Height | 11 inches (28.5 cm / 285 mm) |
| Platform Deck Length | 32 inches |
| Platform Deck Width | 18 inches |
| Total Base Outer Length | 33.5 inches |
| Total Base Outer Width | 16 inches |
| Push Handle Bar Height | 31.5 inches |
| Scissor Structural Lift Style | Heavy Duty Manual Single Scissor Arrangement |
| Lift Mechanical Drive | Foot Pump Operated Leak-Free Hydraulic Ram Cylinder |
| Lowering Control Action | Handle-Mounted Trigger Lever Bleed Release |
| Platform Safety Liner | Removable Black Textured Non-Slip Shock-Absorbing Rubber Pad |
| Total Wheel Count | 4 Wheels (Full 360-Degree Swivel Caster System) |
| Braking Safety System | Dual Rear Mechanical Foot Lever Locking Brakes |
| Structural Framing Metal | Thickened High-Tensile Structural Alloy Steel |
| Frame Protective Treatment | Impact-Resistant, Rustproof Powder Coating Finish |
| Built-In Operator Safety | Overload Safety Maintenance Bar & Limiter Protection Valve |
| Color Finish Profile | Modern High-Visibility Industrial Red and Black Finish |
| Product Net Weight | 114.6 LBS (52 kg) |
Garvee Heavy Duty 1100 LBS Hydraulic Lift Table Cart - Manual Single Scissor Lift Jack Platform Trolley with 34.6" Max Height, 32" x 18" Non-Slip Platform, Locking Swivel Wheels, Red & Black
Garvee Heavy-Duty 1100 LBS Hydraulic Single Scissor Lift Table Cart
Bring heavy-duty lifting power, effortless mobility, and ergonomic safety to your daily workflow. The Garvee 1100 LBS Hydraulic Lift Table Cart is a professional-grade single scissor platform trolley engineered to move, hoist, and transfer heavy components with total precision. Forged from thickened alloy steel with a premium rust-resistant coating, this mobile cart easily lifts payloads up to 1100 lbs from an 11" low profile to a 34.6" peak workspace height. Featuring an oil-leak-free manual hydraulic foot pump, built-in safety limiter valves, a solid maintenance bar, and a thick non-slip rubber platform pad, it is the ultimate tool for mechanics, warehouse teams, and factory operators looking to maximize productivity safely.
Protect Your Back from Strains and Eliminate Unsafe Loading Struggles
Manually lifting heavy engines, industrial pumps, large toolboxes, or bulk inventory up to workbench height is the leading cause of costly workplace back injuries and accidental product damage. Standard flat utility carts help with transport, but they still require physical lifting at both ends of the trip. The Garvee Hydraulic Scissor Lift Cart solves this problem completely. By acting as both a heavy-duty rolling platform and an adjustable-height lifting jack, it allows a single worker to wheel cargo right to a workbench, pump the foot pedal to match the exact height, and slide the item across smoothly without any strenuous bending or lifting.

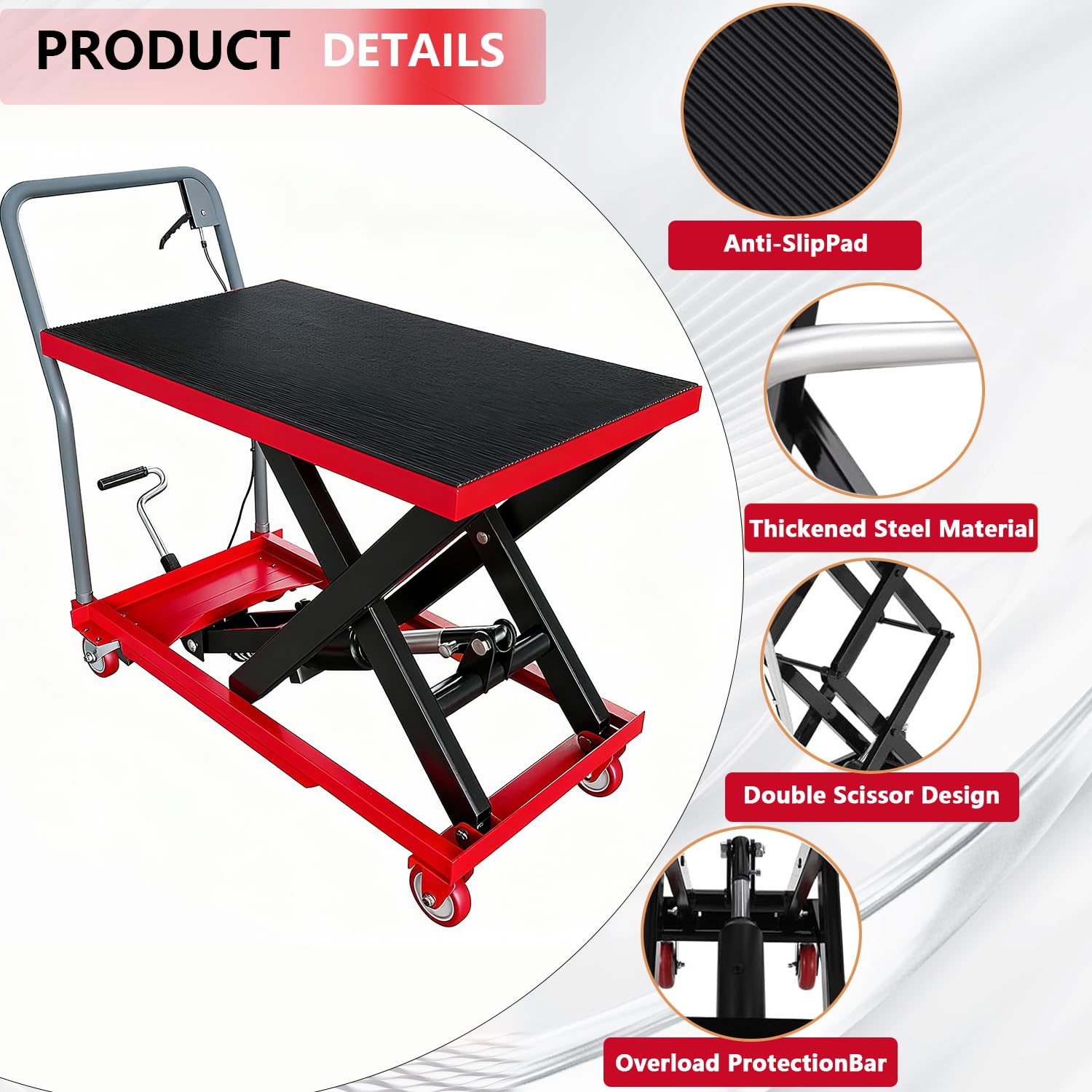

Premium Engineering Features
🏋️ Thickened Alloy Steel Frame Rated for 1100 LBS
Uncompromised durability under structural stress. Built from reinforced, high-tensile alloy steel plates and an ultra-rigid single scissor mechanism, this lifting cart maintains perfect tracking and balance. The entire unit is finished in a high-visibility red and black coating that resists scratches, oils, grease, and harsh workshop chemicals.

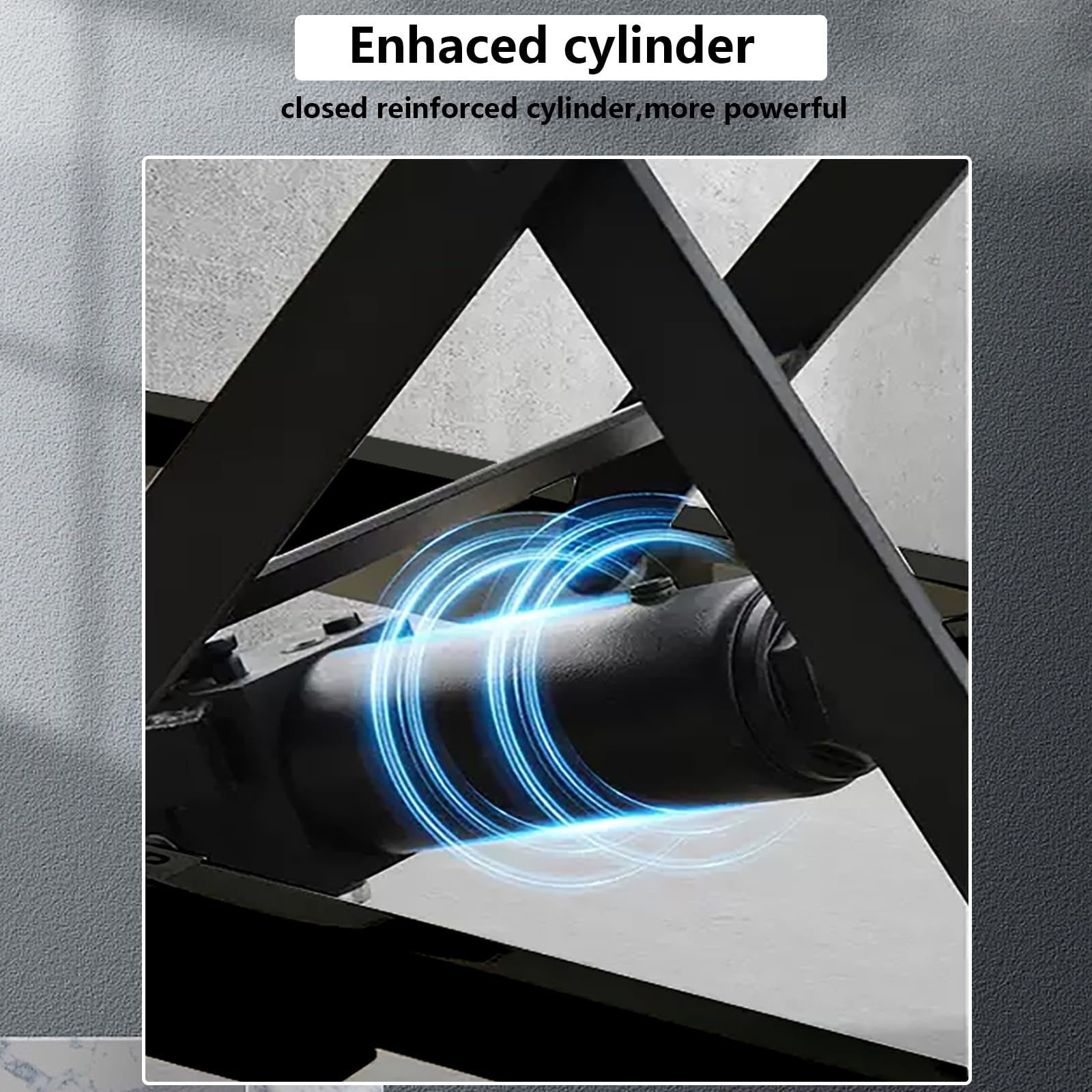

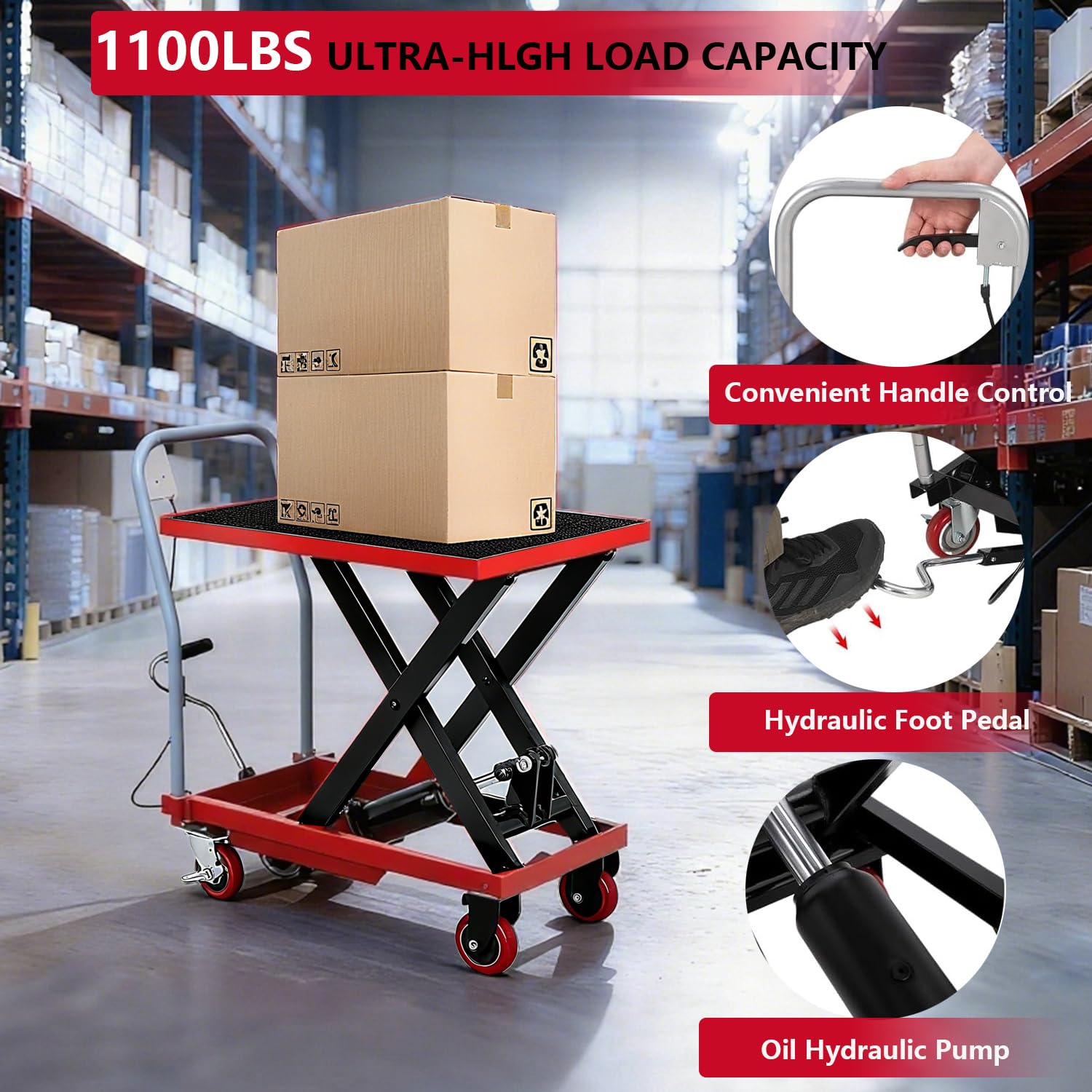

🦵 Leak-Free Hydraulic Foot Pump & Hand Trigger Release
Effortless, fine-tuned height adjustments. The heavy-duty hydraulic cylinder is actuated by an anti-slip, low-resistance foot pump pedal that makes lifting heavy loads quick and easy. When it is time to unload, simply pull the ergonomic hand-grip trigger lever on the handle for smooth, controlled hydraulic fluid release and gradual lowering.
🧼 32" x 18" Deck with Shock-Absorbing Non-Slip Protective Pad
Keep your valuable payloads firmly anchored. The spacious 32-inch by 18-inch steel deck includes a premium, textured rubber pad. This oil-resistant liner prevents heavy metal parts, engines, or tooling dies from sliding around while pushing the cart across bumpy shop floors, keeping both your items and your operator safe.

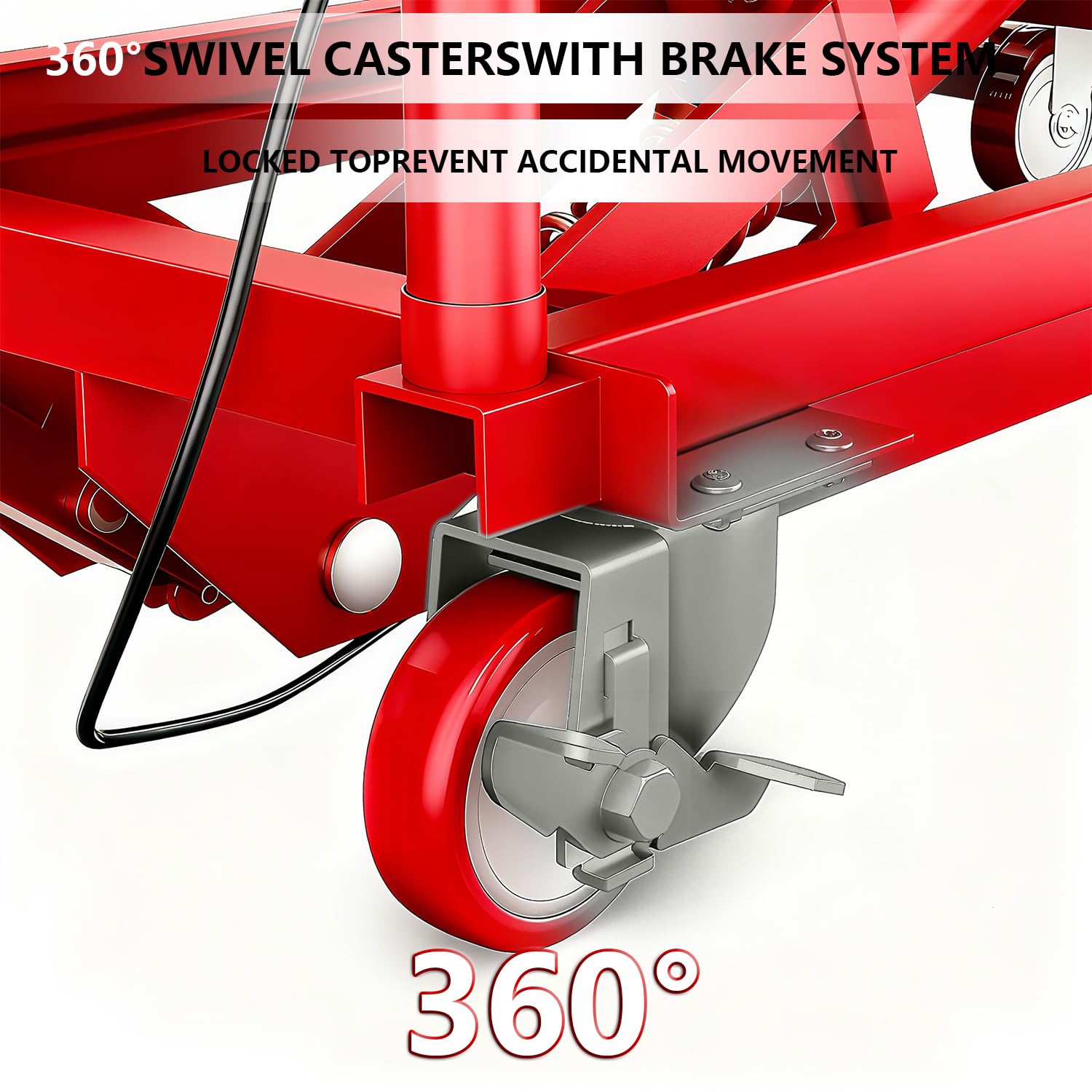

🔒 360° Swivel Navigation Wheels with Dual Mechanical Brakes
Seamless maneuvering through narrow workshop layout spaces. The cart rolls on four premium wheels that rotate full 360-degree paths for exceptionally smooth, quiet positioning. Foot-activated mechanical locks on the casters secure the cart instantly to provide a rock-solid, motionless platform while loading.

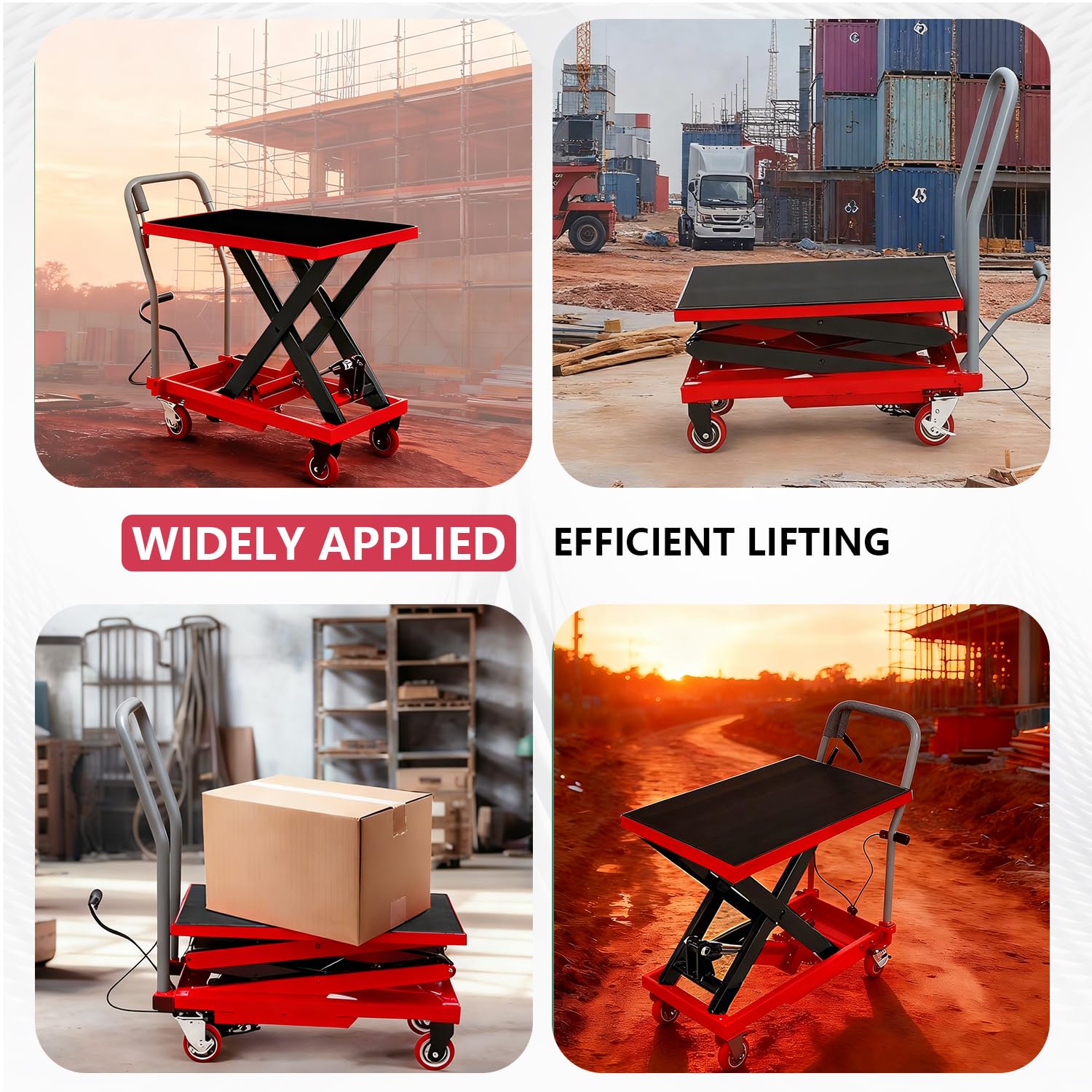

Multi-Scene Workplace Applications
Engineered for premium structural utility, this manual hydraulic scissor lift platform trolley is ideal for:
- Automotive Repair & Machine Garages: Easily transport and lift heavy engine blocks, transmissions, tire stacks, and heavy tooling dies up to comfortable workbench levels.
- Warehouse Logistics & Fulfillment Centers: Streamlines moving heavy parts, loading delivery trucks, stacking pallets, and lifting shipments up onto storage racks.
- Industrial Factories & Manufacturing Plant Maintenance: Safely carries heavy testing machinery, metal blanks, chemical drums, and processing materials through tight production spaces.
