Price Drop ends Dec 6
In Stock | Free Shipping | 3-5 Days
Arrives Nov 15–17 · Ships from US warehouse · No import feesAccident and warranty protection by Xcotton (partner with AIG)
Why choose Garvee?- Heavy-duty hydraulic hand pump kit includes ZG3/8 connector, pump body, anti-slip handle, oil return switch, and hydraulic oil hose for secure hookup.
- Smooth-finish hydraulic cylinder jack and hand pump deliver reliable sealing to help prevent oil leakage during operation.
- Anti-slip handle provides a steadier grip for controlled pumping in shop, industrial, and field hydraulic applications.
- Oil return switch enables quick pressure release and easier reset, improving efficiency when using a hydraulic cylinder.
- All-metal, heavy-duty construction is built for durability and long service life in demanding hydraulic tool environments.
Description

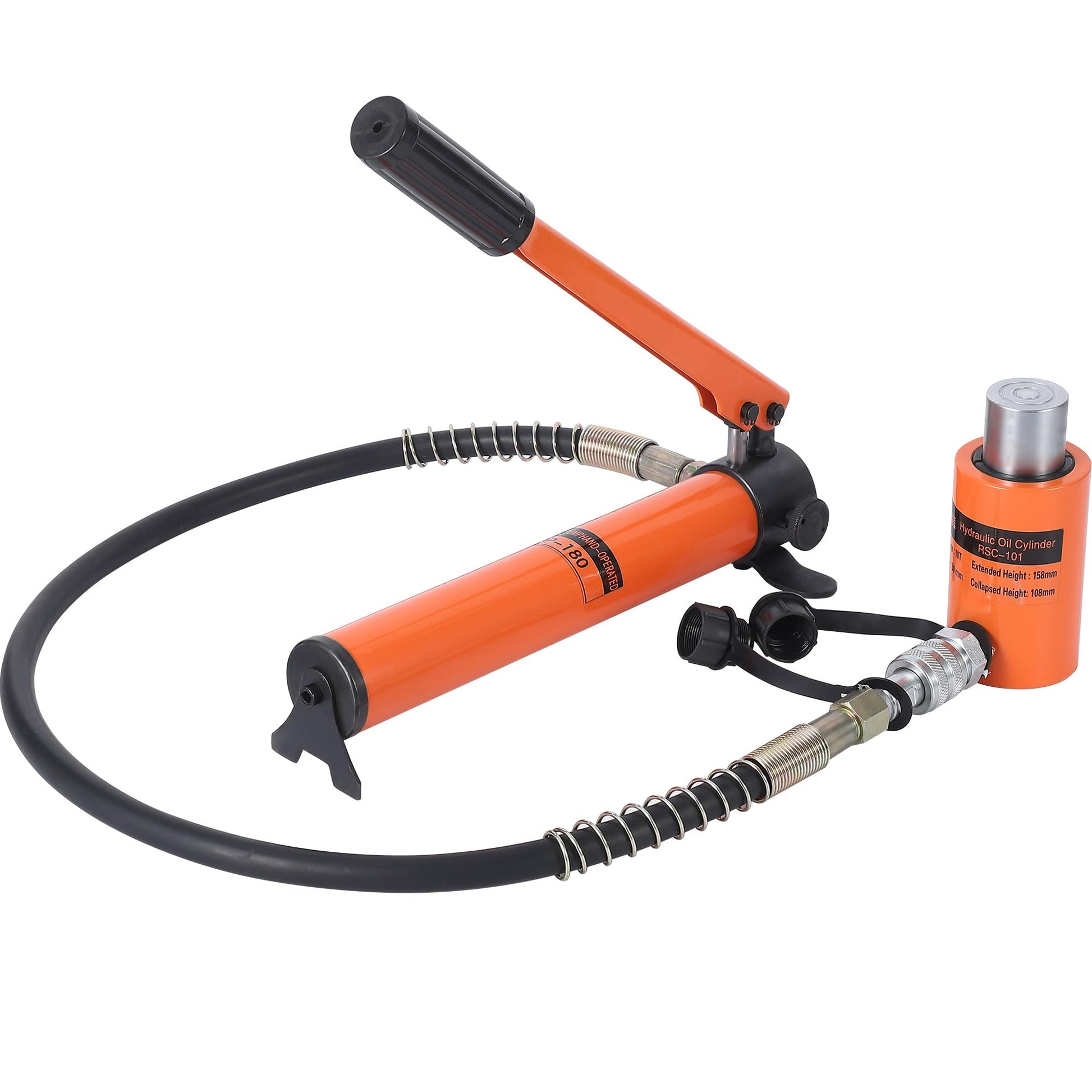

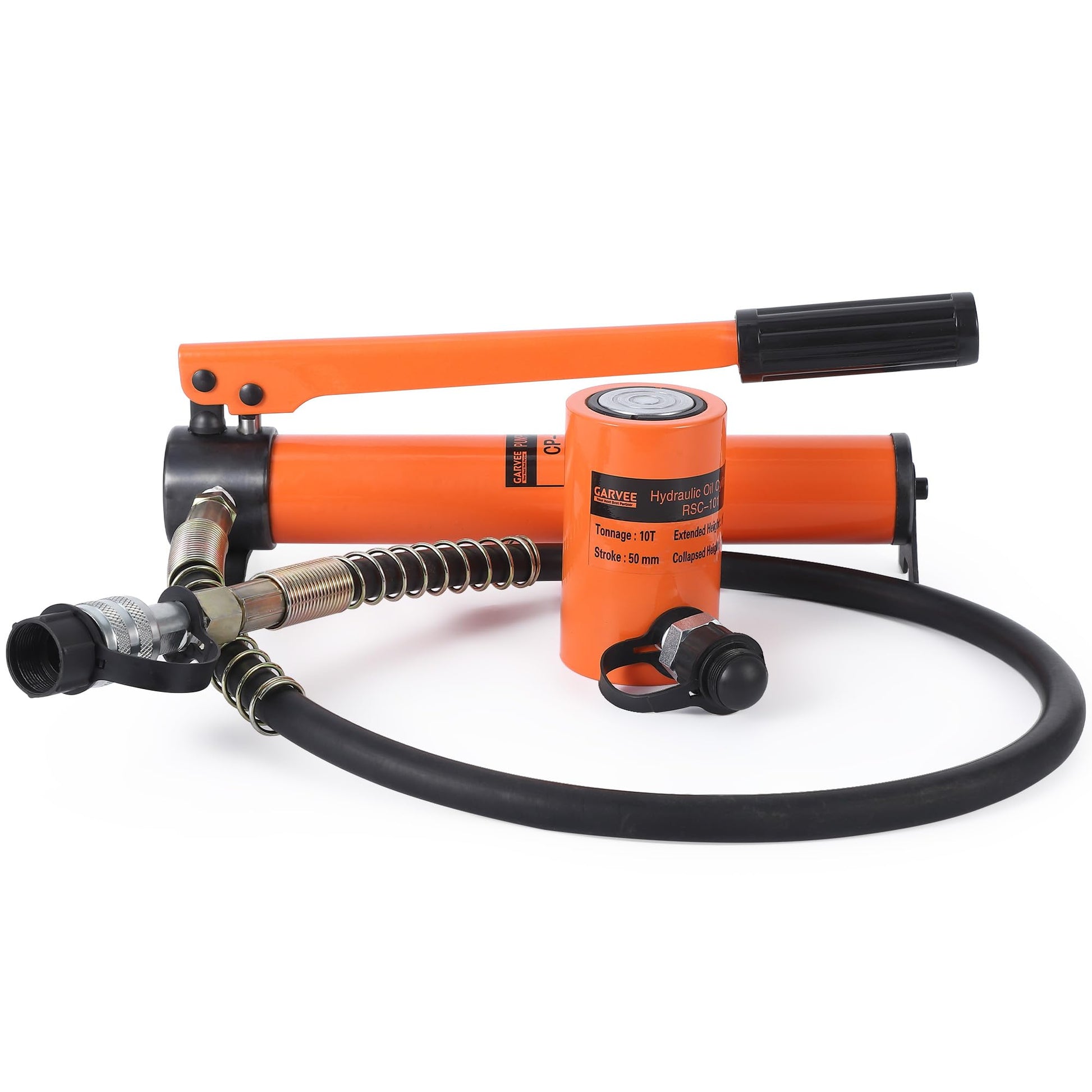

GARVEE 10 Ton Hydraulic Ram Jack and CP-180 Hand Pump Kit
Controlled lifting and pressing force with no power source needed. The compact RSC-101 cylinder, CP-180 hand pump, and ZG3/8 quick coupler connect in seconds for maintenance, construction, and field repair work.

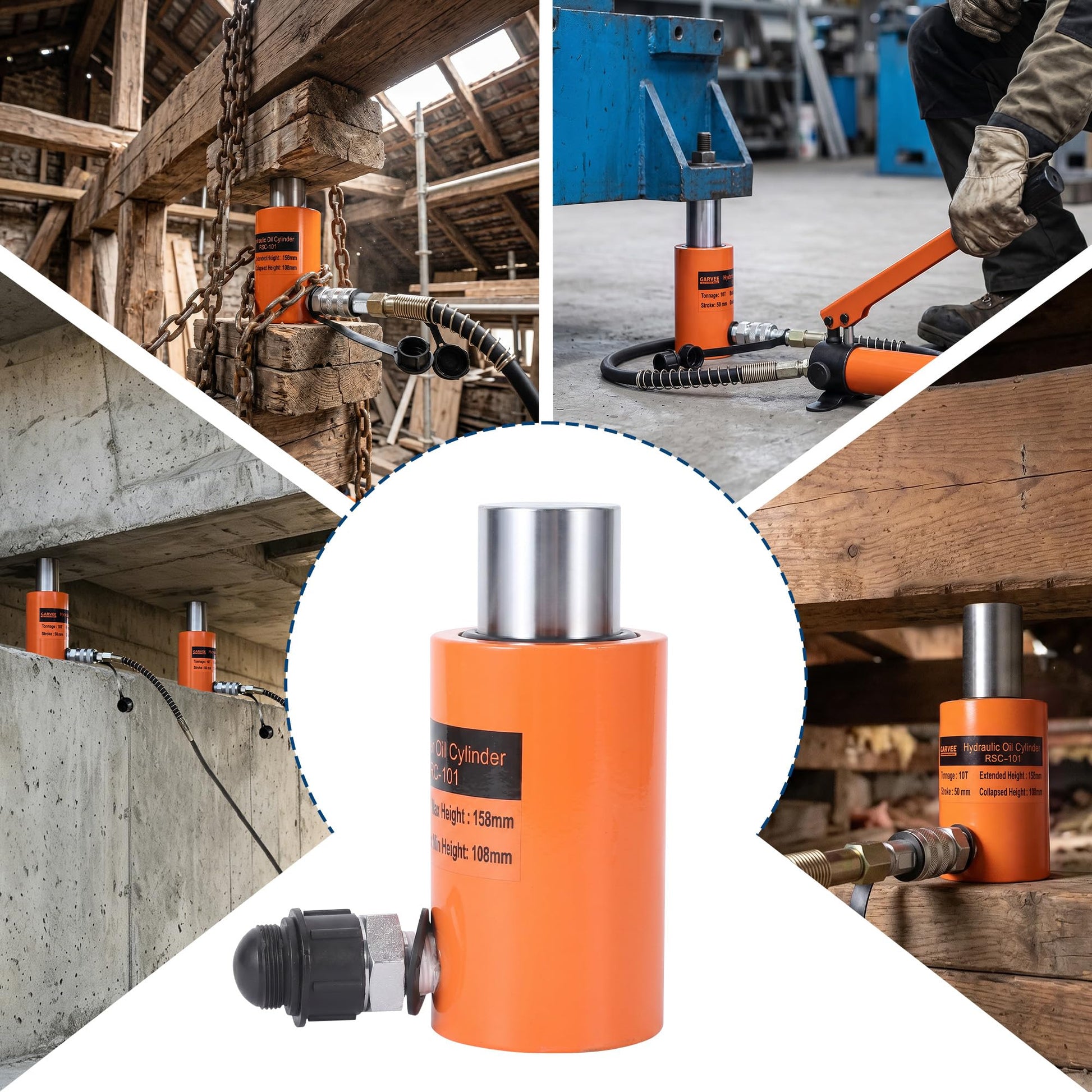

From Old Barns to Busy Workshops
Raise sagging timber beams, lift the base of heavy machinery, support concrete ledges with two cylinders side by side, or push up wood framing from below. At just 108 mm collapsed, the cylinder slips into gaps where a bottle jack will not fit.

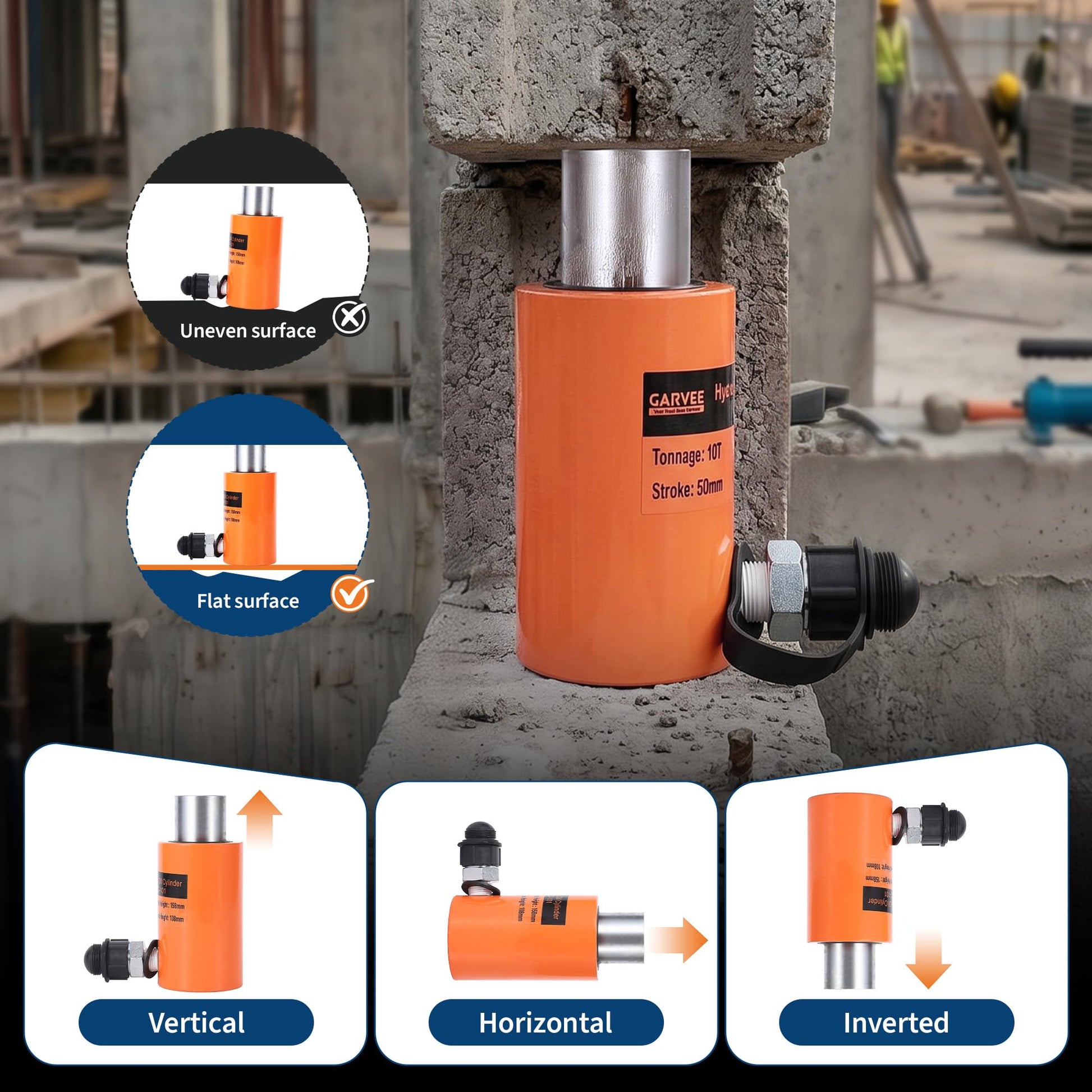

Lift, Push, or Press from Any Angle
Stand the cylinder upright to lift, lay it on its side to push, or flip it over to press downward. In every position, set the base on a flat, solid surface. An uneven base can tilt the cylinder and shift the load.

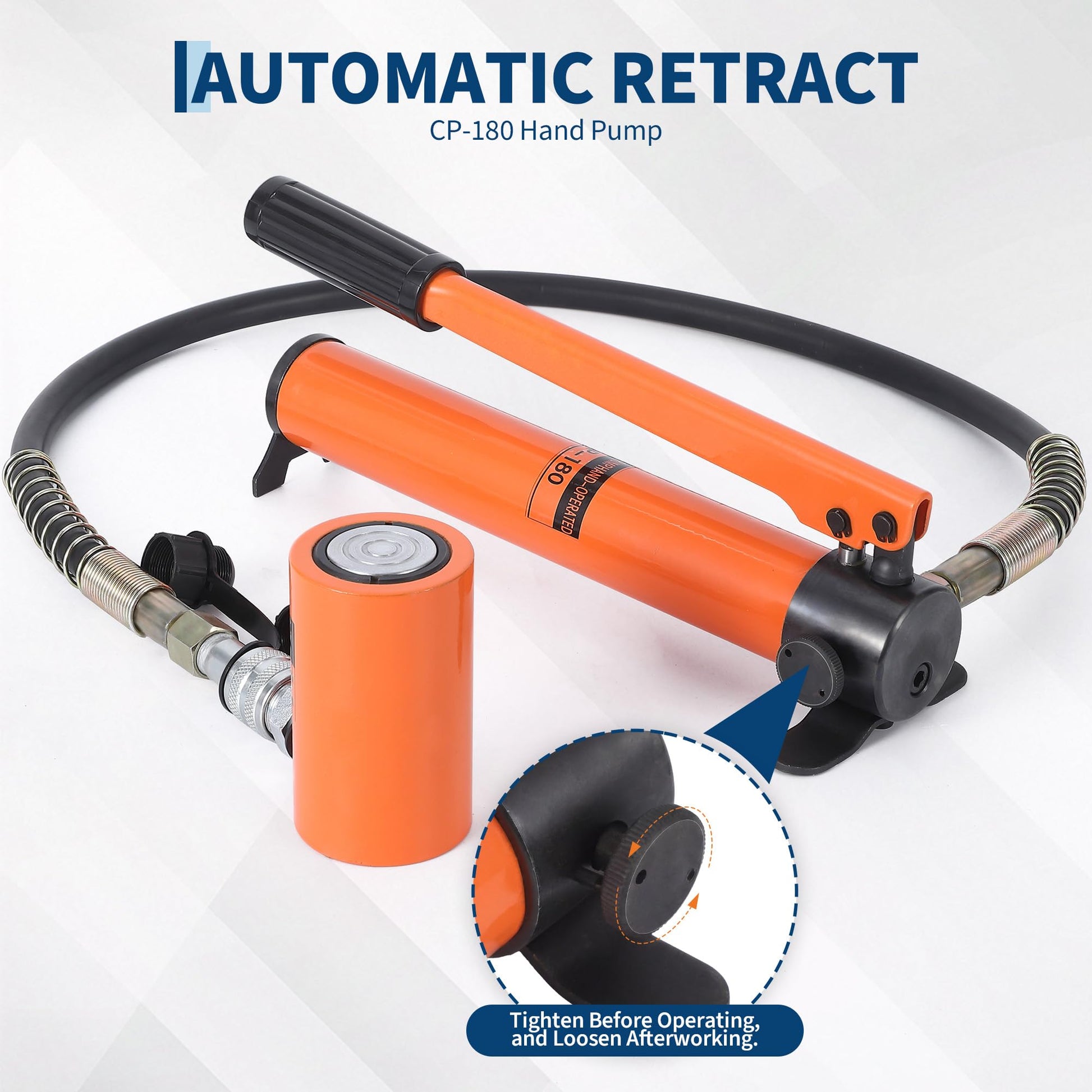

Automatic Retract with the CP-180 Hand Pump
Tighten the return knob before pumping so pressure builds. When the job is done, loosen the knob and the ram retracts on its own. The spring-guarded hose resists kinking at both ends, and the anti-slip handle gives a firm grip on every stroke.
ZG 3/8 in Fast Connector with Dust Cover
The threaded side port locks the hose to the cylinder in seconds, and the hex body tightens down firmly with a standard wrench. Between jobs, snap the dust cover over the fitting to keep grit and debris out of the hydraulic line.
Set Up Correctly Before Every Lift
A few quick checks protect the cylinder, the pump, and your work. Run through them each time you connect and pressurize the kit.

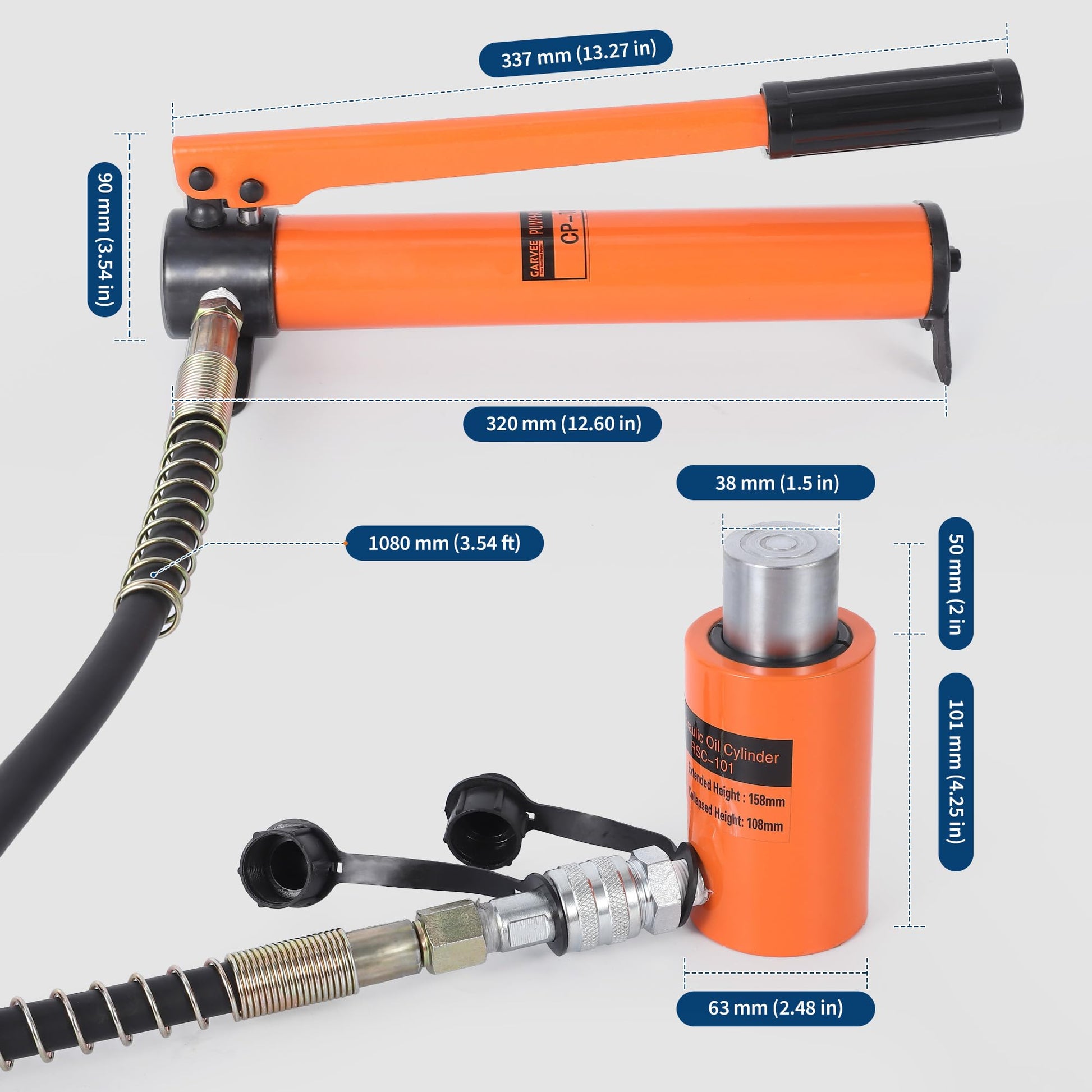

Specifications
| Brand | GARVEE |
|---|---|
| Item Type Name | Hydraulic Cylinder Jack |
| Cylinder Model | RSC-101 |
| Tonnage | 10 Ton |
| Stroke | 2 inches (50 mm) |
| Collapsed Height | 4.25 inches (108 mm) |
| Extended Height | 6.22 inches (158 mm) |
| Hydraulic Pump | CP-180 manual hand pump |
| Connector | ZG3/8 with dust cover |
| Material | Heavy-duty metal |
| Color | Orange |
| Item Weight | 8.82 lb |
Work Safely Under Pressure
Never exceed the 10 ton rating, keep hands clear of the ram during operation, and never work under a load held only by the hydraulic cylinder. Release pressure slowly before disconnecting the hose.
