Garvee 770 lb Double Scissor Lift Table Cart, Hydraulic Material Handling Cart with 28" x 18" Platform
| Brand | Garvee |
| Product Type | Double Scissor Hydraulic Lift Table Cart |
| Load Capacity | 770 lb |
| Lift Height Range | 11" to 59" |
| Platform Size | 28" x 18" |
| Net Cart Weight | 91 lb |
| Package Weight | 153.2 lb |
| Handle Height | 31.5" |
| Frame Material | Rust Resistant Solid Steel |
| Control System | Anti Slip Foot Pump Pedal and Quick Release Hand Lever |
| Mobility and Safety | 360 Degree Casters, Rear Mechanical Brakes, Hydraulic Safety Lock, Stroke Limiter, Internal Overload Protection Valves |
Garvee 770 lb Double Scissor Lift Table Cart, Hydraulic Material Handling Cart with 28" x 18" Platform
GARVEE MATERIAL HANDLING
770 lb Double Scissor Hydraulic Lift Table Cart for Heavy Duty Work
Lift, align, and move heavy materials with less strain. This double scissor hydraulic lift table cart supports up to 770 lb and offers an 11" to 59" elevation range, helping users position engines, workshop equipment, freight cartons, and machinery at a more ergonomic working height.
770 lb Load Capacity
Solid steel construction supports engines, automotive components, workshop tools, warehouse freight, and heavy shop equipment.
11" to 59" Elevation Range
Dual stage scissor hydraulics lift from a low 11" profile to a high 59" position for workbenches, racks, truck beds, and workstations.
28" x 18" Anti Slip Platform
The flatbed steel deck includes a removable rubberized mat to help reduce slipping, vibration, and surface scratches during transport.
Built to Reduce Back Strain and Improve Workflow
Manual lifting of heavy parts, freight, tools, and equipment can slow down work and increase fatigue. This hydraulic material handling cart helps raise cargo to a better working height so one operator can move, load, unload, and stage items more efficiently.

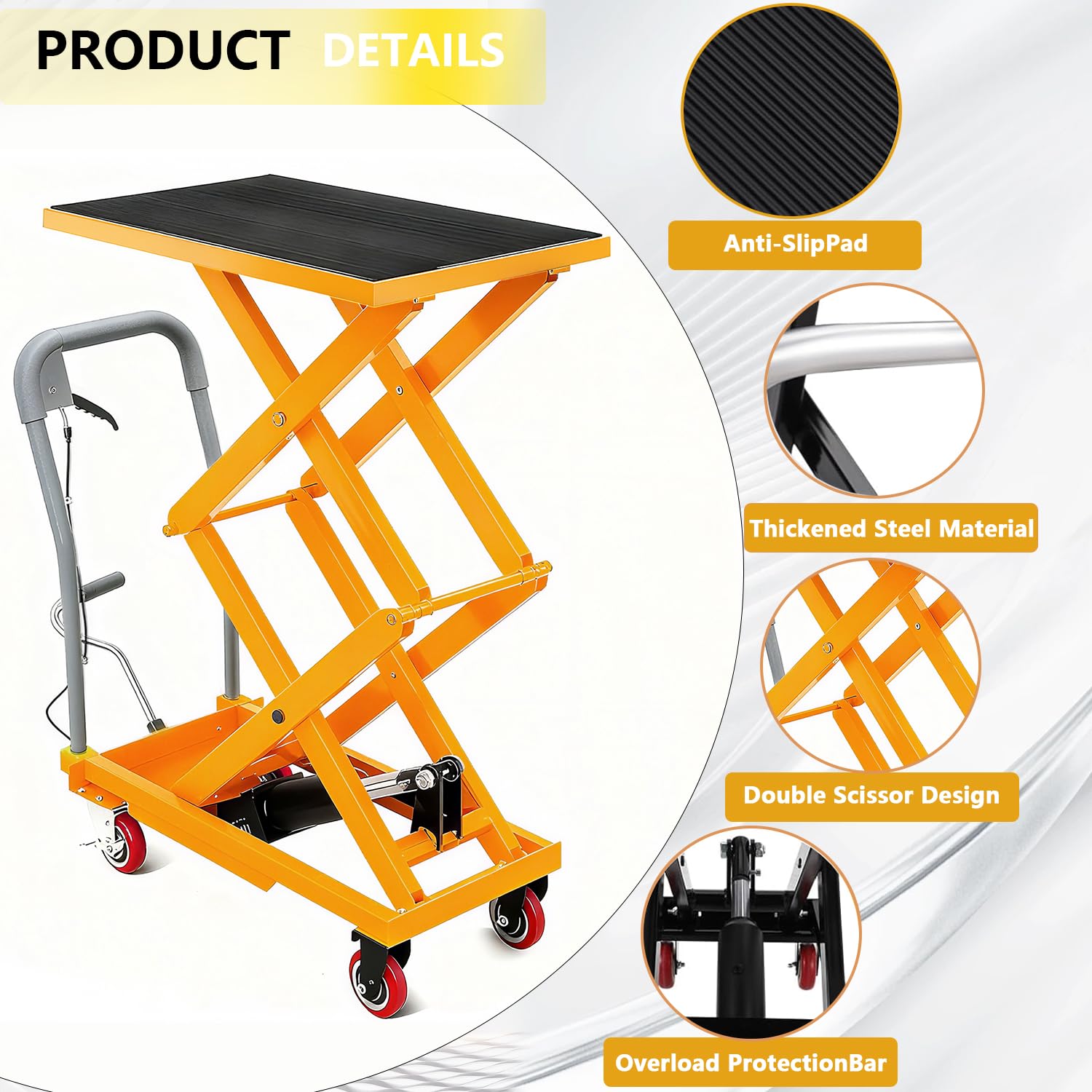

- Double scissor lift design: Provides extended height reach for taller shelves, benches, truck beds, and equipment surfaces.

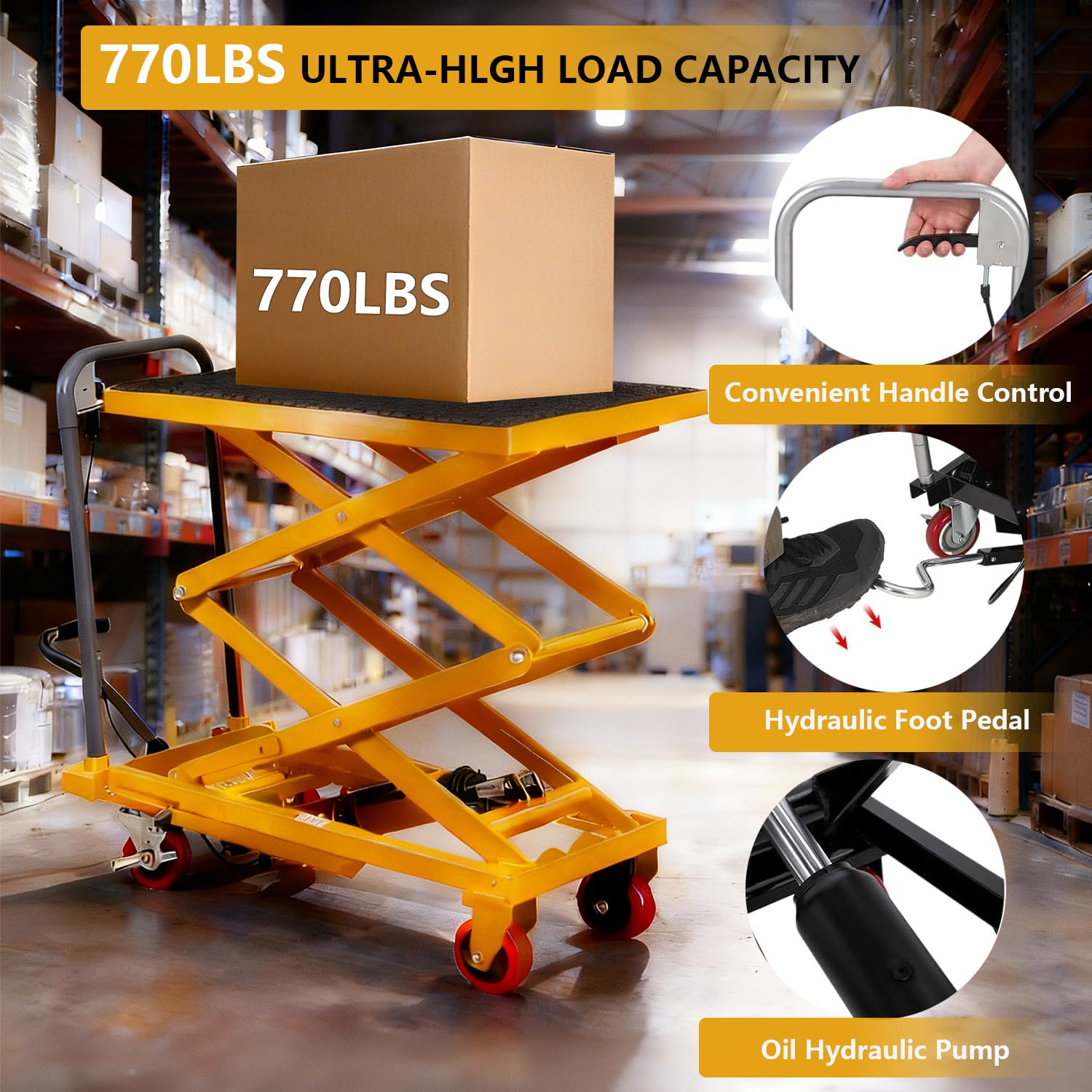

- Manual foot pump pedal: Anti slip foot pedal supports smooth upward lifting without electrical power.
- Quick release hand lever: Mounted on the 31.5" handle for controlled variable speed lowering.
- Safety focused structure: Built with hydraulic safety lock, stroke limiter, and internal overload protection valves.

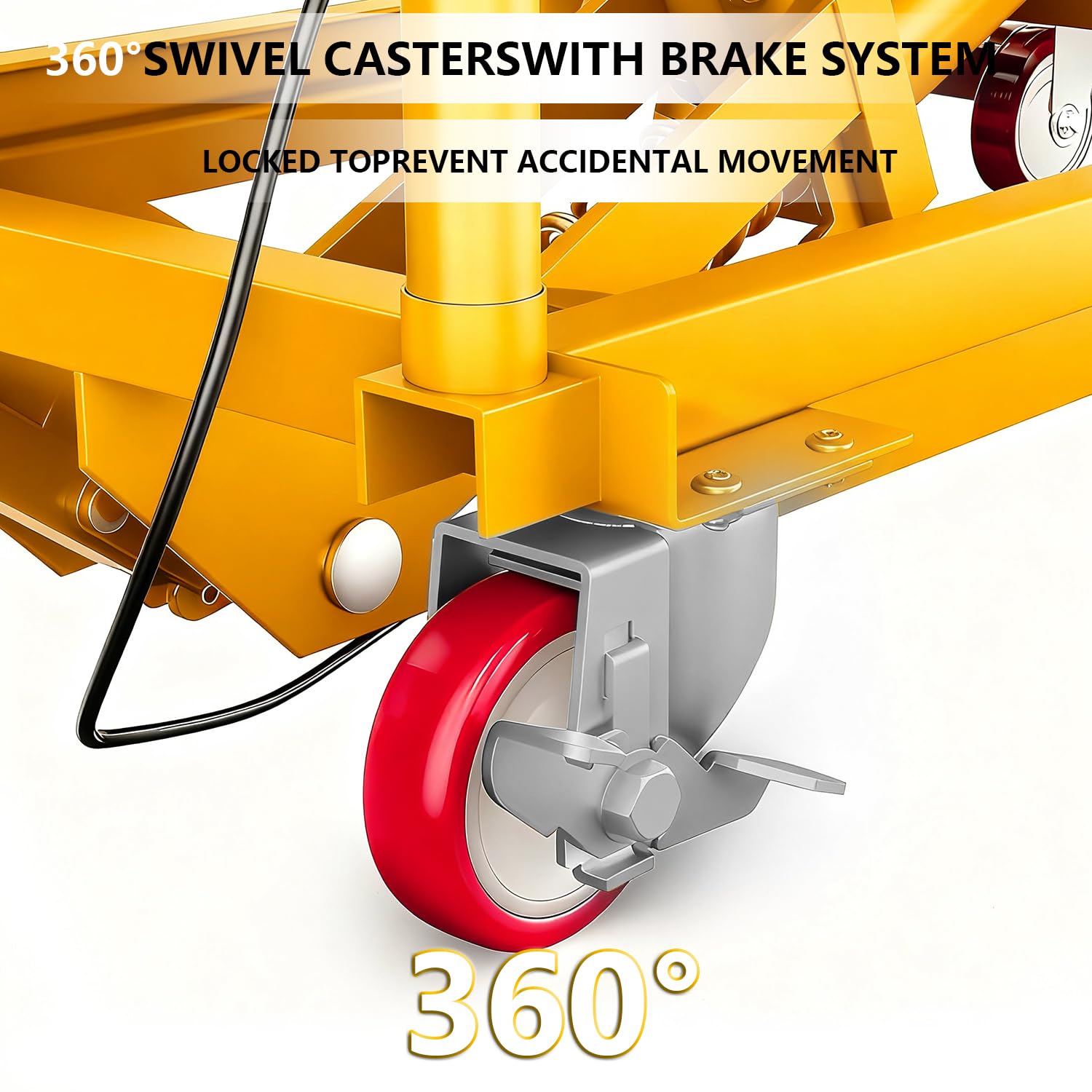

- Rear caster brakes: Mechanical brakes help secure the cart during loading, unloading, and positioning.
Stable Steel Cart for Heavy Material Handling
Built from rust resistant solid steel, this lift table cart is designed for demanding environments where loads must be raised, aligned, and transported safely. The 91 lb net cart weight helps provide a stable working base, while the caster system supports flexible movement around work areas.
Compact Platform with High Reach
The 28" x 18" platform is compact enough for tight work areas while still providing practical support for tools, engine parts, cartons, and small machinery bases. The 59" max lift height helps bridge common height gaps in workshops and warehouses.

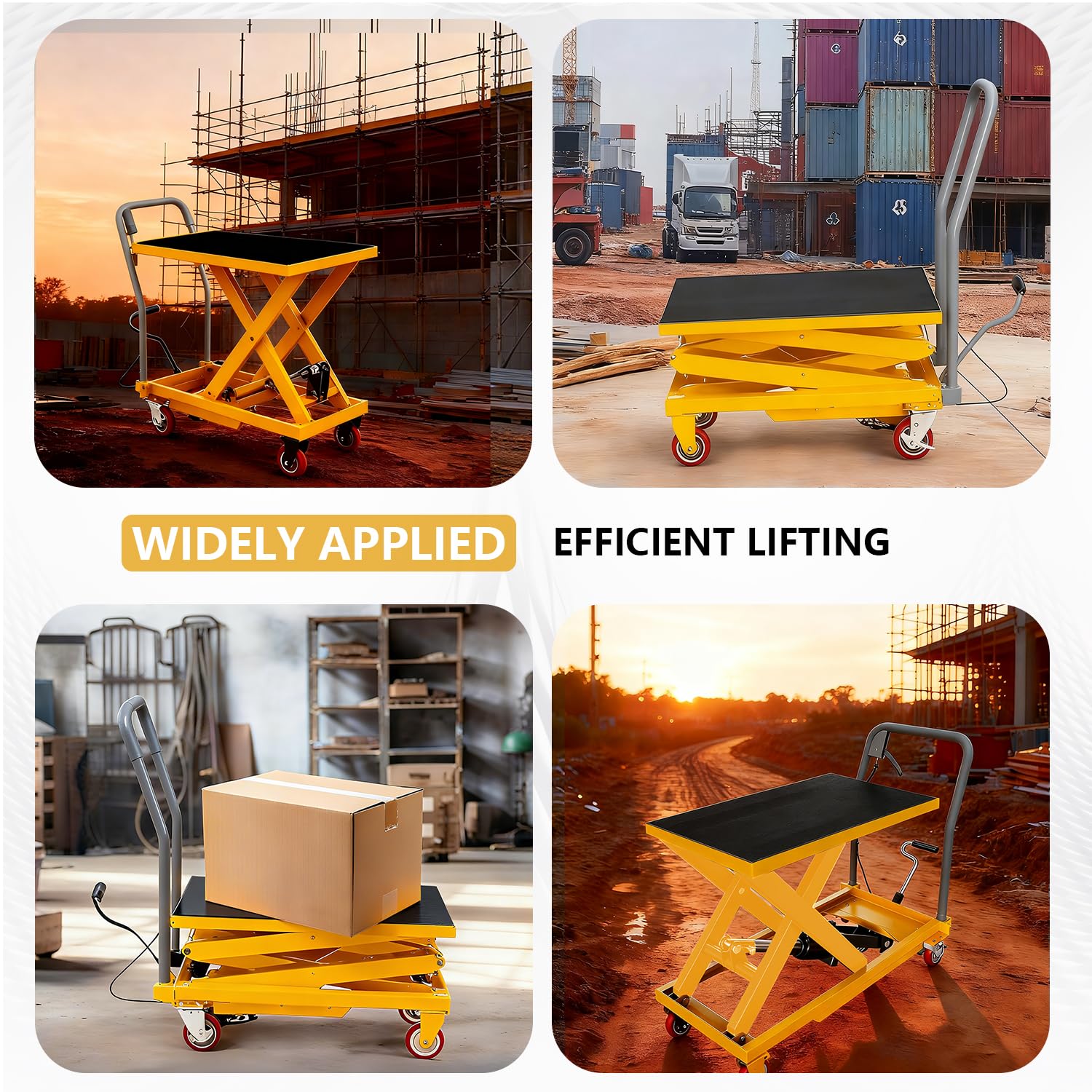

Multi Purpose Mobile Workstation
Use it as an adjustable height mobile table for automotive repair, warehousing, logistics, manufacturing workstations, equipment alignment, and general shop handling tasks.
Designed for Professional and Home Workspaces
A practical hydraulic platform cart for lifting, transporting, staging, and aligning heavy materials across different work environments.

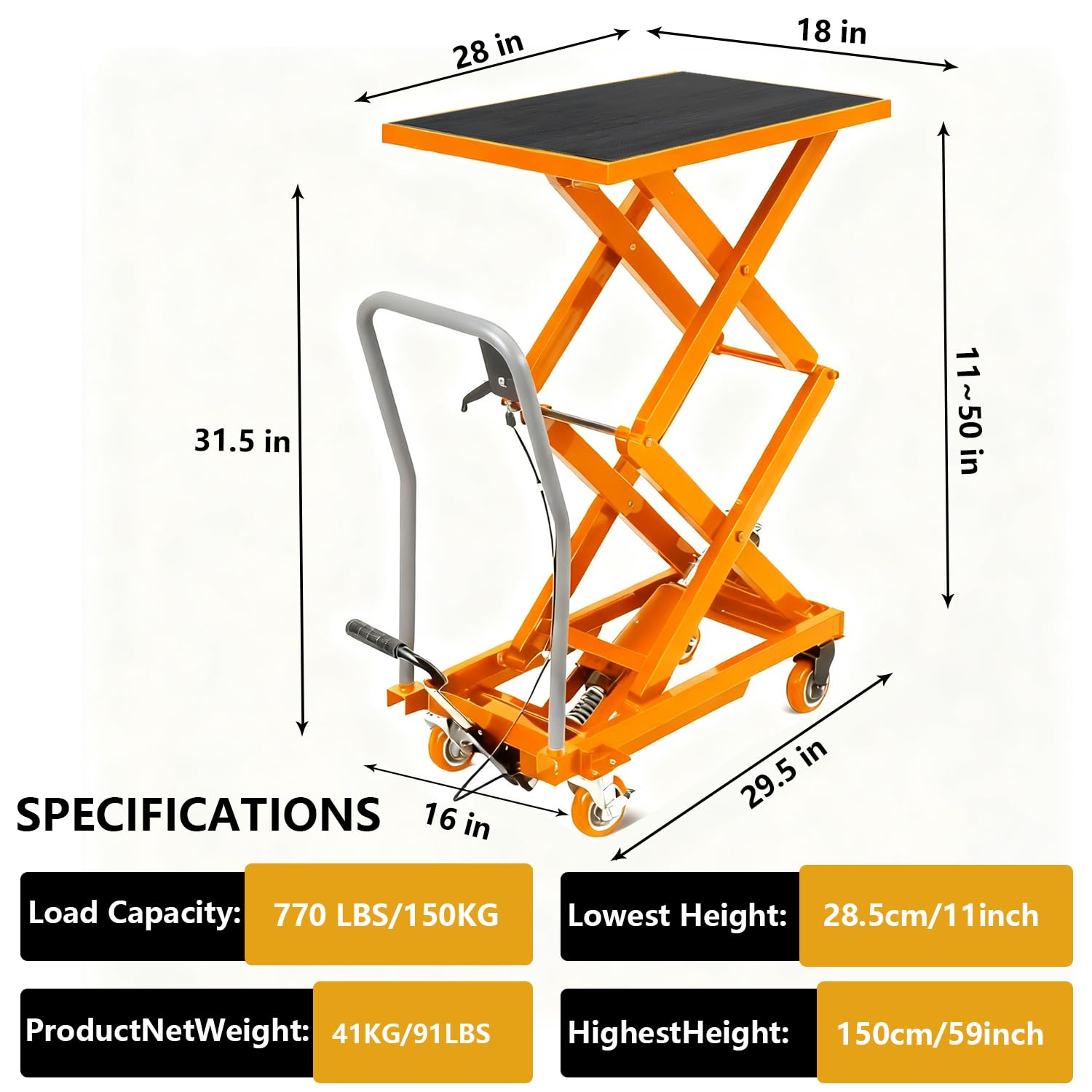

Product Specifications
| Brand | Garvee |
|---|---|
| Product Type | Double Scissor Hydraulic Lift Table Cart |
| Load Capacity | 770 lb |
| Lift Height Range | 11" to 59" |
| Platform Size | 28" x 18" |
| Net Cart Weight | 91 lb |
| Package Weight | 153.2 lb |
| Handle Height | 31.5" |
| Frame Material | Rust Resistant Solid Steel |
| Control System | Anti Slip Foot Pump Pedal and Quick Release Hand Lever |
| Safety Features | Hydraulic Safety Lock, Stroke Travel Limiter, Internal Overload Protection Valves, Rear Mechanical Brakes |
| Mobility | 360 Degree Caster Mobile Framework |
Reviews
Customer Reviews
Needed a way to singlehandedly remove a large thru-wall mount air conditioner for maintenance and cleaning. The lower edge is 54 inches above the floor, so I placed two short 4x4s and a 1x6 across the platform. The 1x6 addition was necessary because at full height the platform is not exactly level. Did the job perfectly. Did have an issue with maneuvering due to one caster not swiveling freely because the caster itself tilted on it's swivel base. Bad QC. It would hit one of the assembly bolts and the frame. Was able to fix it though
I used this for a job that requires 4 people to lift a refrigerator to a shelf in a very narrow space. This saved our backs and allowed me to line it up and slide it into place with no issues. Great investment for me and look forward to years of use.
I have two laser engravers that weigh 52 and 100 lbs and each are close to 30" inches wide. I had both on HD steel shelving units but after a while, I was not satisfied with their arrangement. Plus I wanted to put each on heavy duty undermount drawer slides so I could better feed longer projects.But, being 66 years old with a bum back (and my wife not in much better shape) the idea of moving these huge slabs of machinery was daunting considering the difficulty we had getting them on the shelving in the first place.This GARVEE hydraulic lift table was a back saver. This particular table by GARVEE has a 50" lift and I was able to "walk" my machines on and off very easily. My Xtool is on a riser and I was able to raise the table to the same level as the machine itself and do the same.The table is solid, and held my lasers easily while I changed my shelving units around and installed the drawer slides. There was no "fade" at all, the hydraulics kept the table steady the entire time. Lowering the table under load is very soft and smooth.My only quibble was there were no operation instructions. It's a no-brainer really, pump the handle at the bottom of the table with your foot, use the hand grip to lower. There is also a safety bar on the lower left strut that you can position to block accidental lowering of the table but I found that by accident. There was nothing in the installation manual about it. Other than that, although it's pricy, I think it's a good buy if you need to do the type of things I needed it to do.
Game changer!! Getting a little older but still have to load heavy objects in the back of the pickup. Makes loading and unloading the heavy items a lot less work and less stressful. Love It!
