Garvee Hydraulic Lift Table Cart, 330 LBS Capacity Manual Single Scissor Lift Platform, 28.5" Max Lifting Height Mobile Material Handling Cart with Non-Slip Pad & Locking Wheels, Black & Silver
| Technical Parameter | Official Specification |
|---|---|
| Brand Name | Garvee |
| Model Number | 330lbs-single |
| Item Type Name | Industrial Hydraulic Lift Table Cart |

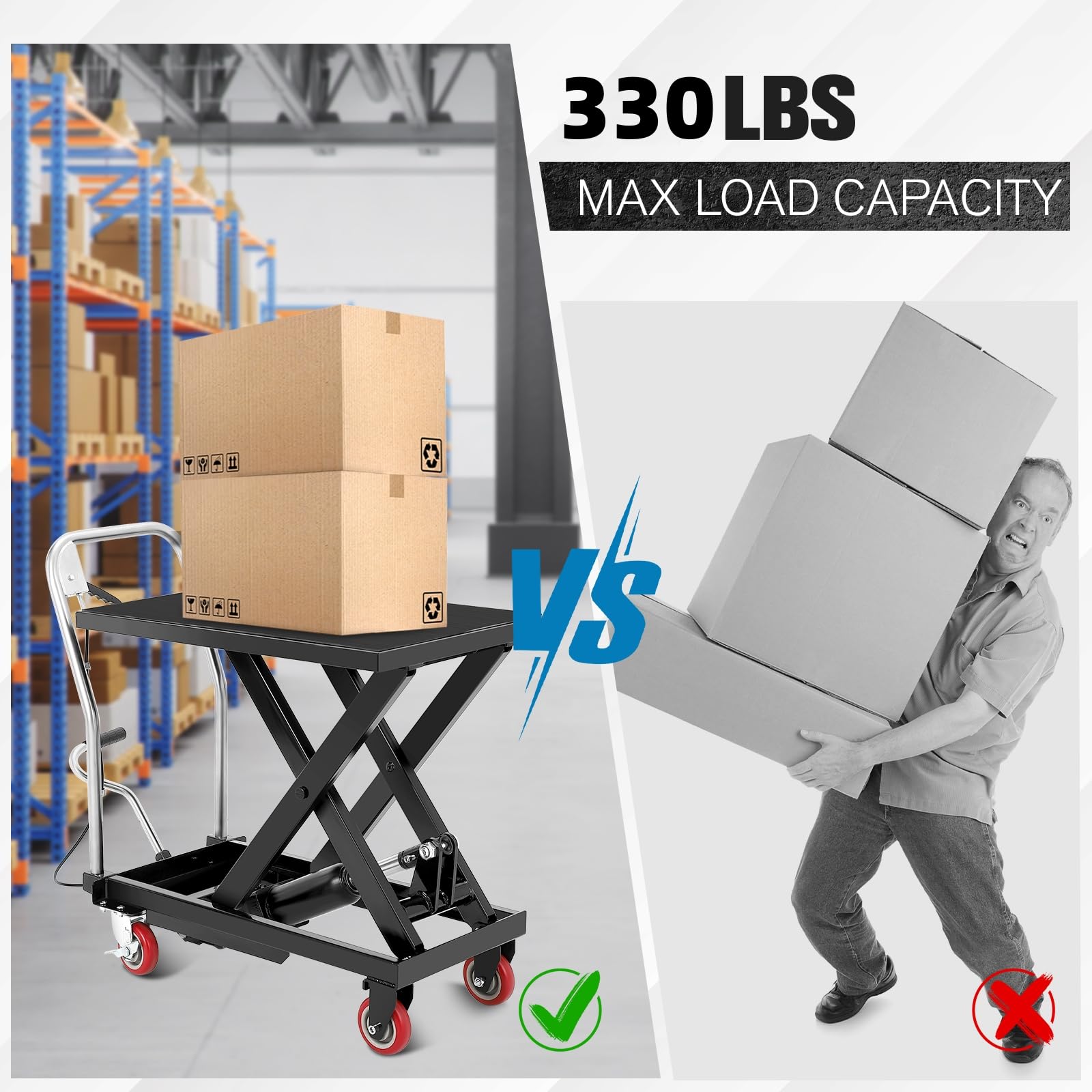

| Maximum Load Capacity | 330 LBS (150 kg Verified) |

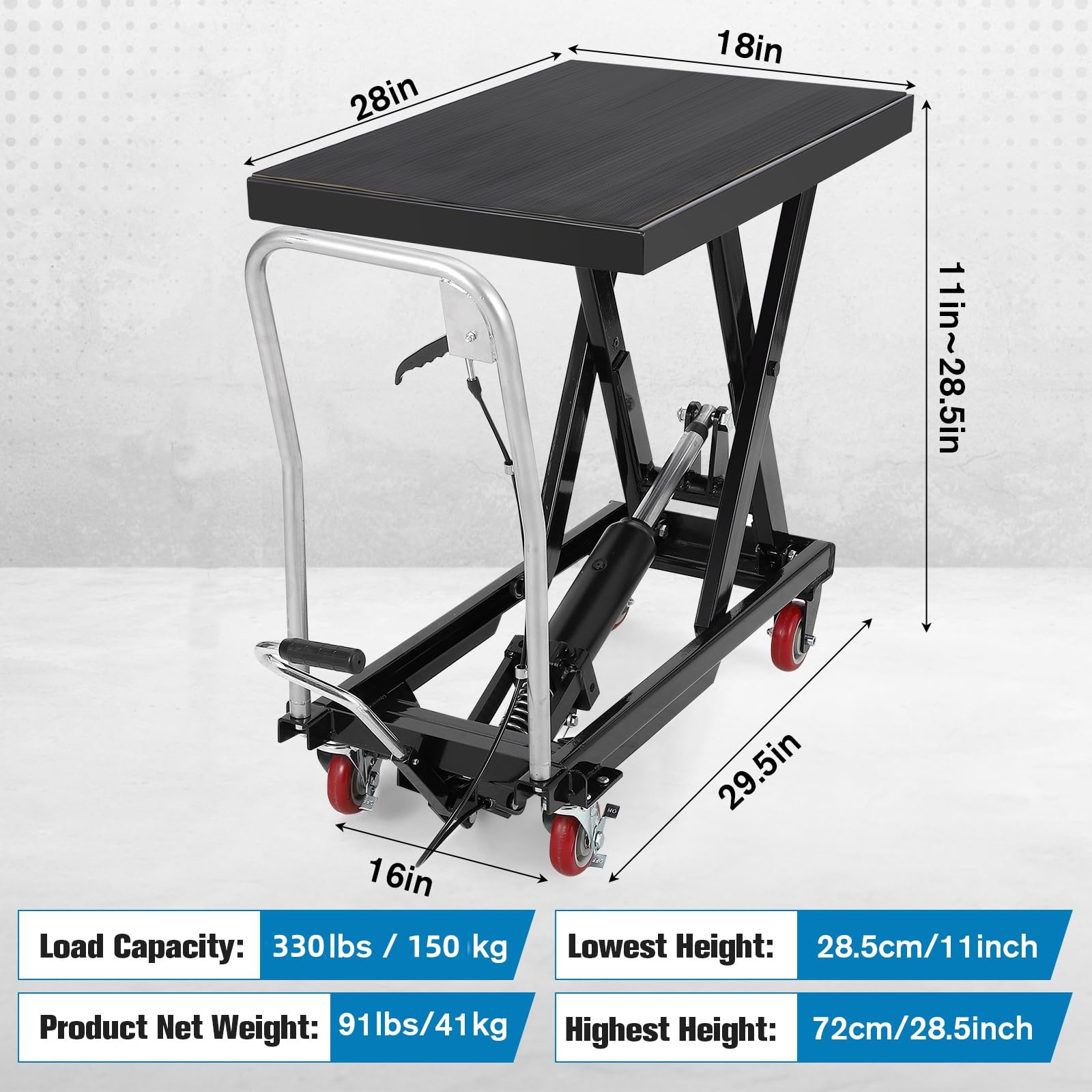

| Lifting Height Range | 11" Lowest Position to 28.5" Max Height (28.5cm - 72cm) |
| Platform Surface Dimensions | 28" Length x 18" Width |
| Base Frame Dimensions | 29.5" Length x 16" Width |
| Scissor Mechanism Type | Heavy-Duty Manual Single Scissor |
| Caster Wheel Configuration | 4x Reinforced PU Casters (360° Rear Swivels with Dual Locking Foot Brakes) |
| Safety Upgrades Included | 3mm Non-Slip Rubber Pad, Over-Lift Limiter, Overload Protection Bar |
| Product Net Weight | 91 Pounds (Gross Package Weight: 93.6 lbs) |
| Material & Color Scheme | Powder-Coated Steel Frame (Black) with Ergonomic Silver-Gray Push Handle |
Garvee Hydraulic Lift Table Cart, 330 LBS Capacity Manual Single Scissor Lift Platform, 28.5" Max Lifting Height Mobile Material Handling Cart with Non-Slip Pad & Locking Wheels, Black & Silver

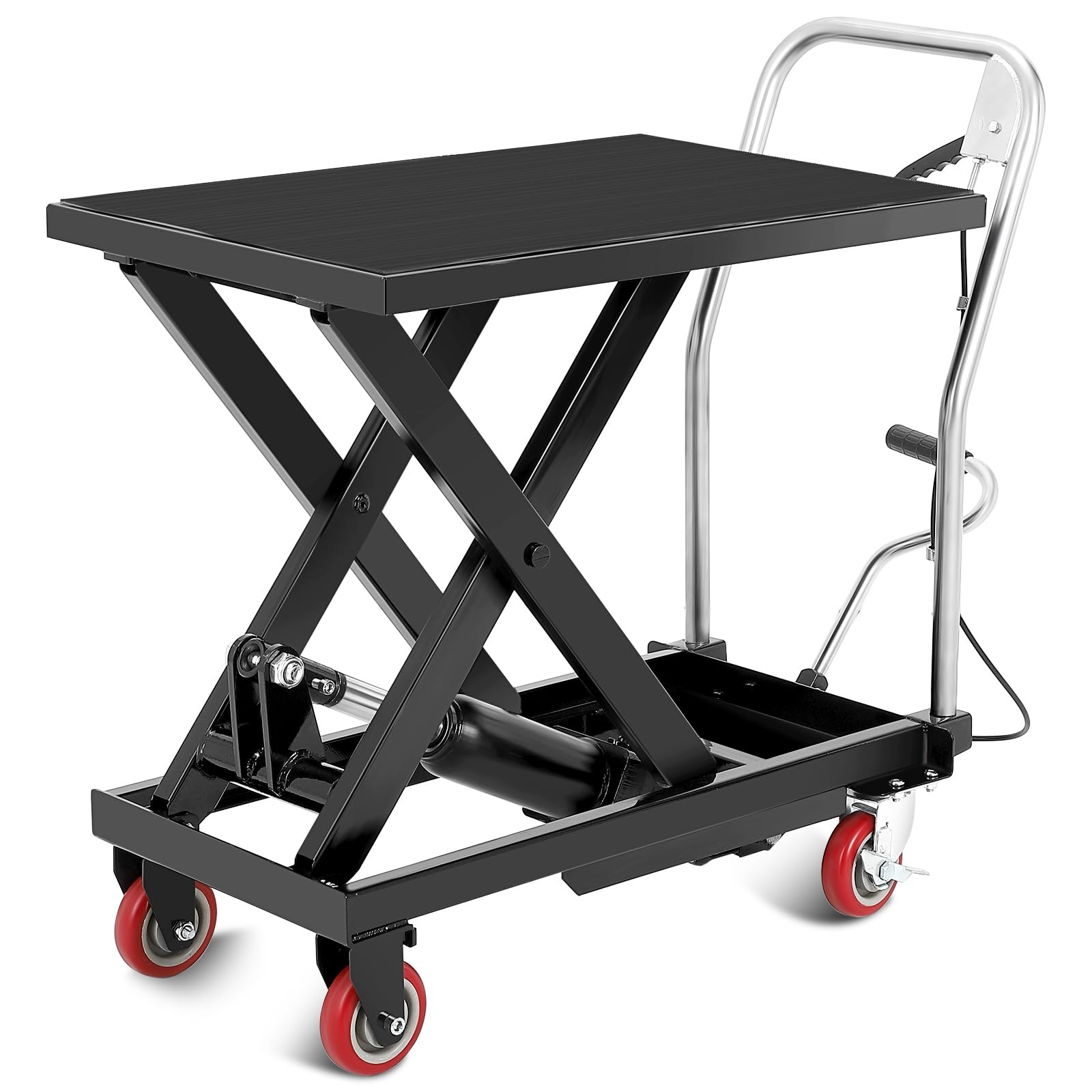

Garvee 330 lbs Mobile Hydraulic Scissor Lift Table Cart
Eliminate heavy lifting fatigue and optimize your workstation layout. Engineered with a smooth hydraulic pump, a 330 lbs capacity frame, and an integrated non-slip rubber platform pad, this single-scissor cart makes loading, unloading, and positioning materials a breeze.
Protect Your Back and Streamline Heavy Workpiece Transportation
Repetitively bending down to lift heavy parts packages, automotive tools, or manufacturing materials from the floor to a workbench is a leading cause of lower back strains and physical fatigue. Standard material handling platform trucks only move cargo horizontally, forcing operators to manually raise and lower heavy items during loading, which increases the likelihood of dropped goods or worker injury.
The Garvee Professional Hydraulic Scissor Lift Table Cart bridges this operational gap by functioning as both a mobile transport truck and a height-adjustable workstation. By utilizing a fluid manual foot pump mechanism, a single user can raise cargo to the exact height of their machinery or workbench, allowing heavy items to slide horizontally without any strenuous vertical lifting.
Industrial Engineering: Product Features

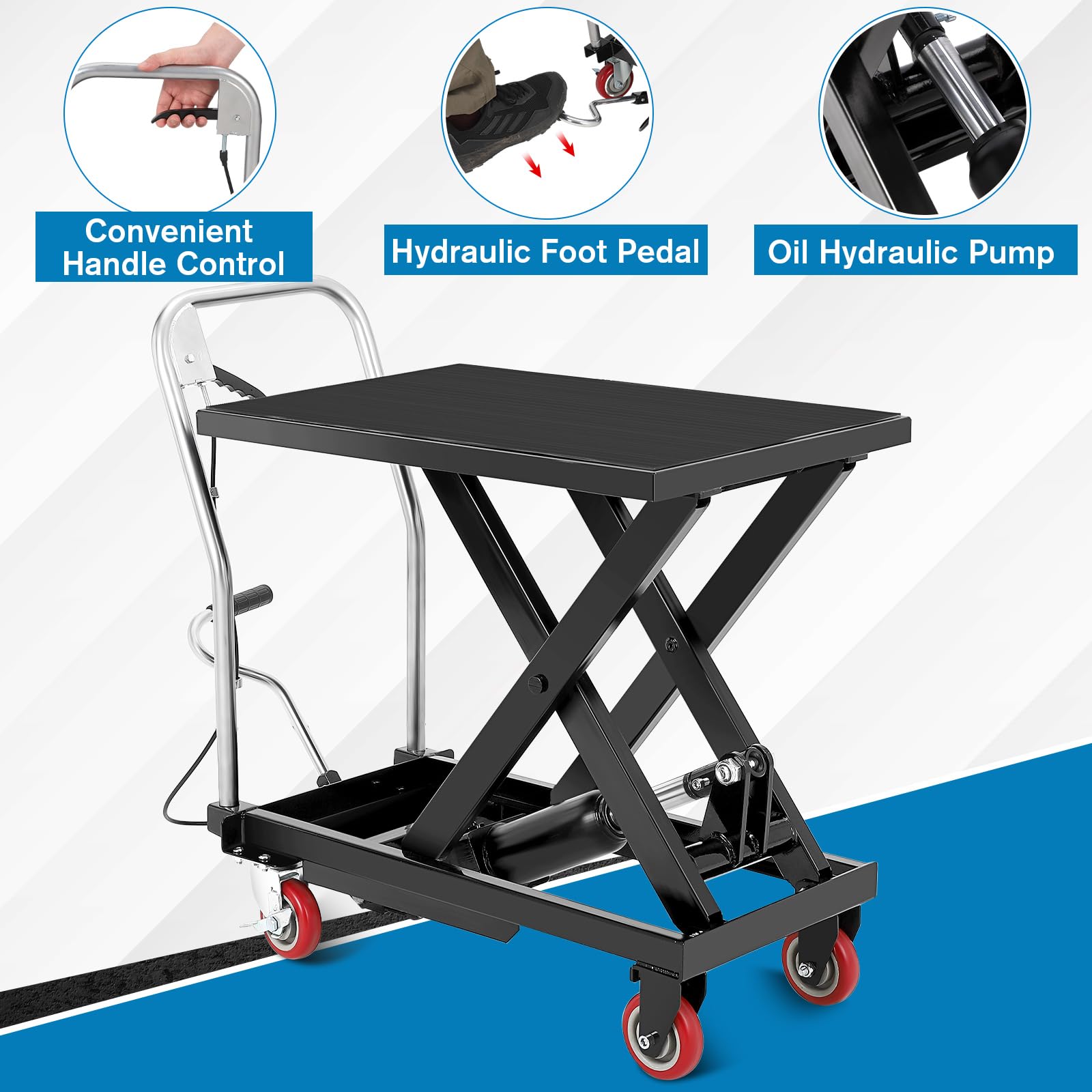

⚙️ Precision Leak-Proof Hydraulic Pump System
Achieve fluid, fully controlled lift heights with every step. The industrial hydraulic cylinder is sealed to eliminate oil leaks under continuous weight loads. The foot pump lets you elevate the 28" x 18" platform up to 28.5 inches smoothly, while the hand lever on the silver-gray push bar offers micro-adjustable descent control.

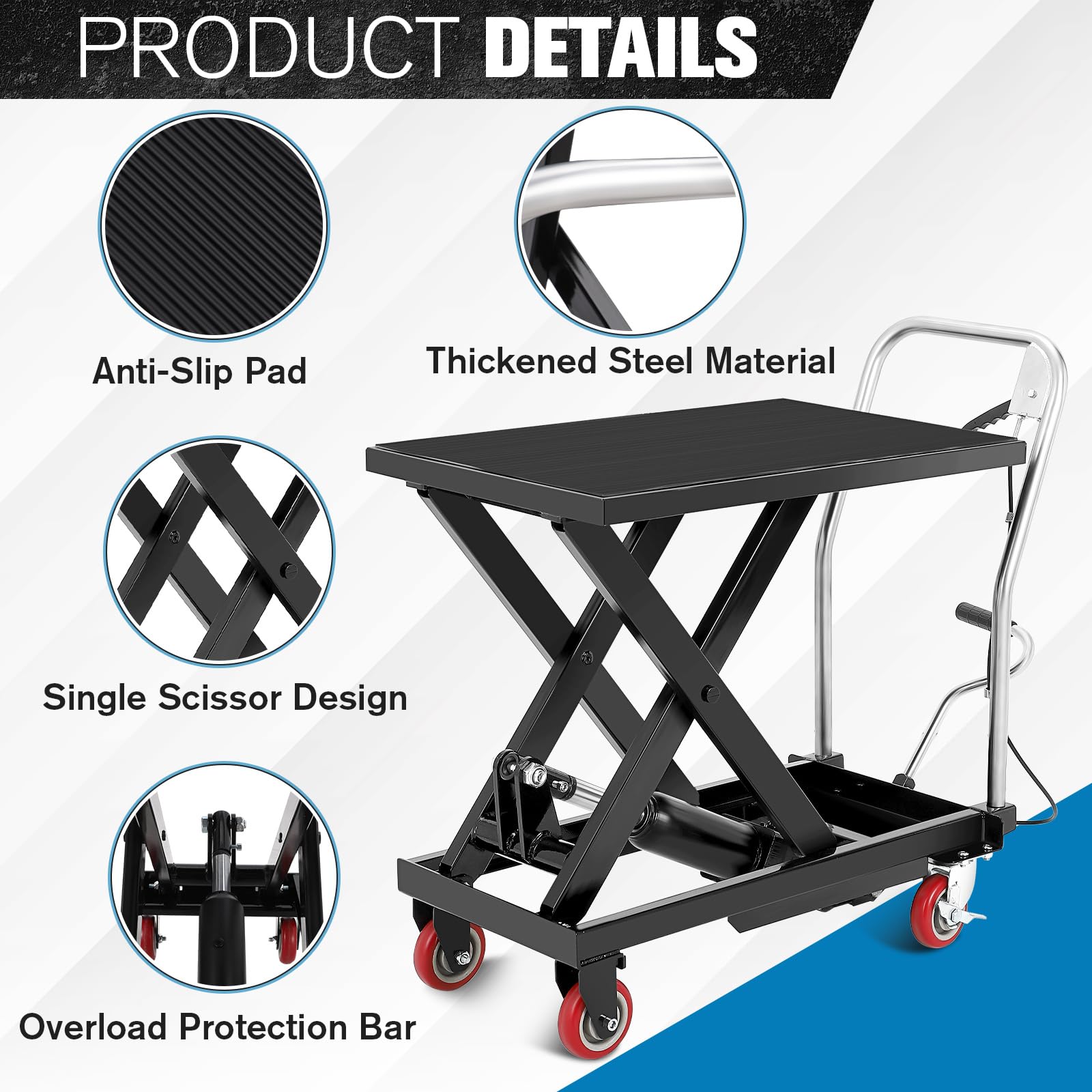

🛡️ 3mm Textured Non-Slip Protective Pad
Prevent shifts, scratching, and vibration noise during transit. The platform deck comes topped with a durable, high-friction 3mm thick rubber mat. This keeps small toolboxes, engine components, and slippery manufacturing supplies firmly anchored in place while traveling over uneven shop floors.

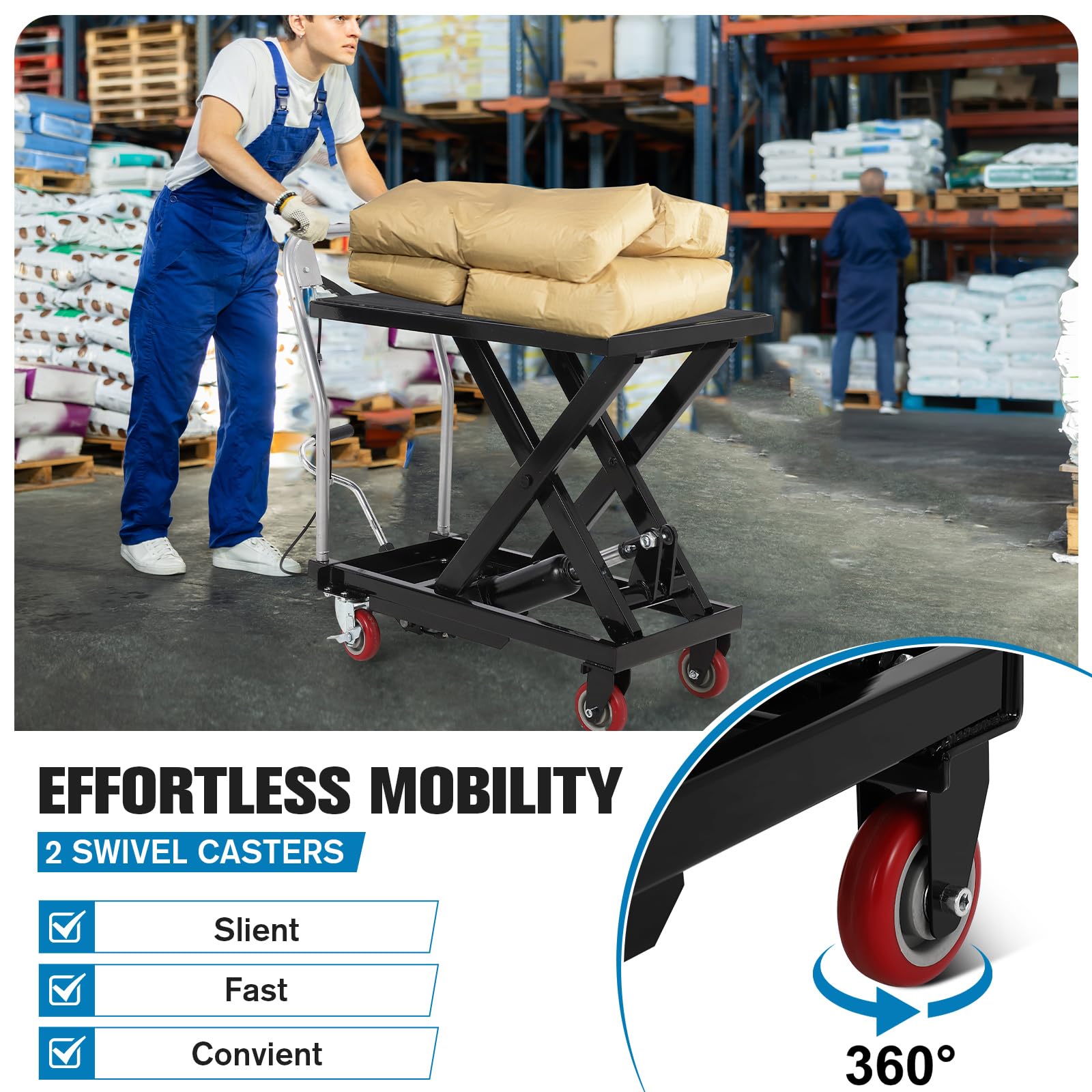

🔄 Omnidirectional Steer Wheels with Dual Foot Brakes
Navigate narrow hallways, storage rooms, and crowded factory pathways with 360-degree mobility. Equipped with premium polyurethane (PU) wheels, the cart glides quietly without scuffing concrete or commercial floors. The two rear swivel casters lock securely with a simple foot press to stabilize the platform as a stationary workbench.
🧱 High-Yield Structural Steel Matrix
Built for demanding industrial environments. The single-scissor scissor arms and lower frame are forged from reinforced carbon steel coated in a scratch-resistant black finish. Combined with an over-lift limiter and a physical overload protection bar, this cart maintains rigid balance even when loaded to its full 330 lbs capacity.
Versatile Utility Across Demanding Workspaces

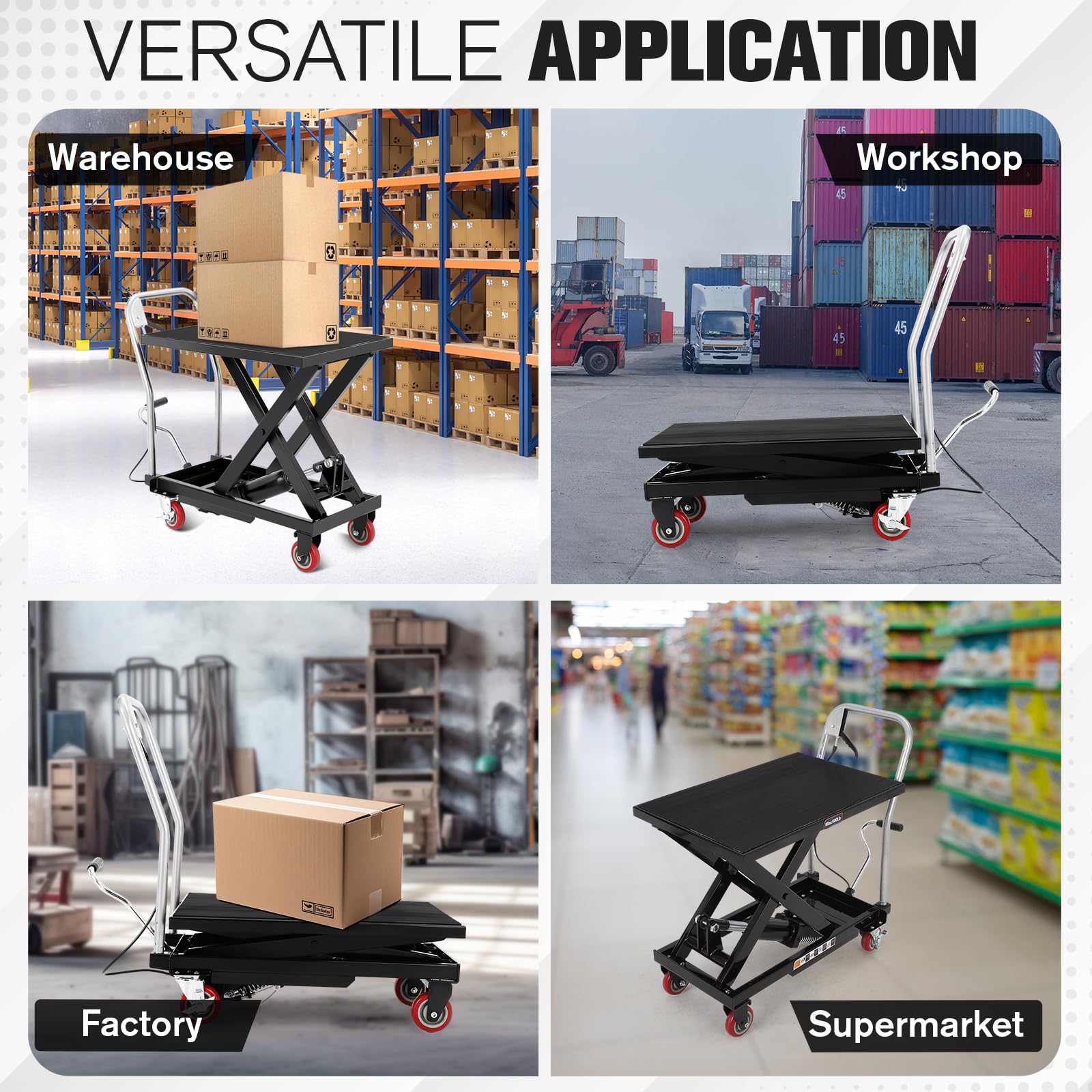

This single-scissor hydraulic cart serves multiple roles to optimize production, handling, and material flow:
- Warehouses & Fulfillment Centers: Easily raise or lower heavy shipping boxes and storage bins from low storage shelves onto sorting assembly stations.
- Automotive Repair & Workshops: Use the cart to hold dense transmission components, car batteries, or engine heads, positioning them right at mechanic level.
- Manufacturing Lines & Laboratories: Perfect for acting as an ergonomic adjustable height station for feeding raw parts into machinery or handling heavy chemistry gear.
