Garvee Hydraulic Scissor Lift Table Cart (500 LBS Capacity) - Heavy-Duty Steel Platform Push Jacks with Ergonomic Foot Pedal, 28.5" Max Lifting Height, 3mm Non-Slip Pad and Locking PU Swivel Wheels, Yellow
| Technical Parameter | Official Specification |
|---|---|
| Brand Name | Garvee |
| Product Classification | Hydraulic Scissor Lift Table Cart / Mobile Material Handling Jacks |
| Maximum Certified Load Capacity | 500 LBS / 150 KG |

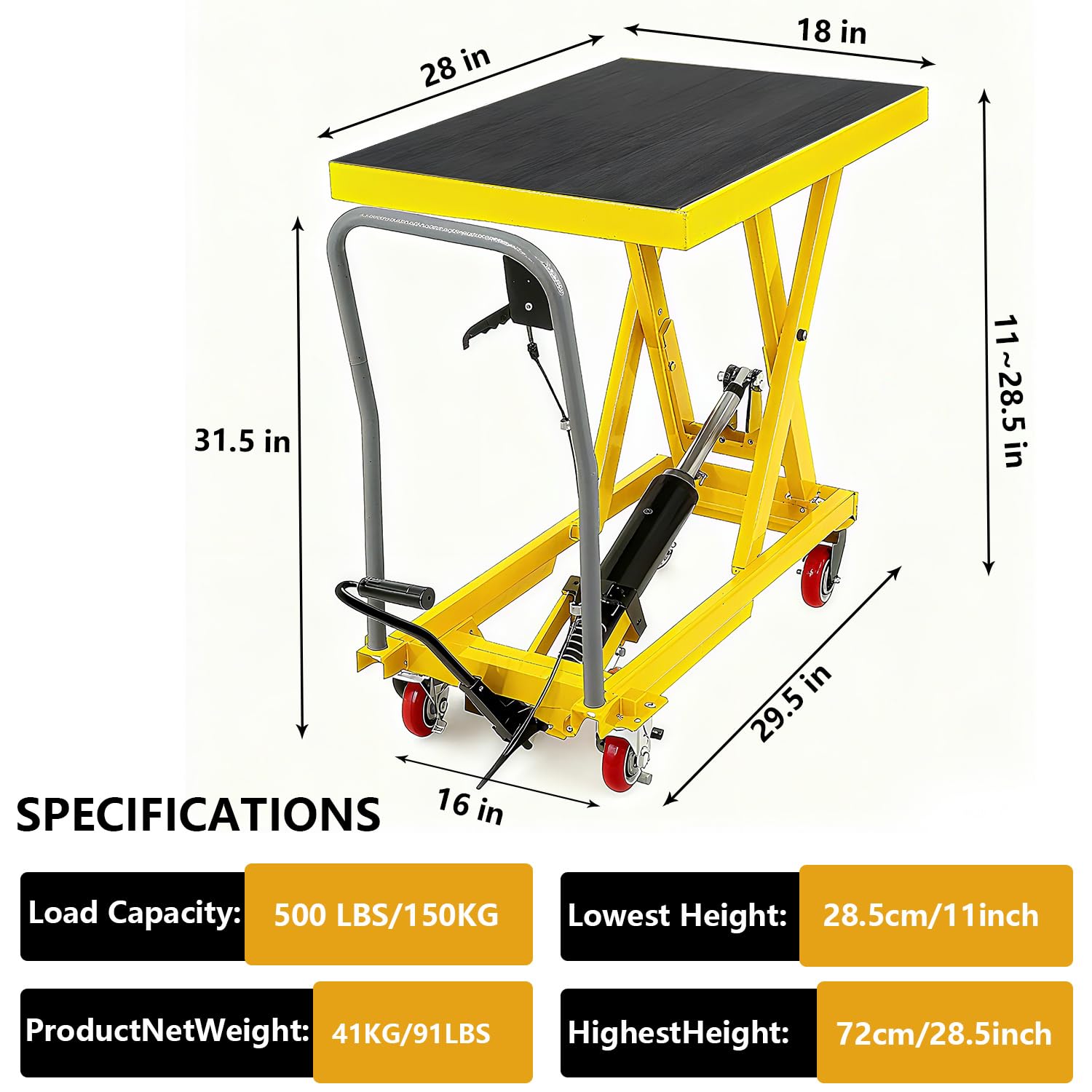

| Lifting Height Range (Min to Max) | 11 inches to 28.5 inches (28.5cm to 72cm) |
| Top Lifting Deck Platform Size | 28 inches L × 18 inches W |
| Base Frame Footprint Dimensions | 29.5 inches L × 16 inches W |
| Handle Push-Bar Height | 31.5 inches H |
| Structural Framing Material | Thickened Heavy-Duty Structural Carbon Steel Platform & Linkage |
| Chassis Protective Treatment | Rust-Resistant, Corrosion-Proof Industrial Powder Coating |
| Traction Shield Mat | 3mm Thick Textured Non-Slip Rubber Decking Pad |
| Drive Power Operation | Manual Hydraulic Pump (Foot-Pedal Actuated / Hand-Lever Release) |
| Caster Wheel Material System | Premium Polyurethane (PU) - 2x Fixed Front Rollers & 2x Rear 360° Swivel Wheels |
| Braking Infrastructure | Rear Wheel Mechanical Foot-Lock Parking Brakes |
| Integrated Safety Systems | Height Limiter Protection, Mechanical Overload Safety Maintenance Bar |
| Color Finish Profile | High-Visibility Industrial Yellow & Chrome |
| Included Components | 1x Complete Scissor Lift Cart Assembly, Non-Slip Mat, Work Gloves |
| Product Net Weight | 91 LBS / 41 KG |
Garvee Hydraulic Scissor Lift Table Cart (500 LBS Capacity) - Heavy-Duty Steel Platform Push Jacks with Ergonomic Foot Pedal, 28.5" Max Lifting Height, 3mm Non-Slip Pad and Locking PU Swivel Wheels, Yellow

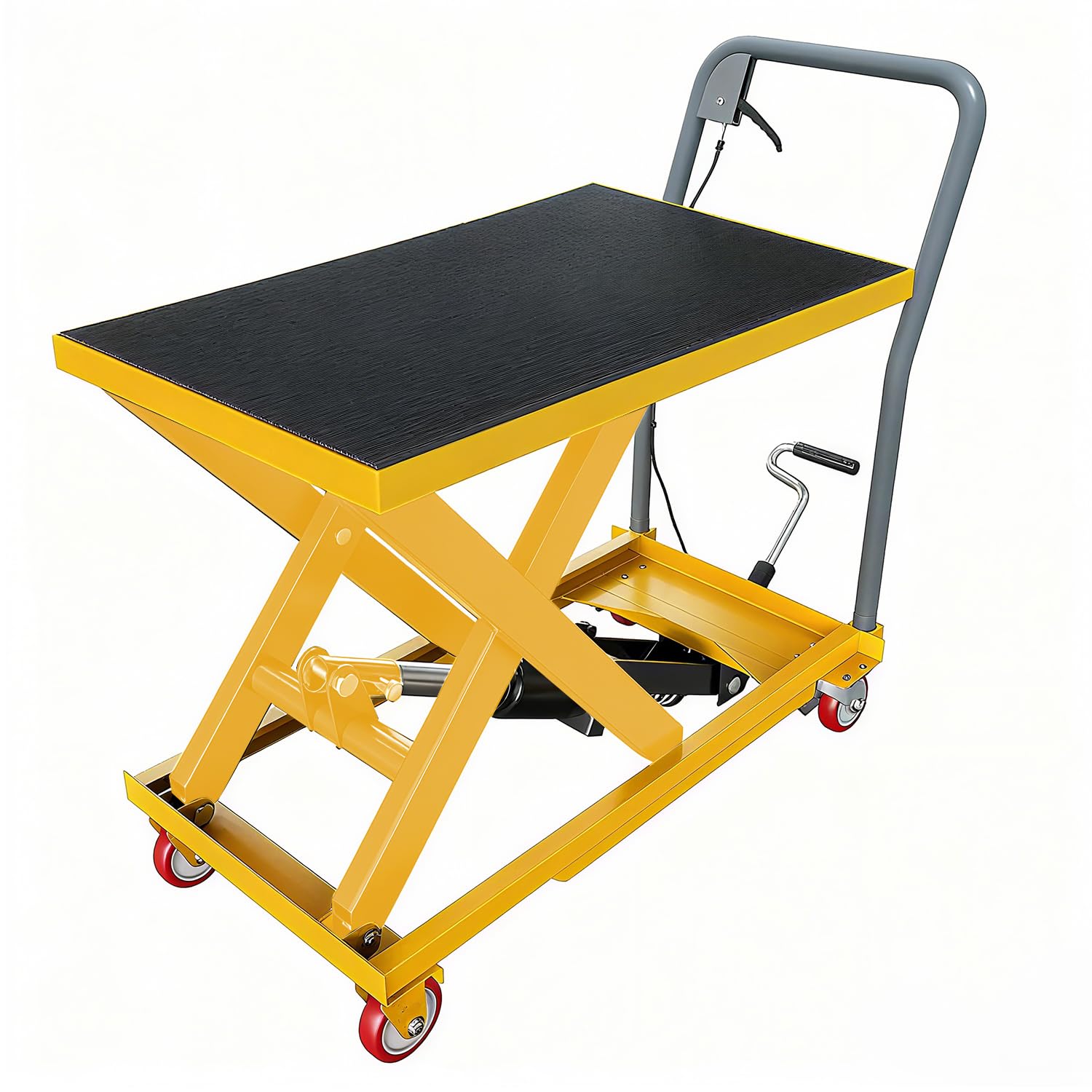

Garvee Heavy-Duty 500 LBS Hydraulic Scissor Lift Table Cart
Streamline your shop logistics, protect your team, and lift heavy stock completely stress-free. The Garvee Manual Hydraulic Scissor Lift Cart is engineered to bridge the gap between storage floors, vehicle trunks, and raised assembly workbenches. Combining a resilient 500 lbs capacity with an ergonomic foot-pump pedal, an 11" to 28.5" lifting range, and advanced safety lock bars, this heavy-duty steel utility table is the ultimate ergonomic solution for material handling in modern warehouses, commercial garages, laboratories, and repair shops.
Prevent Back Injuries, Drops, and Exhausting Double-Handling Bottlenecks
Manually hoisting dense engine blocks, heavy toolboxes, or bulk retail inventory from the floor onto raised benches or into delivery vans is the leading cause of painful workplace back strains and expensive product drops. Standard flatbed platform carts only solve transportation—leaving workers to do the exhausting vertical lifting themselves. The Garvee Hydraulic Scissor Lift Table solves this bottleneck entirely. It serves as both an agile rolling transport trolley and an adjustable-height lifting bench. By pumping the foot pedal, a single worker can effortlessly bring up a 500 lbs load perfectly flush with any work surface, completely removing physical strain and accelerating processing times.
Premium Engineering Features
🏋️ Thickened Steel Frame with 500 LBS Payload Rating
Industrial strength that holds true. Built using reinforced structural steel members, this lift platform won't buckle or flex under its maximum 500 lbs capacity. The exterior is coated in a durable, high-visibility safety yellow powder finish that shields the metal frame from scratches, rust, and oil spills.

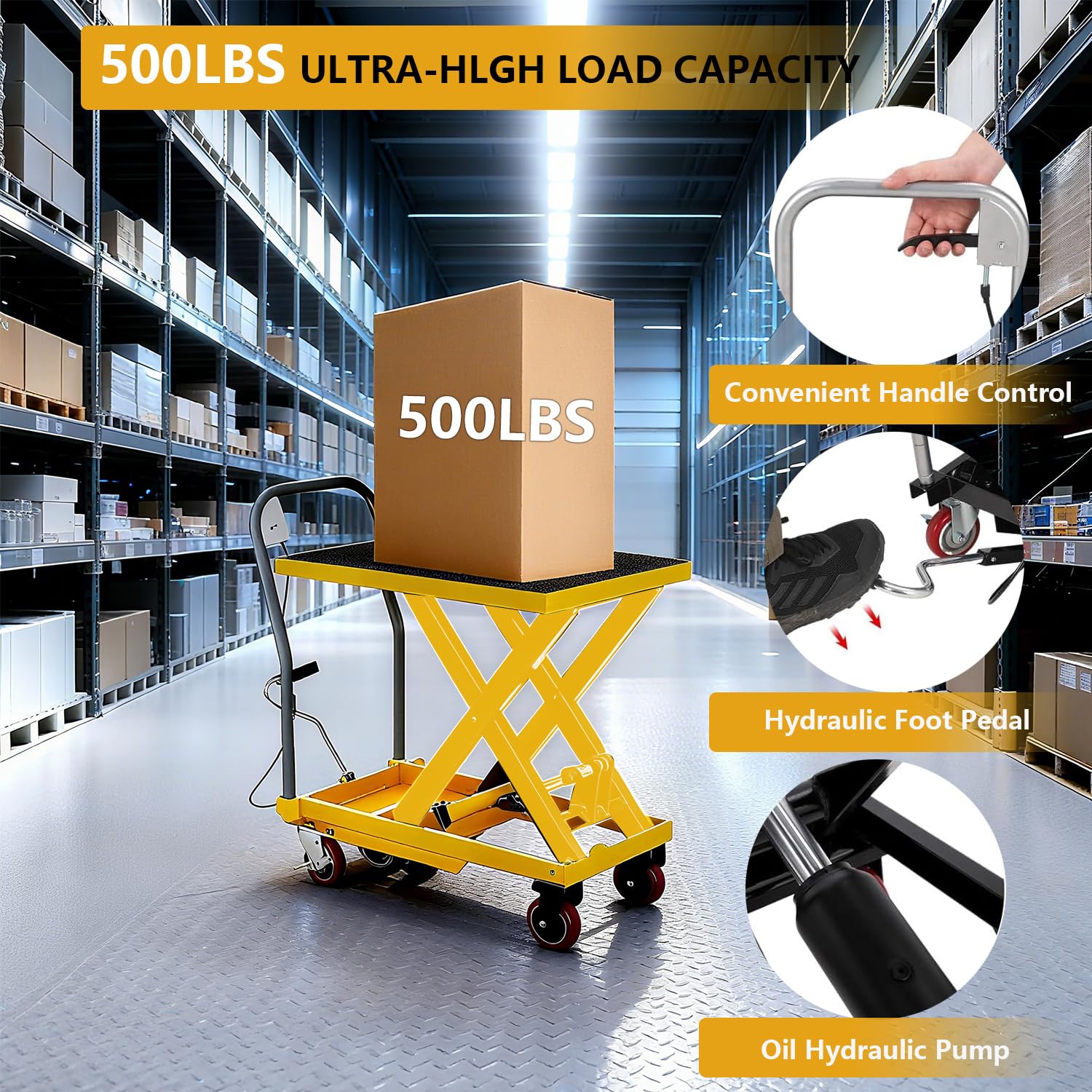

🦶 Ergonomic Foot Pedal Pump & Controlled Hand Release
Simple, precise mechanical leverage. The low-resistance hydraulic pump allows the operator to elevate the load smoothly using an anti-slip foot pedal. When it is time to unload, simply pull the ergonomic hand lever on the chrome-plated push bar to slowly and safely lower cargo back to a minimum height of 11 inches.

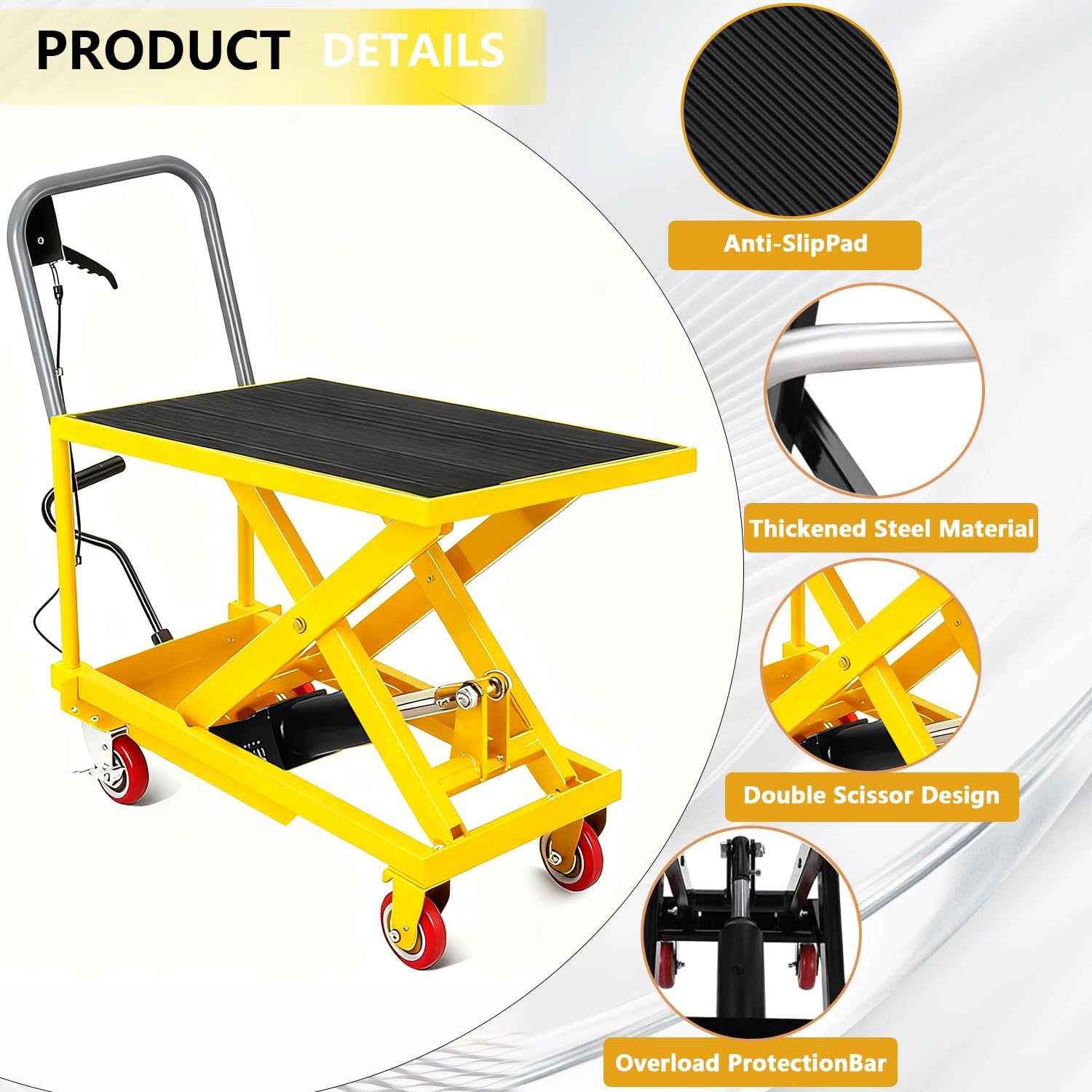

🔒 Professional Operator Security Safeguards
Worry-free loading on any surface. Features an integrated overload maintenance bypass bar that stops the jack from raising if weights exceed boundaries, a built-in height limiter protector, and a premium 3mm thick patterned non-slip rubber surface mat that stops slick metal boxes or components from slipping out of alignment.

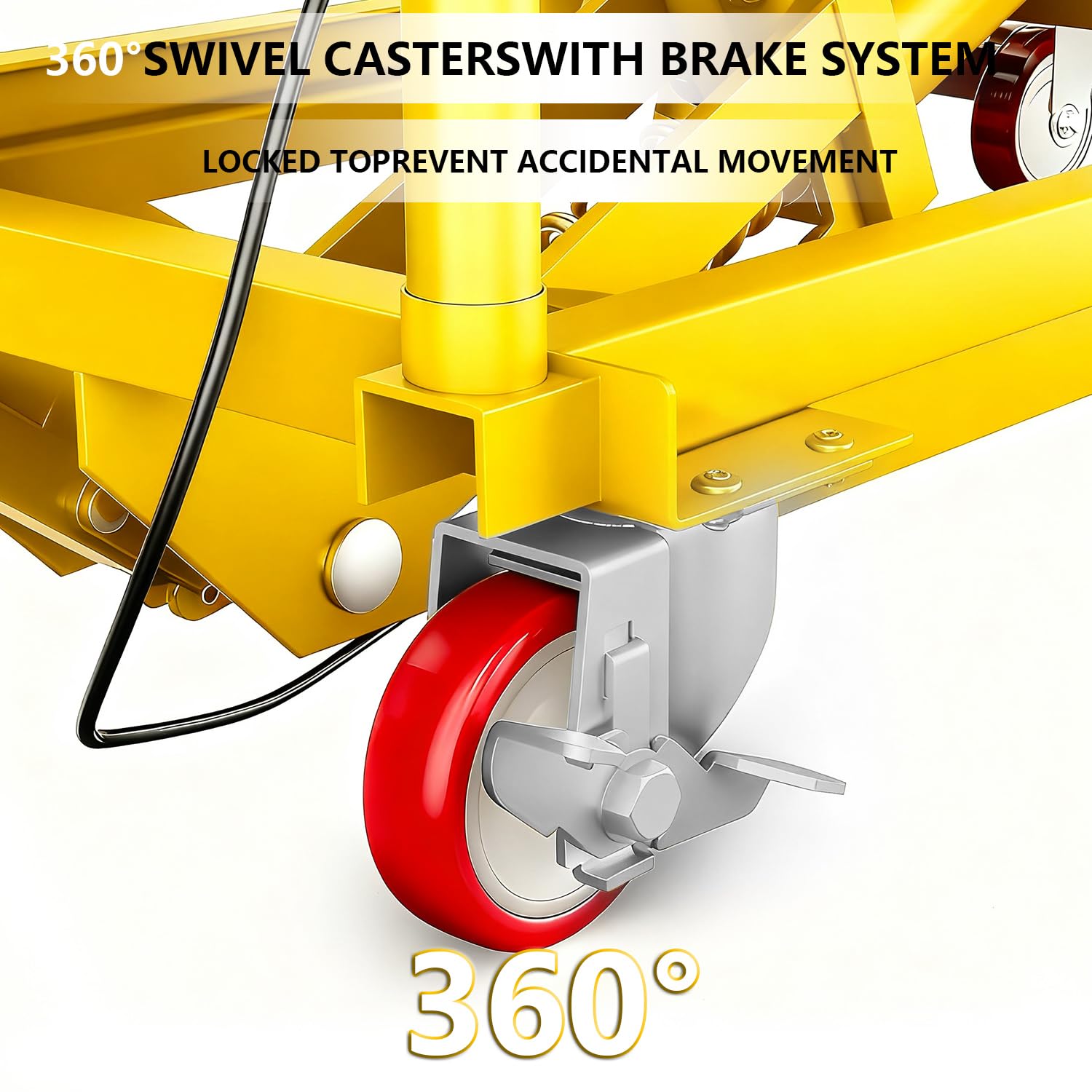

⚙️ Polyurethane Wheels with Dual Mechanical Brakes
Glides smoothly across shop floors without marring your finishes. Outfitted with heavy-duty polyurethane wheels (including two rigid front rollers and two rear 360-degree swivel casters), this compact cart tracks precisely around tight corners and locks completely solid with quick foot-activated brakes.

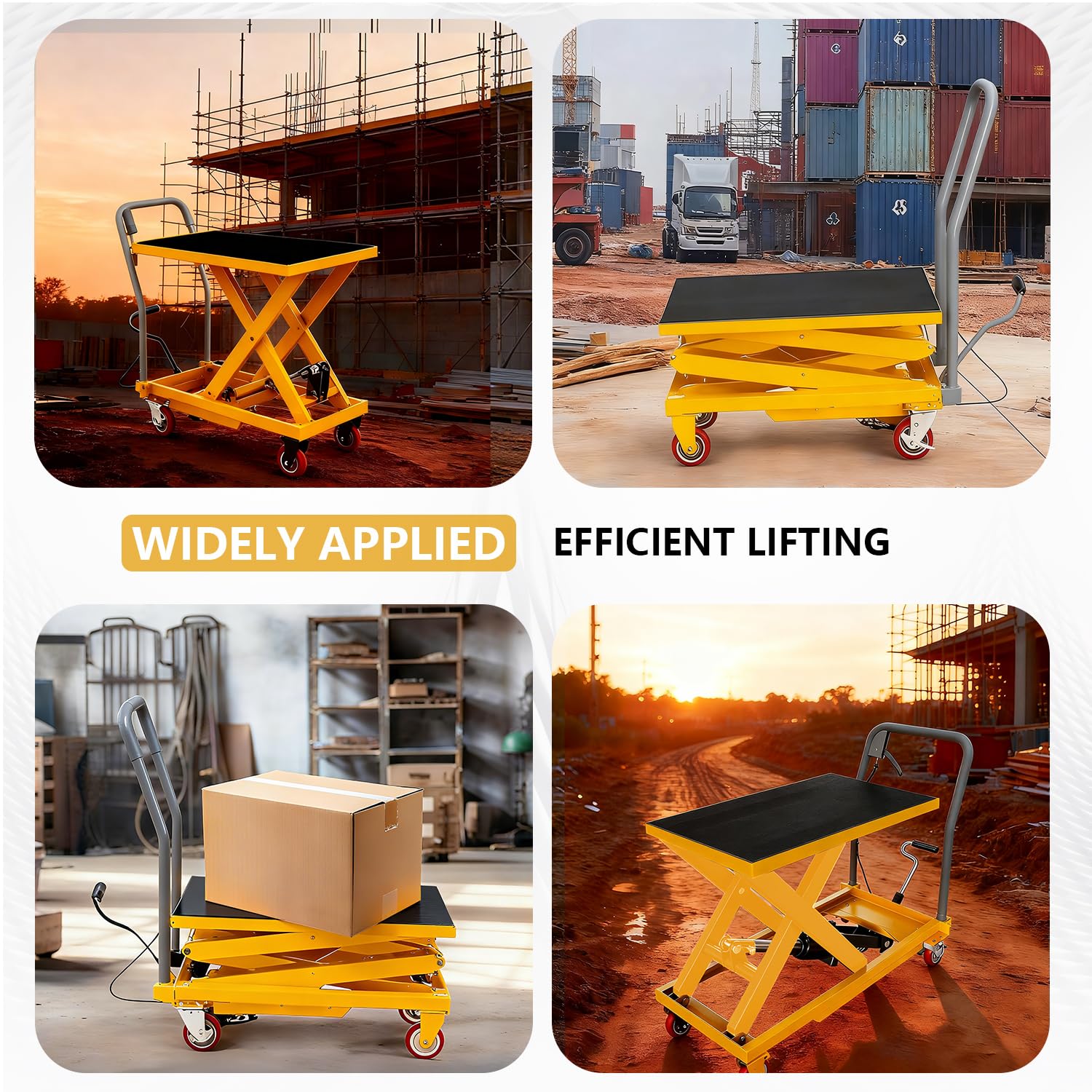

Multi-Scene Workplace Utility
With a highly efficient 28" x 18" top deck footprint, this manual scissor lift cart is optimized for high productivity across a wide range of tasks:
- Automotive Garages & Machining Shops: Easily raises heavy vehicle components, transmissions, wheels, and repair tools directly up to mechanic workbench height.
- Warehouses & Fulfillment Centers: Streamlines unpacking, offloading inventory boxes from delivery trucks, and sorting stock onto low and mid-level shelving.
- Laboratories & Industrial Facilities: Transports sensitive testing hardware, chemicals, and industrial materials safely with smooth hydraulic adjustments.
