Garvee Metal Lathe - 9"x24" Mini Lathe with 0-2500 RPM Variable Speed, 1100W Benchtop Precision Lathe Machine, 5" 3-Jaw Chuck, Metal Gears, and Tool Box for Metal Turning
Exclusive benefits for GarveeBronze (1x points on spending).
| Brand | Garvee |
| Power of Motor | 1100W |
| Spindle Bore | 38mm(1.49") |
| Distance Between Centers | 600mm(23.62") |
| Swing Over Bed | 220mm(8.66") |
| Chuck Diameter | 125mm(4.92") |
| Taper Of Spindle | MT5 |
| Taper Of Tailstock | MT2 |
| Variable Speed | 50-2500PRM |
| Inch Thread | 10-44 T.P.I |
| Metric Thread | 0.5-3.0mm |
| Item Weight | 175.1 pounds |
Garvee Metal Lathe - 9"x24" Mini Lathe with 0-2500 RPM Variable Speed, 1100W Benchtop Precision Lathe Machine, 5" 3-Jaw Chuck, Metal Gears, and Tool Box for Metal Turning
9" X 24" Variable-speed Metal Lathe
The 9 x 24 Inch Precision Mini Benchtop Lathe features a 3-jaw chuck, a MT3 spindle taper, a MT2 tailstock taper, a tool rest and a 3/4 HP motor, designed to perform various types of metal turning, simple to operate. Through high frequency quenching process and precision grinding of high-quality cast iron bed. 50-2500RPM spindle speed sub-level of two tranches spindle gear change speed control, continuously adjustable.
Digital Display
This metal lathe features a digital screen clearly displaying the rotational speed, ensuring precise and smooth operation.

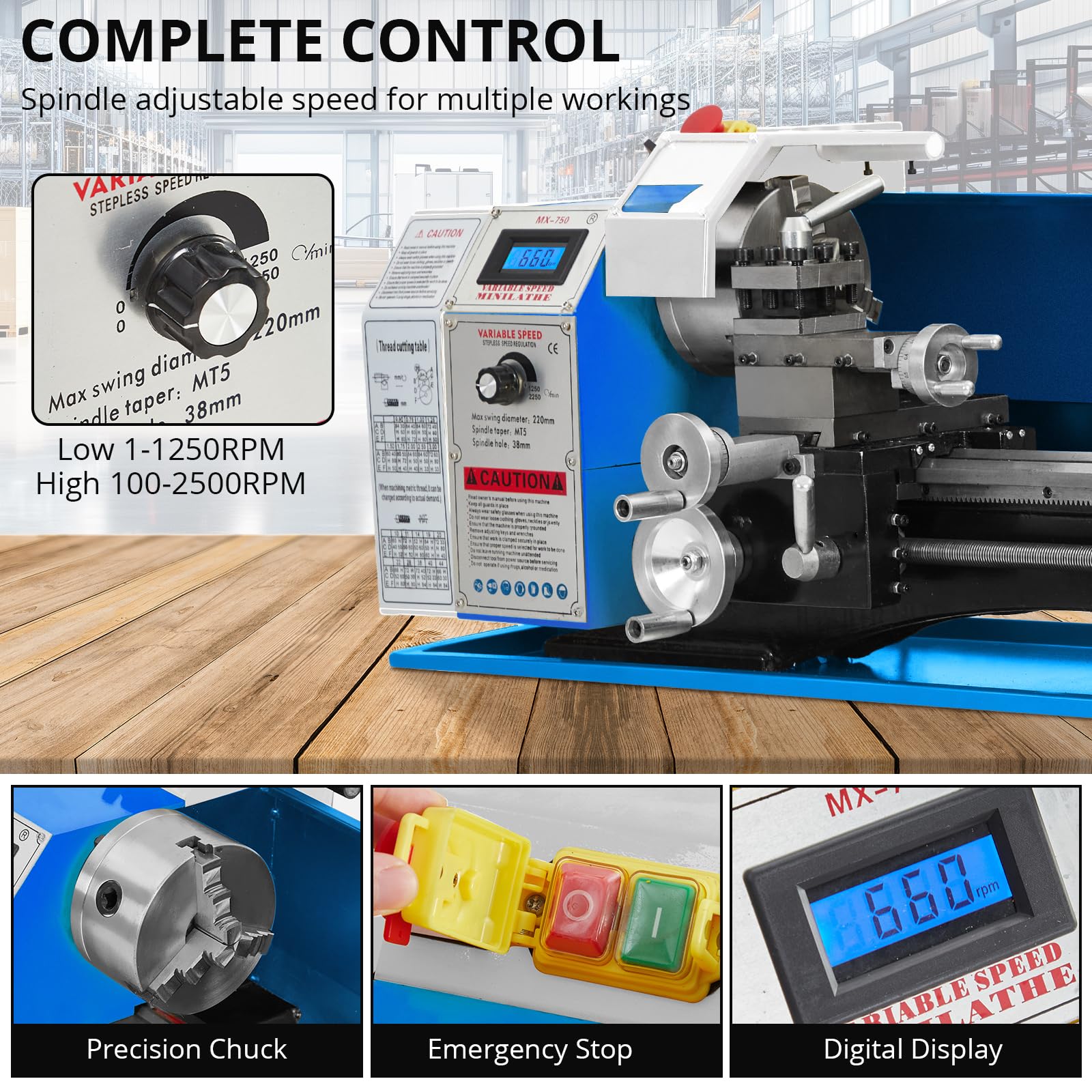

Infinitely Variable Speeds
Variable speed from 50-2500 RPM. Forward and reverse in all speeds. Operate either manually or with the adjustable auto feed rate. The feed speed can be adjusted according to the requirements of different workpieces.
High Accuracy Chuck
3-jaw self-centering chuck has gone tested with accuracy and repeatability to set cylindrical materials steadily. Backsplash guard included. Spindle is supported by precision tapered roller bearings, spindle accuracy within 0.01mm.

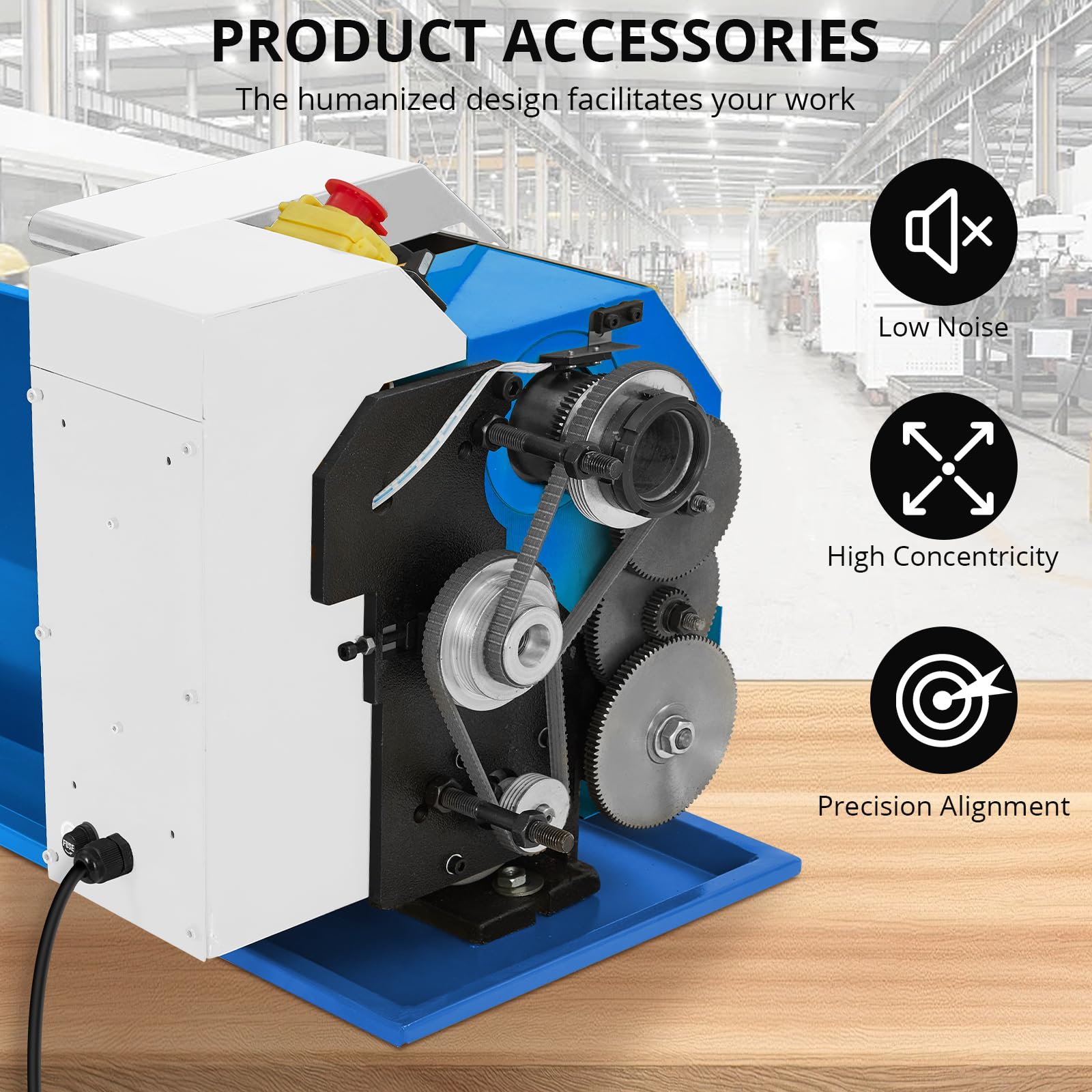

Metal Gear Set
Especially suitable for threading, this wear-resistant and durable set of metal gears provides strong and efficient power transmission to the lathe.

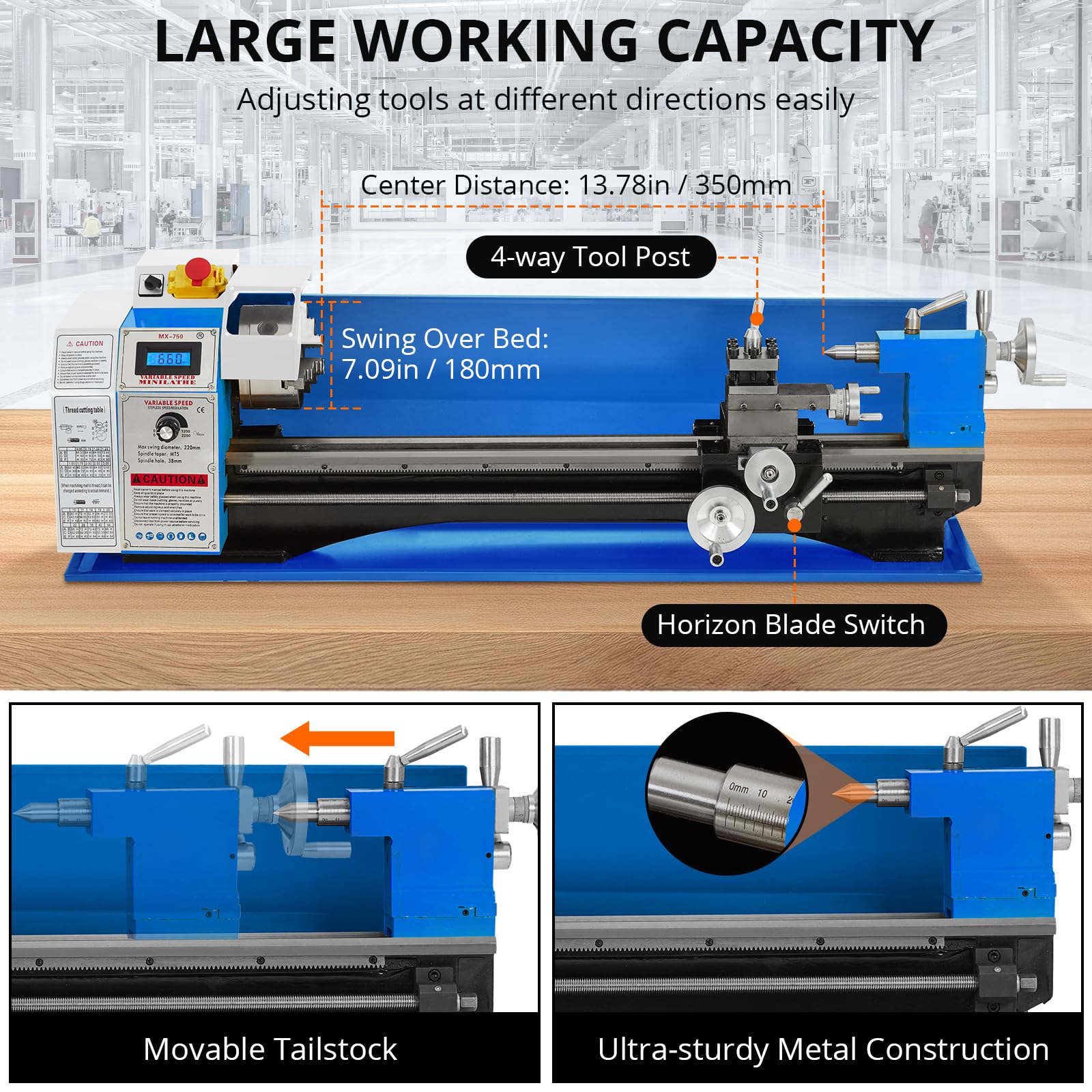

Professional Cross Slide
Designed with abrasive resistance, moving blades freely with feed rod. 16 TPI reversible lead screw. The v-slideways with distance between center: 350mm(13.78"). A lamp is for acurate operation in a dark environment.

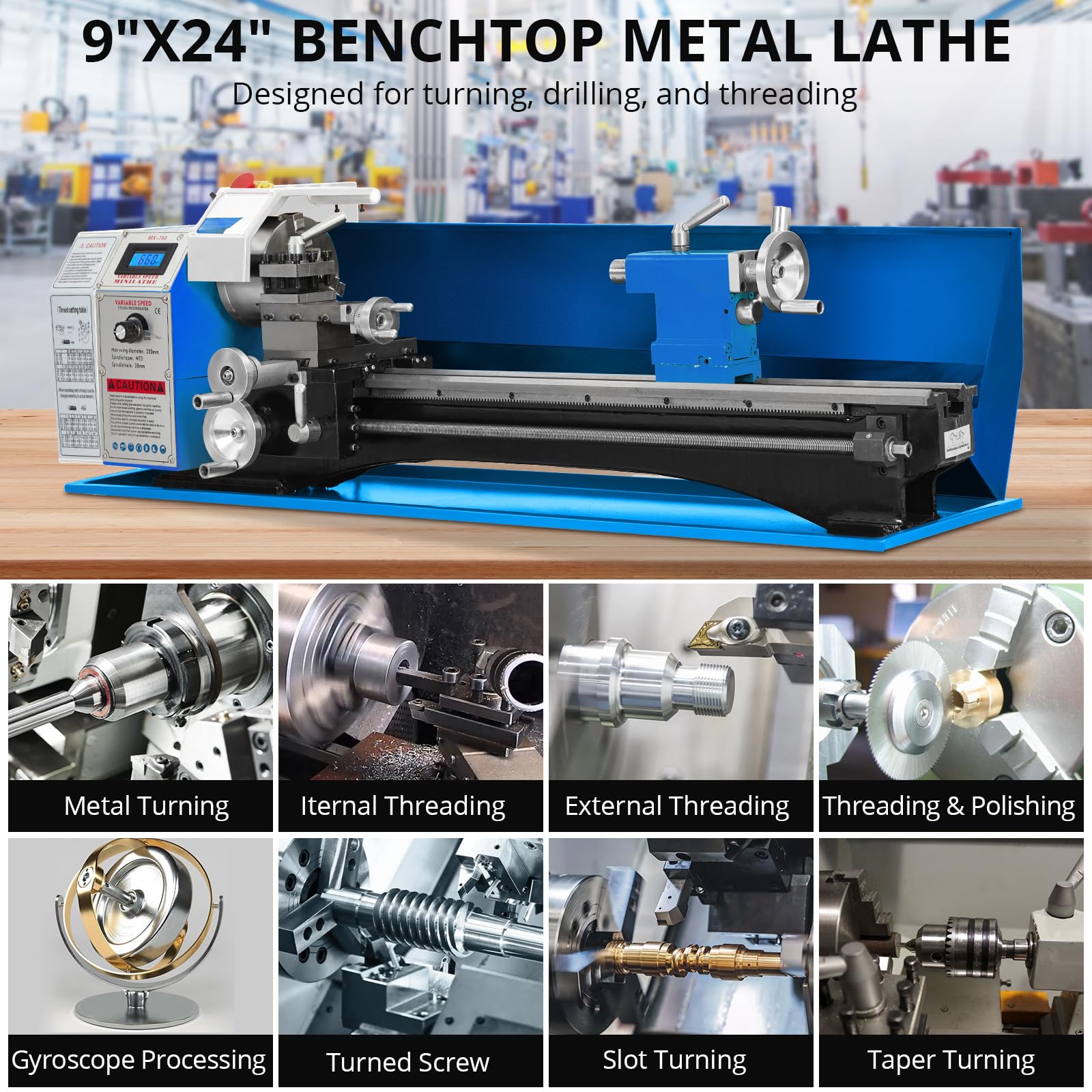

Wide Applications
Suitable for processing jobs, like counter face turning, driling, threading and cutting jobs on materials made up of round bar. All accessories are well packed.
Key Features

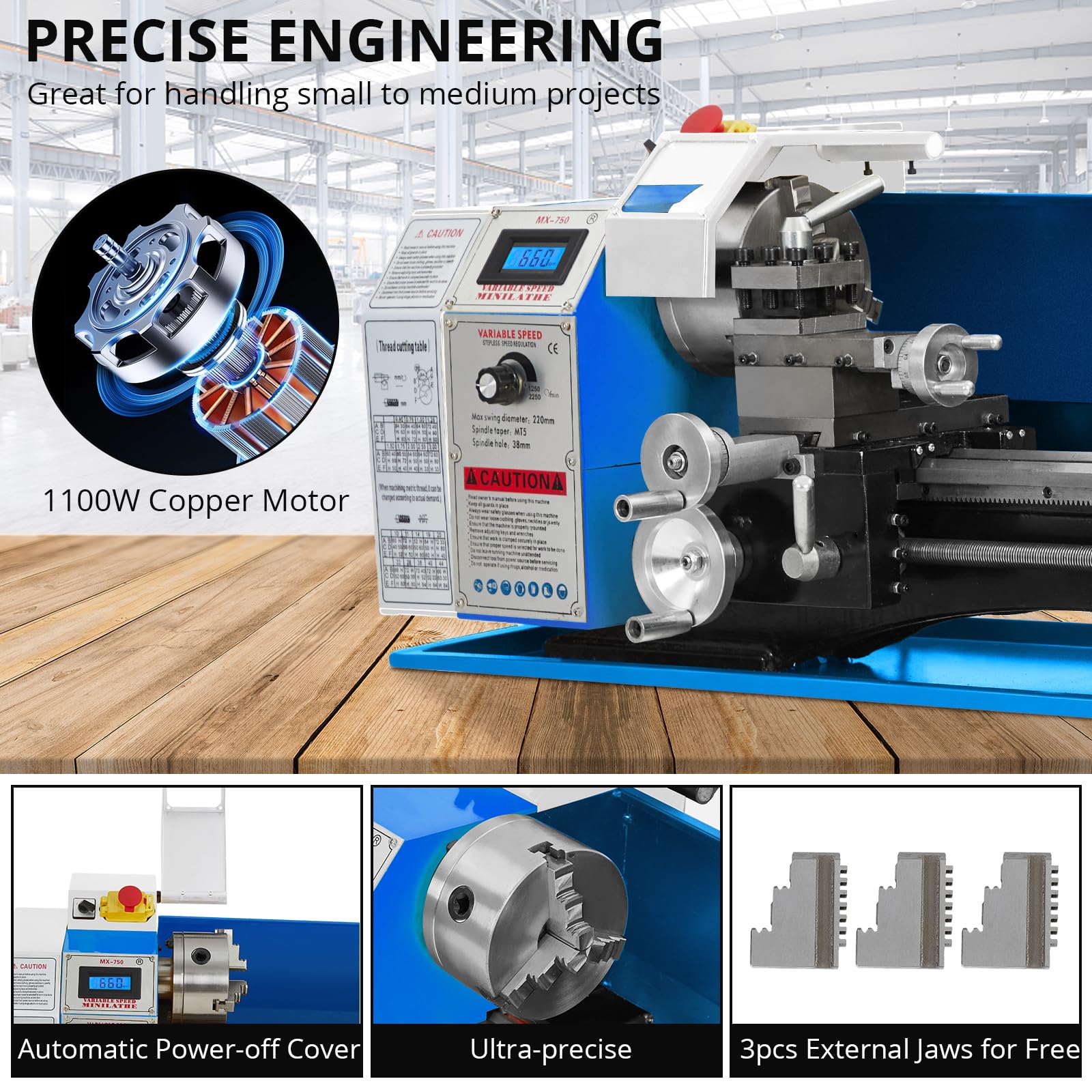

Premium Construction
Built from high-grade iron with wear-resistant metal gears and powerful 1100W motor for professional performance
Precise Speed Control
Variable speed settings (0-2250 RPM) with digital display for exact adjustments and complete project control
3-Jaw Self-Centering Chuck
5-inch chuck securely holds materials with precision tapered roller bearings for accuracy within 0.2mm
Professional Compound Rest
Easily adjust for internal, face, and bevel cutting with quick-change tool post for enhanced efficiency
Safety Features
Automatic power-off protection switch with full-length splashguard ensures safe working environment

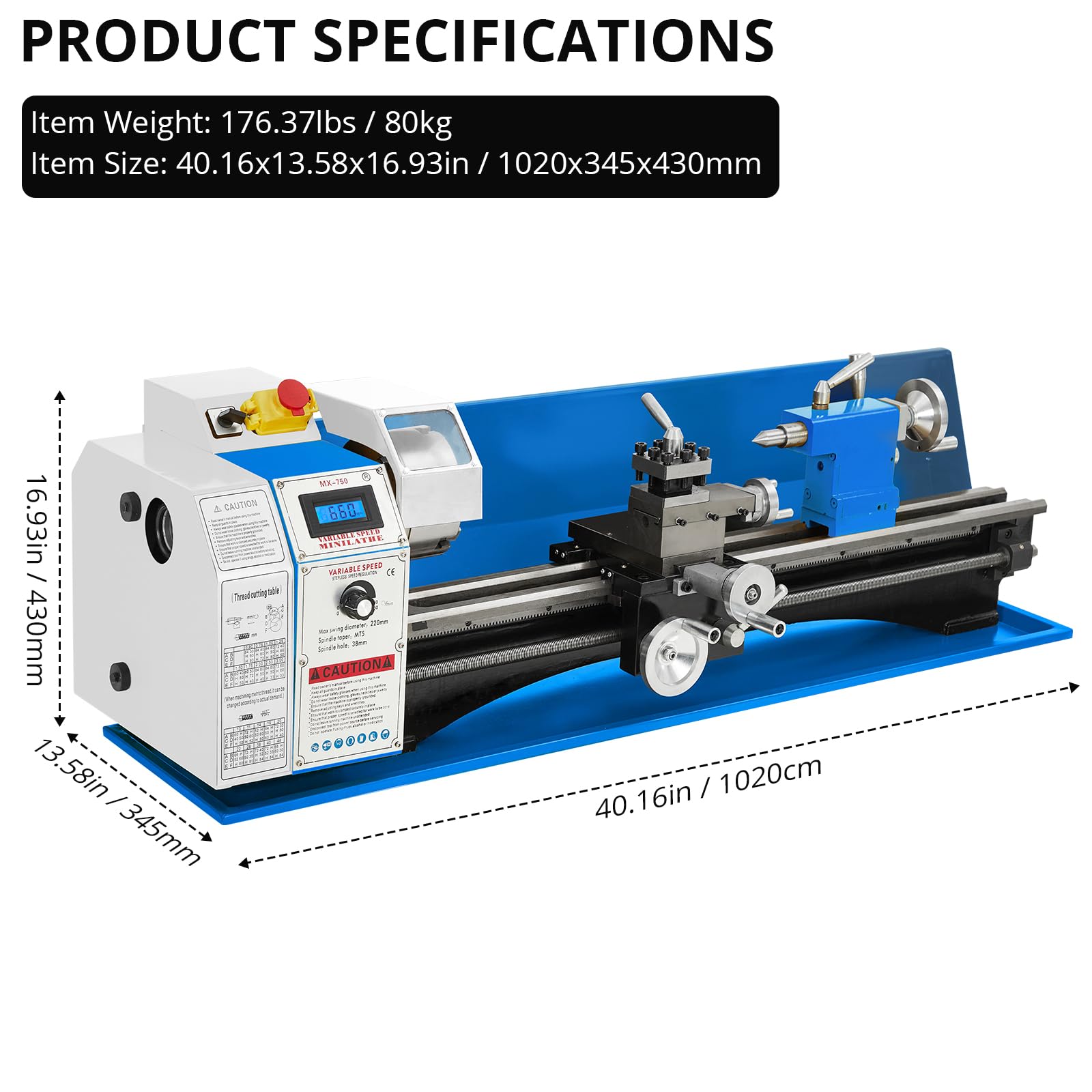

Specifications
| Brand | Garvee |
| Power of Motor | 1100W |
| Spindle Bore | 38mm(1.49") |
| Distance Between Centers | 600mm(23.62") |
| Swing Over Bed | 220mm(8.66") |
| Chuck Diameter | 125mm(4.92") |
| Taper Of Spindle | MT5 |
| Taper Of Tailstock | MT2 |
| Variable Speed | 50-2500PRM |
| Inch Thread | 10-44 T.P.I |
| Metric Thread | 0.5-3.0mm |
| Item Weight | 175.1 pounds |
