Garvee PTO Drive Shaft 1 3/8" PTO Shaft, 39"-55" Brush Hog PTO Shaft, 6 Spline End Round End PTO Driveline Shaft, Series 4 Tractor for Bush Hog,Finish Mower,Rotary Cutter
53 reviews
LABOR
$95.99$179.99-46%
$86.40
Sign in for Member Price | Save Now
Get Now
Save $25 When Spend $200
In Stock. Shipping From United States
Est. Delivery Time: Sep 01 - Sep 03
✨ AVAILABLE84 pieces available
Quantity
1
What We Offer
Accident and warranty protection by Xcotton (partner with AIG)
Free US Shipping
$
30 Day No- Hassle Returns12-Month Warranty
- INDUSTRIAL-GRADE RELIABILITY: CE-certified 20CrMnTi steel construction ensures long-lasting performance without frequent replacements.
- UNIVERSAL COMPATIBILITY: Standard 1-3/8 inch connections with 6-spline tractor end fit most agricultural equipment seamlessly.
- FLEXIBLE POWER DELIVERY: Adjustable length (39"-55") with dual speeds - 540 rpm (35 Hp) or 1000 rpm (53 Hp) for any task.
- SAFETY-FIRST DESIGN: Built-in security chain and shield with professional-grade universal joint for safe operation.
- VERSATILE WORKHORSE: One solution for all PTO equipment - works with mowers, chippers, tillers, and spreaders.
Description

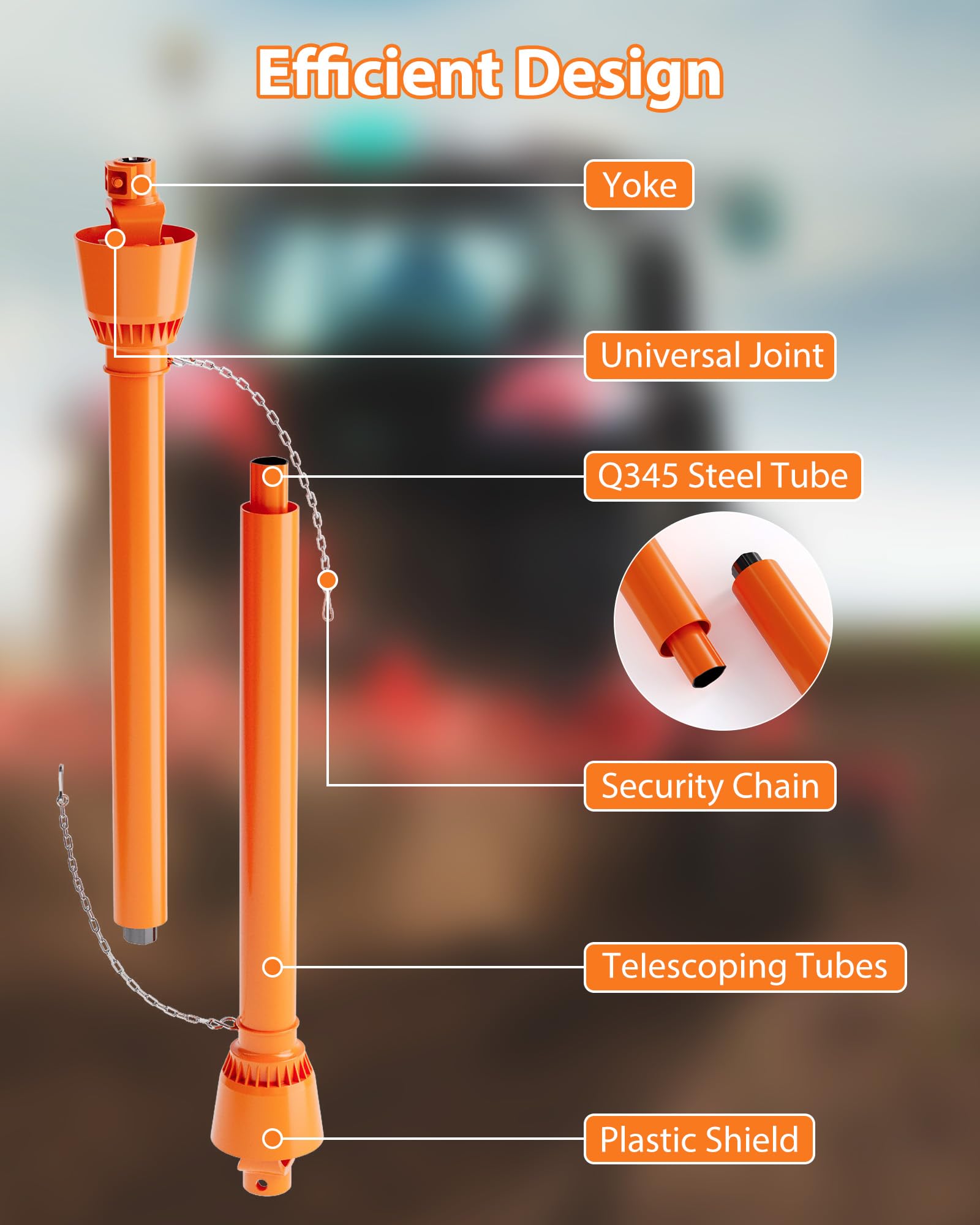

- 【Reliable and Durable】: This PTO shaft is a robust series 4 driveline shaft, professionally certified by CE. It features a solid 20CrMnTi carburized steel universal joint and a Q345 steel tube within the shield, ensuring durability and dependability when used with various agricultural machinery.

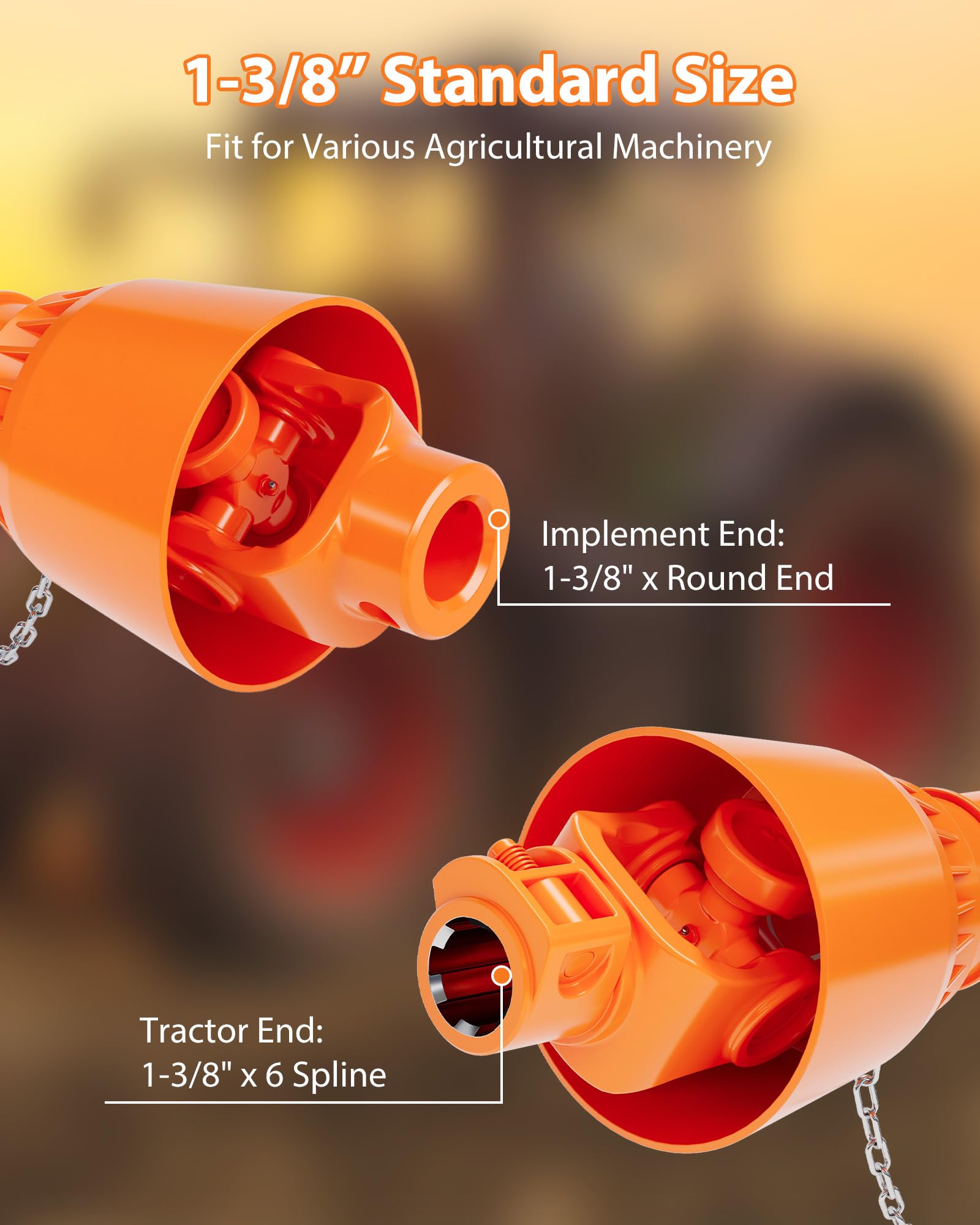

- 【Versatile Design】: With a 6-spline tractor end and a round implement end, our brush hog PTO shaft is standardized at 1-3/8 inches. It seamlessly matches implements and tractors of the same size and type, delivering exceptional driving force to your machinery for enhanced performance.

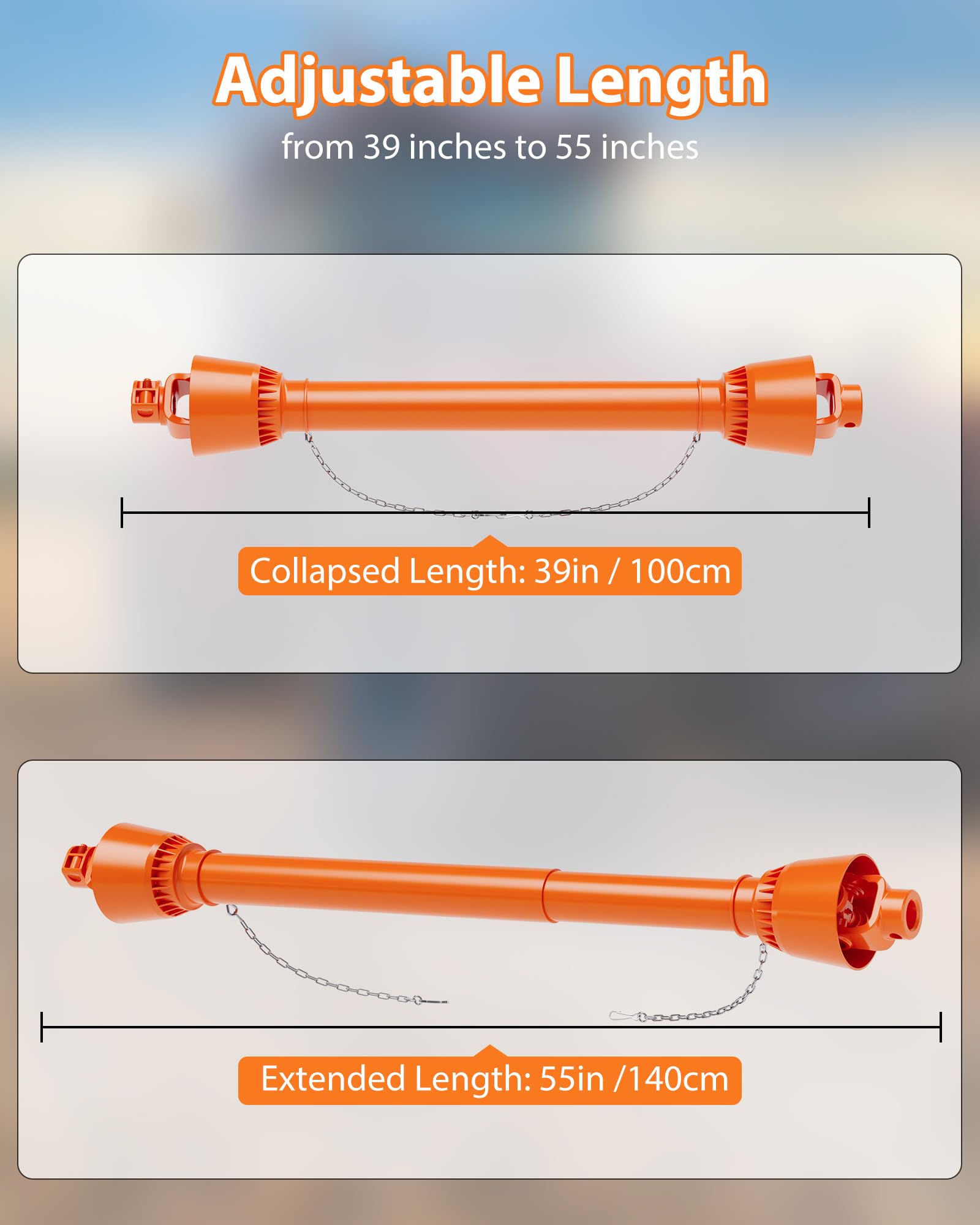

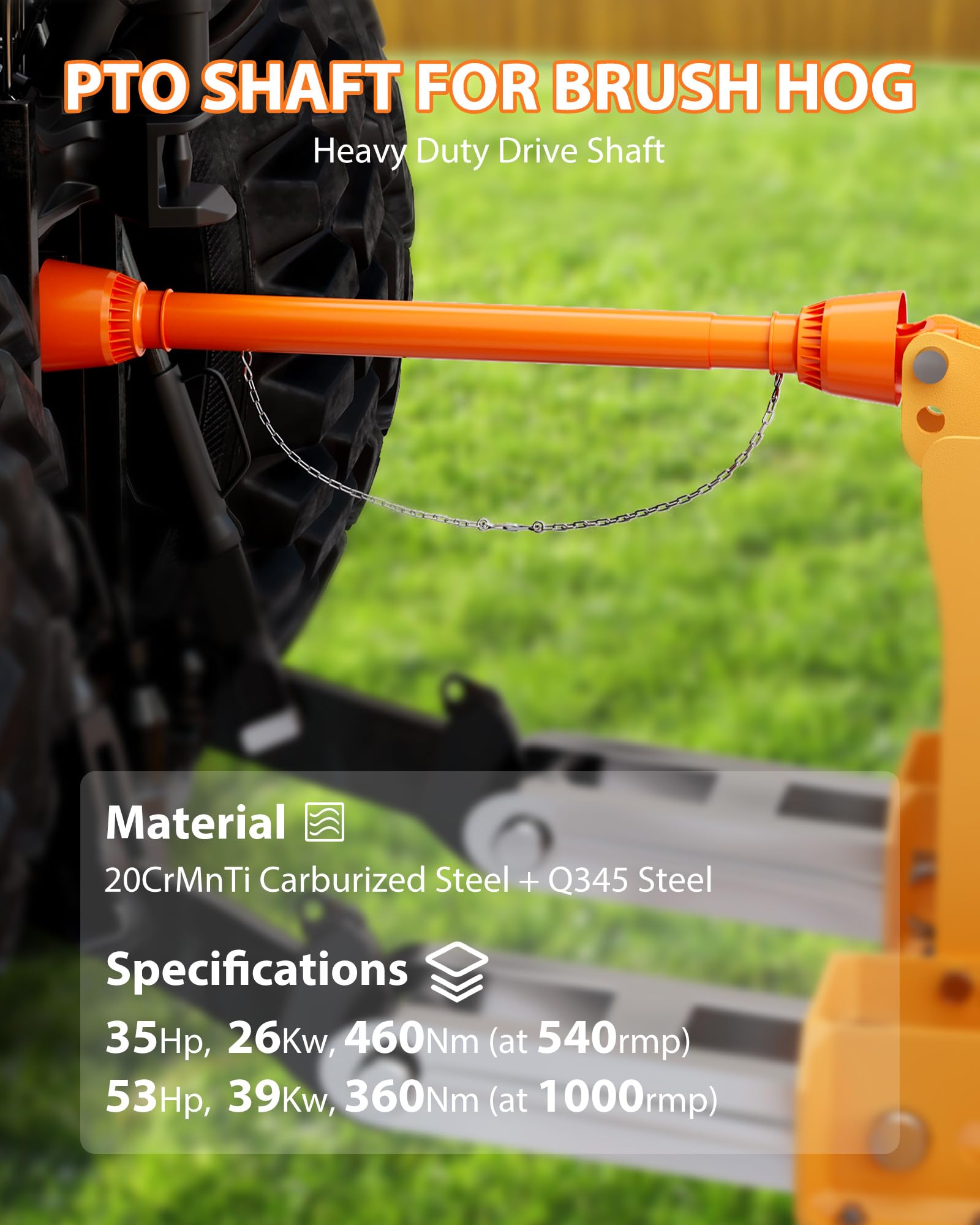

- 【Adjustable Length and Speed】: The tiller PTO shaft is equipped with a telescoping steel tube, a universal joint, and yokes, offering compressed and extended lengths of 39" / 1000 mm and 55" / 1400 mm. It provides 35 Hp, 26 Kw, and 460 Nm torque at 540 rpm, and 53 Hp, 39 Kw, and 360 Nm torque at 1000 rpm, enabling different speeds for two sides of the PTO driveline shaft.

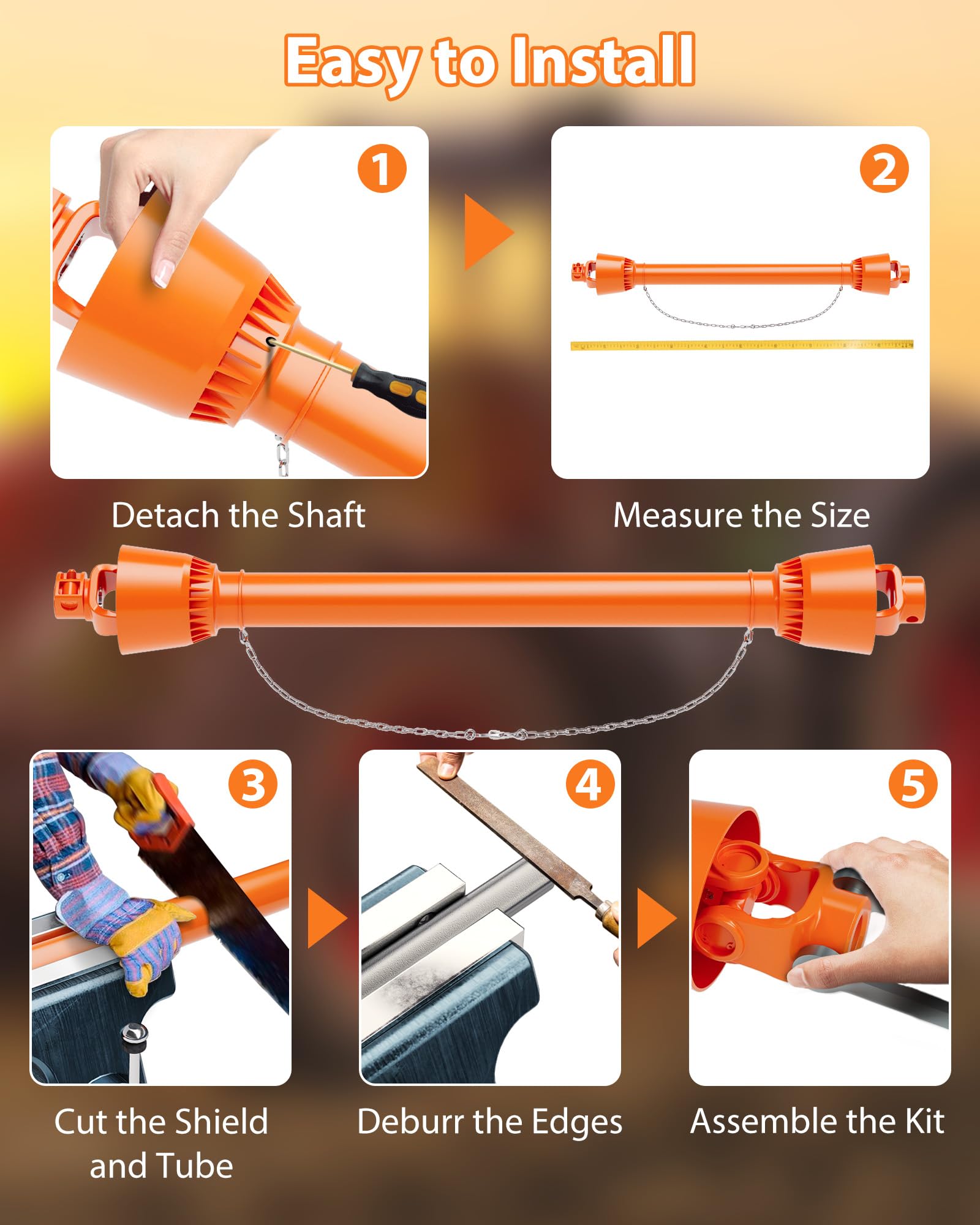

- 【Easy Assembly and Safer Use】: Our PTO extender shaft allows for easy assembly and direct replacement, serving as an efficient power transmission tool. It is equipped with a security chain and sturdy shield to eliminate potential hazards during the transmission process.
- 【Wide Range of Applications】: The PTO shaft transfers power from the tractor to PTO-powered attachments and finds extensive use in mowers, wood chippers, rotary tillers, rotary cutters, brush cutters, hush hogs, tractors, fertilizer spreaders, and more. It offers effective control over machine speed and power, providing powerful torque conversion and reliability.
Specifications
| Brand | GARVEE |
| Material | 20CrMnTi Carburized Steel + Q345 Steel |
| Collapsed Length | 39in / 100cm |
| Extended Length | 55in /140cm |
| Implement End | 1-3/8" x Round End |
| Tractor End | 1-3/8" x6 Spline |
| Item Weight | 26 Pounds |
| Included Components | 1 x PTO Drive Shaft |
